IslandPath Analysis: Streptococcus agalactiae 2603V/R

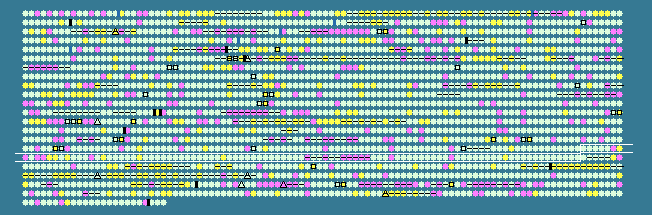

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.44   STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1594	 35.85	0	1641638..1642708	-	356	22537779	-	SAG1639	-	ABC transporter, ATP-binding protein
1595	 36.53	0	1642701..1644077	-	458	22537780	-	SAG1640	-	hypothetical protein
1596	 32.61	0	1644211..1645035	-	274	22537781	-	SAG1641	-	YaeC family protein
1597	 33.57	0	1645176..1646009	-	277	22537782	-	SAG1642	-	ABC transporter, substrate-binding protein
1598	 35.51	0	1646111..1646800	-	229	22537783	-	SAG1643	-	glutamine amidotransferase, class I
1599	 25.44	-2	1646794..1646907	-	37	22537784	-	SAG1644	-	hypothetical protein
1600	 39.61	+1	1646955..1647671	-	238	22537785	-	SAG1645	-	hypothetical protein
1601	 30.30	-1	1647697..1647795	-	32	22537786	-	SAG1646	-	hypothetical protein
1602	 36.88	0	1647789..1648775	-	328	22537787	-	SAG1647	-	dihydroxyacetone kinase family protein
1603	 25.70	-2	1648785..1649321	-	178	22537788	-	SAG1648	-	TetR family transcriptional regulator
1604	 28.95	-1	1649385..1649498	+	37	22537789	-	SAG1649	-	hypothetical protein
1605	 39.49	+1	1649495..1650484	+	329	22537790	-	SAG1650	-	dihydroxyacetone kinase family protein
1606	 39.03	0	1650522..1651100	+	192	22537791	-	SAG1651	-	dihydroxyacetone kinase family protein
1607	 34.93	0	1651100..1651474	+	124	22537792	-	SAG1652	-	hypothetical protein
1608	 41.18	+1	1651484..1652197	+	237	22537793	glpF-2	SAG1653	-	glycerol uptake facilitator protein
1609	 37.53	0	1652462..1652866	-	134	22537794	-	SAG1654	-	hypothetical protein
1610	 32.91	0	1653005..1653718	-	237	22537795	-	SAG1655	-	MerR family transcriptional regulator
1611	 38.38	0	1653811..1654920	-	369	22537796	-	SAG1656	-	hypothetical protein
1612	 28.57	-1	1654917..1655168	-	83	22537797	-	SAG1657	-	hypothetical protein
1613	 34.83	0	1655191..1655925	-	244	22537798	-	SAG1658	-	hypothetical protein
1614	 40.34	+1	1655991..1656347	-	118	22537799	-	SAG1659	-	iojap-related protein
1615	 32.18	0	1656349..1656870	-	173	22537800	-	SAG1660	-	isochorismatase family protein
1616	 36.73	0	1656933..1657520	-	195	22537801	-	SAG1661	-	hypothetical protein
1617	 35.70	0	1657517..1658149	-	210	22537802	nadD	SAG1662	-	nicotinic acid mononucleotide adenylyltransferase
1618	 34.28	0	1658279..1658596	-	105	22537803	-	SAG1663	-	hypothetical protein
1619	 36.01	0	1658689..1659807	-	372	22537804	-	SAG1664	-	GTP-binding protein YqeH
1620	 38.95	0	1659807..1660340	-	177	22537805	-	SAG1665	-	HAD superfamily hydrolase
1621	 34.75	0	1660451..1661365	-	304	22537806	-	SAG1666	-	hypothetical protein
1622	 36.87	0	1661495..1662937	-	480	22537807	gatB	SAG1667	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1623	 37.42	0	1662937..1664403	-	488	22537808	gatA	SAG1668	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1624	 37.95	0	1664403..1664705	-	100	22537809	gatC	SAG1669	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1625	 37.83	0	1664843..1667488	-	881	22537810	ppdK	SAG1670	-	pyruvate phosphate dikinase
1626	 33.57	0	1667501..1668331	-	276	22537811	-	SAG1671	-	hypothetical protein
1627	 35.48	0	1668342..1668854	-	170	22537812	-	SAG1672	-	CBS domain-containing protein
1628	 34.58	0	1669160..1670125	+	321	22537813	-	SAG1673	-	3-hydroxybutyryl-CoA dehydrogenase
1629	 36.43	0	1670172..1670720	-	182	22537814	-	SAG1674	-	isochorismatase family protein
1630	 35.62	0	1670787..1671572	-	261	22537815	-	SAG1675	-	transcriptional repressor CodY
1631	 37.62	0	1671698..1672909	-	403	22537816	-	SAG1676	-	aminotransferase AlaT
1632	 34.66	0	1673176..1673628	+	150	22537817	-	SAG1677	-	hypothetical protein
1633	 37.17	0	1673684..1675066	-	460	22537818	-	SAG1678	-	HAD superfamily hydrolase
1634	 39.88	+1	1675135..1676097	+	320	22537819	-	SAG1679	-	asparaginase family protein
1635	 34.93	0	1676132..1677010	-	292	22537820	aroE	SAG1680	-	shikimate 5-dehydrogenase
1636	 35.41	0	1677108..1678022	-	304	22537821	-	SAG1681	-	aldo/keto reductase family oxidoreductase
1637	 36.51	0	1678313..1680328	-	671	22537822	recG	SAG1682	-	ATP-dependent DNA helicase RecG
1638	 38.53	0	1680408..1681946	-	512	22537823	-	SAG1683	-	immunogenic secreted protein, putative
1639	 37.42	0	1682039..1683139	-	366	22537824	alr	SAG1684	-	alanine racemase
1640	 36.39	0	1683136..1683495	-	119	22537825	acpS	SAG1685	-	4'-phosphopantetheinyl transferase
1641	 34.52	0	1683520..1684527	-	335	22537826	-	SAG1686	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1642	 38.39	0	1684653..1687181	-	842	22537827	secA	SAG1687	-	preprotein translocase subunit SecA
1643	 34.92	0	1687290..1688237	-	315	22537828	manA	SAG1688	-	mannose-6-phosphate isomerase, class I
1644	 36.96	0	1688355..1689236	-	293	22537829	scrK	SAG1689	-	fructokinase
1645	 37.50	0	1689304..1691223	-	639	22537830	-	SAG1690	-	PTS system, IIABC components
1646	 35.49	0	1691408..1692847	+	479	22537831	scrB	SAG1691	-	sucrose-6-phosphate hydrolase
1647	 36.97	0	1692849..1693811	+	320	22537832	scrR	SAG1692	-	sucrose operon repressor ScrR
1648	 31.95	0	1693898..1694332	-	144	22537833	nusB	SAG1693	-	transcription antitermination protein NusB
1649	 36.67	0	1694325..1694714	-	129	22537834	-	SAG1694	-	hypothetical protein
1650	 36.19	0	1694803..1695363	-	186	22537835	efp	SAG1695	-	elongation factor P
1651	 30.77	-1	1695394..1695510	-	38	22537836	-	SAG1696	-	hypothetical protein
1652	 32.65	0	1696092..1696238	-	48	22537837	-	SAG1697	-	hypothetical protein
1653	 33.33	0	1696291..1696590	-	99	22537838	-	SAG1698	-	hypothetical protein
1654	 25.81	-2	1696643..1696735	-	30	22537839	-	SAG1699	-	hypothetical protein
1655	 26.41	-2	1697008..1697238	-	76	22537840	-	SAG1700	-	hypothetical protein
1656	 26.32	-2	1697251..1697421	-	56	22537841	-	SAG1701	-	hypothetical protein
1657	 21.43	-2	1697874..1697999	-	41	22537842	-	SAG1702	-	hypothetical protein
1658	 27.27	-2	1698010..1698174	-	54	22537843	-	SAG1703	-	hypothetical protein
1659	 38.41	0	1698476..1698928	-	150	22537844	-	SAG1704	-	cytidine/deoxycytidylate deaminase family protein
1660	 35.15	0	1700107..1700823	-	238	22537845	-	SAG1706	-	hypothetical protein
1661	 38.27	0	1700825..1702324	-	499	22537846	-	SAG1707	-	EmrB/QacA family drug resistance transporter
1662	 18.80	-2	1702412..1702528	-	38	22537847	-	SAG1708	-	hypothetical protein
1663	 38.67	0	1702660..1705488	-	942	22537848	uvrA	SAG1709	-	excinuclease ABC subunit A
1664	 36.46	0	1705620..1706291	-	223	22537849	-	SAG1710	-	hypothetical protein
1665	 35.03	0	1706316..1707260	-	314	22537850	-	SAG1711	-	magnesium transporter CorA family protein
1666	 38.75	0	1707430..1707669	-	79	22537851	rpsR	SAG1712	-	30S ribosomal protein S18
1667	 38.41	0	1707714..1708205	-	163	22537852	ssb-3	SAG1713	-	single-strand DNA-binding protein
1668	 36.11	0	1708217..1708504	-	95	22537853	rpsF	SAG1714	-	30S ribosomal protein S6
1669	 38.58	0	1709598..1710722	+	374	22537854	mutY	SAG1715	-	A/G-specific adenine glycosylase
1670	 34.51	0	1710899..1711492	+	197	22537855	-	SAG1716	-	Cro/CI family transcriptional regulator
1671	 35.87	0	1711538..1711852	-	104	22537856	trx	SAG1717	-	thioredoxin
1672	 31.94	0	1711933..1712433	-	166	22537857	-	SAG1718	-	PAP2 family protein
1673	 36.79	0	1712437..1714776	-	779	22537858	-	SAG1719	-	MutS2 family protein
1674	 32.41	0	1714861..1715403	-	180	22537859	-	SAG1720	-	hypothetical protein
1675	 32.37	0	1715406..1715717	-	103	22537860	-	SAG1721	-	hypothetical protein
1676	 34.79	0	1715828..1716721	+	297	22537861	rnhC	SAG1722	-	ribonuclease HIII
1677	 37.54	0	1716737..1717330	+	197	22537862	-	SAG1723	-	signal peptidase I
1678	 34.28	0	1717459..1719879	+	806	22537863	-	SAG1724	-	helicase, putative
1679	 34.78	0	1719993..1720475	+	160	22537864	-	SAG1725	-	hypothetical protein
1680	 36.07	0	1720546..1721640	-	364	22537865	dinP	SAG1726	-	DNA polymerase IV
1681	 39.13	0	1721825..1724137	+	770	22537866	pflD-2	SAG1727	-	formate acetyltransferase
1682	 36.53	0	1724238..1724612	+	124	22537867	-	SAG1728	-	FMN-binding protein
1683	 34.41	0	1724647..1725576	-	309	22537868	-	SAG1729	-	hypothetical protein
1684	 34.92	0	1725573..1726328	-	251	22537869	-	SAG1730	-	hypothetical protein
1685	 38.35	0	1726453..1727349	+	298	22537870	-	SAG1731	-	hypothetical protein
1686	 38.87	0	1727428..1728276	-	282	22537871	-	SAG1732	-	glycerol uptake facilitator protein, putative
1687	 36.42	0	1728444..1728896	-	150	22537872	-	SAG1733	-	universal stress protein
1688	 34.58	0	1728914..1730116	-	400	22537873	-	SAG1734	-	transporter, putative
1689	 32.27	0	1730273..1730932	+	219	22537874	-	SAG1735	-	Crp/FNR family transcriptional regulator
1690	 36.18	0	1730956..1733241	+	761	22537875	pepX	SAG1736	-	x-prolyl-dipeptidyl aminopeptidase
1691	 33.06	0	1733245..1733604	+	119	22537876	-	SAG1737	-	hypothetical protein
1692	 36.60	0	1733650..1734630	+	326	22537877	-	SAG1738	-	polyprenyl synthetase family protein
1693	 36.42	0	1734715..1736463	-	582	22537878	cydC	SAG1739	-	ABC transporter, ATP-binding protein CydC
35.44	MEAN

3.78	STD DEV
