IslandPath Analysis: Streptococcus agalactiae 2603V/R

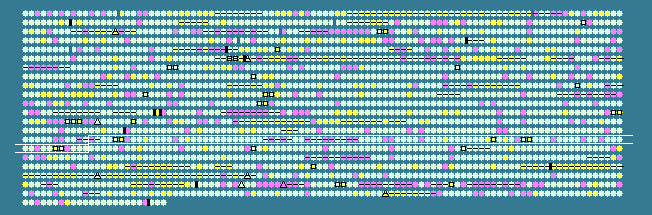

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1412	 31.91	0	1467525..1469069	-	514	22537597	-	SAG1452	-	hypothetical protein
1413	 32.60	0	1469069..1470298	-	409	22537598	secY	SAG1453	-	preprotein translocase subunit SecY
1414	 32.66	0	1470422..1471618	-	398	22537599	-	SAG1454	-	hypothetical protein
1415	 32.66	0	1471679..1472566	-	295	22537600	-	SAG1455	-	glycosyl transferase, group 2 family protein
1416	 38.46	0	1473647..1474036	-	129	22537601	-	SAG1457	-	IS1381 transposase protein B
1417	 39.06	0	1474069..1474452	-	127	22537602	-	SAG1458	-	IS1381 transposase protein A
1418	 31.16	-1	1474581..1475822	-	413	22537603	-	SAG1459	-	glycosyl transferase family protein
1419	 32.01	0	1475819..1477024	-	401	22537604	-	SAG1460	-	glycosyl transferase family protein
1420	 36.81	0	1477033..1478040	-	335	22537605	-	SAG1461	-	hypothetical protein
1421	 41.26	+1	1478371..1481283	-	970	22537606	-	SAG1462	-	cell wall surface anchor family protein
1422	 37.15	0	1483259..1485250	-	663	22537607	uvrB	SAG1464	-	excinuclease ABC subunit B
1423	 34.85	0	1485311..1486231	-	306	22537608	-	SAG1465	-	protease, putative
1424	 36.72	0	1486414..1488597	+	727	22537609	glnP	SAG1466	-	glutamine ABC transporter, glutamine-binding protein/permease protein
1425	 37.11	0	1488597..1489337	+	246	22537610	-	SAG1467	-	glutamine ABC transporter, ATP-binding protein, GlnQ putative
1426	 25.36	-2	1489486..1489836	+	116	22537611	-	SAG1468	-	hypothetical protein
1427	 34.59	0	1489928..1490086	-	52	22537612	-	SAG1469	-	hypothetical protein
1428	 41.28	+1	1490112..1491419	-	435	161485613	obgE	SAG1470	-	GTPase ObgE
1429	 34.88	0	1491486..1491614	-	42	22537614	-	SAG1471	-	hypothetical protein
1430	 38.65	0	1491811..1493052	+	413	22537615	pepS	SAG1472	-	aminopeptidase PepS
1431	 35.92	0	1493086..1493664	-	192	22537616	-	SAG1473	-	cell wall surface anchor family protein
1432	 36.22	0	1493774..1495816	-	680	22537617	-	SAG1474	-	amidase family protein
1433	 33.47	0	1495901..1496623	-	240	22537618	rsuA	SAG1475	-	ribosomal small subunit pseudouridine synthase A
1434	 34.99	0	1496814..1497656	-	280	22537619	-	SAG1476	-	aldo/keto reductase family oxidoreductase
1435	 37.19	0	1497923..1498597	+	224	22537620	-	SAG1477	-	nitroreductase family protein
1436	 35.37	0	1498685..1499077	+	130	22537621	gloA	SAG1478	-	lactoylglutathione lyase
1437	 36.14	0	1499206..1500132	+	308	22537622	-	SAG1479	-	glycosyl transferase, group 2 family protein
1438	 37.37	0	1500261..1501649	+	462	22537623	-	SAG1480	-	amino acid permease
1439	 35.47	0	1501733..1502200	-	155	22537624	smpB	SAG1481	-	SsrA-binding protein
1440	 37.70	0	1502203..1504608	-	801	22537625	vacB	SAG1482	-	VacB/Rnb family exoribonuclease
1441	 32.07	0	1504721..1504957	-	78	22537626	secG	SAG1483	-	preprotein translocase subunit SecG
1442	 30.61	-1	1505004..1505150	-	48	22537627	rpmG	SAG1484	-	50S ribosomal protein L33
1443	 37.09	0	1505147..1506316	-	389	22537628	-	SAG1485	-	multi-drug resistance protein
1444	 30.30	-1	1506512..1508158	-	548	22537629	-	SAG1486	-	hypothetical protein
1445	 34.05	0	1508148..1508849	-	233	22537630	-	SAG1487	-	ABC transporter, ATP binding protein
1446	 34.52	0	1508973..1509560	-	195	22537631	coaE	SAG1488	-	dephospho-CoA kinase
1447	 36.50	0	1509557..1510378	-	273	22537632	mutM	SAG1489	-	formamidopyrimidine-DNA glycosylase
1448	 29.68	-1	1510527..1511375	-	282	22537633	-	SAG1490	-	MutR family transcriptional regulator
1449	 34.97	0	1511592..1513184	+	530	22537634	-	SAG1491	-	hypothetical protein
1450	 37.85	0	1513220..1513396	+	58	22537635	-	SAG1492	-	hypothetical protein
1451	 31.84	0	1513447..1513647	-	66	22537636	-	SAG1493	-	hypothetical protein
1452	 30.30	-1	1513840..1513938	-	32	22537637	-	SAG1494	-	hypothetical protein
1453	 34.96	0	1514173..1514418	-	81	22537638	-	SAG1495	-	CAAX amino terminal protease family protein
1454	 35.74	0	1514446..1514778	-	110	22537639	-	SAG1496	-	hypothetical protein
1455	 28.07	-1	1514880..1514993	-	37	22537640	-	SAG1497	-	hypothetical protein
1456	 26.87	-2	1515157..1515558	-	133	22537641	-	SAG1498	-	hypothetical protein
1457	 36.33	0	1515795..1516694	-	299	22537642	era	SAG1499	-	GTP-binding protein Era
1458	 32.58	0	1516736..1517134	-	132	22537643	dgkA	SAG1500	-	diacylglycerol kinase
1459	 33.95	0	1517115..1517600	-	161	22537644	-	SAG1501	-	putative metalloprotease
1460	 32.47	0	1518007..1518813	-	268	22537645	-	SAG1502	-	tetracenomycin polyketide synthesis O-methyltransferase TcmP, putative
1461	 30.00	-1	1518858..1518977	-	39	22537646	-	SAG1503	-	hypothetical protein
1462	 26.50	-2	1519014..1519130	-	38	22537647	-	SAG1504	-	hypothetical protein
1463	 33.33	0	1519135..1519611	-	158	22537648	-	SAG1505	-	MutT/nudix family protein
1464	 34.20	0	1519803..1520606	+	267	22537649	-	SAG1506	-	hypothetical protein
1465	 36.51	0	1520697..1521734	-	345	22537650	-	SAG1507	-	PhoH family protein
1466	 36.04	0	1521807..1523579	-	590	22537651	-	SAG1508	-	67 kDa Myosin-crossreactive streptococcal antigen
1467	 31.94	0	1523736..1523951	-	71	22537652	-	SAG1509	-	hypothetical protein
1468	 38.43	0	1523948..1524457	-	169	22537653	msrA	SAG1510	-	methionine sulfoxide reductase A
1469	 36.61	0	1524595..1525449	-	284	22537654	-	SAG1511	-	hypothetical protein
1470	 35.84	0	1525567..1526124	-	185	22537655	frr	SAG1512	-	ribosome recycling factor
1471	 39.92	+1	1526140..1526868	-	242	22537656	pyrH	SAG1513	-	uridylate kinase
1472	 33.04	0	1526989..1527669	-	226	22537657	-	SAG1514	-	peptide ABC transporter, ATP-binding protein
1473	 35.61	0	1527656..1528444	-	262	22537658	-	SAG1515	-	peptide ABC transporter, ATP-binding protein
1474	 34.38	0	1528432..1529199	-	255	22537659	-	SAG1516	-	peptide ABC transporter, permease protein
1475	 34.92	0	1529238..1530182	-	314	22537660	-	SAG1517	-	peptide ABC transporter, permease protein
1476	 35.50	0	1530169..1531785	-	538	22537661	-	SAG1518	-	peptide ABC transporter, peptide-binding protein
1477	 38.55	0	1532174..1532863	-	229	22537662	rplA	SAG1519	-	50S ribosomal protein L1
1478	 39.44	+1	1532967..1533392	-	141	22537663	rplK	SAG1520	-	50S ribosomal protein L11
1479	 41.47	+1	1533654..1534820	+	388	22537664	-	SAG1521	-	IS30 family transposase
1480	 34.78	0	1535154..1536536	-	460	22537665	-	SAG1522	-	major facilitator transporter
1481	 39.92	+1	1536544..1537758	-	404	22537666	-	SAG1523	-	M20/M25/M40 family peptidase
1482	 36.05	0	1538037..1538921	+	294	22537667	-	SAG1524	-	LysR family transcriptional regulator
1483	 24.86	-2	1538982..1539335	+	117	22537668	-	SAG1525	-	hypothetical protein
1484	 38.18	0	1539406..1539942	+	178	22537669	-	SAG1526	-	IS861, transposase OrfA
1485	 41.97	+1	1539918..1540751	+	277	22537670	-	SAG1527	-	IS861, transposase OrfB
1486	 34.85	0	1540800..1542515	-	571	22537671	-	SAG1528	-	chorismate binding enzyme
1487	 37.82	0	1542597..1545047	-	816	22537672	-	SAG1529	-	FtsK/SpoIIIE family protein
1488	 34.20	0	1545213..1546016	+	267	22537673	-	SAG1530	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
1489	 31.18	-1	1546068..1546901	-	277	22537674	-	SAG1531	-	manganese ABC transporter, permease protein
1490	 36.40	0	1546903..1547619	-	238	22537675	-	SAG1532	-	manganese ABC transporter, ATP-binding protein
1491	 33.12	0	1547790..1548716	-	308	22537676	-	SAG1533	-	manganese ABC transporter, manganese-binding adhesion liprotein
1492	 33.64	0	1548883..1549530	+	215	22537677	-	SAG1534	-	iron-dependent transcriptional regulator
1493	 38.12	0	1549570..1550259	-	229	22537678	pfs	SAG1535	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1494	 31.85	0	1550269..1550538	-	89	22537679	-	SAG1536	-	hypothetical protein
1495	 37.30	0	1550538..1551092	-	184	22537680	-	SAG1537	-	MutT/nudix family protein
1496	 36.81	0	1551113..1552492	-	459	22537681	glmU	SAG1538	-	UDP-N-acetylglucosamine pyrophosphorylase
1497	 29.17	-1	1552634..1552729	+	31	22537682	-	SAG1539	-	hypothetical protein
1498	 38.16	0	1552736..1553149	-	137	22537683	-	SAG1540	-	hypothetical protein
1499	 34.39	0	1553162..1553539	-	125	22537684	-	SAG1541	-	glyoxalase family protein
1500	 35.42	0	1553628..1554584	-	318	22537685	-	SAG1542	-	Gfo/Idh/MocA family oxidoreductase
1501	 38.77	0	1555271..1555969	-	232	22537686	fabG	SAG1544	-	3-ketoacyl-(acyl-carrier-protein) reductase
1502	 37.55	0	1555962..1556198	-	78	22537687	-	SAG1545	-	hypothetical protein
1503	 30.12	-1	1556288..1556536	-	82	22537688	-	SAG1546	-	hypothetical protein
1504	 35.53	0	1556734..1557234	-	166	22537689	-	SAG1547	-	acetyltransferase
1505	 34.28	0	1557474..1558742	-	422	22537690	-	SAG1548	-	glycosyl transferase, group 2 family protein
1506	 39.06	0	1558750..1559133	+	127	22537691	-	SAG1549	-	IS1381 transposase protein A
1507	 38.46	0	1559166..1559555	+	129	22537692	-	SAG1550	-	IS1381 transposase protein B
1508	 29.90	-1	1559544..1559747	-	67	22537693	-	SAG1551	-	hypothetical protein
1509	 35.05	0	1559887..1562046	-	719	22537694	-	SAG1552	-	hypothetical protein
1510	 33.75	0	1562053..1563486	-	477	22537695	-	SAG1553	-	hypothetical protein
1511	 34.07	0	1563491..1564168	-	225	22537696	-	SAG1554	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
