IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

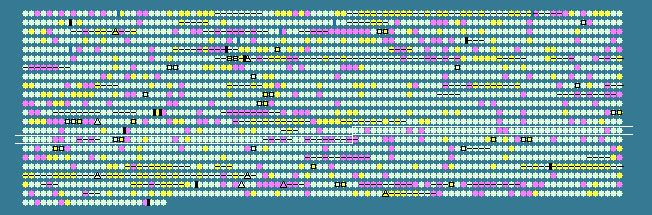

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1356	 35.87	0	1402684..1403709	+	341	22537541	-	SAG1394	-	iron compound ABC transporter, permease protein
1357	 34.93	0	1403706..1404707	+	333	22537542	-	SAG1395	-	iron compound ABC transporter, permease protein
1358	 29.36	-1	1404736..1405389	-	217	22537543	-	SAG1396	-	hypothetical protein
1359	 36.75	0	1405449..1406384	-	311	22537544	ppa	SAG1397	-	putative manganese-dependent inorganic pyrophosphatase
1360	 35.74	0	1406501..1407289	-	262	22537545	pflA-2	SAG1398	-	pyruvate formate-lyase-activating enzyme
1361	 36.18	0	1407357..1408691	-	444	22537546	-	SAG1399	-	CBS domain-containing protein
1362	 34.57	0	1408871..1409437	-	188	22537547	-	SAG1400	-	hypothetical protein
1363	 36.32	0	1409430..1410365	-	311	22537548	-	SAG1401	-	hypothetical protein
1364	 33.64	0	1410458..1411099	-	213	22537549	-	SAG1402	-	PAP2 family protein
1365	 31.45	-1	1411080..1411664	-	194	22537550	-	SAG1403	-	hypothetical protein
1366	 34.41	0	1411965..1412891	-	308	22537551	-	SAG1404	-	cell wall surface anchor family protein
1367	 31.53	-1	1412888..1413772	-	294	22537552	-	SAG1405	-	sortase family protein
1368	 32.43	0	1413772..1414653	-	293	22537553	-	SAG1406	-	sortase family protein
1369	 37.02	0	1414765..1416882	-	705	22537554	-	SAG1407	-	cell wall surface anchor family protein
1370	 32.37	0	1417012..1419717	-	901	22537555	-	SAG1408	-	cell wall surface anchor family protein
1371	 33.95	0	1421579..1422718	-	379	22537556	-	SAG1410	-	glycosyl transferase, group 1 family protein
1372	 32.63	0	1422708..1423556	-	282	22537557	-	SAG1411	-	glycosyl transferase, group 2 family protein
1373	 33.82	0	1423553..1424977	-	474	22537558	-	SAG1412	-	polysaccharide biosynthesis protein
1374	 33.55	0	1424977..1426341	-	454	22537559	-	SAG1413	-	hypothetical protein
1375	 32.79	0	1426343..1427269	-	308	22537560	-	SAG1414	-	glycosyl transferase, group 2 family protein
1376	 34.19	0	1427299..1428234	-	311	22537561	-	SAG1415	-	glycosyl transferase, group 2 family protein
1377	 33.43	0	1428236..1429294	-	352	22537562	-	SAG1416	-	nucleotide sugar dehydratase, putative
1378	 36.51	0	1429294..1430016	-	240	22537563	-	SAG1417	-	nucleotidyl transferase, putative
1379	 35.88	0	1430016..1430840	-	274	22537564	-	SAG1418	-	polysaccharide biosynthesis protein, putative
1380	 29.99	-1	1430865..1432598	-	577	22537565	-	SAG1419	-	hypothetical protein
1381	 30.79	-1	1432591..1432944	-	117	22537566	-	SAG1420	-	hypothetical protein
1382	 36.20	0	1432941..1433672	-	243	22537567	-	SAG1421	-	glycosyl transferase, group 2 family protein
1383	 32.80	0	1433674..1434615	-	313	22537568	-	SAG1422	-	glycosyl transferase, group 2 family protein
1384	 34.63	0	1434605..1435759	-	384	22537569	-	SAG1423	-	glycosyl transferase, putative
1385	 38.48	0	1435876..1436730	-	284	22537570	rfbD	SAG1424	-	dTDP-4-dehydrorhamnose reductase
1386	 38.01	0	1436820..1437161	-	113	22537571	-	SAG1425	-	hypothetical protein
1387	 38.20	0	1437270..1438379	-	369	22537572	rpoD	SAG1426	-	RNA polymerase sigma factor RpoD
1388	 34.60	0	1438387..1440195	-	602	22537573	dnaG	SAG1427	-	DNA primase
1389	 34.39	0	1440385..1440762	+	125	22537574	mscL	SAG1428	-	large conductance mechanosensitive channel protein
1390	 36.72	0	1440859..1441035	-	58	22537575	rpsU	SAG1429	-	30S ribosomal protein S21
1391	 32.14	0	1441139..1441642	-	167	22537576	-	SAG1430	-	hypothetical protein
1392	 35.94	0	1441725..1442531	-	268	22537577	-	SAG1431	-	amino acid ABC transporter, amino acid-binding protein
1393	 35.82	0	1442856..1443899	-	347	22537578	-	SAG1432	-	ammonium transporter family protein
1394	 35.11	0	1443979..1445106	+	375	22537579	-	SAG1433	-	hypothetical protein
1395	 37.59	0	1445143..1446129	-	328	22537580	-	SAG1434	-	hypothetical protein
1396	 32.68	0	1446292..1446597	+	101	22537581	-	SAG1435	-	hypothetical protein
1397	 37.12	0	1446755..1448128	-	457	22537582	-	SAG1436	-	glycerol-3-phosphate transporter, putative
1398	 20.83	-2	1448236..1448403	+	55	22537583	-	SAG1437	-	hypothetical protein
1399	 32.80	0	1448544..1450808	-	754	22537584	glgP	SAG1438	-	glycogen phosphorylase
1400	 37.01	0	1450820..1452316	-	498	22537585	malQ	SAG1439	-	4-alpha-glucanotransferase
1401	 33.82	0	1452437..1453465	-	342	22537586	-	SAG1440	-	maltose operon repressor MalR, putative
1402	 36.94	0	1453721..1454968	+	415	22537587	-	SAG1441	-	maltose/maltodextrin ABC transporter, maltose/maltodextrin-binding protein
1403	 35.38	0	1455066..1456436	+	456	22537588	-	SAG1442	-	maltose ABC transporter, permease protein
1404	 35.96	0	1456436..1457272	+	278	22537589	-	SAG1443	-	maltose ABC transporter, permease protein
1405	 36.59	0	1457503..1458975	+	490	22537590	-	SAG1444	-	proton/peptide symporter family protein
1406	 27.51	-2	1459557..1459745	-	62	22537591	-	SAG1446	-	hypothetical protein
1407	 31.75	0	1459756..1461081	-	441	22537592	-	SAG1447	-	hypothetical protein
1408	 33.80	0	1461074..1462582	-	502	22537593	-	SAG1448	-	glycosyl transferase, group 1 family protein
1409	 36.47	0	1462596..1464983	-	795	22537594	-	SAG1449	-	preprotein translocase subunit SecA
1410	 31.72	0	1464970..1465962	-	330	22537595	-	SAG1450	-	hypothetical protein
1411	 34.81	0	1465959..1467443	-	494	22537596	-	SAG1451	-	hypothetical protein
1412	 31.91	0	1467525..1469069	-	514	22537597	-	SAG1452	-	hypothetical protein
1413	 32.60	0	1469069..1470298	-	409	22537598	secY	SAG1453	-	preprotein translocase subunit SecY
1414	 32.66	0	1470422..1471618	-	398	22537599	-	SAG1454	-	hypothetical protein
1415	 32.66	0	1471679..1472566	-	295	22537600	-	SAG1455	-	glycosyl transferase, group 2 family protein
1416	 38.46	0	1473647..1474036	-	129	22537601	-	SAG1457	-	IS1381 transposase protein B
1417	 39.06	0	1474069..1474452	-	127	22537602	-	SAG1458	-	IS1381 transposase protein A
1418	 31.16	-1	1474581..1475822	-	413	22537603	-	SAG1459	-	glycosyl transferase family protein
1419	 32.01	0	1475819..1477024	-	401	22537604	-	SAG1460	-	glycosyl transferase family protein
1420	 36.81	0	1477033..1478040	-	335	22537605	-	SAG1461	-	hypothetical protein
1421	 41.26	+1	1478371..1481283	-	970	22537606	-	SAG1462	-	cell wall surface anchor family protein
1422	 37.15	0	1483259..1485250	-	663	22537607	uvrB	SAG1464	-	excinuclease ABC subunit B
1423	 34.85	0	1485311..1486231	-	306	22537608	-	SAG1465	-	protease, putative
1424	 36.72	0	1486414..1488597	+	727	22537609	glnP	SAG1466	-	glutamine ABC transporter, glutamine-binding protein/permease protein
1425	 37.11	0	1488597..1489337	+	246	22537610	-	SAG1467	-	glutamine ABC transporter, ATP-binding protein, GlnQ putative
1426	 25.36	-2	1489486..1489836	+	116	22537611	-	SAG1468	-	hypothetical protein
1427	 34.59	0	1489928..1490086	-	52	22537612	-	SAG1469	-	hypothetical protein
1428	 41.28	+1	1490112..1491419	-	435	161485613	obgE	SAG1470	-	GTPase ObgE
1429	 34.88	0	1491486..1491614	-	42	22537614	-	SAG1471	-	hypothetical protein
1430	 38.65	0	1491811..1493052	+	413	22537615	pepS	SAG1472	-	aminopeptidase PepS
1431	 35.92	0	1493086..1493664	-	192	22537616	-	SAG1473	-	cell wall surface anchor family protein
1432	 36.22	0	1493774..1495816	-	680	22537617	-	SAG1474	-	amidase family protein
1433	 33.47	0	1495901..1496623	-	240	22537618	rsuA	SAG1475	-	ribosomal small subunit pseudouridine synthase A
1434	 34.99	0	1496814..1497656	-	280	22537619	-	SAG1476	-	aldo/keto reductase family oxidoreductase
1435	 37.19	0	1497923..1498597	+	224	22537620	-	SAG1477	-	nitroreductase family protein
1436	 35.37	0	1498685..1499077	+	130	22537621	gloA	SAG1478	-	lactoylglutathione lyase
1437	 36.14	0	1499206..1500132	+	308	22537622	-	SAG1479	-	glycosyl transferase, group 2 family protein
1438	 37.37	0	1500261..1501649	+	462	22537623	-	SAG1480	-	amino acid permease
1439	 35.47	0	1501733..1502200	-	155	22537624	smpB	SAG1481	-	SsrA-binding protein
1440	 37.70	0	1502203..1504608	-	801	22537625	vacB	SAG1482	-	VacB/Rnb family exoribonuclease
1441	 32.07	0	1504721..1504957	-	78	22537626	secG	SAG1483	-	preprotein translocase subunit SecG
1442	 30.61	-1	1505004..1505150	-	48	22537627	rpmG	SAG1484	-	50S ribosomal protein L33
1443	 37.09	0	1505147..1506316	-	389	22537628	-	SAG1485	-	multi-drug resistance protein
1444	 30.30	-1	1506512..1508158	-	548	22537629	-	SAG1486	-	hypothetical protein
1445	 34.05	0	1508148..1508849	-	233	22537630	-	SAG1487	-	ABC transporter, ATP binding protein
1446	 34.52	0	1508973..1509560	-	195	22537631	coaE	SAG1488	-	dephospho-CoA kinase
1447	 36.50	0	1509557..1510378	-	273	22537632	mutM	SAG1489	-	formamidopyrimidine-DNA glycosylase
1448	 29.68	-1	1510527..1511375	-	282	22537633	-	SAG1490	-	MutR family transcriptional regulator
1449	 34.97	0	1511592..1513184	+	530	22537634	-	SAG1491	-	hypothetical protein
1450	 37.85	0	1513220..1513396	+	58	22537635	-	SAG1492	-	hypothetical protein
1451	 31.84	0	1513447..1513647	-	66	22537636	-	SAG1493	-	hypothetical protein
1452	 30.30	-1	1513840..1513938	-	32	22537637	-	SAG1494	-	hypothetical protein
1453	 34.96	0	1514173..1514418	-	81	22537638	-	SAG1495	-	CAAX amino terminal protease family protein
1454	 35.74	0	1514446..1514778	-	110	22537639	-	SAG1496	-	hypothetical protein
1455	 28.07	-1	1514880..1514993	-	37	22537640	-	SAG1497	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
