IslandPath Analysis: Streptococcus agalactiae 2603V/R

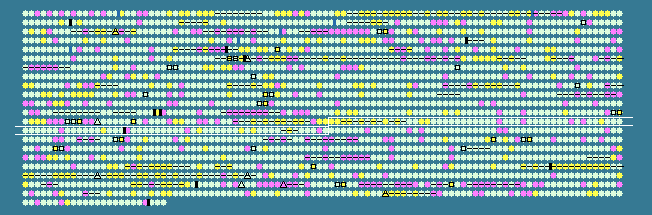

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1252	 41.87	+1	1303556..1304410	-	284	22537437	-	SAG1289	-	Tn5252, Orf23
1253	 45.27	+2	1304429..1304671	-	80	22537438	-	SAG1290	-	hypothetical protein
1254	 39.26	+1	1306506..1306994	-	162	22537439	-	SAG1292	-	hypothetical protein
1255	 39.15	0	1307071..1307655	-	194	22537440	-	SAG1293	-	protease, putative
1256	 35.04	0	1307658..1307891	-	77	22537441	-	SAG1294	-	hypothetical protein
1257	 40.62	+1	1307900..1308283	-	127	22537442	-	SAG1295	-	hypothetical protein
1258	 38.46	0	1308294..1308722	-	142	22537443	-	SAG1296	-	hypothetical protein
1259	 44.40	+2	1308706..1310061	-	451	22537444	-	SAG1297	-	C-5 cytosine-specific DNA methylase
1260	 33.33	0	1310113..1310208	-	31	22537445	-	SAG1298	-	hypothetical protein
1261	 40.42	+1	1310210..1311028	-	272	22537446	-	SAG1299	-	hypothetical protein
1262	 37.93	0	1311025..1311198	-	57	22537447	-	SAG1300	-	hypothetical protein
1263	 39.34	+1	1311397..1311762	-	121	22537448	rplL	SAG1301	-	50S ribosomal protein L7/L12
1264	 38.32	0	1311826..1312326	-	166	22537449	rplJ	SAG1302	-	50S ribosomal protein L10
1265	 38.17	0	1312759..1314867	+	702	22537450	-	SAG1303	-	ATP-dependent Clp protease, ATP-binding subunit
1266	 35.35	0	1314851..1314949	-	32	22537451	-	SAG1304	-	hypothetical protein
1267	 44.44	+2	1314960..1315904	-	314	22537452	mmuM	SAG1305	-	homocysteine methyltransferase
1268	 43.72	+2	1315909..1317285	-	458	22537453	-	SAG1306	-	amino acid permease
1269	 35.48	0	1317415..1318065	-	216	22537454	-	SAG1307	-	hypothetical protein
1270	 36.11	0	1318223..1318726	-	167	22537455	-	SAG1308	-	hypothetical protein
1271	 32.26	0	1318723..1318815	-	30	22537456	-	SAG1309	-	hypothetical protein
1272	 35.15	0	1318818..1319366	+	182	22537457	-	SAG1310	-	TetR family transcriptional regulator
1273	 38.53	0	1319428..1320024	-	198	22537458	-	SAG1311	-	GTPase EngB
1274	 38.63	0	1320035..1321261	-	408	22537459	clpX	SAG1312	-	ATP-dependent protease ATP-binding subunit
1275	 33.33	0	1321291..1321461	-	56	22537460	-	SAG1313	-	hypothetical protein
1276	 35.15	0	1321479..1321973	-	164	22537461	folA	SAG1314	-	dihydrofolate reductase
1277	 34.64	0	1322053..1322892	-	279	22537462	thyA	SAG1315	-	thymidylate synthase
1278	 35.04	0	1323046..1324218	+	390	22537463	-	SAG1316	-	HMG-CoA synthase
1279	 38.32	0	1324220..1325503	+	427	22537464	-	SAG1317	-	3-hydroxy-3-methylglutaryl-CoA reductase
1280	 31.56	-1	1325595..1326044	+	149	22537465	-	SAG1318	-	hypothetical protein
1281	 36.28	0	1326049..1326693	+	214	22537466	-	SAG1319	-	hemolysin III, putative
1282	 37.16	0	1326780..1327694	+	304	22537467	-	SAG1320	-	hypothetical protein
1283	 36.37	0	1327795..1328649	+	284	22537468	-	SAG1321	-	hypothetical protein
1284	 31.51	-1	1328695..1328913	-	72	22537469	-	SAG1322	-	hypothetical protein
1285	 37.05	0	1328981..1329976	-	331	22537470	-	SAG1323	-	isopentenyl pyrophosphate isomerase
1286	 35.45	0	1329973..1330965	-	330	22537471	-	SAG1324	-	phosphomevalonate kinase
1287	 37.04	0	1330958..1331902	-	314	22537472	mvaD	SAG1325	-	diphosphomevalonate decarboxylase
1288	 37.43	0	1331884..1332762	-	292	22537473	-	SAG1326	-	mevalonate kinase, putative
1289	 33.58	0	1332878..1334107	-	409	22537474	-	SAG1327	-	sensor histidine kinase
1290	 36.97	0	1334107..1334793	-	228	22537475	-	SAG1328	-	DNA-binding response regulator
1291	 34.77	0	1334795..1335421	-	208	22537476	-	SAG1329	-	GTP pyrophosphokinase family protein
1292	 24.15	-2	1335570..1335776	-	68	22537477	-	SAG1330	-	hypothetical protein
1293	 37.21	0	1336428..1339367	-	979	22537478	-	SAG1331	-	R5 protein
1294	 31.29	-1	1340126..1340566	-	146	22537479	-	SAG1332	-	MarR family transcriptional regulator
1295	 36.37	0	1340840..1342912	+	690	22537480	-	SAG1333	-	5'-nucleotidase family protein
1296	 34.55	0	1342949..1343359	-	136	22537481	-	SAG1334	-	peptide deformylase
1297	 39.41	+1	1343429..1344778	-	449	22537482	gdhA	SAG1335	-	glutamate dehydrogenase
1298	 35.49	0	1344946..1345455	+	169	22537483	-	SAG1336	-	hypothetical protein
1299	 35.48	0	1345496..1347265	-	589	22537484	-	SAG1337	-	ABC transporter, ATP-binding/permease protein
1300	 36.90	0	1347270..1349009	-	579	22537485	-	SAG1338	-	ABC transporter, ATP-binding/permease protein
1301	 38.19	0	1349076..1349549	-	157	22537486	-	SAG1339	-	acetyltransferase
1302	 33.76	0	1349546..1351414	-	622	22537487	-	SAG1340	-	ABC transporter, ATP-binding protein
1303	 34.99	0	1351425..1352633	-	402	22537488	-	SAG1341	-	tRNA CCA-pyrophosphorylase
1304	 35.34	0	1352818..1353666	-	282	22537489	-	SAG1342	-	DegV family protein
1305	 36.22	0	1353666..1354046	-	126	22537490	-	SAG1343	-	hypothetical protein
1306	 32.21	0	1354118..1354651	-	177	22537491	-	SAG1344	-	hypothetical protein
1307	 28.08	-1	1354702..1355196	-	164	22537492	-	SAG1345	-	hypothetical protein
1308	 38.58	0	1355385..1357349	-	654	22537493	-	SAG1346	-	PTS system, fructose specific IIABC components
1309	 36.62	0	1357346..1358257	-	303	22537494	fruK	SAG1347	-	1-phosphofructokinase
1310	 33.33	0	1358254..1358997	-	247	22537495	lacR-1	SAG1348	-	lactose phosphotransferase system repressor
1311	 32.77	0	1359128..1360363	-	411	22537496	-	SAG1349	-	beta-lactam resistance factor
1312	 34.74	0	1360507..1362141	-	544	22537497	-	SAG1350	-	surface antigen-related protein
1313	 35.28	0	1362353..1363276	-	307	22537498	-	SAG1351	-	2-dehydropantoate 2-reductase
1314	 39.12	0	1363289..1364359	-	356	22537499	-	SAG1352	-	hypothetical protein
1315	 35.45	0	1364496..1365488	-	330	22537500	-	SAG1353	-	pyridine nucleotide-disulphide oxidoreductase family protein
1316	 36.38	0	1365469..1366224	-	251	22537501	trmD	SAG1354	-	tRNA (guanine-N(1)-)-methyltransferase
1317	 34.49	0	1366211..1366729	-	172	22537502	rimM	SAG1355	-	16S rRNA-processing protein
1318	 29.37	-1	1367051..1368562	-	503	22537503	-	SAG1356	-	RofA family transcriptional regulator
1319	 36.63	0	1368694..1368936	-	80	22537504	-	SAG1357	-	KH domain-containing protein
1320	 37.36	0	1368946..1369218	-	90	22537505	rpsP	SAG1358	-	30S ribosomal protein S16
1321	 36.38	0	1369347..1370594	-	415	22537506	-	SAG1359	-	permease, putative
1322	 36.01	0	1370609..1371319	-	236	22537507	-	SAG1360	-	ABC transporter, ATP-binding protein
1323	 35.02	0	1371322..1372566	-	414	22537508	-	SAG1361	-	hypothetical protein
1324	 32.15	0	1372768..1374366	-	532	22537509	-	SAG1362	-	carbamoyl-phosphate synthase, large subunit, putative
1325	 37.63	0	1374422..1375492	-	356	22537510	carA-2	SAG1363	-	carbamoyl phosphate synthase small subunit
1326	 35.25	0	1375541..1376062	-	173	22537511	pyrR	SAG1364	-	pyrimidine regulatory protein PyrR
1327	 38.38	0	1376238..1377128	-	296	22537512	-	SAG1365	-	ribosomal large subunit pseudouridine synthase D
1328	 28.17	-1	1377112..1377576	-	154	22537513	lspA	SAG1366	-	lipoprotein signal peptidase
1329	 34.88	0	1377585..1378490	-	301	22537514	-	SAG1367	-	LysR family transcriptional regulator
1330	 43.51	+2	1378706..1378990	-	94	22537515	rpmA	SAG1368	-	50S ribosomal protein L27
1331	 34.22	0	1379021..1379359	-	112	22537516	-	SAG1369	-	hypothetical protein
1332	 37.46	0	1379366..1379680	-	104	22537517	rplU	SAG1370	-	50S ribosomal protein L21
1333	 34.27	0	1379870..1381048	-	392	22537518	-	SAG1371	-	hypothetical protein
1334	 36.87	0	1381150..1382364	-	404	22537519	thiI	SAG1372	-	thiamine biosynthesis protein ThiI
1335	 35.78	0	1382366..1383511	-	381	22537520	iscS-2	SAG1373	-	cysteine desulphurase
1336	 33.55	0	1383758..1384210	+	150	22537521	-	SAG1374	-	hypothetical protein
1337	 39.19	0	1384253..1385602	-	449	22537522	gor	SAG1375	-	glutathione reductase
1338	 36.61	0	1385777..1386112	-	111	22537523	-	SAG1376	-	hypothetical protein
1339	 40.45	+1	1386196..1387362	-	388	22537524	aroC	SAG1377	-	chorismate synthase
1340	 37.17	0	1387363..1388430	-	355	22537525	aroB	SAG1378	-	3-dehydroquinate synthase
1341	 35.40	0	1388524..1389201	-	225	22537526	aroD	SAG1379	-	3-dehydroquinate dehydratase
1342	 32.47	0	1389201..1390358	-	385	22537527	-	SAG1380	-	hypothetical protein
1343	 34.55	0	1390493..1392637	+	714	22537528	-	SAG1381	-	sulfatase
1344	 38.89	0	1392879..1393238	-	119	22537529	rplT	SAG1382	-	50S ribosomal protein L20
1345	 41.29	+1	1393296..1393496	-	66	22537530	rpmI	SAG1383	-	50S ribosomal protein L35
1346	 36.72	0	1393536..1394066	-	176	22537531	infC	SAG1384	-	translation initiation factor IF-3
1347	 37.13	0	1394227..1394910	-	227	22537532	cmk	SAG1385	-	cytidylate kinase
1348	 37.52	0	1394921..1395445	-	174	22537533	-	SAG1386	-	hypothetical protein
1349	 32.83	0	1395491..1395688	+	65	22537534	-	SAG1387	-	ferredoxin, 4Fe-4S
1350	 31.10	-1	1395675..1396166	-	163	22537535	-	SAG1388	-	hypothetical protein
1351	 35.38	0	1396195..1397415	-	406	22537536	pepT	SAG1389	-	peptidase T
35.44	MEAN

3.78	STD DEV
