IslandPathversion 1.0

IslandPath Analysis: Streptococcus agalactiae 2603V/R

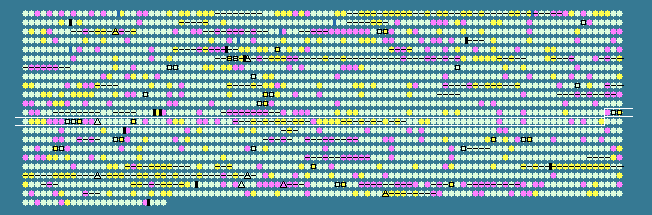

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1198	 30.65	-1	1237291..1237887	+	198	22537383	-	SAG1227	-	hypothetical protein
1199	 38.83	0	1238076..1238366	+	96	22537384	-	SAG1228	-	ISSdy1, transposase OrfA
1200	 41.41	+1	1238402..1239181	+	259	22537385	-	SAG1229	-	ISSdy1, transposase OrfB
1201	 36.43	0	1239405..1239695	+	96	22537386	-	SAG1230	-	hypothetical protein
1202	 40.02	+1	1241015..1243483	-	822	22537387	-	SAG1233	-	streptococcal histidine triad family protein
1203	 40.17	+1	1243496..1244416	-	306	22537388	lmb	SAG1234	-	laminin-binding surface protein
1204	 44.13	+2	1244650..1245927	-	425	22537389	-	SAG1235	-	GBSi1, group II intron, maturase
1205	 30.64	-1	1250615..1251949	-	444	22537390	-	SAG1237	-	hypothetical protein
1206	 30.54	-1	1252057..1252665	-	202	22537391	-	SAG1238	-	hypothetical protein
1207	 27.71	-2	1252715..1252945	-	76	22537392	-	SAG1239	-	hypothetical protein
1208	 35.51	0	1253409..1253684	+	91	22537393	-	SAG1241	-	IS3 family transposase OrfA
1209	 38.49	0	1254003..1254293	+	96	22537394	-	SAG1243	-	ISSdy1, transposase OrfA
1210	 41.28	+1	1254329..1255108	+	259	22537395	-	SAG1244	-	ISSdy1, transposase OrfB
1211	 29.06	-1	1255213..1255329	-	38	22537396	-	SAG1245	-	hypothetical protein
1212	 25.13	-2	1255316..1256485	+	389	22537397	-	SAG1246	-	hypothetical protein
1213	 32.25	0	1256680..1257879	-	399	22537398	-	SAG1247	-	phage integrase family site specific recombinase
1214	 34.65	0	1257902..1258129	-	75	22537399	-	SAG1248	-	hypothetical protein
1215	 33.78	0	1258408..1258632	-	74	22537400	-	SAG1249	-	Cro/CI family transcriptional regulator
1216	 32.10	0	1258813..1260678	-	621	22537401	-	SAG1250	-	Tn5252, relaxase
1217	 34.43	0	1260665..1261030	-	121	22537402	-	SAG1251	-	Tn5252, ORF 9 protein
1218	 34.71	0	1261037..1261399	-	120	22537403	-	SAG1252	-	Tn5252, ORF 10 protein
1219	 39.14	0	1261820..1263127	-	435	22537404	-	SAG1253	-	ISL3 family transposase
1220	 36.56	0	1263287..1264927	-	546	22537405	merA-1	SAG1254	-	mercuric reductase
1221	 31.55	-1	1264956..1265348	-	130	22537406	merR-1	SAG1255	-	mercuric resistance operon regulatory protein MerR
1222	 37.61	0	1266612..1268741	-	709	22537407	-	SAG1257	-	cation transporter E1-E2 family ATPase
1223	 33.88	0	1268734..1269102	-	122	22537408	cadC	SAG1258	-	cadmium efflux system accessory protein
1224	 36.33	0	1269305..1269604	+	99	22537409	-	SAG1259	-	hypothetical protein
1225	 30.29	-1	1269658..1270446	-	262	22537410	-	SAG1260	-	hypothetical protein
1226	 42.55	+1	1270455..1271051	+	198	22537411	-	SAG1261	-	hypothetical protein
1227	 44.06	+2	1271225..1273312	-	695	22537412	-	SAG1262	-	cation transporter E1-E2 family ATPase
1228	 35.35	0	1274268..1274714	-	148	22537413	-	SAG1264	-	transcriptional repressor CopY, putative
1229	 37.84	0	1275139..1275759	-	206	22537414	-	SAG1265	-	cadmium resistance transporter, putative
1230	 28.98	-1	1276299..1276757	+	152	22537415	-	SAG1266	-	hypothetical protein
1231	 29.66	-1	1276791..1277117	+	108	22537416	-	SAG1267	-	hypothetical protein
1232	 36.22	0	1277301..1277993	+	230	22537417	-	SAG1268	-	repressor protein, putative
1233	 26.67	-2	1277996..1278130	+	44	22537418	-	SAG1269	-	hypothetical protein
1234	 38.49	0	1278136..1279551	+	471	22537419	-	SAG1270	-	ImpB/MucB/SamB family protein
1235	 36.18	0	1279548..1279898	+	116	22537420	-	SAG1271	-	hypothetical protein
1236	 31.72	0	1279885..1280193	+	102	22537421	-	SAG1272	-	hypothetical protein
1237	 34.73	0	1280202..1280558	-	118	22537422	-	SAG1273	-	hypothetical protein
1238	 36.15	0	1280548..1280937	-	129	22537423	-	SAG1274	-	hypothetical protein
1239	 39.91	+1	1280934..1281161	-	75	22537424	-	SAG1275	-	hypothetical protein
1240	 38.07	0	1281215..1282291	-	358	22537425	-	SAG1276	-	hypothetical protein
1241	 41.06	+1	1282330..1282821	-	163	22537426	-	SAG1277	-	hypothetical protein
1242	 32.65	0	1283064..1283354	-	96	22537427	-	SAG1278	-	hypothetical protein
1243	 39.00	0	1283368..1283667	-	99	22537428	-	SAG1279	-	hypothetical protein
1244	 41.10	+1	1283738..1290562	-	2274	22537429	-	SAG1280	-	SNF2 family protein
1245	 38.04	0	1290611..1291162	-	183	22537430	-	SAG1281	-	hypothetical protein
1246	 42.71	+1	1291146..1291337	-	63	22537431	-	SAG1282	-	calcium-binding protein, putative
1247	 41.71	+1	1291338..1296233	-	1631	22537432	ssp-5	SAG1283	-	agglutinin receptor
1248	 33.67	0	1296512..1297102	+	196	22537433	abiGI	SAG1284	-	abortive infection protein AbiGI
1249	 31.80	0	1297099..1297944	+	281	22537434	abiGII	SAG1285	-	abortive infection protein AbiGII
1250	 41.68	+1	1298030..1300831	-	933	22537435	-	SAG1286	-	Tn5252, Orf28
1251	 40.58	+1	1300833..1303163	-	776	22537436	-	SAG1287	-	Tn5252, Orf26
1252	 41.87	+1	1303556..1304410	-	284	22537437	-	SAG1289	-	Tn5252, Orf23
1253	 45.27	+2	1304429..1304671	-	80	22537438	-	SAG1290	-	hypothetical protein
1254	 39.26	+1	1306506..1306994	-	162	22537439	-	SAG1292	-	hypothetical protein
1255	 39.15	0	1307071..1307655	-	194	22537440	-	SAG1293	-	protease, putative
1256	 35.04	0	1307658..1307891	-	77	22537441	-	SAG1294	-	hypothetical protein
1257	 40.62	+1	1307900..1308283	-	127	22537442	-	SAG1295	-	hypothetical protein
1258	 38.46	0	1308294..1308722	-	142	22537443	-	SAG1296	-	hypothetical protein
1259	 44.40	+2	1308706..1310061	-	451	22537444	-	SAG1297	-	C-5 cytosine-specific DNA methylase
1260	 33.33	0	1310113..1310208	-	31	22537445	-	SAG1298	-	hypothetical protein
1261	 40.42	+1	1310210..1311028	-	272	22537446	-	SAG1299	-	hypothetical protein
1262	 37.93	0	1311025..1311198	-	57	22537447	-	SAG1300	-	hypothetical protein
1263	 39.34	+1	1311397..1311762	-	121	22537448	rplL	SAG1301	-	50S ribosomal protein L7/L12
1264	 38.32	0	1311826..1312326	-	166	22537449	rplJ	SAG1302	-	50S ribosomal protein L10
1265	 38.17	0	1312759..1314867	+	702	22537450	-	SAG1303	-	ATP-dependent Clp protease, ATP-binding subunit
1266	 35.35	0	1314851..1314949	-	32	22537451	-	SAG1304	-	hypothetical protein
1267	 44.44	+2	1314960..1315904	-	314	22537452	mmuM	SAG1305	-	homocysteine methyltransferase
1268	 43.72	+2	1315909..1317285	-	458	22537453	-	SAG1306	-	amino acid permease
1269	 35.48	0	1317415..1318065	-	216	22537454	-	SAG1307	-	hypothetical protein
1270	 36.11	0	1318223..1318726	-	167	22537455	-	SAG1308	-	hypothetical protein
1271	 32.26	0	1318723..1318815	-	30	22537456	-	SAG1309	-	hypothetical protein
1272	 35.15	0	1318818..1319366	+	182	22537457	-	SAG1310	-	TetR family transcriptional regulator
1273	 38.53	0	1319428..1320024	-	198	22537458	-	SAG1311	-	GTPase EngB
1274	 38.63	0	1320035..1321261	-	408	22537459	clpX	SAG1312	-	ATP-dependent protease ATP-binding subunit
1275	 33.33	0	1321291..1321461	-	56	22537460	-	SAG1313	-	hypothetical protein
1276	 35.15	0	1321479..1321973	-	164	22537461	folA	SAG1314	-	dihydrofolate reductase
1277	 34.64	0	1322053..1322892	-	279	22537462	thyA	SAG1315	-	thymidylate synthase
1278	 35.04	0	1323046..1324218	+	390	22537463	-	SAG1316	-	HMG-CoA synthase
1279	 38.32	0	1324220..1325503	+	427	22537464	-	SAG1317	-	3-hydroxy-3-methylglutaryl-CoA reductase
1280	 31.56	-1	1325595..1326044	+	149	22537465	-	SAG1318	-	hypothetical protein
1281	 36.28	0	1326049..1326693	+	214	22537466	-	SAG1319	-	hemolysin III, putative
1282	 37.16	0	1326780..1327694	+	304	22537467	-	SAG1320	-	hypothetical protein
1283	 36.37	0	1327795..1328649	+	284	22537468	-	SAG1321	-	hypothetical protein
1284	 31.51	-1	1328695..1328913	-	72	22537469	-	SAG1322	-	hypothetical protein
1285	 37.05	0	1328981..1329976	-	331	22537470	-	SAG1323	-	isopentenyl pyrophosphate isomerase
1286	 35.45	0	1329973..1330965	-	330	22537471	-	SAG1324	-	phosphomevalonate kinase
1287	 37.04	0	1330958..1331902	-	314	22537472	mvaD	SAG1325	-	diphosphomevalonate decarboxylase
1288	 37.43	0	1331884..1332762	-	292	22537473	-	SAG1326	-	mevalonate kinase, putative
1289	 33.58	0	1332878..1334107	-	409	22537474	-	SAG1327	-	sensor histidine kinase
1290	 36.97	0	1334107..1334793	-	228	22537475	-	SAG1328	-	DNA-binding response regulator
1291	 34.77	0	1334795..1335421	-	208	22537476	-	SAG1329	-	GTP pyrophosphokinase family protein
1292	 24.15	-2	1335570..1335776	-	68	22537477	-	SAG1330	-	hypothetical protein
1293	 37.21	0	1336428..1339367	-	979	22537478	-	SAG1331	-	R5 protein
1294	 31.29	-1	1340126..1340566	-	146	22537479	-	SAG1332	-	MarR family transcriptional regulator
1295	 36.37	0	1340840..1342912	+	690	22537480	-	SAG1333	-	5'-nucleotidase family protein
1296	 34.55	0	1342949..1343359	-	136	22537481	-	SAG1334	-	peptide deformylase
1297	 39.41	+1	1343429..1344778	-	449	22537482	gdhA	SAG1335	-	glutamate dehydrogenase
35.44	MEAN

3.78	STD DEV
