IslandPath Analysis: Streptococcus agalactiae 2603V/R

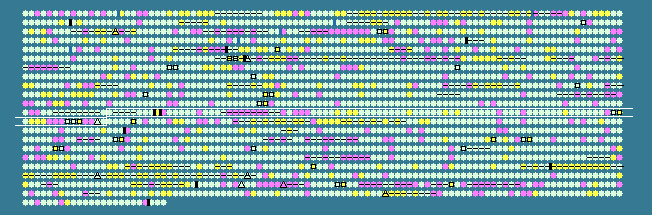

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1115	 36.67	0	1143007..1145286	-	759	22537300	pcrA	SAG1142	-	ATP-dependent DNA helicase PcrA
1116	 35.66	0	1145392..1145778	-	128	22537301	-	SAG1143	-	hypothetical protein
1117	 35.37	0	1145911..1147236	-	441	22537302	uraA	SAG1144	-	uracil permease
1118	 36.90	0	1147833..1149179	+	448	22537303	-	SAG1145	-	sodium:alanine symporter family protein
1119	 33.66	0	1149243..1150478	+	411	22537304	-	SAG1146	-	cation efflux family protein
1120	 34.35	0	1150637..1151029	+	130	22537305	-	SAG1147	-	hypothetical protein
1121	 37.21	0	1151010..1151705	+	231	22537306	-	SAG1148	-	hypothetical protein
1122	 33.33	0	1151774..1152397	+	207	22537307	-	SAG1149	-	hypothetical protein
1123	 39.65	+1	1152810..1154012	-	400	22537308	rpsA	SAG1150	-	30S ribosomal protein S1
1124	 30.30	-1	1154356..1154586	-	76	22537309	-	SAG1151	-	hypothetical protein
1125	 38.12	0	1154670..1155692	-	340	22537310	ilvE	SAG1152	-	branched-chain amino acid aminotransferase
1126	 36.75	0	1155806..1158265	-	819	22537311	parC	SAG1153	-	DNA topoisomerase IV subunit A
1127	 36.60	0	1158399..1160360	-	653	22537312	parE	SAG1154	-	DNA topoisomerase IV subunit B
1128	 34.27	0	1160462..1161100	+	212	22537313	-	SAG1155	-	putative glycerol-3-phosphate acyltransferase PlsY
1129	 37.46	0	1161166..1161819	-	217	22537314	ung	SAG1156	-	uracil-DNA glycosylase
1130	 31.89	0	1161918..1162403	-	161	22537315	-	SAG1157	-	hypothetical protein
1131	 32.53	0	1162517..1163758	-	413	22537316	neuA	SAG1158	-	CMP-N-acetylneuraminic acid synthetase NeuA
1132	 34.44	0	1163769..1164398	-	209	22537317	neuD	SAG1159	-	neuD protein
1133	 36.36	0	1164395..1165549	-	384	22537318	neuC	SAG1160	-	UDP-N-acetylglucosamine-2-epimerase NeuC
1134	 35.58	0	1165626..1166651	-	341	22537319	neuB	SAG1161	-	N-acetyl neuramic acid synthetase NeuB
1135	 31.55	-1	1166651..1168051	-	466	22537320	cpsL	SAG1162	-	polysaccharide biosynthesis protein CpsL
1136	 30.72	-1	1168048..1169004	-	318	22537321	cpsK	SAG1163	-	polysaccharide biosynthesis protein CpsK(V)
1137	 26.09	-2	1169001..1169966	-	321	22537322	cpsJ	SAG1164	-	glycosyl transferase CpsJ(V)
1138	 28.96	-1	1169959..1170942	-	327	22537323	cpsO	SAG1165	-	glycosyl transferase CpsO(V)
1139	 28.94	-1	1170946..1171833	-	295	22537324	cpsN	SAG1166	-	glycosyl transferase CpsN(V)
1140	 28.65	-1	1171859..1172584	-	241	22537325	cpsM	SAG1167	-	polysaccharide biosynthesis protein CpsM(V)
1141	 25.02	-2	1172623..1173717	-	364	22537326	cpsH	SAG1168	-	polysaccharide biosynthesis protein cpsH(V)
1142	 34.15	0	1173704..1174195	-	163	22537327	cpsG	SAG1169	-	glycosyl transferase CpsG(V)
1143	 33.78	0	1174195..1174644	-	149	22537328	cpsF	SAG1170	-	polysaccharide biosynthesis protein CpsF
1144	 29.95	-1	1174668..1176056	-	462	22537329	cpsE	SAG1171	-	glycosyl transferase CpsE
1145	 33.91	0	1176069..1176758	-	229	22537330	cpsD	SAG1172	-	cpsD protein
1146	 30.88	-1	1176769..1177461	-	230	22537331	cpsC	SAG1173	-	cpsC protein
1147	 30.60	-1	1177470..1178201	-	243	22537332	cpsB	SAG1174	-	capsular polysaccharide biosynthesis protein CpsB
1148	 31.89	0	1178207..1179664	-	485	22537333	cpsA	SAG1175	-	capsular polysaccharide biosynthesis protein CpsA
1149	 34.82	0	1179904..1180776	+	290	22537334	-	SAG1176	-	LysR family transcriptional regulator
1150	 32.68	0	1180801..1181568	-	255	22537335	-	SAG1177	-	hypothetical protein
1151	 37.27	0	1181577..1182287	-	236	22537336	deoD-1	SAG1178	-	purine nucleoside phosphorylase
1152	 35.16	0	1182271..1183527	-	418	22537337	-	SAG1179	-	voltage-gated chloride channel family protein
1153	 41.98	+1	1183529..1184338	-	269	22537338	deoD-2	SAG1180	-	purine nucleoside phosphorylase
1154	 35.78	0	1184377..1184784	-	135	22537339	arsC	SAG1181	-	arsenate reductase
1155	 42.00	+1	1184835..1186046	-	403	22537340	deoB-1	SAG1182	-	phosphopentomutase
1156	 39.73	+1	1186103..1186774	-	223	22537341	rpiA	SAG1183	-	ribose-5-phosphate isomerase A
1157	 33.33	0	1187012..1187722	-	236	22537342	-	SAG1184	-	hypothetical protein
1158	 34.98	0	1187812..1188600	-	262	22537343	estA	SAG1185	-	tributyrin esterase
1159	 37.73	0	1188657..1190318	-	553	22537344	-	SAG1186	-	metallo-beta-lactamase superfamily protein
1160	 34.51	0	1190614..1191375	-	253	22537345	-	SAG1187	-	ABC transporter, ATP-binding protein
1161	 35.30	0	1191375..1192238	-	287	22537346	-	SAG1188	-	ABC transporter, permease protein
1162	 35.72	0	1192251..1193255	-	334	22537347	-	SAG1189	-	hypothetical protein
1163	 36.29	0	1193614..1195269	+	551	22537348	pavA	SAG1190	-	adherence and virulence protein A
1164	 36.39	0	1195323..1196042	-	239	22537349	budA	SAG1191	-	alpha-acetolactate decarboxylase
1165	 40.76	+1	1196056..1197738	-	560	22537350	ilvK	SAG1192	-	acetolactate synthase
1166	 33.90	0	1197848..1199074	-	408	22537351	-	SAG1193	-	TPR domain-containing protein
1167	 33.92	0	1199064..1200254	-	396	22537352	-	SAG1194	-	hypothetical protein
1168	 34.42	0	1200346..1200807	-	153	22537353	-	SAG1195	-	MutT/nudix family protein
1169	 34.37	0	1200797..1201279	-	160	22537354	mutX	SAG1196	-	mutator MutT protein
1170	 35.82	0	1201497..1204715	+	1072	22537355	-	SAG1197	-	hyaluronate lyase
1171	 41.36	+1	1204767..1205813	-	348	22537356	rfbB	SAG1198	-	dTDP-glucose 4,6-dehydratase
1172	 38.89	0	1206020..1206613	-	197	22537357	-	SAG1199	-	dTDP-4-keto-6-deoxyglucose-3,5-epimerase
1173	 39.08	0	1206613..1207482	-	289	22537358	rfbA	SAG1200	-	glucose-1-phosphate thymidylyltransferase
1174	 37.05	0	1207541..1208644	-	367	22537359	-	SAG1201	-	iminodiacetate oxidase, putative
1175	 34.35	0	1208653..1209441	-	262	22537360	-	SAG1202	-	hypothetical protein
1176	 33.77	0	1209431..1210114	-	227	22537361	-	SAG1203	-	hypothetical protein
1177	 34.21	0	1210218..1210898	-	226	22537362	-	SAG1204	-	DNA replication protein DnaD, putative
1178	 38.15	0	1211016..1211534	-	172	22537363	apt	SAG1205	-	adenine phosphoribosyltransferase
1179	 37.12	0	1211657..1214221	-	854	22537364	-	SAG1206	-	hypothetical protein
1180	 21.21	-2	1214205..1214303	-	32	22537365	-	SAG1207	-	hypothetical protein
1181	 35.15	0	1214373..1216571	-	732	22537366	recJ	SAG1208	-	single-stranded-DNA-specific exonuclease RecJ
1182	 33.46	0	1216568..1217329	-	253	22537367	-	SAG1209	-	short chain dehydrogenase/reductase family oxidoreductase
1183	 36.45	0	1217331..1218260	-	309	22537368	-	SAG1210	-	ribonuclease Z
1184	 31.94	0	1218302..1218949	-	215	22537369	-	SAG1211	-	hypothetical protein
1185	 35.03	0	1218942..1220180	-	412	22537370	hflX	SAG1212	-	GTP-binding protein HflX
1186	 34.79	0	1220271..1221161	-	296	22537371	miaA	SAG1213	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1187	 36.16	0	1221272..1221448	+	58	22537372	-	SAG1214	-	hypothetical protein
1188	 34.53	0	1221490..1222407	-	305	22537373	-	SAG1215	-	hypothetical protein
1189	 35.73	0	1222542..1226300	-	1252	22537374	-	SAG1216	-	pullulanase, putative
1190	 34.87	0	1227217..1227801	-	194	22537375	-	SAG1218	-	hypothetical protein
1191	 39.59	+1	1227898..1229304	-	468	22537376	-	SAG1219	-	dipeptidase PepV
1192	 33.67	0	1229351..1229953	-	200	22537377	-	SAG1220	-	nitroreductase family protein
1193	 34.57	0	1231946..1233727	-	593	22537378	uvrC	SAG1222	-	excinuclease ABC subunit C
1194	 35.16	0	1233886..1234653	+	255	22537379	-	SAG1223	-	hypothetical protein
1195	 34.68	0	1234712..1236052	-	446	22537380	-	SAG1224	-	MATE efflux family protein
1196	 35.77	0	1236152..1236562	-	136	22537381	-	SAG1225	-	hypothetical protein
1197	 35.34	0	1236572..1237069	-	165	22537382	-	SAG1226	-	hypothetical protein
1198	 30.65	-1	1237291..1237887	+	198	22537383	-	SAG1227	-	hypothetical protein
1199	 38.83	0	1238076..1238366	+	96	22537384	-	SAG1228	-	ISSdy1, transposase OrfA
1200	 41.41	+1	1238402..1239181	+	259	22537385	-	SAG1229	-	ISSdy1, transposase OrfB
1201	 36.43	0	1239405..1239695	+	96	22537386	-	SAG1230	-	hypothetical protein
1202	 40.02	+1	1241015..1243483	-	822	22537387	-	SAG1233	-	streptococcal histidine triad family protein
1203	 40.17	+1	1243496..1244416	-	306	22537388	lmb	SAG1234	-	laminin-binding surface protein
1204	 44.13	+2	1244650..1245927	-	425	22537389	-	SAG1235	-	GBSi1, group II intron, maturase
1205	 30.64	-1	1250615..1251949	-	444	22537390	-	SAG1237	-	hypothetical protein
1206	 30.54	-1	1252057..1252665	-	202	22537391	-	SAG1238	-	hypothetical protein
1207	 27.71	-2	1252715..1252945	-	76	22537392	-	SAG1239	-	hypothetical protein
1208	 35.51	0	1253409..1253684	+	91	22537393	-	SAG1241	-	IS3 family transposase OrfA
1209	 38.49	0	1254003..1254293	+	96	22537394	-	SAG1243	-	ISSdy1, transposase OrfA
1210	 41.28	+1	1254329..1255108	+	259	22537395	-	SAG1244	-	ISSdy1, transposase OrfB
1211	 29.06	-1	1255213..1255329	-	38	22537396	-	SAG1245	-	hypothetical protein
1212	 25.13	-2	1255316..1256485	+	389	22537397	-	SAG1246	-	hypothetical protein
1213	 32.25	0	1256680..1257879	-	399	22537398	-	SAG1247	-	phage integrase family site specific recombinase
1214	 34.65	0	1257902..1258129	-	75	22537399	-	SAG1248	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
