IslandPath Analysis: Streptococcus agalactiae 2603V/R

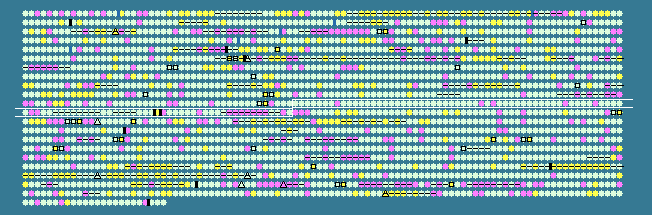

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1046	 32.00	0	1082546..1083523	-	325	22537231	-	SAG1073	-	hypothetical protein
1047	 37.31	0	1083528..1084784	-	418	22537232	glyA	SAG1074	-	serine hydroxymethyltransferase
1048	 36.41	0	1084876..1085427	-	183	22537233	-	SAG1075	-	Sua5/YciO/YrdC/YwlC family protein
1049	 33.09	0	1085465..1086295	-	276	22537234	-	SAG1076	-	HemK family modification methylase
1050	 37.13	0	1086295..1087374	-	359	22537235	prfA	SAG1077	-	peptide chain release factor 1
1051	 33.33	0	1087409..1087978	-	189	22537236	tdk	SAG1078	-	thymidine kinase
1052	 35.52	0	1088116..1088298	+	60	22537237	xylM	SAG1079	-	4-oxalocrotonate tautomerase
1053	 27.78	-2	1088274..1088417	-	47	22537238	-	SAG1080	-	hypothetical protein
1054	 34.72	0	1088447..1089385	+	312	22537239	-	SAG1081	-	ApbE family protein
1055	 34.49	0	1089403..1090005	+	200	22537240	-	SAG1082	-	hypothetical protein
1056	 38.11	0	1090029..1091264	+	411	22537241	-	SAG1083	-	hypothetical protein
1057	 34.35	0	1091363..1092151	+	262	22537242	-	SAG1084	-	formate/nitrite transporter family protein
1058	 36.08	0	1092250..1093524	-	424	22537243	pbuX	SAG1085	-	xanthine permease
1059	 36.94	0	1093524..1094105	-	193	22537244	xpt	SAG1086	-	xanthine phosphoribosyltransferase
1060	 36.89	0	1094361..1095344	-	327	22537245	guaC	SAG1087	-	guanosine 5'-monophosphate oxidoreductase
1061	 35.72	0	1095548..1096888	-	446	22537246	-	SAG1088	-	EmrB/QacA family drug resistance transporter
1062	 33.19	0	1097159..1097851	+	230	22537247	-	SAG1089	-	hypothetical protein
1063	 35.93	0	1097922..1099922	-	666	22537248	-	SAG1090	-	potassium uptake protein, putative
1064	 35.94	0	1100057..1100707	-	216	22537249	-	SAG1091	-	short chain dehydrogenase/reductase family oxidoreductase
1065	 36.66	0	1100881..1101873	-	330	22537250	eutD	SAG1092	-	phosphotransacetylase
1066	 36.05	0	1101899..1102783	-	294	22537251	-	SAG1093	-	ribosomal large subunit pseudouridine synthase D
1067	 36.08	0	1102780..1103616	-	278	22537252	ppnK	SAG1094	-	inorganic polyphosphate/ATP-NAD kinase
1068	 36.16	0	1103591..1104262	-	223	22537253	-	SAG1095	-	GTP pyrophosphokinase family protein
1069	 32.98	0	1104372..1104944	+	190	22537254	-	SAG1096	-	hypothetical protein
1070	 38.77	0	1105121..1106095	+	324	22537255	prsA-2	SAG1097	-	ribose-phosphate pyrophosphokinase
1071	 36.83	0	1106099..1107214	+	371	22537256	iscS-1	SAG1098	-	cysteine desulphurase
1072	 32.47	0	1107216..1107563	+	115	22537257	-	SAG1099	-	hypothetical protein
1073	 35.39	0	1107724..1108356	+	210	22537258	-	SAG1100	-	redox-sensing transcriptional repressor Rex
1074	 33.48	0	1108369..1109049	-	226	22537259	radC	SAG1101	-	DNA repair protein RadC
1075	 34.22	0	1109145..1110278	-	377	22537260	-	SAG1102	-	hypothetical protein
1076	 36.12	0	1110369..1111805	-	478	22537261	arb	SAG1103	-	6-phospho-beta-glucosidase
1077	 31.87	0	1111968..1112582	-	204	22537262	-	SAG1104	-	platelet activating factor, putative
1078	 35.28	0	1112683..1113504	-	273	22537263	-	SAG1105	-	HAD superfamily hydrolase
1079	 31.40	-1	1114129..1115058	+	309	22537264	-	SAG1106	-	AraC family transcriptional regulator
1080	 35.03	0	1115115..1116647	-	510	22537265	-	SAG1107	-	voltage-gated chloride channel family protein
1081	 34.54	0	1116756..1117829	-	357	22537266	potD	SAG1108	-	spermidine/putrescine ABC transporter, spermidine/putrescine-binding protein
1082	 32.69	0	1117822..1118598	-	258	22537267	potC	SAG1109	-	spermidine/putrescine ABC transporter, permease protein
1083	 35.09	0	1118595..1119389	-	264	22537268	potB	SAG1110	-	spermidine/putrescine ABC transporter, permease protein
1084	 36.54	0	1119373..1120527	-	384	22537269	potA	SAG1111	-	spermidine/putrescine ABC transporter, ATP-binding protein
1085	 38.65	0	1120576..1121478	-	300	22537270	murB	SAG1112	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1086	 35.58	0	1121622..1122110	-	162	22537271	folK	SAG1113	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1087	 32.78	0	1122107..1122469	-	120	22537272	folB	SAG1114	-	dihydroneopterin aldolase
1088	 37.44	0	1122471..1123274	-	267	22537273	folP	SAG1115	-	dihydropteroate synthase
1089	 37.94	0	1123278..1123841	-	187	22537274	folE	SAG1116	-	GTP cyclohydrolase I
1090	 35.55	0	1123860..1125122	-	420	22537275	folC	SAG1117	-	folylpolyglutamate synthase
1091	 31.64	-1	1125124..1126011	-	295	22537276	rarD	SAG1118	-	rarD protein
1092	 36.33	0	1125998..1126864	-	288	22537277	thrB	SAG1119	-	homoserine kinase
1093	 36.21	0	1126866..1128149	-	427	22537278	hom	SAG1120	-	homoserine dehydrogenase
1094	 36.94	0	1128326..1129213	+	295	22537279	-	SAG1121	-	polysaccharide deacetylase family protein
1095	 36.89	0	1129236..1130783	-	515	22537280	-	SAG1122	-	transporter, BCCT family protein
1096	 31.43	-1	1130793..1130897	-	34	22537281	-	SAG1123	-	hypothetical protein
1097	 38.27	0	1130926..1132302	-	458	22537282	-	SAG1124	-	aldehyde dehydrogenase family protein
1098	 33.73	0	1132376..1133383	-	335	22537283	-	SAG1125	-	hypothetical protein
1099	 32.90	0	1133491..1134177	-	228	22537284	-	SAG1126	-	hypothetical protein
1100	 34.15	0	1134596..1135936	+	446	22537285	-	SAG1127	-	hypothetical protein
1101	 33.84	0	1136133..1136330	+	65	22537286	-	SAG1128	-	Cro/CI family transcriptional regulator
1102	 22.52	-2	1136375..1136485	+	36	22537287	-	SAG1129	-	hypothetical protein
1103	 28.00	-1	1136814..1136963	+	49	22537288	-	SAG1130	-	hypothetical protein
1104	 34.75	0	1137039..1137533	-	164	22537289	tpx	SAG1131	-	thiol peroxidase
1105	 34.39	0	1137606..1138265	-	219	22537290	-	SAG1132	-	hypothetical protein
1106	 34.38	0	1138265..1139029	-	254	22537291	-	SAG1133	-	hypothetical protein
1107	 35.20	0	1139034..1139675	-	213	22537292	-	SAG1134	-	GntR family transcriptional regulator
1108	 37.50	0	1139839..1140390	-	183	22537293	-	SAG1135	-	gls24 protein, putative
1109	 33.84	0	1140412..1140609	-	65	22537294	-	SAG1136	-	hypothetical protein
1110	 36.28	0	1140656..1141198	-	180	22537295	-	SAG1137	-	gls24 protein, putative
1111	 36.41	0	1141254..1141448	-	64	22537296	-	SAG1138	-	hypothetical protein
1112	 32.30	0	1141458..1142039	-	193	22537297	-	SAG1139	-	hypothetical protein
1113	 38.15	0	1142054..1142302	-	82	22537298	-	SAG1140	-	hypothetical protein
1114	 36.28	0	1142350..1142688	-	112	22537299	-	SAG1141	-	hypothetical protein
1115	 36.67	0	1143007..1145286	-	759	22537300	pcrA	SAG1142	-	ATP-dependent DNA helicase PcrA
1116	 35.66	0	1145392..1145778	-	128	22537301	-	SAG1143	-	hypothetical protein
1117	 35.37	0	1145911..1147236	-	441	22537302	uraA	SAG1144	-	uracil permease
1118	 36.90	0	1147833..1149179	+	448	22537303	-	SAG1145	-	sodium:alanine symporter family protein
1119	 33.66	0	1149243..1150478	+	411	22537304	-	SAG1146	-	cation efflux family protein
1120	 34.35	0	1150637..1151029	+	130	22537305	-	SAG1147	-	hypothetical protein
1121	 37.21	0	1151010..1151705	+	231	22537306	-	SAG1148	-	hypothetical protein
1122	 33.33	0	1151774..1152397	+	207	22537307	-	SAG1149	-	hypothetical protein
1123	 39.65	+1	1152810..1154012	-	400	22537308	rpsA	SAG1150	-	30S ribosomal protein S1
1124	 30.30	-1	1154356..1154586	-	76	22537309	-	SAG1151	-	hypothetical protein
1125	 38.12	0	1154670..1155692	-	340	22537310	ilvE	SAG1152	-	branched-chain amino acid aminotransferase
1126	 36.75	0	1155806..1158265	-	819	22537311	parC	SAG1153	-	DNA topoisomerase IV subunit A
1127	 36.60	0	1158399..1160360	-	653	22537312	parE	SAG1154	-	DNA topoisomerase IV subunit B
1128	 34.27	0	1160462..1161100	+	212	22537313	-	SAG1155	-	putative glycerol-3-phosphate acyltransferase PlsY
1129	 37.46	0	1161166..1161819	-	217	22537314	ung	SAG1156	-	uracil-DNA glycosylase
1130	 31.89	0	1161918..1162403	-	161	22537315	-	SAG1157	-	hypothetical protein
1131	 32.53	0	1162517..1163758	-	413	22537316	neuA	SAG1158	-	CMP-N-acetylneuraminic acid synthetase NeuA
1132	 34.44	0	1163769..1164398	-	209	22537317	neuD	SAG1159	-	neuD protein
1133	 36.36	0	1164395..1165549	-	384	22537318	neuC	SAG1160	-	UDP-N-acetylglucosamine-2-epimerase NeuC
1134	 35.58	0	1165626..1166651	-	341	22537319	neuB	SAG1161	-	N-acetyl neuramic acid synthetase NeuB
1135	 31.55	-1	1166651..1168051	-	466	22537320	cpsL	SAG1162	-	polysaccharide biosynthesis protein CpsL
1136	 30.72	-1	1168048..1169004	-	318	22537321	cpsK	SAG1163	-	polysaccharide biosynthesis protein CpsK(V)
1137	 26.09	-2	1169001..1169966	-	321	22537322	cpsJ	SAG1164	-	glycosyl transferase CpsJ(V)
1138	 28.96	-1	1169959..1170942	-	327	22537323	cpsO	SAG1165	-	glycosyl transferase CpsO(V)
1139	 28.94	-1	1170946..1171833	-	295	22537324	cpsN	SAG1166	-	glycosyl transferase CpsN(V)
1140	 28.65	-1	1171859..1172584	-	241	22537325	cpsM	SAG1167	-	polysaccharide biosynthesis protein CpsM(V)
1141	 25.02	-2	1172623..1173717	-	364	22537326	cpsH	SAG1168	-	polysaccharide biosynthesis protein cpsH(V)
1142	 34.15	0	1173704..1174195	-	163	22537327	cpsG	SAG1169	-	glycosyl transferase CpsG(V)
1143	 33.78	0	1174195..1174644	-	149	22537328	cpsF	SAG1170	-	polysaccharide biosynthesis protein CpsF
1144	 29.95	-1	1174668..1176056	-	462	22537329	cpsE	SAG1171	-	glycosyl transferase CpsE
1145	 33.91	0	1176069..1176758	-	229	22537330	cpsD	SAG1172	-	cpsD protein
35.44	MEAN

3.78	STD DEV
