IslandPath Analysis: Streptococcus agalactiae 2603V/R

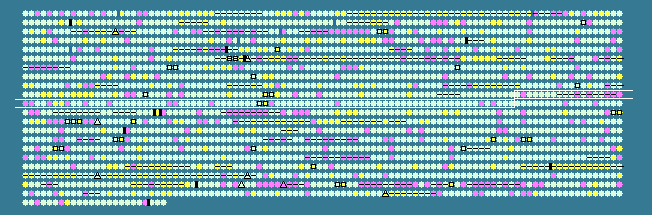

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 35.44 STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
983	 33.20	0	1018286..1019047	-	253	22537168	-	SAG1008	-	iron compound ABC transporter, ATP-binding protein
984	 31.28	-1	1019044..1020018	-	324	22537169	-	SAG1009	-	iron compound ABC transporter, permease protein
985	 35.41	0	1020015..1020977	-	320	22537170	-	SAG1010	-	iron compound ABC transporter, permease protein
986	 37.89	0	1021216..1021764	-	182	22537171	-	SAG1011	-	acetyltransferase
987	 33.60	0	1021785..1022546	-	253	22537172	rnhB	SAG1012	-	ribonuclease HII
988	 35.92	0	1022533..1023384	-	283	22537173	rbgA	SAG1013	-	ribosomal biogenesis GTPase
989	 36.30	0	1023660..1024232	-	190	22537174	-	SAG1014	-	hypothetical protein
990	 36.50	0	1024433..1025917	-	494	22537175	-	SAG1015	-	carbon starvation protein CstA, putative
991	 35.92	0	1026073..1026807	-	244	22537176	-	SAG1016	-	response regulator
992	 34.77	0	1026819..1028558	-	579	22537177	-	SAG1017	-	sensor histidine kinase, putative
993	 26.83	-2	1029094..1029216	-	40	22537178	-	SAG1018	-	putative lipoprotein
994	 34.17	0	1029739..1029858	-	39	22537179	-	SAG1019	-	hypothetical protein
995	 25.00	-2	1030102..1030785	-	227	22537180	-	SAG1020	-	putative lipoprotein
996	 36.42	0	1030871..1031194	-	107	22537181	-	SAG1021	-	hypothetical protein
997	 32.58	0	1031542..1032075	-	177	22537182	-	SAG1022	-	hypothetical protein
998	 23.81	-2	1032087..1032233	-	48	22537183	-	SAG1023	-	hypothetical protein
999	 27.36	-2	1032230..1032781	-	183	22537184	-	SAG1024	-	putative lipoprotein
1000	 30.44	-1	1032786..1033235	-	149	22537185	-	SAG1025	-	hypothetical protein
1001	 27.06	-2	1035253..1035507	-	84	22537186	-	SAG1027	-	hypothetical protein
1002	 21.15	-2	1035528..1036118	-	196	22537187	-	SAG1028	-	hypothetical protein
1003	 38.24	0	1036132..1036437	-	101	22537188	-	SAG1029	-	hypothetical protein
1004	 34.32	0	1036566..1037480	-	304	22537189	-	SAG1030	-	hypothetical protein
1005	 29.20	-1	1037483..1037845	-	120	22537190	-	SAG1031	-	hypothetical protein
1006	 40.31	+1	1037950..1038207	-	85	22537191	-	SAG1032	-	hypothetical protein
1007	 39.80	+1	1038221..1042150	-	1309	22537192	-	SAG1033	-	FtsK/SpoIIIE family protein
1008	 30.36	-1	1042461..1042628	-	55	22537193	-	SAG1034	-	hypothetical protein
1009	 33.02	0	1042635..1043909	-	424	22537194	-	SAG1035	-	hypothetical protein
1010	 32.10	0	1043909..1044151	-	80	22537195	-	SAG1036	-	hypothetical protein
1011	 27.64	-2	1044135..1044608	-	157	22537196	-	SAG1037	-	hypothetical protein
1012	 33.20	0	1044617..1047628	-	1003	22537197	-	SAG1038	-	phage infection protein, putative
1013	 34.36	0	1047710..1048000	-	96	22537198	-	SAG1039	-	hypothetical protein
1014	 32.69	0	1048117..1048899	-	260	22537199	-	SAG1040	-	hypothetical protein
1015	 30.25	-1	1048896..1049219	-	107	22537200	-	SAG1041	-	hypothetical protein
1016	 36.66	0	1049346..1052528	-	1060	22537201	carB	SAG1042	-	carbamoyl phosphate synthase large subunit
1017	 35.56	0	1052559..1053635	-	358	22537202	carA-1	SAG1043	-	carbamoyl phosphate synthase small subunit
1018	 35.06	0	1053649..1054572	-	307	22537203	pyrB	SAG1044	-	aspartate carbamoyltransferase catalytic subunit
1019	 37.59	0	1054737..1056029	-	430	22537204	pyrC	SAG1045	-	dihydroorotase
1020	 38.89	0	1056041..1056670	-	209	22537205	pyrE	SAG1046	-	orotate phosphoribosyltransferase
1021	 36.89	0	1056683..1057384	-	233	22537206	pyrF	SAG1047	-	orotidine 5'-phosphate decarboxylase
1022	 35.93	0	1057597..1058829	-	410	22537207	-	SAG1048	-	hypothetical protein
1023	 35.54	0	1058869..1060410	-	513	22537208	-	SAG1049	-	ABC transporter, ATP-binding protein
1024	 37.98	0	1061049..1062125	-	358	22537209	asd	SAG1051	-	aspartate-semialdehyde dehydrogenase
1025	 27.78	-2	1062335..1062478	-	47	22537210	-	SAG1052	-	cell wall surface anchor family protein, putative
1026	 30.11	-1	1063089..1063181	+	30	22537211	-	SAG1053	-	hypothetical protein
1027	 33.71	0	1063395..1064990	-	531	22537212	cls	SAG1054	-	cardiolipin synthetase
1028	 37.58	0	1065109..1066779	-	556	22537213	fhs	SAG1055	-	formate--tetrahydrofolate ligase
1029	 34.12	0	1066868..1067887	-	339	22537214	lplA-2	SAG1056	-	lipoate-protein ligase A
1030	 35.04	0	1067914..1068792	-	292	22537215	-	SAG1057	-	hypothetical protein
1031	 35.16	0	1068761..1069579	-	272	22537216	-	SAG1058	-	hypothetical protein
1032	 31.83	0	1069572..1069904	-	110	22537217	-	SAG1059	-	glycine cleavage system H protein, putative
1033	 36.27	0	1069933..1070919	-	328	22537218	-	SAG1060	-	luciferase family protein
1034	 37.58	0	1070916..1072115	-	399	22537219	-	SAG1061	-	oxidoreductase, FMN-binding
1035	 35.45	0	1072108..1072956	-	282	22537220	-	SAG1062	-	hypothetical protein
1036	 33.62	0	1073098..1073784	+	228	22537221	-	SAG1063	-	phosphopantothenate--cysteine ligase
1037	 36.83	0	1073777..1074319	+	180	22537222	-	SAG1064	-	phosphopantothenoylcysteine decarboxylase
1038	 34.03	0	1074365..1074937	+	190	22537223	-	SAG1065	-	hypothetical protein
1039	 37.99	0	1075047..1076765	+	572	22537224	pgm	SAG1066	-	phosphoglucomutase
1040	 38.18	0	1076837..1077373	+	178	22537225	-	SAG1067	-	IS861, transposase OrfA
1041	 41.97	+1	1077349..1078182	+	277	22537226	-	SAG1068	-	IS861, transposase OrfB
1042	 29.80	-1	1078264..1078461	-	65	22537227	-	SAG1069	-	hypothetical protein
1043	 34.89	0	1078475..1080208	-	577	22537228	-	SAG1070	-	ABC transporter, ATP-binding/permease protein
1044	 33.74	0	1080209..1081930	-	573	22537229	-	SAG1071	-	ABC transporter, ATP-binding/permease protein
1045	 34.00	0	1081942..1082544	-	200	22537230	-	SAG1072	-	hypothetical protein
1046	 32.00	0	1082546..1083523	-	325	22537231	-	SAG1073	-	hypothetical protein
1047	 37.31	0	1083528..1084784	-	418	22537232	glyA	SAG1074	-	serine hydroxymethyltransferase
1048	 36.41	0	1084876..1085427	-	183	22537233	-	SAG1075	-	Sua5/YciO/YrdC/YwlC family protein
1049	 33.09	0	1085465..1086295	-	276	22537234	-	SAG1076	-	HemK family modification methylase
1050	 37.13	0	1086295..1087374	-	359	22537235	prfA	SAG1077	-	peptide chain release factor 1
1051	 33.33	0	1087409..1087978	-	189	22537236	tdk	SAG1078	-	thymidine kinase
1052	 35.52	0	1088116..1088298	+	60	22537237	xylM	SAG1079	-	4-oxalocrotonate tautomerase
1053	 27.78	-2	1088274..1088417	-	47	22537238	-	SAG1080	-	hypothetical protein
1054	 34.72	0	1088447..1089385	+	312	22537239	-	SAG1081	-	ApbE family protein
1055	 34.49	0	1089403..1090005	+	200	22537240	-	SAG1082	-	hypothetical protein
1056	 38.11	0	1090029..1091264	+	411	22537241	-	SAG1083	-	hypothetical protein
1057	 34.35	0	1091363..1092151	+	262	22537242	-	SAG1084	-	formate/nitrite transporter family protein
1058	 36.08	0	1092250..1093524	-	424	22537243	pbuX	SAG1085	-	xanthine permease
1059	 36.94	0	1093524..1094105	-	193	22537244	xpt	SAG1086	-	xanthine phosphoribosyltransferase
1060	 36.89	0	1094361..1095344	-	327	22537245	guaC	SAG1087	-	guanosine 5'-monophosphate oxidoreductase
1061	 35.72	0	1095548..1096888	-	446	22537246	-	SAG1088	-	EmrB/QacA family drug resistance transporter
1062	 33.19	0	1097159..1097851	+	230	22537247	-	SAG1089	-	hypothetical protein
1063	 35.93	0	1097922..1099922	-	666	22537248	-	SAG1090	-	potassium uptake protein, putative
1064	 35.94	0	1100057..1100707	-	216	22537249	-	SAG1091	-	short chain dehydrogenase/reductase family oxidoreductase
1065	 36.66	0	1100881..1101873	-	330	22537250	eutD	SAG1092	-	phosphotransacetylase
1066	 36.05	0	1101899..1102783	-	294	22537251	-	SAG1093	-	ribosomal large subunit pseudouridine synthase D
1067	 36.08	0	1102780..1103616	-	278	22537252	ppnK	SAG1094	-	inorganic polyphosphate/ATP-NAD kinase
1068	 36.16	0	1103591..1104262	-	223	22537253	-	SAG1095	-	GTP pyrophosphokinase family protein
1069	 32.98	0	1104372..1104944	+	190	22537254	-	SAG1096	-	hypothetical protein
1070	 38.77	0	1105121..1106095	+	324	22537255	prsA-2	SAG1097	-	ribose-phosphate pyrophosphokinase
1071	 36.83	0	1106099..1107214	+	371	22537256	iscS-1	SAG1098	-	cysteine desulphurase
1072	 32.47	0	1107216..1107563	+	115	22537257	-	SAG1099	-	hypothetical protein
1073	 35.39	0	1107724..1108356	+	210	22537258	-	SAG1100	-	redox-sensing transcriptional repressor Rex
1074	 33.48	0	1108369..1109049	-	226	22537259	radC	SAG1101	-	DNA repair protein RadC
1075	 34.22	0	1109145..1110278	-	377	22537260	-	SAG1102	-	hypothetical protein
1076	 36.12	0	1110369..1111805	-	478	22537261	arb	SAG1103	-	6-phospho-beta-glucosidase
1077	 31.87	0	1111968..1112582	-	204	22537262	-	SAG1104	-	platelet activating factor, putative
1078	 35.28	0	1112683..1113504	-	273	22537263	-	SAG1105	-	HAD superfamily hydrolase
1079	 31.40	-1	1114129..1115058	+	309	22537264	-	SAG1106	-	AraC family transcriptional regulator
1080	 35.03	0	1115115..1116647	-	510	22537265	-	SAG1107	-	voltage-gated chloride channel family protein
1081	 34.54	0	1116756..1117829	-	357	22537266	potD	SAG1108	-	spermidine/putrescine ABC transporter, spermidine/putrescine-binding protein
1082	 32.69	0	1117822..1118598	-	258	22537267	potC	SAG1109	-	spermidine/putrescine ABC transporter, permease protein
35.44	MEAN

3.78	STD DEV
