IslandPath Analysis: Streptococcus agalactiae 2603V/R

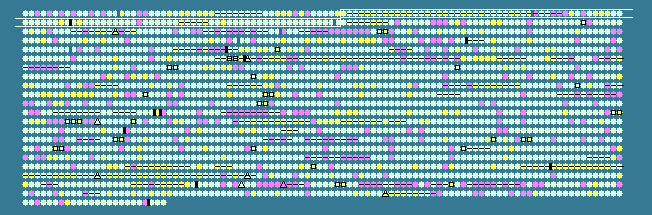

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.44   STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
54	 42.87	+1	72071..73087	+	338	22536239	adhP	SAG0054	-	alcohol dehydrogenase
55	 35.95	0	73207..74697	+	496	22536240	thrC	SAG0055	-	threonine synthase
56	 36.00	0	74844..76082	+	412	22536241	-	SAG0056	-	MATE efflux family protein
57	 40.78	+1	76288..76596	+	102	22536242	rpsJ	SAG0057	-	30S ribosomal protein S10
58	 41.95	+1	76701..77327	+	208	22536243	rplC	SAG0058	-	50S ribosomal protein L3
59	 42.79	+1	77351..77974	+	207	22536244	rplD	SAG0059	-	50S ribosomal protein L4
60	 36.70	0	77974..78270	+	98	22536245	rplW	SAG0060	-	50S ribosomal protein L23
61	 41.37	+1	78288..79121	+	277	22536246	rplB	SAG0061	-	50S ribosomal protein L2
62	 39.78	+1	79220..79498	+	92	22536247	rpsS	SAG0062	-	30S ribosomal protein S19
63	 39.42	+1	79514..79858	+	114	22536248	rplV	SAG0063	-	50S ribosomal protein L22
64	 40.83	+1	79871..80524	+	217	22536249	rpsC	SAG0064	-	30S ribosomal protein S3
65	 42.75	+1	80528..80941	+	137	22536250	rplP	SAG0065	-	50S ribosomal protein L16
66	 34.78	0	80951..81157	+	68	22536251	rpmC	SAG0066	-	50S ribosomal protein L29
67	 37.93	0	81183..81443	+	86	22536252	rpsQ	SAG0067	-	30S ribosomal protein S17
68	 44.17	+2	81468..81836	+	122	22536253	rplN	SAG0068	-	50S ribosomal protein L14
69	 38.89	0	81916..82221	+	101	22536254	rplX	SAG0069	-	50S ribosomal protein L24
70	 39.04	0	82245..82787	+	180	22536255	rplE	SAG0070	-	50S ribosomal protein L5
71	 43.55	+2	82805..82990	+	61	22536256	rpsN	SAG0071	-	30S ribosomal protein S14
72	 35.09	0	83145..83543	+	132	22536257	rpsH	SAG0072	-	30S ribosomal protein S8
73	 38.92	0	83653..84189	+	178	22536258	rplF	SAG0073	-	50S ribosomal protein L6
74	 44.26	+2	84290..84646	+	118	22536259	rplR	SAG0074	-	50S ribosomal protein L18
75	 43.84	+2	84665..85159	+	164	22536260	rpsE	SAG0075	-	30S ribosomal protein S5
76	 38.33	0	85174..85353	+	59	22536261	rpmD	SAG0076	-	50S ribosomal protein L30
77	 40.59	+1	85478..85918	+	146	22536262	rplO	SAG0077	-	50S ribosomal protein L15
78	 34.94	0	85939..87243	+	434	22536263	secY	SAG0078	-	preprotein translocase subunit SecY
79	 38.34	0	87338..87976	+	212	22536264	adk	SAG0079	-	adenylate kinase
80	 37.90	0	88092..88310	+	72	22536265	infA	SAG0080	-	translation initiation factor IF-1
81	 38.46	0	88336..88452	+	38	22536266	rpmJ	SAG0081	-	50S ribosomal protein L36
82	 40.16	+1	88470..88835	+	121	22536267	rpsM	SAG0082	-	30S ribosomal protein S13
83	 44.01	+2	88853..89236	+	127	161485618	rpsK	SAG0083	-	30S ribosomal protein S11
84	 37.06	0	89286..90224	+	312	22536269	rpoA	SAG0084	-	DNA-directed RNA polymerase subunit alpha
85	 39.79	+1	90239..90625	+	128	22536270	rplQ	SAG0085	-	50S ribosomal protein L17
86	 29.07	-1	97819..98076	+	85	22536271	-	SAG0086	-	putative lipoprotein
87	 36.11	0	98067..98246	+	59	22536272	-	SAG0087	-	hypothetical protein
88	 33.33	0	98316..98486	+	56	22536273	-	SAG0088	-	hypothetical protein
89	 30.62	-1	99401..99952	+	183	22536274	-	SAG0089	-	hypothetical protein
90	 28.33	-1	100172..100591	+	139	22536275	-	SAG0090	-	hypothetical protein
91	 29.66	-1	100836..101270	+	144	22536276	-	SAG0091	-	transcriptional regulator ComX1, putative
92	 39.25	+1	101392..102084	+	230	22536277	-	SAG0092	-	phosphoglycerate mutase family protein
93	 35.86	0	102081..102833	+	250	22536278	-	SAG0093	-	D-alanyl-D-alanine carboxypeptidase family protein
94	 31.94	0	102830..103405	+	191	22536279	-	SAG0094	-	N-acetylmuramoyl-L-alanine amidase
95	 37.78	0	103548..104582	+	344	22536280	hrcA	SAG0095	-	heat-inducible transcription repressor
96	 40.66	+1	104585..105157	+	190	22536281	grpE	SAG0096	-	heat shock protein GrpE
97	 39.78	+1	105338..107167	+	609	22536282	dnaK	SAG0097	-	molecular chaperone DnaK
98	 41.49	+1	107456..108595	+	379	22536283	dnaJ	SAG0098	-	dnaJ protein
99	 33.89	0	108709..109956	+	415	22536284	-	SAG0099	-	GntR family transcriptional regulator
100	 36.55	0	110027..110803	+	258	22536285	truA	SAG0100	-	tRNA pseudouridine synthase A
101	 36.76	0	110766..111524	+	252	22536286	-	SAG0101	-	phosphomethylpyrimidine kinase
102	 36.77	0	111534..111998	+	154	22536287	-	SAG0102	-	hypothetical protein
103	 38.42	0	111995..112564	+	189	22536288	-	SAG0103	-	hypothetical protein
104	 33.81	0	112601..113443	-	280	22536289	-	SAG0104	-	hypothetical protein
105	 37.07	0	113600..114883	+	427	22536290	tig	SAG0105	-	trigger factor
106	 37.67	0	115072..115647	+	191	22536291	-	SAG0106	-	DNA-directed RNA polymerase subunit delta
107	 39.13	0	115920..117524	+	534	22536292	pyrG	SAG0107	-	CTP synthetase
108	 33.66	0	117633..118559	+	308	22536293	-	SAG0108	-	hypothetical protein
109	 38.70	0	118754..119200	+	148	22536294	dut	SAG0109	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
110	 39.12	0	119362..120726	+	454	22536295	radA	SAG0110	-	DNA repair protein RadA
111	 38.15	0	120862..121359	+	165	22536296	-	SAG0111	-	carbonic anhydrase-related protein
112	 35.08	0	121513..122832	+	439	22536297	-	SAG0112	-	pyridine nucleotide-disulfide oxidoreductase
113	 38.83	0	123041..124495	+	484	22536298	gltX	SAG0113	-	glutamyl-tRNA synthetase
114	 37.36	0	124535..125503	-	322	22536299	rbsB	SAG0114	-	ribose ABC transporter, periplasmic D-ribose-binding protein
115	 38.05	0	125556..126488	-	310	22536300	rbsC	SAG0115	-	ribose ABC transporter, permease protein
116	 38.27	0	126499..127977	-	492	22536301	rbsA	SAG0116	-	ribose ABC transporter, ATP-binding protein
117	 35.09	0	127993..128391	-	132	22536302	rbsD	SAG0117	-	D-ribose pyranase
118	 37.17	0	128366..129277	-	303	22536303	rbsK	SAG0118	-	ribokinase
119	 36.68	0	129270..130256	-	328	22536304	rbsR	SAG0119	-	ribose operon repressor RbsR
120	 22.22	-2	130314..130412	-	32	22536305	-	SAG0120	-	hypothetical protein
121	 32.69	0	130438..131526	+	362	22536306	-	SAG0121	-	permease, putative
122	 37.55	0	131526..132212	+	228	22536307	-	SAG0122	-	ABC transporter, ATP-binding protein
123	 34.23	0	132243..132914	+	223	22536308	-	SAG0123	-	DNA-binding response regulator
124	 33.89	0	132907..133977	+	356	22536309	-	SAG0124	-	sensor histidine kinase
125	 36.94	0	134131..135321	+	396	22536310	argG	SAG0125	-	argininosuccinate synthase
126	 34.63	0	135340..136728	+	462	22536311	argH	SAG0126	-	argininosuccinate lyase
127	 41.27	+1	136869..137750	+	293	22536312	fba	SAG0127	-	fructose-bisphosphate aldolase
128	 38.13	0	137834..138751	-	305	22536313	-	SAG0128	-	L-2-hydroxyisocaproate dehydrogenase
129	 38.10	0	138990..139178	+	62	22536314	rpmB	SAG0129	-	50S ribosomal protein L28
130	 37.43	0	139310..139675	+	121	22536315	-	SAG0130	-	hypothetical protein
131	 39.58	+1	139708..141339	+	543	22536316	-	SAG0131	-	DAK2 domain-containing protein
132	 34.12	0	141487..142371	+	294	22536317	-	SAG0132	-	SPFH domain-containing protein/band 7 family protein
133	 35.04	0	142463..142579	-	38	22536318	-	SAG0133	-	hypothetical protein
134	 44.67	+2	142947..143237	-	96	22536319	-	SAG0134	-	hypothetical protein
135	 35.90	0	143579..144319	-	246	22536320	-	SAG0135	-	amino acid ABC transporter, ATP-binding protein
136	 36.62	0	144329..145879	-	516	22536321	-	SAG0136	-	amino acid ABC transporter, amino acid-binding protein/permease protein
137	 33.81	0	146015..147898	+	627	22536322	-	SAG0137	-	hypothetical protein
138	 35.83	0	147944..148783	+	279	22536323	uppP	SAG0138	-	undecaprenyl pyrophosphate phosphatase
139	 32.94	0	148903..149658	+	251	22536324	-	SAG0139	-	adaptor protein
140	 33.94	0	149660..150820	+	386	22536325	-	SAG0140	-	glycosyl transferase, group 4 family protein
141	 38.52	0	150985..151755	+	256	22536326	-	SAG0141	-	ABC transporter, ATP-binding protein
142	 38.40	0	151792..153054	+	420	22536327	-	SAG0142	-	hypothetical protein
143	 38.28	0	153056..154288	+	410	22536328	csdB	SAG0143	-	selenocysteine lyase
144	 37.61	0	154275..154718	+	147	22536329	-	SAG0144	-	NifU family protein
145	 36.86	0	154818..156236	+	472	22536330	-	SAG0145	-	hypothetical protein
146	 36.45	0	156308..157495	-	395	22536331	-	SAG0146	-	penicillin-binding protein 4, putative
147	 35.84	0	157648..158883	-	411	22536332	-	SAG0147	-	D-alanyl-D-alanine carboxypeptidase family protein
148	 37.38	0	159124..160779	+	551	22536333	-	SAG0148	-	oligopeptide ABC transporter, substrate-binding protein, putative
149	 38.14	0	160898..161812	+	304	22536334	-	SAG0149	-	oligopeptide ABC transporter, permease protein
150	 36.14	0	161822..162853	+	343	22536335	-	SAG0150	-	oligopeptide ABC transporter, permease protein
151	 38.11	0	162866..163912	+	348	22536336	-	SAG0151	-	oligopeptide ABC transporter, ATP-binding protein
152	 36.01	0	163912..164844	+	310	22536337	-	SAG0152	-	oligopeptide ABC transporter, ATP-binding protein
153	 32.63	0	170382..171233	+	283	22536338	ispE	SAG0153	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
35.44	MEAN

3.78	STD DEV
