IslandPath Analysis: Streptococcus agalactiae 2603V/R

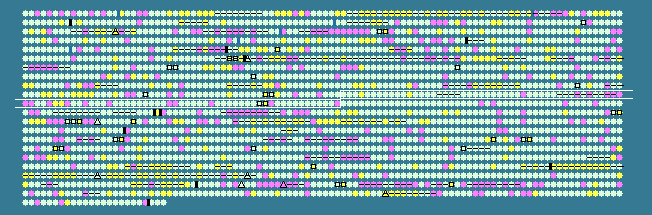

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.44   STD DEV: 3.78
Streptococcus agalactiae 2603V/R, complete genome - 1..2160267
2124 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
954	 34.18	0	987103..988764	+	553	22537139	-	SAG0979	-	ABC transporter, substrate-binding protein
955	 32.30	0	988797..989570	-	257	22537140	-	SAG0980	-	hypothetical protein
956	 35.52	0	989560..990246	-	228	22537141	-	SAG0981	-	satD protein
957	 39.40	+1	990313..991878	-	521	22537142	ffh	SAG0982	-	signal recognition particle protein Ffh
958	 32.43	0	991896..992228	-	110	22537143	-	SAG0983	-	hypothetical protein
959	 33.33	0	992317..993630	-	437	22537144	-	SAG0984	-	sensor histidine kinase CiaH
960	 34.07	0	993614..994294	-	226	22537145	ciaR	SAG0985	-	DNA-binding response regulator CiaR
961	 36.04	0	994456..997005	-	849	22537146	pepN	SAG0986	-	aminopeptidase N
962	 36.24	0	997151..997804	-	217	22537147	phoU	SAG0987	-	phosphate transport system regulatory protein PhoU
963	 37.81	0	997838..998596	-	252	22537148	-	SAG0988	-	phosphate ABC transporter, ATP-binding protein PstB, putative
964	 36.32	0	998608..999411	-	267	22537149	-	SAG0989	-	phosphate ABC transporter, ATP-binding protein PstB, putative
965	 39.19	0	999423..1000310	-	295	22537150	-	SAG0990	-	phosphate ABC transporter, permease protein PstA, putative
966	 36.60	0	1000300..1001217	-	305	22537151	-	SAG0991	-	phosphate ABC transporter, permease protein
967	 37.05	0	1001263..1002123	-	286	22537152	-	SAG0992	-	phosphate ABC transporter, phosphate-binding protein
968	 36.54	0	1002308..1003618	-	436	22537153	-	SAG0993	-	NOL1/NOP2/sun family protein
969	 35.16	0	1003686..1004450	-	254	22537154	-	SAG0994	-	inositol monophosphatase family protein
970	 33.69	0	1004440..1004721	-	93	22537155	-	SAG0995	-	hypothetical protein
971	 35.27	0	1004714..1005127	-	137	22537156	spxA	SAG0996	-	transcriptional regulator Spx
972	 33.87	0	1005170..1006102	-	310	22537157	-	SAG0997	-	bifunctional riboflavin kinase/FMN adenylyltransferase
973	 35.25	0	1006115..1006999	-	294	22537158	truB	SAG0998	-	tRNA pseudouridine synthase B
974	 33.56	0	1007091..1007522	-	143	22537159	-	SAG0999	-	acetyltransferase
975	 32.63	0	1007535..1008806	-	423	22537160	-	SAG1000	-	hypothetical protein
976	 37.06	0	1008840..1009430	-	196	22537161	-	SAG1001	-	hypothetical protein
977	 37.54	0	1009537..1010415	-	292	22537162	-	SAG1002	-	protease, putative
978	 32.61	0	1010521..1013151	-	876	22537163	-	SAG1003	-	permease, putative
979	 38.18	0	1013163..1013864	-	233	22537164	-	SAG1004	-	ABC transporter, ATP-binding protein
980	 36.26	0	1014001..1016121	-	706	22537165	topA	SAG1005	-	DNA topoisomerase I
981	 34.28	0	1016216..1017058	-	280	22537166	dprA	SAG1006	-	DprA/SMF protein, putative DNA processing factor
982	 35.18	0	1017196..1018224	-	342	22537167	-	SAG1007	-	iron-compound ABC transporter, iron-compound-binding protein
983	 33.20	0	1018286..1019047	-	253	22537168	-	SAG1008	-	iron compound ABC transporter, ATP-binding protein
984	 31.28	-1	1019044..1020018	-	324	22537169	-	SAG1009	-	iron compound ABC transporter, permease protein
985	 35.41	0	1020015..1020977	-	320	22537170	-	SAG1010	-	iron compound ABC transporter, permease protein
986	 37.89	0	1021216..1021764	-	182	22537171	-	SAG1011	-	acetyltransferase
987	 33.60	0	1021785..1022546	-	253	22537172	rnhB	SAG1012	-	ribonuclease HII
988	 35.92	0	1022533..1023384	-	283	22537173	rbgA	SAG1013	-	ribosomal biogenesis GTPase
989	 36.30	0	1023660..1024232	-	190	22537174	-	SAG1014	-	hypothetical protein
990	 36.50	0	1024433..1025917	-	494	22537175	-	SAG1015	-	carbon starvation protein CstA, putative
991	 35.92	0	1026073..1026807	-	244	22537176	-	SAG1016	-	response regulator
992	 34.77	0	1026819..1028558	-	579	22537177	-	SAG1017	-	sensor histidine kinase, putative
993	 26.83	-2	1029094..1029216	-	40	22537178	-	SAG1018	-	putative lipoprotein
994	 34.17	0	1029739..1029858	-	39	22537179	-	SAG1019	-	hypothetical protein
995	 25.00	-2	1030102..1030785	-	227	22537180	-	SAG1020	-	putative lipoprotein
996	 36.42	0	1030871..1031194	-	107	22537181	-	SAG1021	-	hypothetical protein
997	 32.58	0	1031542..1032075	-	177	22537182	-	SAG1022	-	hypothetical protein
998	 23.81	-2	1032087..1032233	-	48	22537183	-	SAG1023	-	hypothetical protein
999	 27.36	-2	1032230..1032781	-	183	22537184	-	SAG1024	-	putative lipoprotein
1000	 30.44	-1	1032786..1033235	-	149	22537185	-	SAG1025	-	hypothetical protein
1001	 27.06	-2	1035253..1035507	-	84	22537186	-	SAG1027	-	hypothetical protein
1002	 21.15	-2	1035528..1036118	-	196	22537187	-	SAG1028	-	hypothetical protein
1003	 38.24	0	1036132..1036437	-	101	22537188	-	SAG1029	-	hypothetical protein
1004	 34.32	0	1036566..1037480	-	304	22537189	-	SAG1030	-	hypothetical protein
1005	 29.20	-1	1037483..1037845	-	120	22537190	-	SAG1031	-	hypothetical protein
1006	 40.31	+1	1037950..1038207	-	85	22537191	-	SAG1032	-	hypothetical protein
1007	 39.80	+1	1038221..1042150	-	1309	22537192	-	SAG1033	-	FtsK/SpoIIIE family protein
1008	 30.36	-1	1042461..1042628	-	55	22537193	-	SAG1034	-	hypothetical protein
1009	 33.02	0	1042635..1043909	-	424	22537194	-	SAG1035	-	hypothetical protein
1010	 32.10	0	1043909..1044151	-	80	22537195	-	SAG1036	-	hypothetical protein
1011	 27.64	-2	1044135..1044608	-	157	22537196	-	SAG1037	-	hypothetical protein
1012	 33.20	0	1044617..1047628	-	1003	22537197	-	SAG1038	-	phage infection protein, putative
1013	 34.36	0	1047710..1048000	-	96	22537198	-	SAG1039	-	hypothetical protein
1014	 32.69	0	1048117..1048899	-	260	22537199	-	SAG1040	-	hypothetical protein
1015	 30.25	-1	1048896..1049219	-	107	22537200	-	SAG1041	-	hypothetical protein
1016	 36.66	0	1049346..1052528	-	1060	22537201	carB	SAG1042	-	carbamoyl phosphate synthase large subunit
1017	 35.56	0	1052559..1053635	-	358	22537202	carA-1	SAG1043	-	carbamoyl phosphate synthase small subunit
1018	 35.06	0	1053649..1054572	-	307	22537203	pyrB	SAG1044	-	aspartate carbamoyltransferase catalytic subunit
1019	 37.59	0	1054737..1056029	-	430	22537204	pyrC	SAG1045	-	dihydroorotase
1020	 38.89	0	1056041..1056670	-	209	22537205	pyrE	SAG1046	-	orotate phosphoribosyltransferase
1021	 36.89	0	1056683..1057384	-	233	22537206	pyrF	SAG1047	-	orotidine 5'-phosphate decarboxylase
1022	 35.93	0	1057597..1058829	-	410	22537207	-	SAG1048	-	hypothetical protein
1023	 35.54	0	1058869..1060410	-	513	22537208	-	SAG1049	-	ABC transporter, ATP-binding protein
1024	 37.98	0	1061049..1062125	-	358	22537209	asd	SAG1051	-	aspartate-semialdehyde dehydrogenase
1025	 27.78	-2	1062335..1062478	-	47	22537210	-	SAG1052	-	cell wall surface anchor family protein, putative
1026	 30.11	-1	1063089..1063181	+	30	22537211	-	SAG1053	-	hypothetical protein
1027	 33.71	0	1063395..1064990	-	531	22537212	cls	SAG1054	-	cardiolipin synthetase
1028	 37.58	0	1065109..1066779	-	556	22537213	fhs	SAG1055	-	formate--tetrahydrofolate ligase
1029	 34.12	0	1066868..1067887	-	339	22537214	lplA-2	SAG1056	-	lipoate-protein ligase A
1030	 35.04	0	1067914..1068792	-	292	22537215	-	SAG1057	-	hypothetical protein
1031	 35.16	0	1068761..1069579	-	272	22537216	-	SAG1058	-	hypothetical protein
1032	 31.83	0	1069572..1069904	-	110	22537217	-	SAG1059	-	glycine cleavage system H protein, putative
1033	 36.27	0	1069933..1070919	-	328	22537218	-	SAG1060	-	luciferase family protein
1034	 37.58	0	1070916..1072115	-	399	22537219	-	SAG1061	-	oxidoreductase, FMN-binding
1035	 35.45	0	1072108..1072956	-	282	22537220	-	SAG1062	-	hypothetical protein
1036	 33.62	0	1073098..1073784	+	228	22537221	-	SAG1063	-	phosphopantothenate--cysteine ligase
1037	 36.83	0	1073777..1074319	+	180	22537222	-	SAG1064	-	phosphopantothenoylcysteine decarboxylase
1038	 34.03	0	1074365..1074937	+	190	22537223	-	SAG1065	-	hypothetical protein
1039	 37.99	0	1075047..1076765	+	572	22537224	pgm	SAG1066	-	phosphoglucomutase
1040	 38.18	0	1076837..1077373	+	178	22537225	-	SAG1067	-	IS861, transposase OrfA
1041	 41.97	+1	1077349..1078182	+	277	22537226	-	SAG1068	-	IS861, transposase OrfB
1042	 29.80	-1	1078264..1078461	-	65	22537227	-	SAG1069	-	hypothetical protein
1043	 34.89	0	1078475..1080208	-	577	22537228	-	SAG1070	-	ABC transporter, ATP-binding/permease protein
1044	 33.74	0	1080209..1081930	-	573	22537229	-	SAG1071	-	ABC transporter, ATP-binding/permease protein
1045	 34.00	0	1081942..1082544	-	200	22537230	-	SAG1072	-	hypothetical protein
1046	 32.00	0	1082546..1083523	-	325	22537231	-	SAG1073	-	hypothetical protein
1047	 37.31	0	1083528..1084784	-	418	22537232	glyA	SAG1074	-	serine hydroxymethyltransferase
1048	 36.41	0	1084876..1085427	-	183	22537233	-	SAG1075	-	Sua5/YciO/YrdC/YwlC family protein
1049	 33.09	0	1085465..1086295	-	276	22537234	-	SAG1076	-	HemK family modification methylase
1050	 37.13	0	1086295..1087374	-	359	22537235	prfA	SAG1077	-	peptide chain release factor 1
1051	 33.33	0	1087409..1087978	-	189	22537236	tdk	SAG1078	-	thymidine kinase
1052	 35.52	0	1088116..1088298	+	60	22537237	xylM	SAG1079	-	4-oxalocrotonate tautomerase
1053	 27.78	-2	1088274..1088417	-	47	22537238	-	SAG1080	-	hypothetical protein
35.44	MEAN

3.78	STD DEV
