IslandPath Analysis: Sorangium cellulosum 'So ce 56'

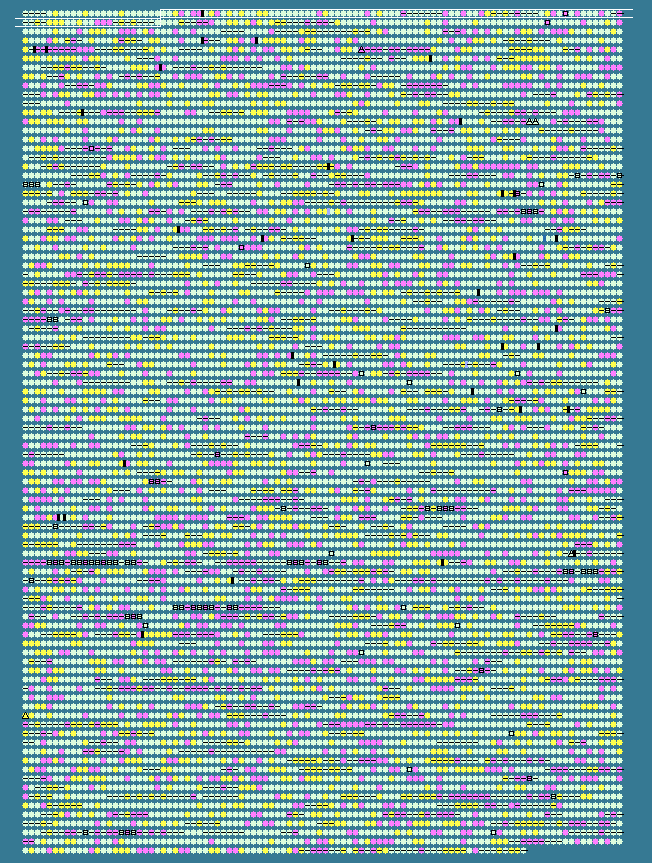

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 71.02   STD DEV: 4.11
Sorangium cellulosum 'So ce 56', complete genome - 1..13033779
9384 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
24	 73.30	0	34663..35823	-	386	162448293	-	sce0024	-	hypothetical protein
25	 72.94	0	36099..37007	+	302	162448294	-	sce0025	-	hypothetical protein
26	 75.32	+1	37138..38883	+	581	162448295	lnt	sce0026	-	hypothetical protein
27	 65.37	-1	38870..39178	-	102	162448296	-	sce0027	-	hypothetical protein
28	 70.13	0	39247..39852	-	201	162448297	-	sce0028	-	hypothetical protein
29	 66.05	-1	39860..40510	-	216	162448298	tal2	sce0029	-	hypothetical protein
30	 65.88	-1	40647..43682	-	1011	162448299	secA	sce0030	-	preprotein translocase SecA subunit
31	 72.14	0	44620..45240	+	206	162448300	-	sce0031	-	putative two component response regulator
32	 75.23	+1	45194..45940	-	248	162448301	-	sce0032	-	CRP family transcriptional regulator
33	 64.63	-1	46299..47819	+	506	162448302	rpoN	sce0033	-	RNA polymerase sigma-54 factor
34	 71.50	0	47882..48874	+	330	162448303	-	sce0034	-	hypothetical protein
35	 75.18	+1	48915..49913	+	332	162448304	-	sce0035	-	hypothetical protein
36	 70.15	0	49972..51234	-	420	162448305	fbp1	sce0036	-	fructose-2,6-bisphosphate 2-phosphatase
37	 75.89	+1	51244..52056	-	270	162448306	-	sce0037	-	hypothetical protein
38	 68.41	0	52143..53348	+	401	162448307	-	sce0038	-	protein kinase
39	 73.38	0	53766..56312	+	848	162448308	pbp1	sce0039	-	penicillin-binding protein
40	 74.89	0	56617..57321	-	234	162448309	-	sce0040	-	hypothetical protein
41	 75.69	+1	57451..58458	-	335	162448310	-	sce0041	-	hypothetical protein
42	 74.14	0	58445..59809	-	454	162448311	-	sce0042	-	protein kinase
43	 73.82	0	59978..60970	-	330	162448312	-	sce0043	-	hypothetical protein
44	 72.29	0	61113..62090	-	325	162448313	speB1	sce0044	-	agmatinase
45	 73.97	0	62099..62878	-	259	162448314	plsC1	sce0045	-	1-acylglycerol-3-phosphate O-acyltransferase
46	 67.91	0	62891..63451	-	186	162448315	-	sce0046	-	acetyltransferase
47	 71.97	0	63615..64595	-	326	162448316	-	sce0047	-	putative 3-oxoacyl-[acyl-carrier-protein] reductase
48	 71.92	0	64837..67065	-	742	162448317	-	sce0048	-	multifunctional fatty acid oxidation complex subunit alpha
49	 72.31	0	67062..68372	-	436	162448318	-	sce0049	-	3-ketoacyl-CoA thiolase
50	 61.84	-2	68841..69047	+	68	162448319	-	sce0050	-	hypothetical protein
51	 74.68	0	69241..71187	-	648	162448320	-	sce0051	-	hypothetical protein
52	 71.48	0	71337..72230	-	297	162448321	-	sce0052	-	hypothetical protein
53	 71.38	0	72275..73081	-	268	162448322	-	sce0053	-	hypothetical protein
54	 71.55	0	73189..74886	-	565	162448323	-	sce0054	-	hypothetical protein
55	 71.09	0	75096..76292	+	398	162448324	-	sce0055	-	hypothetical protein
56	 71.21	0	76330..79650	+	1106	162448325	-	sce0056	-	hypothetical protein
57	 71.54	0	79812..80447	-	211	162448326	-	sce0057	-	hypothetical protein
58	 66.52	-1	80931..82277	-	448	162448327	-	sce0058	-	hypothetical protein
59	 73.72	0	82601..83593	-	330	162448328	-	sce0059	-	hypothetical protein
60	 74.74	0	83602..85125	-	507	162448329	-	sce0060	-	protein kinase
61	 73.70	0	85404..86783	-	459	162448330	-	sce0061	-	putative cAMP-binding protein
62	 73.11	0	86883..88373	-	496	162448331	dlhH1	sce0062	-	putative carboxymethylenebutenolidase
63	 72.76	0	88685..89980	-	431	162448332	-	sce0063	-	putative transcriptional regulator
64	 65.30	-1	90285..91160	-	291	162448333	-	sce0064	-	hypothetical protein
65	 70.21	0	91201..92046	-	281	162448334	-	sce0065	-	hypothetical protein
66	 70.98	0	92301..93923	+	540	162448335	yhjG1	sce0066	-	pentachlorophenol monooxygenase
67	 70.75	0	93993..94628	+	211	162448336	-	sce0067	-	TetR family transcriptional regulator
68	 69.55	0	94679..95545	-	288	162448337	-	sce0068	-	chaperonin (heat shock protein 33)
69	 72.09	0	95736..99995	-	1419	162448338	sdr	sce0069	-	cell surface SD repeat-containing protein
70	 71.92	0	100009..101835	-	608	162448339	-	sce0070	-	outer membrane porin precursor
71	 63.07	-1	102182..102793	+	203	162448340	sodA	sce0071	-	hypothetical protein
72	 70.47	0	102798..103691	+	297	162448341	-	sce0072	-	acetyltransferase
73	 68.16	0	103737..105071	-	444	162448342	argB1	sce0073	-	acetylglutamate kinase
74	 66.87	-1	105077..106078	-	333	162448343	argF1	sce0074	-	N-acetylornithine carbamoyltransferase
75	 69.55	0	106568..106879	+	103	162448344	-	sce0075	-	hypothetical protein
76	 69.32	0	107087..107614	+	175	162448345	-	sce0076	-	hypothetical protein
77	 64.22	-1	107663..108070	+	135	162448346	-	sce0077	-	hypothetical protein
78	 75.80	+1	108007..111771	-	1254	162448347	-	sce0078	-	ATP-dependent deoxyribonuclease subunit A
79	 75.62	+1	112023..112982	+	319	162448348	chlG	sce0079	-	putative octaprenyltransferase
80	 71.84	0	112979..113713	+	244	162448349	hemH1	sce0080	-	ferrochelatase
81	 77.45	+1	113710..114627	+	305	162448350	-	sce0081	-	hypothetical protein
82	 72.71	0	114642..115352	+	236	162448351	-	sce0082	-	hypothetical protein
83	 61.63	-2	115431..117158	-	575	162448353	-	sce_pseudo_01	-	pseudogene
84	 70.35	0	117146..117607	+	153	162448352	-	sce0083	-	hypothetical protein
85	 73.49	0	117802..119442	-	546	162448354	-	sce0084	-	hypothetical protein
86	 70.39	0	120147..120764	-	205	162448355	leuD	sce0085	-	isopropylmalate isomerase small subunit
87	 68.44	0	120792..122201	-	469	162448356	leuC1	sce0086	-	isopropylmalate isomerase large subunit
88	 75.22	+1	122434..123333	+	299	162448357	-	sce0087	-	LysR family transcriptional regulator
89	 66.80	-1	123458..125002	-	514	162448358	guaB1	sce0088	-	inositol-5-monophosphate dehydrogenase
90	 69.07	0	125214..126254	-	346	162448359	-	sce0089	-	AraC family transcriptional regulator
91	 64.75	-1	126521..127459	+	312	162448360	-	sce0090	-	transposase
92	 70.05	0	127945..129066	-	373	162448361	-	sce0091	-	hypothetical protein
93	 63.98	-1	129269..129715	-	148	162448362	-	sce0092	-	hypothetical protein
94	 72.22	0	129992..130657	-	221	162448363	-	sce0093	-	hypothetical protein
95	 71.85	0	130728..131711	+	327	162448364	-	sce0094	-	hypothetical protein
96	 71.79	0	131794..132612	+	272	162448365	-	sce0095	-	hypothetical protein
97	 62.26	-2	132730..133206	+	158	162448366	-	sce0096	-	hypothetical protein
98	 67.94	0	133239..134099	-	286	162448367	-	sce0097	-	proline iminopeptidase
99	 73.19	0	134226..135038	-	270	162448368	-	sce0098	-	putative carboxymethylenebutenolidase
100	 66.67	-1	135035..135451	-	138	162448369	-	sce0099	-	PPE family protein
101	 73.47	0	135403..136254	-	283	162448370	-	sce0100	-	putative carboxymethylenebutenolidase
102	 70.63	0	136251..137234	-	327	162448371	tauD1	sce0101	-	putative taurine dioxygenase
103	 74.89	0	138053..138928	-	291	162448372	-	sce0102	-	hypothetical protein
104	 68.84	0	138959..139372	-	137	162448373	-	sce0103	-	hypothetical protein
105	 77.08	+1	139385..140143	-	252	162448374	-	sce0104	-	hypothetical protein
106	 79.37	+2	140188..142281	-	697	162448375	-	sce0105	-	hypothetical protein
107	 78.05	+1	142197..144533	-	778	162448376	-	sce0106	-	hypothetical protein
108	 72.69	0	144591..147296	-	901	162448377	-	sce0107	-	hypothetical protein
109	 71.94	0	147293..148753	-	486	162448378	-	sce0108	-	hypothetical protein
110	 75.19	+1	148916..150511	-	531	162448379	-	sce0109	-	hypothetical protein
111	 68.23	0	150812..151387	+	191	162448380	-	sce0110	-	hypothetical protein
112	 69.25	0	151480..153801	+	773	162448381	-	sce0111	-	Rhs family carbohydrate-binding protein
113	 66.05	-1	153798..155090	+	430	162448382	-	sce0112	-	hypothetical protein
114	 66.08	-1	155341..156543	+	400	162448383	-	sce0113	-	hypothetical protein
115	 67.06	0	156701..157972	+	423	162448384	-	sce0114	-	hypothetical protein
116	 67.75	0	158075..159370	+	431	162448385	-	sce0115	-	hypothetical protein
117	 77.21	+1	159493..161238	+	581	162448386	-	sce0116	-	putative amidase
118	 71.26	0	161235..161930	+	231	162448387	-	sce0117	-	hypothetical protein
119	 74.64	0	161995..162408	-	137	162448388	-	sce0118	-	hypothetical protein
120	 72.14	0	162446..166753	-	1435	162448389	-	sce0119	-	putative cell surface protein
121	 71.79	0	166750..168603	-	617	162448390	-	sce0120	-	putative ompA family protein
122	 67.63	0	169078..169491	-	137	162448391	-	sce0121	-	hypothetical protein
123	 69.95	0	169545..170762	+	405	162448392	cypA1	sce0122	-	cytochrome P450 CYP109C1
71.02	MEAN

4.11	STD DEV
