IslandPath Analysis: Sorangium cellulosum 'So ce 56'

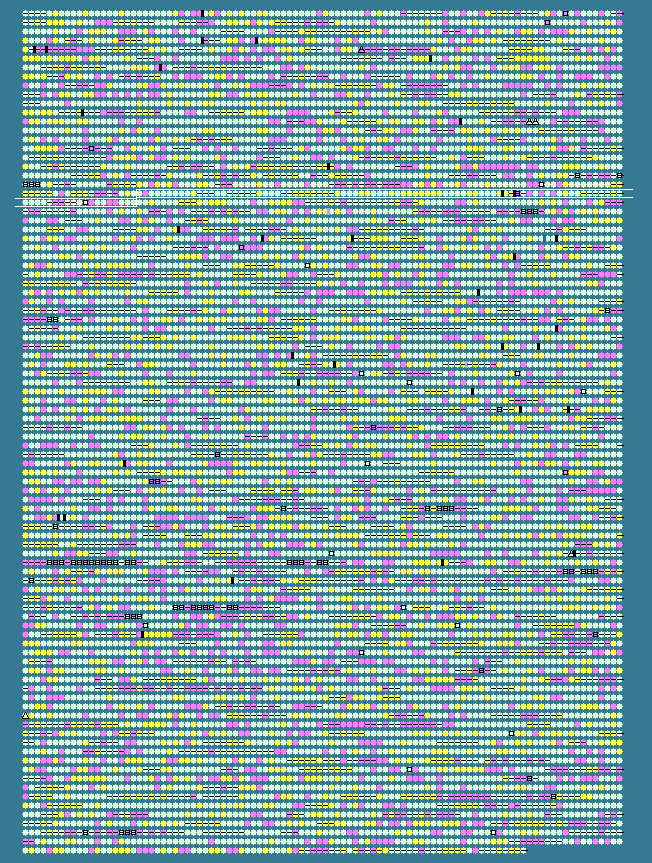

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 71.02   STD DEV: 4.11
Sorangium cellulosum 'So ce 56', complete genome - 1..13033779
9384 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2020	 69.53	0	2737856..2739463	-	535	162450289	-	sce2017	-	hypothetical protein
2021	 67.33	0	2739480..2740079	-	199	162450290	-	sce2018	-	hypothetical protein
2022	 69.68	0	2740073..2741431	-	452	162450291	-	sce2019	-	hypothetical protein
2023	 70.96	0	2741428..2742033	-	201	162450292	-	sce2020	-	hypothetical protein
2024	 70.97	0	2742030..2742749	-	239	162450293	-	sce2021	-	hypothetical protein
2025	 72.25	0	2742866..2744029	+	387	162450294	-	sce2022	-	hypothetical protein
2026	 70.97	0	2744102..2744821	-	239	162450295	ppiD	sce2023	-	peptidyl-prolyl cis-trans isomerase NIMA-interacting 1
2027	 70.91	0	2744873..2745721	-	282	162450296	-	sce2024	-	hydroxysteroid (17-beta) dehydrogenase 4
2028	 73.55	0	2745851..2746693	-	280	162450297	-	sce2025	-	hypothetical protein
2029	 75.82	+1	2746704..2749040	-	778	162450298	-	sce2026	-	protein kinase
2030	 70.91	0	2749130..2751109	+	659	162450299	-	sce2027	-	hypothetical protein
2031	 69.71	0	2751096..2752835	+	579	162450300	-	sce2028	-	hypothetical protein
2032	 67.59	0	2752878..2753309	-	143	162450302	-	sce2029	-	transcriptional regulator
2033	 71.78	0	2753301..2754905	+	534	162450301	-	sce2030	-	hypothetical protein
2034	 67.94	0	2755105..2755734	+	209	162450303	-	sce2031	-	hypothetical protein
2035	 71.44	0	2755976..2757316	-	446	162450304	pmbA	sce2032	-	PmbA protein
2036	 72.51	0	2758382..2759134	+	250	162450305	-	sce2033	-	hypothetical protein
2037	 74.07	0	2759202..2760620	+	472	162450306	-	sce2034	-	hypothetical protein
2038	 70.47	0	2760694..2761350	-	218	162450307	trxA1	sce2035	-	thioredoxin
2039	 74.02	0	2761498..2762490	-	330	162450308	appC	sce2036	-	oligopeptide ABC transporter, permease component
2040	 76.99	+1	2762487..2764016	-	509	162450309	oppB1	sce2037	-	ABC transport protein inner membrane component
2041	 73.36	0	2764033..2765616	-	527	162450310	-	sce2038	-	putative protease
2042	 72.81	0	2765616..2766689	-	357	162450311	-	sce2039	-	glutamyl endopeptidase
2043	 71.96	0	2766721..2768532	-	603	162450312	pp2c2	sce2040	-	phosphoprotein phosphatase
2044	 71.47	0	2768529..2769548	-	339	162450313	-	sce2041	-	FHA domain-containing protein
2045	 70.86	0	2770564..2771088	-	174	162450314	-	sce2042	-	hypothetical protein
2046	 76.79	+1	2772137..2773252	-	371	162450315	-	sce2043	-	putative secreted protein
2047	 76.99	+1	2773249..2774352	-	367	162450316	ltaA	sce2044	-	hypothetical protein
2048	 76.70	+1	2774412..2775986	-	524	162450317	-	sce2045	-	hypothetical protein
2049	 76.10	+1	2776777..2778345	+	522	162450318	-	sce2046	-	hypothetical protein
2050	 72.19	0	2778621..2779163	+	180	162450319	-	sce2047	-	hypothetical protein
2051	 78.48	+1	2779181..2779417	+	78	162450320	-	sce2048	-	hypothetical protein
2052	 72.78	0	2779476..2780162	+	228	162450321	-	sce2049	-	two-component system response regulator
2053	 75.02	0	2780159..2781631	+	490	162450322	-	sce2050	-	sensor histidine kinase
2054	 70.40	0	2781687..2782061	+	124	162450323	-	sce2051	-	two component response regulator
2055	 73.46	0	2782174..2783322	+	382	162450324	-	sce2052	-	hypothetical protein
2056	 71.52	0	2783713..2784165	+	150	162450325	-	sce2053	-	hypothetical protein
2057	 77.71	+1	2784181..2785194	-	337	162450326	-	sce2054	-	hypothetical protein
2058	 75.60	+1	2785191..2787809	-	872	162450327	-	sce2055	-	hypothetical protein
2059	 73.38	0	2787817..2789247	-	476	162450328	-	sce2056	-	protein kinase
2060	 73.20	0	2789616..2790641	-	341	162450329	-	sce2057	-	putative sphingosine kinase enzyme
2061	 70.04	0	2790642..2791442	-	266	162450330	-	sce2058	-	hypothetical protein
2062	 76.27	+1	2792013..2793293	-	426	162450331	-	sce2059	-	putative alanine/arginine/proline-rich membrane protein
2063	 74.16	0	2793642..2794976	+	444	162450332	-	sce2060	-	hypothetical protein
2064	 77.44	+1	2795186..2795974	+	262	162450333	-	sce2061	-	hypothetical protein
2065	 74.86	0	2795980..2797395	-	471	162450334	-	sce2062	-	hypothetical protein
2066	 75.47	+1	2797392..2798357	-	321	162450335	-	sce2063	-	hypothetical protein
2067	 75.14	+1	2798354..2800360	-	668	162450336	-	sce2064	-	asparagine synthetase
2068	 77.11	+1	2800370..2802649	-	759	162450337	-	sce2065	-	hypothetical protein
2069	 77.94	+1	2802739..2803359	-	206	162450338	-	sce2066	-	putative LysE type translocator
2070	 74.93	0	2803459..2804487	-	342	162450339	-	sce2067	-	putative secreted protein
2071	 70.05	0	2804484..2805725	-	413	162450340	-	sce2068	-	putative secreted protein
2072	 71.06	0	2806681..2808273	+	530	162450341	-	sce2069	-	hypothetical protein
2073	 74.32	0	2808270..2809823	+	517	162450342	-	sce2070	-	putative zinc protease
2074	 67.94	0	2809897..2810523	-	208	162450343	-	sce2071	-	putative secreted protein
2075	 78.65	+1	2810569..2812020	-	483	162450344	-	sce2072	-	putative secreted protein
2076	 75.50	+1	2812378..2815989	-	1203	162450345	-	sce2073	-	hypothetical protein
2077	 72.06	0	2816025..2816339	+	104	162450346	-	sce2074	-	hypothetical protein
2078	 71.18	0	2816352..2817569	+	405	162450347	-	sce2075	-	putative secreted protein
2079	 69.56	0	2817566..2818360	+	264	162450348	-	sce2076	-	putative secreted protein
2080	 74.79	0	2818403..2818993	-	196	162450349	-	sce2077	-	serine protease
2081	 76.96	+1	2819424..2819831	+	135	162450350	-	sce2078	-	lactoylglutathione lyase and related lyases
2082	 76.00	+1	2819968..2820996	+	342	162450351	-	sce2079	-	hypothetical protein
2083	 65.57	-1	2821804..2822259	+	151	162450352	-	sce2080	-	transposase
2084	 73.37	0	2822829..2823335	+	168	162450353	-	sce2081	-	hypothetical protein
2085	 64.29	-1	2823674..2824978	+	434	162450354	-	sce2082	-	hypothetical protein
2086	 70.51	0	2825034..2825501	+	155	162450355	-	sce2083	-	hypothetical protein
2087	 63.95	-1	2825941..2826234	+	97	162450356	-	sce2084	-	hypothetical protein
2088	 68.93	0	2826678..2829065	+	795	162450357	-	sce2085	-	hypothetical protein
2089	 65.52	-1	2829089..2829613	+	174	162450358	-	sce2086	-	hypothetical protein
2090	 72.73	0	2829616..2830341	+	241	162450359	-	sce2087	-	hypothetical protein
2091	 77.18	+1	2830338..2831402	+	354	162450360	-	sce2088	-	hypothetical protein
2092	 71.75	0	2831399..2832697	+	432	162450361	-	sce2089	-	hypothetical protein
2093	 73.92	0	2832694..2834637	+	647	162450362	-	sce2090	-	ATPase
2094	 75.00	0	2834634..2834897	+	87	162450363	-	sce2091	-	hypothetical protein
2095	 68.22	0	2834931..2835575	+	214	162450364	-	sce2092	-	hypothetical protein
2096	 69.97	0	2835598..2835900	+	100	162450365	-	sce2093	-	hypothetical protein
2097	 71.24	0	2835913..2837028	+	371	162450366	-	sce2094	-	hypothetical protein
2098	 69.11	0	2837025..2837597	+	190	162450367	-	sce2095	-	hypothetical protein
2099	 77.47	+1	2837597..2837920	+	107	162450368	-	sce2096	-	hypothetical protein
2100	 69.17	0	2837920..2838279	+	119	162450369	-	sce2097	-	hypothetical protein
2101	 71.50	0	2838276..2840843	+	855	162450370	-	sce2098	-	hypothetical protein
2102	 70.27	0	2840840..2843839	+	999	162450371	-	sce2099	-	hypothetical protein
2103	 70.91	0	2843836..2846001	+	721	162450372	-	sce2100	-	hypothetical protein
2104	 69.58	0	2846020..2850003	+	1327	162450373	-	sce2101	-	Pectine lyase family protein
2105	 69.08	0	2850669..2851454	+	261	162450374	-	sce2102	-	hypothetical protein
2106	 67.00	0	2851454..2852059	+	201	162450375	-	sce2103	-	hypothetical protein
2107	 66.29	-1	2852052..2852585	-	177	162450376	-	sce2104	-	hypothetical protein
2108	 68.19	0	2853524..2854636	+	370	162450377	-	sce2105	-	hypothetical protein
2109	 69.27	0	2854633..2855517	+	294	162450378	-	sce2106	-	hypothetical protein
2110	 70.25	0	2855695..2856168	-	157	162450379	-	sce2107	-	hypothetical protein
2111	 68.01	0	2856625..2856921	-	98	162450380	-	sce2108	-	putative transposase
2112	 65.06	-1	2856997..2857806	+	269	162450381	-	sce2109	-	hypothetical protein
2113	 72.19	0	2858038..2860029	+	663	162450382	-	sce2110	-	hypothetical protein
2114	 74.07	0	2860126..2860908	+	260	162450383	-	sce2111	-	hypothetical protein
2115	 60.51	-2	2861268..2861424	-	51	162450384	-	sce2112	-	hypothetical protein
2116	 65.10	-1	2861539..2861793	-	84	162450385	-	sce2113	-	hypothetical protein
2117	 71.07	0	2862110..2864359	+	749	162450386	katE	sce2114	-	hypothetical protein
2118	 70.85	0	2864367..2866661	-	764	162450387	-	sce2115	-	glycogen debranching protein
2119	 70.83	0	2866742..2866885	-	47	162450388	-	sce2116	-	hypothetical protein
71.02	MEAN

4.11	STD DEV
