IslandPath Analysis: Silicibacter sp. TM1040

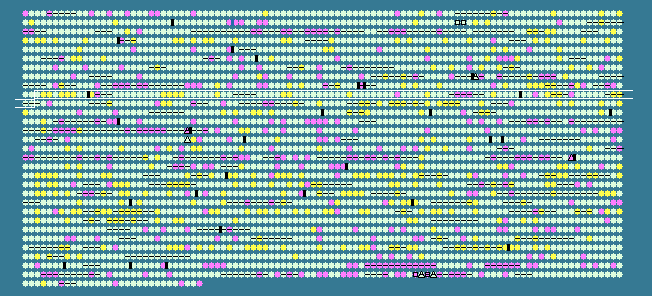

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
903	 59.04	0	963640..965382	+	580	99080744	-	TM1040_0903	-	arginyl-tRNA synthetase
904	 66.35	+1	965892..966827	+	311	99080745	-	TM1040_0904	-	sporulation related
905	 63.94	+1	966827..967888	+	353	99080746	-	TM1040_0905	-	Beta-N-acetylhexosaminidase
906	 60.53	0	967881..968678	+	265	99080747	-	TM1040_0906	-	condensin subunit ScpA
907	 64.76	+1	968678..969358	+	226	99080748	-	TM1040_0907	-	condensin subunit ScpB
908	 68.22	+2	969526..969846	+	106	99080749	-	TM1040_0908	-	hypothetical protein
909	 66.92	+2	969800..970999	-	399	99080750	-	TM1040_0909	-	major facilitator transporter
910	 58.15	0	971071..971610	+	179	99080751	-	TM1040_0910	-	AsnC family transcriptional regulator
911	 63.33	0	971618..972697	-	359	99080752	-	TM1040_0911	-	2'-deoxycytidine 5'-triphosphate deaminase
912	 65.99	+1	973041..975563	-	840	99080753	-	TM1040_0912	-	MerR family transcriptional regulator
913	 55.78	-1	975623..975925	-	100	99080754	-	TM1040_0913	-	integration host factor, alpha subunit
914	 61.52	0	976013..976984	-	323	99080755	-	TM1040_0914	-	3-oxoacyl-[acyl-carrier-protein] synthase III
915	 61.70	0	977000..978127	-	375	99080756	-	TM1040_0915	-	putative glycerol-3-phosphate acyltransferase PlsX
916	 60.39	0	978169..978375	-	68	99080757	rpmF	TM1040_0916	-	50S ribosomal protein L32
917	 63.21	0	978666..979214	-	182	99080758	-	TM1040_0917	-	hypothetical protein
918	 60.04	0	979301..979768	+	155	99080759	-	TM1040_0918	-	SmpA/OmlA family lipoprotein
919	 63.58	+1	979926..980702	+	258	99080760	-	TM1040_0919	-	ornithine-acyl[acyl carrier protein] N-acyltransferase
920	 61.75	0	980789..982579	+	596	99080761	-	TM1040_0920	-	ABC transporter related
921	 63.36	0	982763..983518	-	251	99080762	-	TM1040_0921	-	short-chain dehydrogenase/reductase SDR
922	 60.82	0	983670..984593	-	307	99080763	-	TM1040_0922	-	hypothetical protein
923	 59.73	0	984889..986142	-	417	99080764	-	TM1040_0923	-	tyrosyl-tRNA synthetase
924	 65.07	+1	986286..987413	+	375	99080765	anmK	TM1040_0924	-	anhydro-N-acetylmuramic acid kinase
925	 64.33	+1	987585..988055	-	156	99080766	-	TM1040_0925	-	hypothetical protein
926	 64.06	+1	988123..989541	+	472	99080767	-	TM1040_0926	-	hypothetical protein
927	 64.42	+1	989796..991133	-	445	99080768	-	TM1040_0927	-	DEAD/DEAH box helicase-like
928	 58.75	0	991564..991980	+	138	99080769	-	TM1040_0928	-	FUR family manganese uptake regulator
929	 62.75	0	992140..993033	+	297	99080770	-	TM1040_0929	-	hypothetical protein
930	 61.74	0	993036..994274	-	412	99080771	-	TM1040_0930	-	major facilitator transporter
931	 60.88	0	994521..995798	+	425	99080772	-	TM1040_0931	-	enolase
932	 61.44	0	995924..996535	+	203	99080773	-	TM1040_0932	-	GCN5-related N-acetyltransferase
933	 64.44	+1	996615..997064	-	149	99080774	-	TM1040_0933	-	GCN5-related N-acetyltransferase
934	 61.57	0	997061..998002	-	313	99080775	-	TM1040_0934	-	inosine/uridine-preferring nucleoside hydrolase
935	 61.53	0	998101..999015	+	304	99080776	-	TM1040_0935	-	hypothetical protein
936	 60.74	0	999002..999844	-	280	99080777	mazG	TM1040_0936	-	nucleoside triphosphate pyrophosphohydrolase
937	 60.31	0	999907..1001070	+	387	99080778	-	TM1040_0937	-	peptidase M20D, amidohydrolase
938	 61.32	0	1001097..1002125	+	342	99080779	-	TM1040_0938	-	agmatinase
939	 60.76	0	1002122..1003069	+	315	99080780	-	TM1040_0939	-	agmatinase
940	 63.33	0	1003342..1003671	-	109	99080781	-	TM1040_0940	-	hypothetical protein
941	 62.87	0	1003744..1004796	+	350	99080782	-	TM1040_0941	-	peptide chain release factor 1
942	 63.80	+1	1004793..1005629	+	278	99080783	-	TM1040_0942	-	HemK family modification methylase
943	 62.03	0	1005791..1006501	+	236	99080784	-	TM1040_0943	-	hypothetical protein
944	 65.60	+1	1006604..1007446	-	280	99080785	ksgA	TM1040_0944	-	dimethyladenosine transferase
945	 64.32	+1	1007596..1008576	-	326	99080786	pdxA	TM1040_0945	-	4-hydroxythreonine-4-phosphate dehydrogenase
946	 62.90	0	1008573..1009847	-	424	99080787	-	TM1040_0946	-	PpiC-type peptidyl-prolyl cis-trans isomerase
947	 60.97	0	1009832..1012027	-	731	99080788	-	TM1040_0947	-	organic solvent tolerance protein
948	 61.25	0	1012011..1013117	-	368	99080789	-	TM1040_0948	-	permease YjgP/YjgQ
949	 60.09	0	1013114..1014253	-	379	99080790	-	TM1040_0949	-	permease YjgP/YjgQ
950	 61.31	0	1014475..1015950	+	491	99080791	-	TM1040_0950	-	leucyl aminopeptidase
951	 63.66	+1	1015957..1016421	+	154	99080792	-	TM1040_0951	-	DNA polymerase III subunit chi
952	 57.56	0	1016672..1017253	-	193	99080793	-	TM1040_0952	-	hypothetical protein
953	 58.49	0	1017303..1017926	-	207	99080794	-	TM1040_0953	-	multiple antibiotic resistance (MarC)-related proteins
954	 61.30	0	1017923..1019824	-	633	99080795	-	TM1040_0954	-	ABC transporter related
955	 63.97	+1	1020018..1021610	+	530	99080796	-	TM1040_0955	-	hypothetical protein
956	 63.52	0	1021740..1022948	+	402	99080797	-	TM1040_0956	-	Bcr/CflA subfamily drug resistance transporter
957	 58.87	0	1023097..1023519	+	140	99080798	-	TM1040_0957	-	nucleoside diphosphate kinase
958	 60.42	0	1023637..1023972	-	111	99080799	-	TM1040_0958	-	TfoX domain-containing protein
959	 62.66	0	1024317..1025639	+	440	99080800	-	TM1040_0959	-	mannose-6-phosphate isomerase, type II
960	 58.60	0	1026394..1027038	-	214	99080801	-	TM1040_0960	-	two component LuxR family transcriptional regulator
961	 57.05	-1	1027361..1027828	+	155	99080802	-	TM1040_0961	-	oxidoreductase, molybdopterin binding
962	 59.55	0	1027874..1030345	+	823	99080803	-	TM1040_0962	-	PAS/PAC sensor hybrid histidine kinase
963	 56.53	-1	1030665..1031591	+	308	99080804	-	TM1040_0963	-	anti-sigma-factor antagonist
964	 63.50	0	1031901..1032911	+	336	99080805	-	TM1040_0964	-	tRNA-dihydrouridine synthase A
965	 62.66	0	1032917..1033714	+	265	99080806	-	TM1040_0965	-	hypothetical protein
966	 62.87	0	1033845..1034081	-	78	99080807	-	TM1040_0966	-	hypothetical protein
967	 60.13	0	1034085..1034558	-	157	99080808	-	TM1040_0967	-	Holliday junction resolvase YqgF
968	 64.16	+1	1034555..1035793	-	412	99080809	-	TM1040_0968	-	cytochrome c-type biogenesis protein CycH
969	 60.80	0	1035985..1037280	+	431	99080810	-	TM1040_0969	-	sarcosine oxidase beta subunit family protein
970	 62.76	0	1037333..1037665	+	110	99080811	-	TM1040_0970	-	sarcosine oxidase, delta subunit, heterotetrameric
971	 61.96	0	1037740..1040775	+	1011	99080812	-	TM1040_0971	-	sarcosine oxidase alpha subunit family protein
972	 62.28	0	1040768..1041337	+	189	99080813	-	TM1040_0972	-	sarcosine oxidase, gamma subunit
973	 51.58	-2	1041451..1041861	+	136	99080814	-	TM1040_0973	-	hypothetical protein
974	 52.82	-2	1042009..1042398	+	129	99080815	-	TM1040_0974	-	hypothetical protein
975	 53.46	-2	1042474..1042935	+	153	99080816	-	TM1040_0975	-	hypothetical protein
976	 57.33	0	1043026..1043625	+	199	99080817	-	TM1040_0976	-	superoxide dismutase
977	 58.21	0	1043784..1044398	+	204	99080818	-	TM1040_0977	-	GCN5-related N-acetyltransferase
978	 63.17	0	1044530..1045072	-	180	99080819	-	TM1040_0978	-	hypothetical protein
979	 65.70	+1	1045222..1047177	+	651	99080820	-	TM1040_0979	-	peptidoglycan-binding LysM
980	 62.33	0	1047285..1049105	+	606	99080821	-	TM1040_0980	-	ABC transporter related
981	 60.24	0	1049409..1049657	+	82	99080822	-	TM1040_0981	-	calcium-binding EF-hand
982	 58.80	0	1050017..1050601	-	194	99080823	-	TM1040_0982	-	TetR family transcriptional regulator
983	 58.15	0	1050757..1051590	+	277	99080824	-	TM1040_0983	-	short chain dehydrogenase
984	 59.66	0	1052015..1053841	+	608	99080825	-	TM1040_0984	-	methyl-accepting chemotaxis sensory transducer
985	 57.50	0	1054046..1054285	-	79	99080826	-	TM1040_0985	-	hypothetical protein
986	 55.66	-1	1054261..1054578	-	105	99080827	-	TM1040_0986	-	hypothetical protein
987	 61.75	0	1054875..1058678	-	1267	99080828	-	TM1040_0987	-	acriflavin resistance protein
988	 64.34	+1	1058675..1059922	-	415	99080829	-	TM1040_0988	-	secretion protein HlyD
989	 64.13	+1	1060287..1060955	+	222	99080830	-	TM1040_0989	-	hypothetical protein
990	 65.08	+1	1061024..1062349	+	441	99080831	-	TM1040_0990	-	Pyrrolo-quinoline quinone
991	 61.80	0	1062663..1064141	+	492	99080832	engA	TM1040_0991	-	GTP-binding protein EngA
992	 55.03	-1	1064391..1065344	+	317	99080833	-	TM1040_0992	-	fatty acid desaturase
993	 59.85	0	1065465..1066124	+	219	99080834	-	TM1040_0993	-	helix-hairpin-helix DNA-binding, class 1
994	 63.50	0	1066244..1067536	-	430	99080835	-	TM1040_0994	-	seryl-tRNA synthetase
995	 57.54	0	1067792..1068076	+	94	99080836	-	TM1040_0995	-	protein translocase subunit yajC
996	 62.04	0	1068111..1069775	+	554	99080837	secD	TM1040_0996	-	preprotein translocase subunit SecD
997	 59.13	0	1069779..1070747	+	322	99080838	secF	TM1040_0997	-	preprotein translocase subunit SecF
998	 60.73	0	1070995..1071348	+	117	99080839	-	TM1040_0998	-	hypothetical protein
999	 65.69	+1	1071433..1072047	+	204	99080840	-	TM1040_0999	-	cytochrome c biogenesis protein CcmA
1000	 64.23	+1	1072044..1072700	+	218	99080841	-	TM1040_1000	-	heme exporter protein CcmB
1001	 59.86	0	1072745..1073479	+	244	99080842	-	TM1040_1001	-	heme exporter protein CcmC
1002	 58.33	0	1073472..1073627	+	51	99080843	-	TM1040_1002	-	Heme exporter protein D (CcmD)
60.41	MEAN

3.16	STD DEV
