IslandPathversion 1.0

IslandPath Analysis: Silicibacter sp. TM1040

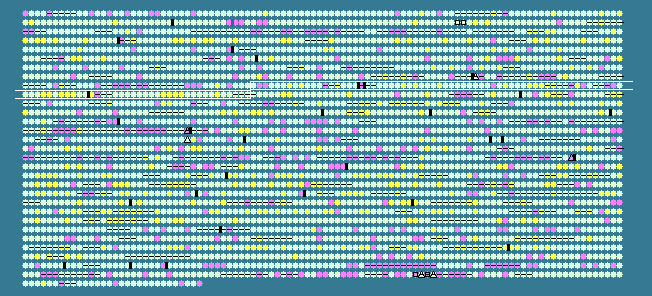

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
839	 60.09	0	884254..887037	+	927	99080680	-	TM1040_0839	-	methyl-accepting chemotaxis sensory transducer
840	 49.38	-2	887215..887457	-	80	99080681	-	TM1040_0840	-	hypothetical protein
841	 56.75	-1	887959..888321	+	120	99080682	-	TM1040_0841	-	hypothetical protein
842	 62.31	0	888359..889966	+	535	99080683	-	TM1040_0842	-	peptidase C1A, papain
843	 59.79	0	889986..894845	+	1619	99080684	-	TM1040_0843	-	OmpA/MotB
844	 62.95	0	894888..895775	-	295	99080685	-	TM1040_0844	-	LysR family transcriptional regulator
845	 64.25	+1	895892..897502	+	536	99080686	-	TM1040_0845	-	glucose-methanol-choline oxidoreductase
846	 63.01	0	897499..898674	+	391	99080687	-	TM1040_0846	-	mandelate racemase/muconate lactonizing-like protein
847	 63.97	+1	898671..900155	+	494	99080688	-	TM1040_0847	-	betaine-aldehyde dehydrogenase
848	 60.40	0	900379..901287	-	302	99080689	-	TM1040_0848	-	LysR family transcriptional regulator
849	 60.92	0	901433..902737	+	434	99080690	-	TM1040_0849	-	extracellular solute-binding protein
850	 57.60	0	902829..903710	+	293	99080691	-	TM1040_0850	-	binding-protein-dependent transport systems inner membrane component
851	 56.34	-1	903710..904561	+	283	99080692	-	TM1040_0851	-	binding-protein-dependent transport systems inner membrane component
852	 60.04	0	904570..905625	+	351	99080693	-	TM1040_0852	-	glycerol-3-phosphate transporter ATP-binding subunit
853	 64.24	+1	905622..906569	+	315	99080694	-	TM1040_0853	-	glycerophosphoryl diester phosphodiesterase
854	 62.32	0	906573..907493	+	306	99080695	-	TM1040_0854	-	haloacid dehalogenase-like hydrolase
855	 61.99	0	907552..909198	+	548	99080696	-	TM1040_0855	-	Na+/Pi-cotransporter
856	 63.37	0	909271..909846	+	191	99080697	-	TM1040_0856	-	phosphoglycerate mutase
857	 53.64	-2	910004..910333	-	109	99080698	-	TM1040_0857	-	hypothetical protein
858	 62.53	0	910897..911307	+	136	99080699	-	TM1040_0858	-	thioesterase superfamily protein
859	 61.14	0	911391..912782	-	463	99080700	-	TM1040_0859	-	hypothetical protein
860	 59.59	0	913262..914491	+	409	161899030	-	TM1040_0860	-	5-aminolevulinate synthase
861	 62.32	0	914620..915837	+	405	99080702	-	TM1040_0861	-	hypothetical protein
862	 60.05	0	915958..917091	+	377	99080703	ispG	TM1040_0862	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
863	 60.78	0	917168..917932	-	254	99080704	-	TM1040_0863	-	DSBA oxidoreductase
864	 64.06	+1	917929..919350	-	473	99080705	-	TM1040_0864	-	peptidase M48, Ste24p
865	 63.26	0	919373..920518	+	381	99080706	-	TM1040_0865	-	aminotransferase
866	 63.92	+1	920518..921756	+	412	99080707	-	TM1040_0866	-	N-acetylmuramoyl-L-alanine amidase
867	 61.16	0	922143..924650	+	835	99080708	-	TM1040_0867	-	penicillin-binding protein 1A
868	 61.16	0	924764..925888	+	374	99080709	-	TM1040_0868	-	peptide chain release factor 2
869	 62.86	0	926009..927346	-	445	99080710	-	TM1040_0869	-	major facilitator transporter
870	 65.36	+1	927480..928859	+	459	99080711	-	TM1040_0870	-	amidase
871	 59.26	0	928914..929723	+	269	99080712	-	TM1040_0871	-	hypothetical protein
872	 58.68	0	929716..930516	-	266	99080713	-	TM1040_0872	-	XRE family transcriptional regulator
873	 59.52	0	930711..931130	+	139	99080714	-	TM1040_0873	-	hypothetical protein
874	 59.71	0	931317..931877	-	186	99080715	ilvH	TM1040_0874	-	acetolactate synthase 3 regulatory subunit
875	 60.56	0	931943..933694	-	583	99080716	-	TM1040_0875	-	acetolactate synthase 3 catalytic subunit
876	 60.97	0	934294..934995	-	233	99080717	-	TM1040_0876	-	two component LuxR family transcriptional regulator
877	 62.04	0	935016..936440	-	474	99080718	-	TM1040_0877	-	periplasmic sensor signal transduction histidine kinase
878	 62.62	0	936737..937822	+	361	99080719	-	TM1040_0878	-	twin-arginine translocation pathway signal
879	 56.54	-1	937960..938907	+	315	99080720	-	TM1040_0879	-	TRAP-type mannitol/chloroaromatic compound transport system small permease component-like
880	 60.76	0	938924..941278	+	784	99080721	-	TM1040_0880	-	TRAP C4-dicarboxylate transport system permease DctM subunit
881	 64.84	+1	941492..941875	-	127	99080722	-	TM1040_0881	-	glyoxalase/bleomycin resistance protein/dioxygenase
882	 61.21	0	941881..942705	-	274	99080723	-	TM1040_0882	-	arginyl-tRNA-protein transferase
883	 62.27	0	942879..943310	-	143	99080724	-	TM1040_0883	-	RDD domain-containing protein
884	 60.53	0	943379..943834	-	151	99080725	-	TM1040_0884	-	hypothetical protein
885	 64.11	+1	944459..947317	+	952	99080726	-	TM1040_0885	-	glutamate-ammonia-ligase adenylyltransferase
886	 67.97	+2	947364..947594	+	76	99080727	-	TM1040_0886	-	hypothetical protein
887	 65.02	+1	948037..949254	+	405	99080728	-	TM1040_0887	-	SAM-dependent methyltransferase
888	 65.74	+1	949266..949805	+	179	99080729	-	TM1040_0888	-	hypothetical protein
889	 64.84	+1	949911..950897	-	328	99080730	-	TM1040_0889	-	luciferase-like
890	 62.01	0	950986..951672	-	228	99080731	-	TM1040_0890	-	peptidase M48, Ste24p
891	 60.68	0	952013..953197	-	394	99080732	-	TM1040_0891	-	hypothetical protein
892	 56.55	-1	953229..953396	-	55	99080733	-	TM1040_0892	-	hypothetical protein
893	 68.12	+2	953503..954951	-	482	99080734	-	TM1040_0893	-	hypothetical protein
894	 56.07	-1	955075..955914	-	279	99080735	-	TM1040_0894	-	ATPase
895	 58.28	0	956048..956524	+	158	99080736	-	TM1040_0895	-	TraR/DksA family transcriptional regulator
896	 63.76	+1	956617..957786	+	389	99080737	-	TM1040_0896	-	monooxygenase, FAD-binding
897	 61.96	0	958089..958895	-	268	99080738	-	TM1040_0897	-	exodeoxyribonuclease III
898	 46.80	-2	959238..959534	-	98	99080739	-	TM1040_0898	-	hypothetical protein
899	 56.43	-1	959653..960717	+	354	99080740	-	TM1040_0899	-	hypothetical protein
900	 61.18	0	960714..961715	+	333	99080741	-	TM1040_0900	-	hypothetical protein
901	 59.26	0	961909..962232	-	107	99080742	-	TM1040_0901	-	HesB/YadR/YfhF
902	 62.03	0	962323..963465	+	380	99080743	-	TM1040_0902	-	deoxyguanosinetriphosphate triphosphohydrolase
903	 59.04	0	963640..965382	+	580	99080744	-	TM1040_0903	-	arginyl-tRNA synthetase
904	 66.35	+1	965892..966827	+	311	99080745	-	TM1040_0904	-	sporulation related
905	 63.94	+1	966827..967888	+	353	99080746	-	TM1040_0905	-	Beta-N-acetylhexosaminidase
906	 60.53	0	967881..968678	+	265	99080747	-	TM1040_0906	-	condensin subunit ScpA
907	 64.76	+1	968678..969358	+	226	99080748	-	TM1040_0907	-	condensin subunit ScpB
908	 68.22	+2	969526..969846	+	106	99080749	-	TM1040_0908	-	hypothetical protein
909	 66.92	+2	969800..970999	-	399	99080750	-	TM1040_0909	-	major facilitator transporter
910	 58.15	0	971071..971610	+	179	99080751	-	TM1040_0910	-	AsnC family transcriptional regulator
911	 63.33	0	971618..972697	-	359	99080752	-	TM1040_0911	-	2'-deoxycytidine 5'-triphosphate deaminase
912	 65.99	+1	973041..975563	-	840	99080753	-	TM1040_0912	-	MerR family transcriptional regulator
913	 55.78	-1	975623..975925	-	100	99080754	-	TM1040_0913	-	integration host factor, alpha subunit
914	 61.52	0	976013..976984	-	323	99080755	-	TM1040_0914	-	3-oxoacyl-[acyl-carrier-protein] synthase III
915	 61.70	0	977000..978127	-	375	99080756	-	TM1040_0915	-	putative glycerol-3-phosphate acyltransferase PlsX
916	 60.39	0	978169..978375	-	68	99080757	rpmF	TM1040_0916	-	50S ribosomal protein L32
917	 63.21	0	978666..979214	-	182	99080758	-	TM1040_0917	-	hypothetical protein
918	 60.04	0	979301..979768	+	155	99080759	-	TM1040_0918	-	SmpA/OmlA family lipoprotein
919	 63.58	+1	979926..980702	+	258	99080760	-	TM1040_0919	-	ornithine-acyl[acyl carrier protein] N-acyltransferase
920	 61.75	0	980789..982579	+	596	99080761	-	TM1040_0920	-	ABC transporter related
921	 63.36	0	982763..983518	-	251	99080762	-	TM1040_0921	-	short-chain dehydrogenase/reductase SDR
922	 60.82	0	983670..984593	-	307	99080763	-	TM1040_0922	-	hypothetical protein
923	 59.73	0	984889..986142	-	417	99080764	-	TM1040_0923	-	tyrosyl-tRNA synthetase
924	 65.07	+1	986286..987413	+	375	99080765	anmK	TM1040_0924	-	anhydro-N-acetylmuramic acid kinase
925	 64.33	+1	987585..988055	-	156	99080766	-	TM1040_0925	-	hypothetical protein
926	 64.06	+1	988123..989541	+	472	99080767	-	TM1040_0926	-	hypothetical protein
927	 64.42	+1	989796..991133	-	445	99080768	-	TM1040_0927	-	DEAD/DEAH box helicase-like
928	 58.75	0	991564..991980	+	138	99080769	-	TM1040_0928	-	FUR family manganese uptake regulator
929	 62.75	0	992140..993033	+	297	99080770	-	TM1040_0929	-	hypothetical protein
930	 61.74	0	993036..994274	-	412	99080771	-	TM1040_0930	-	major facilitator transporter
931	 60.88	0	994521..995798	+	425	99080772	-	TM1040_0931	-	enolase
932	 61.44	0	995924..996535	+	203	99080773	-	TM1040_0932	-	GCN5-related N-acetyltransferase
933	 64.44	+1	996615..997064	-	149	99080774	-	TM1040_0933	-	GCN5-related N-acetyltransferase
934	 61.57	0	997061..998002	-	313	99080775	-	TM1040_0934	-	inosine/uridine-preferring nucleoside hydrolase
935	 61.53	0	998101..999015	+	304	99080776	-	TM1040_0935	-	hypothetical protein
936	 60.74	0	999002..999844	-	280	99080777	mazG	TM1040_0936	-	nucleoside triphosphate pyrophosphohydrolase
937	 60.31	0	999907..1001070	+	387	99080778	-	TM1040_0937	-	peptidase M20D, amidohydrolase
938	 61.32	0	1001097..1002125	+	342	99080779	-	TM1040_0938	-	agmatinase
60.41	MEAN

3.16	STD DEV
