IslandPathversion 1.0

IslandPath Analysis: Silicibacter sp. TM1040

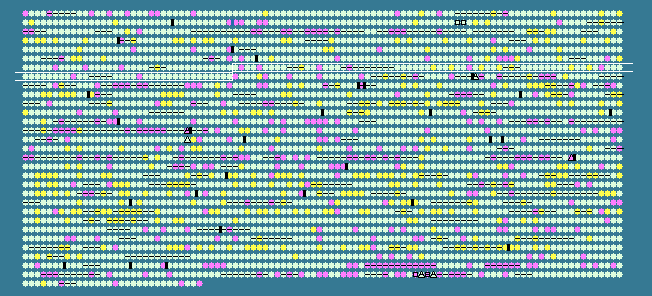

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
636	 61.11	0	680127..680846	-	239	99080477	-	TM1040_0636	-	response regulator receiver protein
637	 56.79	-1	681032..681436	+	134	99080478	-	TM1040_0637	-	methylmalonyl-CoA epimerase
638	 57.97	0	681506..681781	+	91	99080479	-	TM1040_0638	-	hypothetical protein
639	 59.54	0	681912..682865	-	317	99080480	-	TM1040_0639	-	LysR family transcriptional regulator
640	 52.05	-2	683422..683763	-	113	99080481	-	TM1040_0640	-	hypothetical protein
641	 62.86	0	683825..685609	-	594	99080482	-	TM1040_0641	-	peptidase M24
642	 62.35	0	686000..687877	-	625	99080483	-	TM1040_0642	-	cobalt chelatase, CobT subunit
643	 58.66	0	688037..689023	-	328	99080484	-	TM1040_0643	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
644	 59.33	0	689252..689851	-	199	99080485	-	TM1040_0644	-	CzcN domain-containing protein
645	 61.88	0	690169..690795	-	208	99080486	-	TM1040_0645	-	heat shock protein DnaJ-like
646	 57.65	0	690913..691167	+	84	99080487	-	TM1040_0646	-	BolA-like protein
647	 66.14	+1	691219..691788	-	189	99080488	-	TM1040_0647	-	hypothetical protein
648	 60.34	0	691865..693112	-	415	99080489	-	TM1040_0648	-	peptidase T
649	 62.46	0	693219..694622	-	467	99080490	-	TM1040_0649	-	hypothetical protein
650	 55.97	-1	694800..696089	+	429	99080491	-	TM1040_0650	-	hypothetical protein
651	 61.57	0	696203..698143	+	646	99080492	-	TM1040_0651	-	AsmA
652	 60.19	0	698293..699789	-	498	99080493	-	TM1040_0652	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
653	 59.47	0	699813..700646	-	277	99080494	-	TM1040_0653	-	2-dehydro-3-deoxyphosphooctonate aldolase
654	 61.15	0	700651..702408	-	585	99080495	-	TM1040_0654	-	capsule polysaccharide export protein-like
655	 52.88	-2	702386..703045	-	219	99080496	-	TM1040_0655	-	ABC transporter related
656	 62.35	0	703380..703982	+	200	99080497	-	TM1040_0656	-	uracil-DNA glycosylase superfamily protein
657	 62.25	0	703975..704766	+	263	99080498	-	TM1040_0657	-	hypothetical protein
658	 59.11	0	704912..705784	-	290	99080499	-	TM1040_0658	-	putative glutathione S-transferase YghU
659	 57.41	0	706043..706831	+	262	99080500	-	TM1040_0659	-	hypothetical protein
660	 61.07	0	706831..707241	+	136	99080501	-	TM1040_0660	-	hypothetical protein
661	 58.64	0	707349..707921	+	190	99080502	-	TM1040_0661	-	hypothetical protein
662	 63.45	0	708098..708688	-	196	99080503	-	TM1040_0662	-	GcrA cell cycle regulator
663	 59.39	0	708878..709702	+	274	99080504	-	TM1040_0663	-	ABC-2 type transporter
664	 61.13	0	709699..710691	-	330	99080505	-	TM1040_0664	-	hypothetical protein
665	 61.31	0	710999..712174	+	391	99080506	-	TM1040_0665	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
666	 59.22	0	712251..713177	+	308	99080507	-	TM1040_0666	-	ornithine carbamoyltransferase
667	 61.37	0	713370..714860	-	496	99080508	-	TM1040_0667	-	phosphate transporter
668	 58.76	0	714982..715449	-	155	99080509	-	TM1040_0668	-	NUDIX hydrolase
669	 66.75	+2	715629..718154	-	841	99080510	-	TM1040_0669	-	ATP-dependent helicase HrpB
670	 63.17	0	718401..719402	+	333	99080511	-	TM1040_0670	-	arginine/ornithine transport system ATPase
671	 59.11	0	719704..719994	+	96	99080512	rpmB	TM1040_0671	-	50S ribosomal protein L28
672	 64.06	+1	720156..720500	+	114	99080513	-	TM1040_0672	-	hypothetical protein
673	 57.11	-1	720577..721068	+	163	99080514	-	TM1040_0673	-	hypothetical protein
674	 59.94	0	721127..721825	-	232	99080515	-	TM1040_0674	-	NAD-dependent deacetylase
675	 55.56	-1	721940..722389	+	149	99080516	-	TM1040_0675	-	protein tyrosine phosphatase
676	 58.90	0	722497..723462	-	321	99080517	-	TM1040_0676	-	LysR family transcriptional regulator
677	 64.74	+1	723729..724040	-	103	99080518	-	TM1040_0677	-	hypothetical protein
678	 58.56	0	724251..726050	+	599	99080519	-	TM1040_0678	-	GTP-binding protein LepA
679	 63.39	0	726193..727596	+	467	99080520	-	TM1040_0679	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
680	 63.97	+1	727602..728786	-	394	99080521	-	TM1040_0680	-	HI0933-like protein
681	 60.51	0	729001..730170	+	389	99080522	-	TM1040_0681	-	cell division protein FtsW
682	 65.30	+1	730217..731314	+	365	99080523	murG	TM1040_0682	-	N-acetylglucosaminyl transferase
683	 60.99	0	731311..732720	+	469	99080524	murC	TM1040_0683	-	UDP-N-acetylmuramate--L-alanine ligase
684	 57.20	-1	732884..733126	+	80	99080525	-	TM1040_0684	-	hypothetical protein
685	 61.70	0	733268..734194	+	308	99080526	-	TM1040_0685	-	UDP-N-acetylmuramate dehydrogenase
686	 62.11	0	734517..735437	+	306	99080527	-	TM1040_0686	-	D-alanine--D-alanine ligase
687	 61.78	0	735425..736324	+	299	99080528	-	TM1040_0687	-	cell division protein FtsQ
688	 62.01	0	736308..737660	+	450	99080529	-	TM1040_0688	-	cell division protein FtsA
689	 62.96	0	738085..739758	+	557	99080530	-	TM1040_0689	-	cell division protein FtsZ
690	 61.08	0	739957..740904	+	315	99080531	lpxC	TM1040_0690	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
691	 57.16	-1	741250..742101	+	283	99080532	-	TM1040_0691	-	competence lipoprotein ComL, putative
692	 64.55	+1	742178..743827	+	549	99080533	-	TM1040_0692	-	DNA repair protein RecN
693	 61.00	0	743914..745608	+	564	99080534	-	TM1040_0693	-	Cl- channel, voltage gated
694	 60.89	0	745727..746419	-	230	99080535	-	TM1040_0694	-	hypothetical protein
695	 64.77	+1	746416..746994	-	192	99080536	-	TM1040_0695	-	nitroreductase
696	 62.37	0	747262..747540	+	92	99080537	-	TM1040_0696	-	hypothetical protein
697	 53.91	-2	747648..747890	-	80	99080538	-	TM1040_0697	-	hypothetical protein
698	 58.48	0	748019..748678	+	219	99080539	-	TM1040_0698	-	peptidase M48, Ste24p
699	 60.63	0	748689..749069	+	126	99080540	-	TM1040_0699	-	hypothetical protein
700	 57.25	-1	749165..749440	+	91	99080541	-	TM1040_0700	-	hypothetical protein
701	 58.78	0	749516..751024	-	502	99080542	gatB	TM1040_0701	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
702	 59.05	0	751184..751918	-	244	99080543	-	TM1040_0702	-	extracellular solute-binding protein
703	 60.12	0	752089..754533	+	814	99080544	-	TM1040_0703	-	RNA binding S1
704	 63.85	+1	754656..756002	-	448	99080545	-	TM1040_0704	-	hypothetical protein
705	 61.18	0	756188..756643	-	151	99080546	-	TM1040_0705	-	hypothetical protein
706	 58.95	0	756633..759197	-	854	99080547	-	TM1040_0706	-	alanyl aminopeptidase
707	 61.37	0	759629..761062	-	477	99080548	-	TM1040_0707	-	NAD(P) transhydrogenase, beta subunit
708	 61.46	0	761076..762650	-	524	99080549	pntA	TM1040_0708	-	NAD(P) transhydrogenase subunit alpha
709	 51.32	-2	762745..762972	+	75	99080550	-	TM1040_0709	-	hypothetical protein
710	 61.36	0	762988..763779	-	263	99080551	-	TM1040_0710	-	peptidase C26
711	 60.85	0	763923..766052	-	709	99080552	-	TM1040_0711	-	malate synthase G
712	 61.75	0	766372..767652	+	426	99080553	-	TM1040_0712	-	hypothetical protein
713	 62.74	0	767742..768734	-	330	99080554	-	TM1040_0713	-	binding-protein-dependent transport systems inner membrane component
714	 58.73	0	768727..769734	-	335	99080555	-	TM1040_0714	-	binding-protein-dependent transport systems inner membrane component
715	 60.54	0	769931..771628	-	565	99080556	-	TM1040_0715	-	extracellular solute-binding protein
716	 59.47	0	771989..773809	+	606	99080557	-	TM1040_0716	-	ABC transporter related
717	 61.01	0	773813..774979	+	388	99080558	-	TM1040_0717	-	acetylornithine deacetylase
718	 60.87	0	775182..776354	+	390	99080559	-	TM1040_0718	-	peptidase M20D, amidohydrolase
719	 59.97	0	776435..777598	+	387	99080560	-	TM1040_0719	-	peptidase M20D, amidohydrolase
720	 54.69	-1	777706..778089	-	127	99080561	-	TM1040_0720	-	hypothetical protein
721	 58.27	0	778374..778766	-	130	99080562	-	TM1040_0721	-	hypothetical protein
722	 61.45	0	779020..780093	-	357	99080563	-	TM1040_0722	-	glycosyl transferase, group 1
723	 63.52	0	780104..781408	-	434	99080564	-	TM1040_0723	-	three-deoxy-D-manno-octulosonic-acid transferase-like
724	 59.82	0	781420..782427	-	335	99080565	moaA	TM1040_0724	-	molybdenum cofactor biosynthesis protein A
725	 63.73	+1	782613..783122	+	169	99080566	-	TM1040_0725	-	hypothetical protein
726	 60.32	0	783149..783826	-	225	99080567	-	TM1040_0726	-	hypothetical protein
727	 61.36	0	783823..785631	-	602	99080568	-	TM1040_0727	-	D-fructose-6-phosphate amidotransferase
728	 62.52	0	785636..786985	-	449	99080569	-	TM1040_0728	-	UDP-N-acetylglucosamine pyrophosphorylase / glucosamine-1-phosphate N-acetyltransferase
729	 63.72	+1	787121..787798	+	225	99080570	-	TM1040_0729	-	HAD family hydrolase
730	 61.00	0	787842..788300	-	152	99080571	-	TM1040_0730	-	hypothetical protein
731	 61.66	0	788430..789647	+	405	99080572	-	TM1040_0731	-	DegT/DnrJ/EryC1/StrS aminotransferase
732	 59.28	0	789814..790977	+	387	99080573	-	TM1040_0732	-	isovaleryl-CoA dehydrogenase
733	 62.39	0	790985..791335	+	116	99080574	-	TM1040_0733	-	hypothetical protein
734	 60.86	0	791464..792066	-	200	99080575	-	TM1040_0734	-	OmpW
735	 62.75	0	792161..793741	+	526	99080576	-	TM1040_0735	-	AMP-dependent synthetase and ligase
60.41	MEAN

3.16	STD DEV
