IslandPath Analysis: Silicibacter sp. TM1040

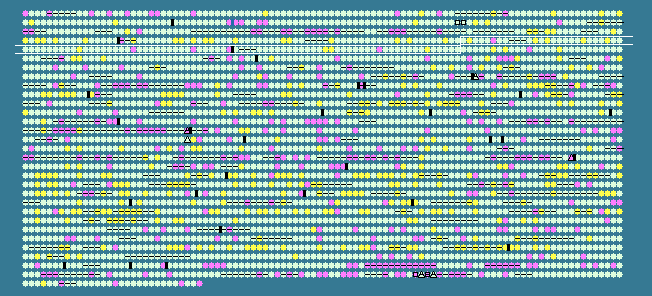

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
374	 58.51	0	383481..383897	-	138	99080215	-	TM1040_0374	-	glutathione-dependent formaldehyde-activating, GFA
375	 66.36	+1	384038..384685	-	215	99080216	-	TM1040_0375	-	2-keto-3-deoxy-phosphogluconate aldolase
376	 63.02	0	384690..386501	-	603	99080217	-	TM1040_0376	-	phosphogluconate dehydratase
377	 60.88	0	386534..387985	-	483	99080218	-	TM1040_0377	-	glucose-6-phosphate 1-dehydrogenase
378	 61.82	0	388010..389620	-	536	99080219	-	TM1040_0378	-	glucose-6-phosphate isomerase
379	 52.21	-2	389724..390131	-	135	99080220	-	TM1040_0379	-	hypothetical protein
380	 62.15	0	390218..390859	-	213	99080221	-	TM1040_0380	-	urease accessory protein UreG
381	 62.33	0	390856..391500	-	214	99080222	-	TM1040_0381	-	urease accessory protein UreF
382	 63.09	0	391490..392020	-	176	99080223	-	TM1040_0382	-	UreE urease accessory-like
383	 57.89	0	392070..392297	-	75	99080224	-	TM1040_0383	-	hypothetical protein
384	 58.21	0	392436..393050	-	204	99080225	-	TM1040_0384	-	hypothetical protein
385	 61.88	0	393082..394794	-	570	99080226	ureC	TM1040_0385	-	urease subunit alpha
386	 64.05	+1	394907..395212	-	101	99080227	-	TM1040_0386	-	urease, beta subunit
387	 61.72	0	395402..395704	-	100	99080228	-	TM1040_0387	-	urease, gamma subunit
388	 64.88	+1	395726..396619	-	297	99080229	-	TM1040_0388	-	urease accessory protein UreD
389	 60.98	0	396997..398121	+	374	99080230	-	TM1040_0389	-	L-carnitine dehydratase/bile acid-inducible protein F
390	 62.30	0	398118..398918	-	266	99080231	-	TM1040_0390	-	hypothetical protein
391	 61.83	0	399046..401052	+	668	99080232	-	TM1040_0391	-	peptidase S15
392	 58.65	0	401118..401666	-	182	99080233	-	TM1040_0392	-	hypothetical protein
393	 60.38	0	401790..402266	-	158	99080234	-	TM1040_0393	-	hypothetical protein
394	 64.96	+1	402282..402986	-	234	99080235	-	TM1040_0394	-	hypothetical protein
395	 62.16	0	402983..404047	-	354	99080236	-	TM1040_0395	-	Mrp/NBP35 family protein
396	 62.99	0	404143..406101	-	652	99080237	-	TM1040_0396	-	4Fe-4S ferredoxin, iron-sulfur binding
397	 61.71	0	406357..407001	+	214	99080238	-	TM1040_0397	-	hypothetical protein
398	 64.99	+1	406998..407654	+	218	99080239	-	TM1040_0398	-	hypothetical protein
399	 59.81	0	407651..408277	+	208	99080240	-	TM1040_0399	-	cytoplasmic chaperone TorD
400	 62.96	0	408384..408572	+	62	99080241	-	TM1040_0400	-	twin-arginine translocation pathway signal
401	 60.73	0	408686..411580	+	964	99080242	-	TM1040_0401	-	formate dehydrogenase alpha subunit
402	 59.60	0	411594..412187	+	197	99080243	-	TM1040_0402	-	4Fe-4S ferredoxin, iron-sulfur binding
403	 60.00	0	412303..413517	+	404	99080244	-	TM1040_0403	-	formate dehydrogenase gamma subunit
404	 62.69	0	413522..414805	+	427	99080245	-	TM1040_0404	-	cytochrome c, class I
405	 58.76	0	414942..416294	+	450	99080246	-	TM1040_0405	-	two component, sigma54 specific, Fis family transcriptional regulator
406	 60.24	0	416325..418301	-	658	99080247	-	TM1040_0406	-	periplasmic sensor signal transduction histidine kinase
407	 60.46	0	418401..419141	-	246	99080248	-	TM1040_0407	-	short-chain dehydrogenase/reductase SDR
408	 59.75	0	419138..419860	-	240	99080249	-	TM1040_0408	-	short-chain dehydrogenase/reductase SDR
409	 58.95	0	419857..420426	-	189	99080250	-	TM1040_0409	-	hypothetical protein
410	 64.04	+1	420423..421640	-	405	99080251	-	TM1040_0410	-	sodium:galactoside symporter family protein
411	 62.25	0	421643..422185	-	180	99080252	-	TM1040_0411	-	hypothetical protein
412	 59.69	0	422175..423335	-	386	99080253	-	TM1040_0412	-	cyclopropane-fatty-acyl-phospholipid synthase
413	 59.10	0	423335..424114	-	259	99080254	-	TM1040_0413	-	hypothetical protein
414	 62.01	0	424111..425442	-	443	99080255	-	TM1040_0414	-	FAD dependent oxidoreductase
415	 62.31	0	425629..426225	+	198	99080256	-	TM1040_0415	-	RNA polymerase sigma factor RpoE
416	 59.43	0	426222..426857	+	211	99080257	-	TM1040_0416	-	anti-ECFsigma factor, ChrR
417	 61.79	0	427011..428015	-	334	99080258	-	TM1040_0417	-	glyceraldehyde-3-phosphate dehydrogenase
418	 59.46	0	428354..430087	+	577	99080259	-	TM1040_0418	-	alpha amylase, catalytic region
419	 53.49	-2	430269..430526	+	85	99080260	-	TM1040_0419	-	hypothetical protein
420	 60.41	0	430753..431982	-	409	99080261	-	TM1040_0420	-	glycosyltransferase involved in cell wall biogenesis
421	 62.56	0	431975..432754	-	259	99080262	-	TM1040_0421	-	mannosyl-3-phosphoglycerate phosphatase
422	 59.61	0	432884..434839	+	651	99080263	-	TM1040_0422	-	BCCT transporter
423	 61.35	0	434944..435714	+	256	99080264	-	TM1040_0423	-	fumarylacetoacetate (FAA) hydrolase
424	 62.45	0	435852..437273	+	473	99080265	-	TM1040_0424	-	hypothetical protein
425	 60.35	0	437482..437877	+	131	99080266	-	TM1040_0425	-	hypothetical protein
426	 62.61	0	437908..439386	-	492	99080267	-	TM1040_0426	-	mannitol dehydrogenase-like
427	 59.14	0	439386..440156	-	256	99080268	-	TM1040_0427	-	sorbitol dehydrogenase
428	 59.10	0	440156..441160	-	334	99080269	-	TM1040_0428	-	ABC transporter related
429	 56.92	-1	441173..442003	-	276	99080270	-	TM1040_0429	-	binding-protein-dependent transport systems inner membrane component
430	 58.13	0	442019..442885	-	288	99080271	-	TM1040_0430	-	binding-protein-dependent transport systems inner membrane component
431	 60.78	0	442988..444295	-	435	99080272	-	TM1040_0431	-	extracellular solute-binding protein
432	 58.14	0	444427..445458	-	343	99080273	-	TM1040_0432	-	LacI family transcription regulator
433	 59.67	0	445657..447987	-	776	99080274	-	TM1040_0433	-	methyl-accepting chemotaxis sensory transducer
434	 60.65	0	448712..451171	-	819	99080275	-	TM1040_0434	-	FAD dependent oxidoreductase
435	 56.42	-1	451273..451926	+	217	99080276	-	TM1040_0435	-	TetR family transcriptional regulator
436	 62.80	0	452191..453096	-	301	99080277	-	TM1040_0436	-	PaaX-like
437	 63.02	0	453126..455156	-	676	99080278	-	TM1040_0437	-	bifunctional aldehyde dehydrogenase/enoyl-CoA hydratase
438	 62.72	0	455317..456102	+	261	99080279	-	TM1040_0438	-	enoyl-CoA hydratase
439	 61.57	0	456106..456537	+	143	99080280	-	TM1040_0439	-	phenylacetic acid degradation protein PaaD
440	 61.56	0	456593..457903	+	436	99080281	-	TM1040_0440	-	phenylacetate-CoA ligase
441	 60.47	0	457910..458506	+	198	99080282	-	TM1040_0441	-	TetR family transcriptional regulator
442	 63.64	+1	458711..458974	+	87	99080283	-	TM1040_0442	-	17 kDa surface antigen
443	 59.38	0	459119..460147	-	342	99080284	-	TM1040_0443	-	tryptophanyl-tRNA synthetase
444	 59.24	0	460262..460948	+	228	99080285	-	TM1040_0444	-	rhomboid-like protein
445	 62.34	0	460965..462512	-	515	99080286	-	TM1040_0445	-	integral membrane protein MviN
446	 59.62	0	462509..465190	-	893	99080287	-	TM1040_0446	-	PII uridylyl-transferase
447	 62.11	0	465297..466481	-	394	99080288	-	TM1040_0447	-	extracellular ligand-binding receptor
448	 63.43	0	466570..467433	+	287	99080289	-	TM1040_0448	-	hypothetical protein
449	 61.87	0	467439..467813	+	124	99080290	-	TM1040_0449	-	hypothetical protein
450	 58.87	0	467874..468809	+	311	99080291	-	TM1040_0450	-	glutathione synthetase
451	 64.55	+1	468806..469702	+	298	99080292	-	TM1040_0451	-	Alpha/beta hydrolase fold-3
452	 64.47	+1	469699..471201	-	500	99080293	-	TM1040_0452	-	Mg chelatase-related protein
453	 62.70	0	471312..471992	-	226	99080294	-	TM1040_0453	-	hypothetical protein
454	 60.14	0	472051..472632	-	193	99080295	-	TM1040_0454	-	phosphoglycerate mutase
455	 57.49	0	472629..473249	-	206	99080296	-	TM1040_0455	-	adenosylcobinamide kinase
456	 60.75	0	473334..474212	+	292	99080297	rpoH2	TM1040_0456	-	RNA polymerase factor sigma-32
457	 63.31	0	474209..475072	+	287	99080298	-	TM1040_0457	-	hypothetical protein
458	 62.95	0	475190..476401	+	403	99080299	-	TM1040_0458	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
459	 62.40	0	476638..477012	+	124	99080300	-	TM1040_0459	-	hypothetical protein
460	 56.72	-1	477198..479711	+	837	99080301	-	TM1040_0460	-	MCP methyltransferase, CheR-type
461	 61.99	0	479863..480354	+	163	99080302	-	TM1040_0461	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
462	 61.84	0	480351..481427	+	358	99080303	-	TM1040_0462	-	UBA/THIF-type NAD/FAD binding fold
463	 59.47	0	481430..482221	+	263	99080304	-	TM1040_0463	-	extracellular solute-binding protein
464	 60.22	0	482295..483101	+	268	99080305	-	TM1040_0464	-	amino acid ABC transporter permease
465	 60.02	0	483198..485213	+	671	99080306	-	TM1040_0465	-	peptidyl-dipeptidase Dcp
466	 62.24	0	485294..486220	-	308	99080307	-	TM1040_0466	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
467	 58.64	0	486217..486627	-	136	99080308	-	TM1040_0467	-	glyoxalase/bleomycin resistance protein/dioxygenase
468	 64.89	+1	486728..487573	+	281	99080309	-	TM1040_0468	-	LysR family transcriptional regulator
469	 60.18	0	487570..488709	-	379	99080310	-	TM1040_0469	-	rod shape-determining protein RodA
470	 61.02	0	488706..490652	-	648	99080311	-	TM1040_0470	-	peptidoglycan glycosyltransferase
471	 60.56	0	490649..491188	-	179	99080312	-	TM1040_0471	-	putative rod shape-determining protein MreD
472	 63.29	0	491181..492128	-	315	99080313	-	TM1040_0472	-	rod shape-determining protein MreC
473	 62.75	0	492184..493230	-	348	99080314	-	TM1040_0473	-	rod shape-determining protein MreB
60.41	MEAN

3.16	STD DEV
