IslandPath Analysis: Silicibacter sp. TM1040

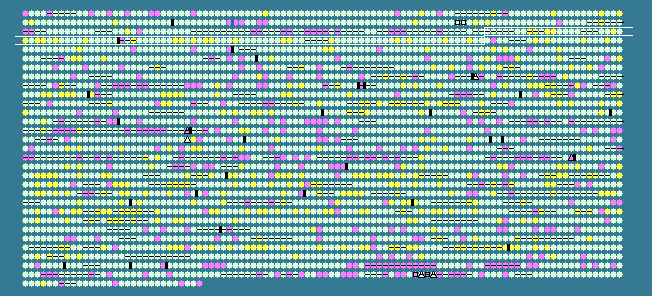

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
278	 61.03	0	284453..284842	+	129	99080119	-	TM1040_0278	-	30S ribosomal protein S11
279	 57.62	0	284956..285972	+	338	99080120	-	TM1040_0279	-	DNA-directed RNA polymerase subunit alpha
280	 57.28	0	286119..286544	+	141	99080121	rplQ	TM1040_0280	-	50S ribosomal protein L17
281	 57.43	0	286665..287573	+	302	99080122	-	TM1040_0281	-	hypothetical protein
282	 61.36	0	287589..287927	-	112	99080123	-	TM1040_0282	-	alkylphosphonate utilization operon protein PhnA
283	 59.33	0	288006..288905	-	299	99080124	-	TM1040_0283	-	NAD-dependent epimerase/dehydratase
284	 61.62	0	289070..289723	+	217	99080125	-	TM1040_0284	-	hypothetical protein
285	 64.16	+1	289710..291107	-	465	99080126	-	TM1040_0285	-	MATE efflux family protein
286	 64.57	+1	291466..292560	+	364	99080127	-	TM1040_0286	-	phospho-2-dehydro-3-deoxyheptonate aldolase
287	 62.66	0	292758..294155	+	465	99080128	-	TM1040_0287	-	peptidase S1C, Do
288	 64.86	+1	294157..295488	+	443	99080129	-	TM1040_0288	-	recombination factor protein RarA
289	 65.20	+1	295557..296987	-	476	99080130	-	TM1040_0289	-	multicopper oxidase, type 3
290	 63.66	+1	297078..297542	+	154	99080131	-	TM1040_0290	-	camphor resistance protein CrcB
291	 63.80	+1	297539..298585	+	348	99080132	-	TM1040_0291	-	ribosomal large subunit pseudouridine synthase C
292	 63.83	+1	298582..299250	+	222	99080133	-	TM1040_0292	-	HAD family hydrolase
293	 63.12	0	299318..300022	+	234	99080134	-	TM1040_0293	-	ATP12 ATPase
294	 62.05	0	300335..301351	+	338	99080135	-	TM1040_0294	-	lysine-arginine-ornithine-binding periplasmic protein
295	 57.29	0	301493..302761	+	422	99080136	-	TM1040_0295	-	amino acid ABC transporter permease
296	 58.54	0	302763..304091	+	442	99080137	-	TM1040_0296	-	amino acid ABC transporter permease
297	 56.94	-1	304104..304895	+	263	99080138	-	TM1040_0297	-	ABC transporter related
298	 58.92	0	305059..305484	-	141	99080139	-	TM1040_0298	-	GCN5-related N-acetyltransferase
299	 64.26	+1	305689..306186	-	165	99080140	-	TM1040_0299	-	putative phosphohistidine phosphatase, SixA
300	 62.79	0	306183..306878	-	231	99080141	-	TM1040_0300	-	hypothetical protein
301	 64.00	+1	307007..307867	-	286	99080142	-	TM1040_0301	-	acetylglutamate kinase
302	 63.52	0	308089..308820	+	243	99080143	-	TM1040_0302	-	short-chain dehydrogenase/reductase SDR
303	 64.12	+1	308867..310279	-	470	99080144	-	TM1040_0303	-	PepSY-associated TM helix
304	 70.27	+2	310348..310680	-	110	99080145	-	TM1040_0304	-	hypothetical protein
305	 62.52	0	310715..311365	-	216	99080146	-	TM1040_0305	-	GTPase EngB
306	 64.77	+1	311365..312102	-	245	99080147	-	TM1040_0306	-	MOSC domain-containing protein
307	 61.25	0	312099..313925	-	608	99080148	-	TM1040_0307	-	putative inner membrane protein translocase component YidC
308	 63.07	0	314351..315850	-	499	99080149	-	TM1040_0308	-	diguanylate cyclase/phosphodiesterase
309	 59.12	0	315963..316850	-	295	99080150	-	TM1040_0309	-	PP-loop
310	 60.99	0	316985..317530	+	181	99080151	-	TM1040_0310	-	hypothetical protein
311	 66.28	+1	317527..317787	-	86	99080152	-	TM1040_0311	-	hypothetical protein
312	 63.24	0	317986..318423	-	145	99080153	-	TM1040_0312	-	ribonuclease P protein component
313	 60.74	0	318476..318610	-	44	99080154	rpmH	TM1040_0313	-	50S ribosomal protein L34
314	 63.69	+1	319077..319814	+	245	99080155	-	TM1040_0314	-	hypothetical protein
315	 63.35	0	319818..321233	+	471	99080156	-	TM1040_0315	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
316	 62.27	0	321251..322636	+	461	99080157	-	TM1040_0316	-	periplasmic sensor signal transduction histidine kinase
317	 50.28	-2	323531..324073	+	180	99080158	-	TM1040_0317	-	hypothetical protein
318	 57.14	-1	324245..324664	+	139	99080159	-	TM1040_0318	-	hypothetical protein
319	 64.10	+1	324863..325447	+	194	99080160	-	TM1040_0319	-	TetR family transcriptional regulator
320	 59.96	0	325584..326150	+	188	99080161	-	TM1040_0320	-	carboxymuconolactone decarboxylase
321	 61.47	0	326224..326781	+	185	99080162	-	TM1040_0321	-	redoxin
322	 63.00	0	326868..327740	-	290	99080163	-	TM1040_0322	-	LysR family transcriptional regulator
323	 63.53	0	327846..328961	+	371	99080164	-	TM1040_0323	-	twin-arginine translocation pathway signal
324	 63.63	+1	329049..329936	+	295	99080165	-	TM1040_0324	-	binding-protein-dependent transport systems inner membrane component
325	 60.71	0	329940..330761	+	273	99080166	-	TM1040_0325	-	binding-protein-dependent transport systems inner membrane component
326	 63.90	+1	330758..331876	+	372	99080167	-	TM1040_0326	-	ABC transporter related
327	 67.53	+2	331873..333141	+	422	99080168	-	TM1040_0327	-	amidase
328	 62.71	0	333138..334046	+	302	99080169	-	TM1040_0328	-	polysaccharide deacetylase
329	 65.67	+1	334033..334734	+	233	99080170	-	TM1040_0329	-	hypothetical protein
330	 63.53	0	334809..335477	-	222	99080171	-	TM1040_0330	-	(Acyl-carrier protein) phosphodiesterase
331	 66.22	+1	335647..336549	+	300	99080172	-	TM1040_0331	-	LysR family transcriptional regulator
332	 65.85	+1	336588..337442	-	284	99080173	-	TM1040_0332	-	LysR family transcriptional regulator
333	 63.01	0	337542..338690	+	382	99080174	-	TM1040_0333	-	gamma-butyrobetaine,2-oxoglutarate dioxygenase
334	 59.56	0	338687..339277	+	196	99080175	-	TM1040_0334	-	hypothetical protein
335	 61.77	0	339509..339937	-	142	99080176	-	TM1040_0335	-	hypothetical protein
336	 64.10	+1	339939..341264	-	441	99080177	-	TM1040_0336	-	major facilitator transporter
337	 60.54	0	341517..341957	+	146	99080178	-	TM1040_0337	-	3-dehydroquinate dehydratase
338	 60.23	0	342242..343732	+	496	99080179	-	TM1040_0338	-	NCS1 nucleoside transporter
339	 63.83	+1	343924..344769	+	281	99080180	-	TM1040_0339	-	hypothetical protein
340	 60.28	0	344893..345972	+	359	99080181	-	TM1040_0340	-	peptidoglycan-binding LysM
341	 62.38	0	345984..347057	+	357	99080182	-	TM1040_0341	-	hypothetical protein
342	 59.02	0	347255..349738	+	827	99080183	-	TM1040_0342	-	multi-sensor hybrid histidine kinase
343	 63.73	+1	349883..350665	-	260	99080184	-	TM1040_0343	-	hemin importer ATP-binding subunit
344	 64.37	+1	350662..351750	-	362	99080185	-	TM1040_0344	-	transport system permease protein
345	 64.19	+1	351754..352602	-	282	99080186	-	TM1040_0345	-	periplasmic binding protein
346	 62.59	0	352602..353681	-	359	99080187	-	TM1040_0346	-	hemin-degrading
347	 58.42	0	353932..355944	+	670	99080188	-	TM1040_0347	-	TonB-dependent receptor, plug
348	 62.55	0	355964..356425	+	153	99080189	-	TM1040_0348	-	hypothetical protein
349	 63.73	+1	356422..357102	+	226	99080190	-	TM1040_0349	-	MotA/TolQ/ExbB proton channel
350	 59.54	0	357102..357494	+	130	99080191	-	TM1040_0350	-	biopolymer transport protein ExbD/TolR
351	 62.37	0	357498..357893	+	131	99080192	-	TM1040_0351	-	hypothetical protein
352	 68.09	+2	357890..358804	+	304	99080193	-	TM1040_0352	-	TonB-like
353	 62.47	0	358801..359538	-	245	99080194	-	TM1040_0353	-	hypothetical protein
354	 58.52	0	359541..360473	-	310	99080195	-	TM1040_0354	-	LysR family transcriptional regulator
355	 61.94	0	360576..361823	+	415	99080196	-	TM1040_0355	-	D-amino-acid dehydrogenase
356	 61.04	0	361863..362840	+	325	99080197	-	TM1040_0356	-	TRAP dicarboxylate transporter- DctP subunit
357	 59.84	0	363053..363667	+	204	99080198	-	TM1040_0357	-	hypothetical protein
358	 59.35	0	363664..364962	+	432	99080199	-	TM1040_0358	-	TRAP dicarboxylate transporter- DctM subunit
359	 61.53	0	365386..368169	+	927	99080200	-	TM1040_0359	-	methyl-accepting chemotaxis sensory transducer
360	 61.74	0	368350..370440	+	696	99080201	-	TM1040_0360	-	short chain enoyl-CoA hydratase / 3-hydroxyacyl-CoA dehydrogenase
361	 62.00	0	370462..371640	+	392	99080202	-	TM1040_0361	-	Acetyl-CoA C-acyltransferase
362	 61.53	0	371829..372626	+	265	99080203	-	TM1040_0362	-	IclR family transcriptional regulator
363	 65.32	+1	372959..373921	+	320	99080204	-	TM1040_0363	-	glucokinase
364	 56.98	-1	374058..374852	+	264	99080205	-	TM1040_0364	-	hypothetical protein
365	 65.66	+1	374933..375625	-	230	99080206	-	TM1040_0365	-	GntR family transcriptional regulator
366	 62.96	0	375616..376452	-	278	99080207	-	TM1040_0366	-	hypothetical protein
367	 62.08	0	376581..377822	-	413	99080208	-	TM1040_0367	-	ROK domain-containing protein
368	 61.06	0	377973..378989	+	338	99080209	-	TM1040_0368	-	periplasmic binding protein/LacI transcriptional regulator
369	 58.12	0	379177..380241	+	354	99080210	-	TM1040_0369	-	inner-membrane translocator
370	 61.15	0	380238..381017	+	259	99080211	-	TM1040_0370	-	ABC transporter related
371	 66.03	+1	381014..381637	+	207	99080212	frcK	TM1040_0371	-	putative fructose transport system kinase
372	 59.31	0	381666..382331	+	221	99080213	-	TM1040_0372	-	hypothetical protein
373	 62.21	0	382535..383410	-	291	99080214	-	TM1040_0373	-	NAD-dependent epimerase/dehydratase
374	 58.51	0	383481..383897	-	138	99080215	-	TM1040_0374	-	glutathione-dependent formaldehyde-activating, GFA
375	 66.36	+1	384038..384685	-	215	99080216	-	TM1040_0375	-	2-keto-3-deoxy-phosphogluconate aldolase
376	 63.02	0	384690..386501	-	603	99080217	-	TM1040_0376	-	phosphogluconate dehydratase
377	 60.88	0	386534..387985	-	483	99080218	-	TM1040_0377	-	glucose-6-phosphate 1-dehydrogenase
60.41	MEAN

3.16	STD DEV
