IslandPathversion 1.0

IslandPath Analysis: Silicibacter sp. TM1040

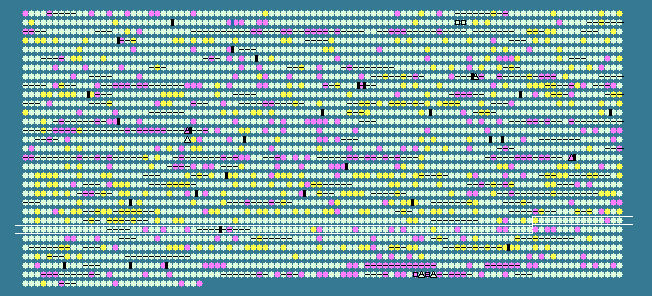

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2386	 64.32	+1	2506718..2507698	+	326	99082227	-	TM1040_2387	-	hypothetical protein
2387	 59.18	0	2507721..2508134	-	137	99082228	-	TM1040_2388	-	hypothetical protein
2388	 59.73	0	2508425..2511349	+	974	99082229	ileS	TM1040_2389	-	isoleucyl-tRNA synthetase
2389	 60.00	0	2511432..2511881	-	149	99082230	-	TM1040_2390	-	hypothetical protein
2390	 60.49	0	2512654..2515503	-	949	99082231	-	TM1040_2391	-	glycine dehydrogenase
2391	 56.94	-1	2515630..2515989	-	119	99082232	-	TM1040_2392	-	glycine cleavage system H protein
2392	 62.31	0	2516031..2517155	-	374	99082233	-	TM1040_2393	-	glycine cleavage system T protein
2393	 62.12	0	2517618..2518607	+	329	99082234	-	TM1040_2394	-	glyceraldehyde 3-phosphate dehydrogenase (phosphorylating)
2394	 62.19	0	2518778..2520610	+	610	99082235	-	TM1040_2395	-	surface antigen (D15)
2395	 63.07	0	2520607..2524614	+	1335	99082236	-	TM1040_2396	-	hypothetical protein
2396	 63.56	0	2524618..2525616	+	332	99082237	-	TM1040_2397	-	glycosyl transferase family protein
2397	 60.17	0	2525684..2526406	-	240	99082238	-	TM1040_2398	-	WecB/TagA/CpsF family glycosyl transferase
2398	 55.56	-1	2526578..2528044	+	488	99082239	-	TM1040_2399	-	hypothetical protein
2399	 61.94	0	2528233..2534685	+	2150	99082240	-	TM1040_2400	-	beta-ketoacyl synthase
2400	 60.02	0	2534689..2535711	+	340	99082241	-	TM1040_2401	-	glycosyl transferase family protein
2401	 61.34	0	2535708..2540267	+	1519	99082242	-	TM1040_2402	-	amino acid adenylation
2402	 60.90	0	2540264..2540974	+	236	99082243	-	TM1040_2403	-	4'-phosphopantetheinyl transferase
2403	 62.22	0	2540971..2541936	+	321	99082244	-	TM1040_2404	-	hypothetical protein
2404	 61.07	0	2541933..2544470	+	845	99082245	-	TM1040_2405	-	hypothetical protein
2405	 60.85	0	2544467..2545309	+	280	99082246	-	TM1040_2406	-	glycosyl transferase family protein
2406	 62.06	0	2545320..2546534	-	404	99082247	-	TM1040_2407	-	glycosyl transferase, group 1
2407	 60.03	0	2546676..2548091	+	471	99082248	-	TM1040_2408	-	polysaccharide biosynthesis protein
2408	 61.18	0	2548100..2549374	-	424	99082249	-	TM1040_2409	-	lipopolysaccharide biosynthesis
2409	 63.27	0	2549408..2550409	-	333	99082250	-	TM1040_2410	-	exopolysaccharide biosynthesis domain-containing protein
2410	 58.96	0	2550750..2551463	-	237	99082251	-	TM1040_2411	-	undecaprenyl-phosphate galactosephosphotransferase
2411	 57.71	0	2551834..2552994	-	386	99082252	-	TM1040_2412	-	AraC family transcriptional regulator
2412	 61.96	0	2553324..2554130	+	268	99082253	-	TM1040_2413	-	2-dehydro-3-deoxygalactonokinase, putative
2413	 60.92	0	2554164..2554964	-	266	99082254	-	TM1040_2414	-	hypothetical protein
2414	 61.68	0	2555077..2556198	-	373	99082255	-	TM1040_2415	-	putative RNA methylase
2415	 60.03	0	2556474..2558207	+	577	99082256	-	TM1040_2416	-	extracellular solute-binding protein
2416	 61.19	0	2558405..2559481	+	358	99082257	-	TM1040_2417	-	ABC transporter related
2417	 59.12	0	2559491..2560564	+	357	99082258	-	TM1040_2418	-	ABC transporter related
2418	 56.94	-1	2560570..2561433	+	287	99082259	-	TM1040_2419	-	binding-protein-dependent transport systems inner membrane component
2419	 57.64	0	2561445..2562242	+	265	99082260	-	TM1040_2420	-	binding-protein-dependent transport systems inner membrane component
2420	 60.57	0	2562244..2562522	+	92	99082261	-	TM1040_2421	-	hypothetical protein
2421	 54.67	-1	2562766..2563215	+	149	99082262	-	TM1040_2422	-	CopY family transcriptional regulator
2422	 60.54	0	2563205..2564347	+	380	99082263	-	TM1040_2423	-	peptidase M56, BlaR1
2423	 56.96	-1	2564427..2565302	-	291	99082264	-	TM1040_2424	-	3-hydroxybutyryl-CoA dehydrogenase
2424	 56.15	-1	2565459..2566295	+	278	99082265	-	TM1040_2425	-	hypothetical protein
2425	 61.29	0	2566366..2567295	-	309	99082266	-	TM1040_2426	-	electron transfer flavoprotein, alpha subunit
2426	 59.82	0	2567295..2568053	-	252	99082267	-	TM1040_2427	-	electron transfer flavoprotein beta-subunit
2427	 61.61	0	2568362..2568934	-	190	99082268	-	TM1040_2428	-	ATP:cob(I)alamin adenosyltransferase
2428	 54.41	-1	2568936..2569139	-	67	99082269	-	TM1040_2429	-	hypothetical protein
2429	 60.05	0	2569211..2570041	-	276	99082270	-	TM1040_2430	-	short-chain dehydrogenase/reductase SDR
2430	 62.72	0	2570072..2570755	-	227	99082271	-	TM1040_2431	-	SH3, type 3
2431	 59.94	0	2571061..2573409	+	782	99082272	-	TM1040_2432	-	DNA topoisomerase IV subunit A
2432	 58.80	0	2573544..2574128	+	194	99082273	-	TM1040_2433	-	hypothetical protein
2433	 59.10	0	2574242..2575417	+	391	99082274	-	TM1040_2434	-	elongation factor Tu
2434	 58.49	0	2576659..2577612	-	317	99082275	-	TM1040_2435	-	hypothetical protein
2435	 54.44	-1	2577596..2577865	-	89	99082276	-	TM1040_2436	-	phosphotransferase system, HPr
2436	 58.52	0	2577869..2578273	-	134	99082277	-	TM1040_2437	-	PTS system fructose subfamily IIA component
2437	 59.47	0	2578283..2579185	-	300	99082278	-	TM1040_2438	-	hypothetical protein
2438	 60.12	0	2579157..2579645	-	162	99082279	-	TM1040_2439	-	Hpr(Ser) kinase/phosphatase
2439	 59.05	0	2579623..2581356	-	577	99082280	-	TM1040_2440	-	periplasmic sensor signal transduction histidine kinase
2440	 57.12	-1	2581396..2582097	-	233	99082281	-	TM1040_2441	-	two component transcriptional regulator
2441	 59.66	0	2582496..2584094	+	532	99082282	-	TM1040_2442	-	phosphoenolpyruvate carboxykinase
2442	 61.09	0	2584215..2584895	-	226	99082283	-	TM1040_2443	-	lipolytic enzyme, G-D-S-L
2443	 60.56	0	2584992..2586695	-	567	99082284	-	TM1040_2444	-	isovaleryl-CoA dehydrogenase
2444	 58.98	0	2586837..2587604	+	255	99082285	-	TM1040_2445	-	hypothetical protein
2445	 59.23	0	2587609..2588523	+	304	99082286	-	TM1040_2446	-	cation diffusion facilitator family transporter
2446	 63.37	0	2588565..2589110	-	181	99082287	-	TM1040_2447	-	NADPH-dependent FMN reductase
2447	 61.26	0	2589284..2589949	-	221	99082288	-	TM1040_2448	-	OmpA/MotB
2448	 61.01	0	2590138..2590827	-	229	99082289	-	TM1040_2449	-	helix-turn-helix, type 11
2449	 63.97	+1	2591174..2592025	-	283	99082290	-	TM1040_2450	-	AraC family transcriptional regulator
2450	 56.85	-1	2592128..2592871	+	247	99082291	-	TM1040_2451	-	DNA-(apurinic or apyrimidinic site) lyase / endonuclease III
2451	 59.92	0	2592868..2593860	+	330	99082292	-	TM1040_2452	-	PfkB
2452	 58.01	0	2594208..2596574	+	788	99082293	-	TM1040_2453	-	methyl-accepting chemotaxis sensory transducer
2453	 59.10	0	2596656..2597144	-	162	99082294	-	TM1040_2454	-	MarR family transcriptional regulator
2454	 62.88	0	2597317..2598135	+	272	99082295	-	TM1040_2455	-	hypothetical protein
2455	 58.99	0	2598178..2598633	-	151	99082296	-	TM1040_2456	-	hypothetical protein
2456	 55.42	-1	2598701..2599207	-	168	99082297	-	TM1040_2457	-	NUDIX hydrolase
2457	 61.49	0	2599378..2601405	+	675	99082298	-	TM1040_2458	-	2,4-dienoyl-CoA reductase
2458	 62.71	0	2601478..2602539	-	353	99082299	-	TM1040_2459	-	2-nitropropane dioxygenase, NPD
2459	 58.50	0	2602719..2603624	-	301	99082300	-	TM1040_2460	-	LysR family transcriptional regulator
2460	 57.66	0	2603833..2604165	+	110	99082301	-	TM1040_2461	-	NIPSNAP domain-containing protein
2461	 60.50	0	2604162..2604518	+	118	99082302	-	TM1040_2462	-	antibiotic biosynthesis monooxygenase
2462	 56.29	-1	2604785..2605372	+	195	99082303	-	TM1040_2463	-	lysine exporter protein LysE/YggA
2463	 62.98	0	2605380..2606438	-	352	99082304	-	TM1040_2464	-	OmpA/MotB
2464	 54.97	-1	2606459..2607031	-	190	99082305	-	TM1040_2465	-	hypothetical protein
2465	 60.61	0	2607061..2607786	-	241	99082306	-	TM1040_2466	-	GCN5-related N-acetyltransferase
2466	 60.44	0	2607783..2608505	-	240	99082307	-	TM1040_2467	-	molybdopterin binding domain-containing protein
2467	 59.97	0	2608608..2609324	+	238	99082308	-	TM1040_2468	-	sugar fermentation stimulation protein
2468	 59.56	0	2609508..2610323	+	271	99082309	-	TM1040_2469	-	methionine aminopeptidase, type I
2469	 64.34	+1	2610478..2611035	-	185	99082310	-	TM1040_2470	-	hypothetical protein
2470	 58.83	0	2611032..2612243	-	403	99082311	-	TM1040_2471	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2471	 58.23	0	2612366..2612851	+	161	99082312	-	TM1040_2472	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
2472	 59.54	0	2612901..2613770	+	289	99082313	-	TM1040_2473	-	hypothetical protein
2473	 52.86	-2	2613915..2614211	-	98	99082314	-	TM1040_2474	-	pterin-4-alpha-carbinolamine dehydratase
2474	 60.02	0	2614208..2615395	-	395	99082315	-	TM1040_2475	-	hypothetical protein
2475	 63.06	0	2615443..2616219	-	258	99082316	-	TM1040_2476	-	glycerophosphoryl diester phosphodiesterase
2476	 60.61	0	2616228..2616689	-	153	99082317	-	TM1040_2477	-	endoribonuclease L-PSP
2477	 61.15	0	2616801..2618123	-	440	99082318	-	TM1040_2478	-	Type I secretion membrane fusion protein, HlyD
2478	 61.22	0	2618120..2619883	-	587	99082319	-	TM1040_2479	-	Type I secretion system ATPase, PrtD
2479	 57.68	0	2620035..2620835	+	266	99082320	-	TM1040_2480	-	VacJ-like lipoprotein
2480	 56.85	-1	2620839..2621429	+	196	99082321	-	TM1040_2481	-	toluene tolerance
2481	 56.60	-1	2621561..2622037	-	158	99082322	smpB	TM1040_2482	-	SsrA-binding protein
2482	 62.17	0	2622133..2622999	-	288	99082323	-	TM1040_2483	-	hypothetical protein
2483	 60.99	0	2623072..2623635	-	187	99082324	-	TM1040_2484	-	XRE family transcriptional regulator
2484	 61.66	0	2623777..2624955	+	392	99082325	-	TM1040_2485	-	benzoate transporter
2485	 60.98	0	2625094..2626938	+	614	99082326	-	TM1040_2486	-	dihydroxy-acid dehydratase
60.41	MEAN

3.16	STD DEV
