IslandPath Analysis: Silicibacter sp. TM1040

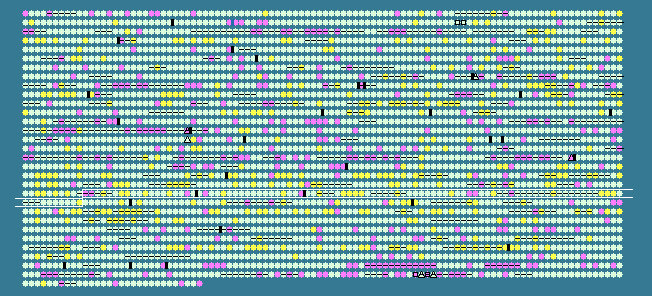

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.41   STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2011	 47.88	-2	2116783..2117112	+	109	99081852	-	TM1040_2012	-	hypothetical protein
2012	 55.83	-1	2117215..2117454	-	79	99081853	-	TM1040_2013	-	hypothetical protein
2013	 61.31	0	2117561..2118064	+	167	99081854	-	TM1040_2014	-	cell division protein MraZ
2014	 64.85	+1	2118068..2119057	+	329	99081855	-	TM1040_2015	-	methyltransferase
2015	 61.78	0	2119057..2119404	+	115	99081856	-	TM1040_2016	-	hypothetical protein
2016	 63.64	+1	2119401..2121182	+	593	99081857	-	TM1040_2017	-	peptidoglycan glycosyltransferase
2017	 66.40	+1	2121197..2122681	+	494	99081858	murE	TM1040_2018	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2018	 66.81	+2	2122678..2124069	+	463	99081859	-	TM1040_2019	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
2019	 60.30	0	2124111..2125193	+	360	99081860	-	TM1040_2020	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2020	 57.45	0	2125506..2126579	-	357	99081861	-	TM1040_2021	-	hypothetical protein
2021	 66.67	+1	2126599..2127684	-	361	99081862	-	TM1040_2022	-	putative Mrp (multidrug resistance-associated proteins) family protein
2022	 59.01	0	2128003..2128224	+	73	99081863	-	TM1040_2023	-	hypothetical protein
2023	 61.96	0	2128764..2131208	-	814	99081864	-	TM1040_2024	-	ATP-dependent DNA helicase Rep
2024	 61.18	0	2131376..2131885	+	169	99081865	-	TM1040_2025	-	BLUF domain-containing protein
2025	 66.32	+1	2132061..2133230	+	389	99081866	-	TM1040_2026	-	L-lactate dehydrogenase (cytochrome)
2026	 62.76	0	2133373..2133807	-	144	99081867	-	TM1040_2027	-	BLUF domain-containing protein
2027	 62.28	0	2134246..2137686	+	1146	99081868	-	TM1040_2028	-	pyruvate carboxylase
2028	 53.80	-2	2137758..2138666	+	302	99081869	-	TM1040_2029	-	hypothetical protein
2029	 61.73	0	2138667..2139152	-	161	99081870	-	TM1040_2030	-	hypothetical protein
2030	 62.01	0	2140200..2141552	+	450	99081871	-	TM1040_2031	-	aminotransferase
2031	 51.67	-2	2141699..2141938	-	79	99081872	-	TM1040_2032	-	AsnC family transcriptional regulator
2032	 63.10	0	2142137..2142724	+	195	99081873	hisB	TM1040_2033	-	imidazoleglycerol-phosphate dehydratase
2033	 61.50	0	2142831..2143469	+	212	99081874	hisH	TM1040_2034	-	imidazole glycerol phosphate synthase subunit HisH
2034	 67.08	+2	2143723..2144454	-	243	99081875	-	TM1040_2035	-	AraC family transcriptional regulator
2035	 60.71	0	2144634..2145170	+	178	99081876	-	TM1040_2036	-	redoxin
2036	 59.52	0	2145288..2145539	+	83	99081877	-	TM1040_2037	-	hypothetical protein
2037	 59.49	0	2145590..2145979	-	129	99081878	-	TM1040_2038	-	hypothetical protein
2038	 63.07	0	2146291..2147013	+	240	99081879	-	TM1040_2039	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2039	 60.57	0	2147329..2147820	+	163	99081880	-	TM1040_2040	-	hypothetical protein
2040	 62.73	0	2147963..2148724	+	253	99081881	-	TM1040_2041	-	imidazole glycerol phosphate synthase subunit HisF
2041	 59.75	0	2148721..2149038	+	105	99081882	hisE	TM1040_2042	-	phosphoribosyl-ATP pyrophosphatase
2042	 61.43	0	2149095..2150258	-	387	99081883	-	TM1040_2043	-	hypothetical protein
2043	 61.08	0	2150402..2150866	-	154	99081884	-	TM1040_2044	-	7-cyano-7-deazaguanine reductase
2044	 65.11	+1	2150883..2151590	-	235	99081885	-	TM1040_2045	-	radical SAM family protein
2045	 58.19	0	2151587..2151940	-	117	99081886	-	TM1040_2046	-	putative 6-pyruvoyl tetrahydropterin synthase
2046	 63.25	0	2151940..2152641	-	233	99081887	-	TM1040_2047	-	ExsB
2047	 56.67	-1	2152684..2152923	+	79	99081888	-	TM1040_2048	-	hypothetical protein
2048	 59.19	0	2153152..2153940	+	262	99081889	-	TM1040_2049	-	RNA methyltransferase TrmH, group 3
2049	 57.02	-1	2154013..2154354	+	113	99081890	-	TM1040_2050	-	hypothetical protein
2050	 64.60	+1	2154527..2155009	+	160	99081891	-	TM1040_2051	-	hypothetical protein
2051	 60.22	0	2155337..2155801	+	154	99081892	-	TM1040_2052	-	CoA-binding
2052	 62.06	0	2155876..2156439	-	187	99081893	-	TM1040_2053	-	3-dehydroquinate dehydratase
2053	 61.85	0	2156958..2158784	+	608	99081894	-	TM1040_2054	-	thiamine biosynthesis protein ThiC
2054	 66.02	+1	2158951..2159724	-	257	99081895	-	TM1040_2055	-	hypothetical protein
2055	 65.50	+1	2159766..2160791	-	341	99081896	-	TM1040_2056	-	allophanate hydrolase subunit 2
2056	 67.06	+2	2160788..2161558	-	256	99081897	-	TM1040_2057	-	allophanate hydrolase subunit 1
2057	 65.36	+1	2161695..2162609	+	304	99081898	-	TM1040_2058	-	LysR family transcriptional regulator
2058	 58.18	0	2162703..2163857	+	384	99081899	-	TM1040_2059	-	Rieske (2Fe-2S) region
2059	 62.59	0	2163854..2164123	+	89	99081900	-	TM1040_2060	-	hypothetical protein
2060	 63.63	+1	2164175..2165095	-	306	99081901	-	TM1040_2061	-	LysR family transcriptional regulator
2061	 59.57	0	2165213..2165494	+	93	99081902	-	TM1040_2062	-	hypothetical protein
2062	 61.46	0	2165626..2168046	+	806	99081903	-	TM1040_2063	-	FAD dependent oxidoreductase
2063	 65.94	+1	2168043..2169287	-	414	99081904	-	TM1040_2064	-	FAD dependent oxidoreductase
2064	 63.82	+1	2169390..2169740	-	116	99081905	-	TM1040_2065	-	endoribonuclease L-PSP
2065	 63.46	0	2169776..2170804	-	342	99081906	-	TM1040_2066	-	histone deacetylase superfamily protein
2066	 59.98	0	2170824..2172110	-	428	99081907	-	TM1040_2067	-	TRAP dicarboxylate transporter- DctM subunit
2067	 57.27	0	2172115..2172678	-	187	99081908	-	TM1040_2068	-	hypothetical protein
2068	 58.68	0	2172766..2173767	-	333	99081909	-	TM1040_2069	-	TRAP dicarboxylate transporter- DctP subunit
2069	 61.99	0	2174017..2175000	+	327	99081910	-	TM1040_2070	-	LysR family transcriptional regulator
2070	 62.92	0	2175116..2176048	+	310	99081911	-	TM1040_2071	-	FMN adenylyltransferase / riboflavin kinase
2071	 61.57	0	2176058..2176528	+	156	99081912	-	TM1040_2072	-	hypothetical protein
2072	 66.55	+1	2176578..2177414	-	278	99081913	-	TM1040_2073	-	alpha/beta hydrolase fold
2073	 62.28	0	2177411..2178025	-	204	99081914	-	TM1040_2074	-	DSBA oxidoreductase
2074	 60.22	0	2178130..2179152	+	340	99081915	-	TM1040_2075	-	ribose-phosphate pyrophosphokinase
2075	 53.65	-2	2179542..2180870	+	442	99081916	-	TM1040_2076	-	dTDP-4-dehydrorhamnose reductase
2076	 55.70	-1	2180867..2181340	+	157	99081917	-	TM1040_2077	-	hypothetical protein
2077	 61.34	0	2181427..2182290	+	287	99081918	-	TM1040_2078	-	hypothetical protein
2078	 59.04	0	2182353..2183846	-	497	99081919	-	TM1040_2079	-	hypothetical protein
2079	 66.54	+1	2183985..2186429	-	814	99081920	-	TM1040_2080	-	heavy metal translocating P-type ATPase
2080	 59.89	0	2186594..2186947	-	117	99081921	-	TM1040_2081	-	MerR family transcriptional regulator
2081	 58.05	0	2187014..2187454	+	146	99081922	-	TM1040_2082	-	hypothetical protein
2082	 54.67	-1	2187810..2188334	-	174	99081923	-	TM1040_2083	-	hypothetical protein
2083	 60.22	0	2188344..2188700	-	118	99081924	-	TM1040_2084	-	hypothetical protein
2084	 63.53	0	2188825..2189238	-	137	99081925	-	TM1040_2085	-	F0F1 ATP synthase subunit epsilon
2085	 60.00	0	2189250..2190674	-	474	99081926	-	TM1040_2086	-	F0F1 ATP synthase subunit beta
2086	 61.87	0	2190695..2191570	-	291	99081927	-	TM1040_2087	-	F0F1 ATP synthase subunit gamma
2087	 60.12	0	2191586..2193127	-	513	99081928	-	TM1040_2088	-	F0F1 ATP synthase subunit alpha
2088	 59.79	0	2193128..2193781	-	217	99081929	-	TM1040_2089	-	ATP synthase F1, delta subunit
2089	 64.79	+1	2194104..2194850	-	248	99081930	-	TM1040_2090	-	hypothetical protein
2090	 59.56	0	2194905..2195720	+	271	99081931	-	TM1040_2091	-	hydroxyacylglutathione hydrolase
2091	 61.29	0	2195880..2198258	+	792	99081932	-	TM1040_2092	-	ATP-dependent Clp protease ATP-binding subunit clpA
2092	 58.79	0	2198470..2199066	-	198	99081933	-	TM1040_2093	-	hypothetical protein
2093	 58.91	0	2199187..2199534	-	115	99081934	-	TM1040_2094	-	hypothetical protein
2094	 63.14	0	2199768..2202122	-	784	99081935	-	TM1040_2095	-	hypothetical protein
2095	 61.07	0	2202126..2203304	-	392	99081936	-	TM1040_2096	-	hypothetical protein
2096	 59.85	0	2203383..2203910	-	175	99081937	-	TM1040_2097	-	ChaC-like protein
2097	 65.88	+1	2203979..2204992	+	337	99081938	-	TM1040_2098	-	hypothetical protein
2098	 65.97	+1	2205061..2205927	-	288	99081939	-	TM1040_2099	-	extensin-like
2099	 64.84	+1	2205924..2206856	-	310	99081940	-	TM1040_2100	-	cyclohexadienyl dehydrogenase
2100	 62.44	0	2206853..2207941	-	362	99081941	-	TM1040_2101	-	histidinol-phosphate aminotransferase
2101	 60.00	0	2207938..2208177	-	79	99081942	-	TM1040_2102	-	hypothetical protein
2102	 63.86	+1	2208354..2209778	-	474	99081943	-	TM1040_2103	-	aminotransferase, class V
2103	 62.34	0	2209885..2210346	+	153	99081944	-	TM1040_2104	-	AsnC family transcriptional regulator
2104	 62.18	0	2210392..2210859	-	155	99081945	-	TM1040_2105	-	GCN5-related N-acetyltransferase
2105	 61.22	0	2210931..2211518	-	195	99081946	-	TM1040_2106	-	hypothetical protein
2106	 59.90	0	2211714..2212334	-	206	99081947	rpsD	TM1040_2107	-	30S ribosomal protein S4
2107	 62.52	0	2212779..2213840	-	353	99081948	-	TM1040_2108	-	hypothetical protein
2108	 62.53	0	2213973..2214914	-	313	99081949	-	TM1040_2109	-	hypothetical protein
2109	 60.95	0	2215089..2215490	-	133	99081950	-	TM1040_2110	-	rhodanese-like protein
2110	 64.51	+1	2215682..2216980	+	432	99081951	-	TM1040_2111	-	L-pipecolate dehydrogenase
60.41	MEAN

3.16	STD DEV
