IslandPathversion 1.0

IslandPath Analysis: Silicibacter sp. TM1040

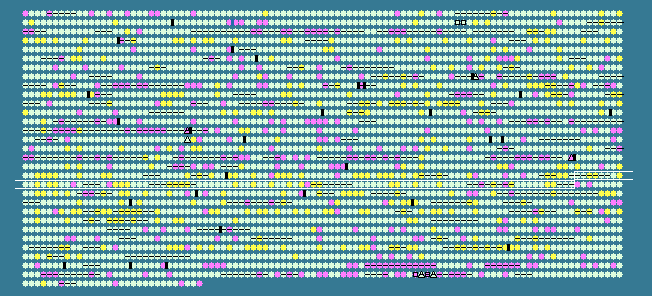

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1893	 59.38	0	1994121..1994861	-	246	161899028	-	TM1040_1893	-	hypothetical protein
1894	 60.61	0	1994821..1995183	-	120	99081735	-	TM1040_1894	-	hypothetical protein
1895	 64.02	+1	1995323..1997098	+	591	99081736	-	TM1040_1895	-	TrkA-C
1896	 65.77	+1	1997303..1998976	+	557	99081737	-	TM1040_1896	-	putative FAD-binding dehydrogenase
1897	 58.65	0	1999008..1999481	+	157	99081738	-	TM1040_1897	-	hypothetical protein
1898	 59.78	0	1999575..2000039	-	154	99081739	-	TM1040_1898	-	twin-arginine translocation pathway signal
1899	 62.45	0	2000157..2001935	-	592	99081740	-	TM1040_1899	-	TrkA-C
1900	 64.09	+1	2002217..2003110	+	297	99081741	-	TM1040_1900	-	beta-lactamase
1901	 61.13	0	2003515..2004327	-	270	99081742	-	TM1040_1901	-	hypothetical protein
1902	 59.88	0	2004704..2005543	+	279	99081743	-	TM1040_1902	-	hypothetical protein
1903	 65.99	+1	2005708..2006295	-	195	99081744	-	TM1040_1903	-	5-formyltetrahydrofolate cyclo-ligase
1904	 61.27	0	2006318..2007706	-	462	99081745	-	TM1040_1904	-	magnesium transporter
1905	 64.50	+1	2007845..2009134	+	429	99081746	-	TM1040_1905	-	guanine deaminase
1906	 64.88	+1	2009233..2010573	-	446	99081747	-	TM1040_1906	-	hydroxydechloroatrazine ethylaminohydrolase
1907	 63.14	0	2010784..2011578	-	264	99081748	-	TM1040_1907	-	histidinol-phosphate phosphatase, putative, inositol monophosphatase
1908	 62.20	0	2011553..2011843	-	96	99081749	-	TM1040_1908	-	hypothetical protein
1909	 55.38	-1	2011866..2012237	-	123	99081750	-	TM1040_1909	-	XRE family transcriptional regulator
1910	 62.15	0	2012602..2013576	+	324	99081751	-	TM1040_1910	-	zinc-binding alcohol dehydrogenase
1911	 61.76	0	2013545..2014462	-	305	99081752	-	TM1040_1911	-	LysR family transcriptional regulator
1912	 61.97	0	2014585..2014797	+	70	99081753	-	TM1040_1912	-	hypothetical protein
1913	 59.36	0	2015026..2015805	+	259	99081754	-	TM1040_1913	-	hypothetical protein
1914	 62.59	0	2015909..2016448	+	179	99081755	-	TM1040_1914	-	GCN5-related N-acetyltransferase
1915	 54.17	-1	2016984..2017151	-	55	99081756	rpmG	TM1040_1915	-	50S ribosomal protein L33
1916	 66.52	+1	2017873..2018532	-	219	99081757	-	TM1040_1916	-	N-acetylmuramyl-L-alanine amidase, negative regulator of AmpC, AmpD
1917	 66.54	+1	2018542..2019306	-	254	99081758	-	TM1040_1917	-	hypothetical protein
1918	 64.38	+1	2019347..2020834	-	495	99081759	gatA	TM1040_1918	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1919	 59.38	0	2020838..2021125	-	95	99081760	-	TM1040_1919	-	aspartyl/glutamyl-tRNA(Asn/Gln) amidotransferase subunit C
1920	 57.29	0	2021537..2022229	+	230	99081761	-	TM1040_1920	-	beta-lactamase-like
1921	 61.79	0	2022229..2023398	+	389	99081762	-	TM1040_1921	-	peptidase M24
1922	 61.69	0	2023619..2024221	-	200	99081763	-	TM1040_1922	-	DNA-3-methyladenine glycosylase I
1923	 60.20	0	2024218..2024511	-	97	99081764	-	TM1040_1923	-	YCII-related
1924	 61.58	0	2024543..2025112	-	189	99081765	-	TM1040_1924	-	TetR family transcriptional regulator
1925	 64.61	+1	2025310..2025552	-	80	99081766	-	TM1040_1925	-	hypothetical protein
1926	 67.13	+2	2025549..2025983	-	144	99081767	-	TM1040_1926	-	CMP/dCMP deaminase, zinc-binding
1927	 64.78	+1	2026097..2027365	+	422	99081768	-	TM1040_1927	-	pseudouridine synthase, Rsu
1928	 65.35	+1	2027532..2028440	+	302	99081769	-	TM1040_1928	-	hypothetical protein
1929	 61.04	0	2028463..2029653	+	396	99081770	-	TM1040_1929	-	toxic anion resistance
1930	 63.31	0	2029664..2030617	+	317	99081771	-	TM1040_1930	-	putative lipoprotein
1931	 57.75	0	2030640..2031323	-	227	99081772	-	TM1040_1931	-	glutathione S-transferase-like
1932	 60.89	0	2031373..2033085	-	570	99081773	-	TM1040_1932	-	acetolactate synthase, large subunit
1933	 59.30	0	2033657..2035897	-	746	99081774	-	TM1040_1933	-	phosphoenolpyruvate-protein phosphotransferase PtsP
1934	 59.81	0	2036243..2037481	-	412	99081775	-	TM1040_1934	-	aspartate kinase
1935	 58.80	0	2037616..2039064	-	482	99081776	-	TM1040_1935	-	cation transporter
1936	 65.76	+1	2039112..2039879	-	255	99081777	-	TM1040_1936	-	hypothetical protein
1937	 59.33	0	2040105..2041208	-	367	99081778	-	TM1040_1937	-	putative GTP cyclohydrolase
1938	 59.76	0	2041410..2042597	-	395	99081779	-	TM1040_1938	-	O-succinylhomoserine sulfhydrylase
1939	 64.65	+1	2043063..2044004	+	313	99081780	-	TM1040_1939	-	hypothetical protein
1940	 57.23	-1	2044201..2044836	-	211	99081781	-	TM1040_1940	-	intracellular septation protein A
1941	 60.51	0	2044881..2045789	-	302	99081782	-	TM1040_1941	-	hypothetical protein
1942	 65.20	+1	2045848..2047008	-	386	99081783	-	TM1040_1942	-	signal recognition particle-docking protein FtsY
1943	 61.01	0	2047082..2047735	-	217	99081784	-	TM1040_1943	-	YhhN-like
1944	 60.34	0	2047873..2048283	+	136	99081785	-	TM1040_1944	-	hypothetical protein
1945	 64.81	+1	2048352..2049860	-	502	99081786	-	TM1040_1945	-	exodeoxyribonuclease VII large subunit
1946	 62.87	0	2050013..2051275	+	420	99081787	-	TM1040_1946	-	phosphoribosylamine--glycine ligase
1947	 64.91	+1	2051746..2052543	-	265	99081788	-	TM1040_1948	-	integrins alpha chain
1948	 56.74	-1	2052543..2052935	-	130	99081789	-	TM1040_1949	-	ferredoxin
1949	 66.67	+1	2053273..2053719	+	148	99081790	-	TM1040_1950	-	peptidoglycan binding domain-containing protein
1950	 64.13	+1	2053848..2054516	+	222	99081791	-	TM1040_1951	-	Crp/FNR family transcriptional regulator
1951	 59.75	0	2055091..2056218	+	375	99081792	-	TM1040_1952	-	tetratricopeptide TPR_2
1952	 62.53	0	2056616..2058115	-	499	99081793	-	TM1040_1953	-	peptidase S1C, Do
1953	 58.62	0	2058558..2059079	+	173	99081794	-	TM1040_1954	-	hypothetical protein
1954	 61.36	0	2059189..2060073	-	294	99081795	-	TM1040_1955	-	HflC protein
1955	 62.20	0	2060073..2061236	-	387	99081796	-	TM1040_1956	-	HflK protein
1956	 60.32	0	2061345..2062700	-	451	99081797	-	TM1040_1957	-	NADPH-glutathione reductase
1957	 57.14	-1	2062849..2063478	-	209	99081798	-	TM1040_1958	-	hypothetical protein
1958	 58.50	0	2063653..2064093	+	146	99081799	-	TM1040_1959	-	transmembrane pair
1959	 61.85	0	2064158..2064946	-	262	99081800	-	TM1040_1960	-	ribose-5-phosphate isomerase
1960	 63.28	0	2065279..2065986	+	235	99081801	-	TM1040_1961	-	glutathione S-transferase-like
1961	 63.83	+1	2065987..2067360	+	457	99081802	-	TM1040_1962	-	L-serine ammonia-lyase / 2-hydroxymethylglutarate dehydratase
1962	 65.45	+1	2067414..2067986	-	190	99081803	-	TM1040_1963	-	TetR family transcriptional regulator
1963	 65.53	+1	2068068..2068943	+	291	99081804	-	TM1040_1964	-	hypothetical protein
1964	 62.36	0	2069025..2069999	+	324	99081805	-	TM1040_1965	-	hypothetical protein
1965	 63.54	0	2069965..2070636	-	223	99081806	-	TM1040_1966	-	thiamine pyrophosphokinase
1966	 65.67	+1	2070774..2072972	+	732	99081807	-	TM1040_1967	-	putative CheA signal transduction histidine kinases
1967	 58.54	0	2073325..2073570	-	81	99081808	-	TM1040_1968	-	hypothetical protein
1968	 63.09	0	2073570..2074883	-	437	99081809	-	TM1040_1969	-	adenylosuccinate synthetase
1969	 63.09	0	2075153..2075515	-	120	99081810	-	TM1040_1970	-	hypothetical protein
1970	 64.26	+1	2075512..2076216	-	234	99081811	-	TM1040_1971	-	nitrile hydratase
1971	 63.00	0	2076213..2076839	-	208	99081812	-	TM1040_1972	-	nitrile hydratase, alpha subunit
1972	 60.64	0	2077611..2079254	+	547	99081813	-	TM1040_1973	-	CTP synthetase
1973	 57.64	0	2079396..2079827	+	143	99081814	-	TM1040_1974	-	hypothetical protein
1974	 63.66	+1	2079901..2080233	+	110	99081815	-	TM1040_1975	-	hypothetical protein
1975	 60.24	0	2080346..2081248	+	300	99081816	-	TM1040_1976	-	fructose-1,6-bisphosphate aldolase
1976	 60.70	0	2081321..2082778	-	485	99081817	-	TM1040_1977	-	methyl-accepting chemotaxis sensory transducer
1977	 53.53	-2	2082931..2083242	+	103	99081818	-	TM1040_1978	-	hypothetical protein
1978	 59.89	0	2083197..2083919	-	240	99081819	-	TM1040_1979	-	fatty acid hydroxylase
1979	 65.04	+1	2083971..2084768	-	265	99081820	-	TM1040_1980	-	enoyl-CoA hydratase
1980	 63.61	+1	2084941..2086053	+	370	99081821	-	TM1040_1981	-	histidinol-phosphate aminotransferase
1981	 56.54	-1	2086159..2086395	+	78	99081822	-	TM1040_1982	-	hypothetical protein
1982	 64.44	+1	2086629..2087843	-	404	99081823	-	TM1040_1983	-	aminotransferase, class V
1983	 62.53	0	2088076..2089935	+	619	99081824	-	TM1040_1984	-	ABC transporter related
1984	 63.32	0	2090043..2090789	+	248	99081825	-	TM1040_1985	-	glycine cleavage T protein (aminomethyl transferase)
1985	 61.00	0	2090902..2091483	+	193	99081826	-	TM1040_1986	-	hypothetical protein
1986	 59.75	0	2091657..2092220	-	187	99081827	-	TM1040_1987	-	elongation factor P
1987	 59.75	0	2092447..2092764	+	105	99081828	-	TM1040_1988	-	hypothetical protein
1988	 64.73	+1	2092984..2094432	+	482	99081829	-	TM1040_1989	-	cobyric acid synthase
1989	 65.52	+1	2094770..2096077	-	435	99081830	-	TM1040_1990	-	hypothetical protein
1990	 63.29	0	2096154..2097575	-	473	99081831	-	TM1040_1991	-	Type I secretion outer membrane protein, TolC
1991	 61.93	0	2097720..2098373	-	217	99081832	-	TM1040_1992	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
1992	 57.28	0	2098899..2099207	-	102	99081833	-	TM1040_1993	-	TraR/DksA family transcriptional regulator
60.41	MEAN

3.16	STD DEV
