IslandPathversion 1.0

IslandPath Analysis: Silicibacter sp. TM1040

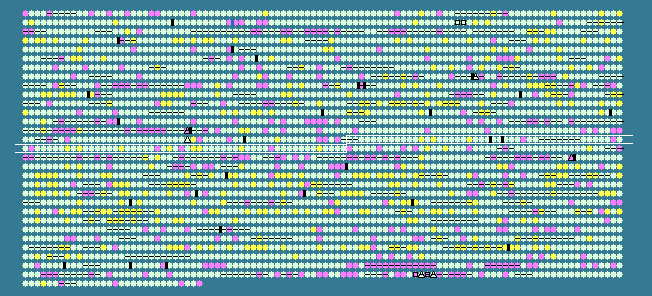

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1455	 61.59	0	1553254..1554612	-	452	99081296	-	TM1040_1455	-	cytochrome P450
1456	 60.50	0	1554609..1555856	-	415	99081297	-	TM1040_1456	-	hypothetical protein
1457	 58.03	0	1555970..1556722	-	250	99081298	-	TM1040_1457	-	cytochrome c biogenesis protein, transmembrane region
1458	 57.38	0	1556817..1557053	+	78	99081299	-	TM1040_1458	-	SirA-like
1459	 60.87	0	1557176..1560106	-	976	99081300	-	TM1040_1459	-	RNAse E
1460	 63.19	0	1560700..1561389	-	229	99081301	-	TM1040_1460	-	HAD family hydrolase
1461	 60.31	0	1561389..1562726	-	445	99081302	-	TM1040_1461	-	two component, sigma54 specific, Fis family transcriptional regulator
1462	 62.12	0	1562751..1564553	-	600	99081303	-	TM1040_1462	-	periplasmic sensor signal transduction histidine kinase
1463	 62.03	0	1564590..1565258	-	222	99081304	-	TM1040_1463	-	phosphoribosylformylglycinamidine synthase subunit I
1464	 59.31	0	1565258..1565488	-	76	99081305	-	TM1040_1464	-	phosphoribosylformylglycinamidine synthetase PurS
1465	 60.10	0	1565595..1566356	-	253	161899029	-	TM1040_1465	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1466	 59.43	0	1566817..1567134	+	105	99081307	-	TM1040_1466	-	hypothetical protein
1467	 64.10	+1	1567246..1569153	+	635	99081308	-	TM1040_1467	-	hypothetical protein
1468	 62.95	0	1569216..1570238	+	340	99081309	-	TM1040_1468	-	methionine synthase I
1469	 63.99	+1	1570319..1571401	-	360	99081310	-	TM1040_1469	-	radical SAM family protein
1470	 58.66	0	1571618..1572316	+	232	99081311	-	TM1040_1470	-	5-methyltetrahydrofolate--homocysteine S-methyltransferase
1471	 59.97	0	1572318..1573064	+	248	99081312	-	TM1040_1471	-	hypothetical protein
1472	 59.57	0	1573147..1573569	-	140	99081313	-	TM1040_1472	-	cysteine desulfuration protein SufE
1473	 60.27	0	1573688..1574203	+	171	99081314	-	TM1040_1473	-	putative lipoprotein
1474	 59.67	0	1574347..1575504	-	385	99081315	-	TM1040_1474	-	ribonuclease D
1475	 64.14	+1	1575595..1576149	-	184	99081316	-	TM1040_1475	-	phosphoribosylglycinamide formyltransferase
1476	 62.94	0	1576197..1577243	-	348	99081317	-	TM1040_1476	-	phosphoribosylaminoimidazole synthetase
1477	 62.85	0	1577426..1578394	-	322	99081318	-	TM1040_1477	-	twin-arginine translocation pathway signal
1478	 61.08	0	1578515..1579444	+	309	99081319	-	TM1040_1478	-	LysR family transcriptional regulator
1479	 60.80	0	1579845..1581173	-	442	99081320	-	TM1040_1479	-	periplasmic sensor signal transduction histidine kinase
1480	 61.36	0	1581224..1582147	+	307	99081321	-	TM1040_1480	-	beta-lactamase-like
1481	 59.06	0	1582635..1583594	-	319	99081322	-	TM1040_1481	-	NAD-dependent epimerase/dehydratase
1482	 58.20	0	1583603..1584724	-	373	99081323	-	TM1040_1482	-	GDP-mannose 4,6-dehydratase
1483	 57.33	0	1584788..1585987	-	399	99081324	-	TM1040_1483	-	DegT/DnrJ/EryC1/StrS aminotransferase
1484	 56.33	-1	1585984..1586757	-	257	99081325	-	TM1040_1484	-	glycosyl transferase family protein
1485	 60.34	0	1586750..1587571	-	273	99081326	-	TM1040_1485	-	NAD-dependent epimerase/dehydratase
1486	 57.76	0	1587568..1588521	-	317	99081327	-	TM1040_1486	-	hypothetical protein
1487	 56.95	-1	1588830..1590218	+	462	99081328	-	TM1040_1487	-	methyl-accepting chemotaxis sensory transducer with Pas/Pac sensor
1488	 59.65	0	1591016..1593580	+	854	99081329	-	TM1040_1488	-	hemolysin-type calcium-binding region
1489	 60.08	0	1593933..1595891	+	652	99081330	-	TM1040_1489	-	acetyl-coenzyme A synthetase
1490	 62.43	0	1595898..1596581	+	227	99081331	-	TM1040_1490	-	adenylate kinase
1491	 60.48	0	1596744..1597244	+	166	99081332	-	TM1040_1491	-	flavin reductase-like, FMN-binding
1492	 59.54	0	1597298..1598041	-	247	99081333	-	TM1040_1492	-	4Fe-4S ferredoxin, iron-sulfur binding
1493	 59.07	0	1598143..1599129	-	328	99081334	-	TM1040_1493	-	ABC transporter, periplasmic substrate-binding protein
1494	 61.23	0	1599332..1600177	-	281	99081335	-	TM1040_1494	-	binding-protein-dependent transport systems inner membrane component
1495	 60.35	0	1600230..1601147	-	305	99081336	-	TM1040_1495	-	binding-protein-dependent transport systems inner membrane component
1496	 58.98	0	1601172..1601939	-	255	99081337	-	TM1040_1496	-	ABC transporter related
1497	 59.93	0	1602053..1603507	-	484	99081338	-	TM1040_1497	-	dihydropyrimidinase
1498	 60.59	0	1603637..1604887	-	416	99081339	-	TM1040_1498	-	allantoate amidohydrolase
1499	 56.21	-1	1605177..1605788	+	203	99081340	-	TM1040_1499	-	TetR family transcriptional regulator
1500	 58.70	0	1606078..1607382	-	434	99081341	-	TM1040_1500	-	dihydropyrimidine dehydrogenase
1501	 62.32	0	1607447..1608781	-	444	99081342	-	TM1040_1501	-	putative oxidoreductase
1502	 55.81	-1	1609074..1609340	-	88	99081343	-	TM1040_1502	-	hypothetical protein
1503	 62.04	0	1609548..1609763	+	71	99081344	-	TM1040_1503	-	hypothetical protein
1504	 57.87	0	1609805..1610020	-	71	99081345	-	TM1040_1504	-	hypothetical protein
1505	 59.44	0	1610302..1610730	+	142	99081346	-	TM1040_1505	-	hypothetical protein
1506	 60.02	0	1610887..1612149	-	420	99081347	-	TM1040_1506	-	surface presentation of antigens (SPOA) protein
1507	 61.24	0	1612226..1614916	-	896	99081348	-	TM1040_1507	-	periplasmic sensor signal transduction histidine kinase
1508	 64.49	+1	1614913..1615326	-	137	99081349	-	TM1040_1508	-	hypothetical protein
1509	 59.18	0	1615337..1615750	-	137	99081350	-	TM1040_1509	-	response regulator receiver protein
1510	 65.39	+1	1615849..1617180	-	443	99081351	-	TM1040_1510	-	XRE family transcriptional regulator
1511	 61.25	0	1617419..1618765	+	448	99081352	-	TM1040_1511	-	twin-arginine translocation pathway signal
1512	 58.24	0	1618965..1619996	+	343	99081353	-	TM1040_1512	-	inner-membrane translocator
1513	 58.42	0	1620001..1621200	+	399	99081354	-	TM1040_1513	-	inner-membrane translocator
1514	 59.92	0	1621211..1621966	+	251	99081355	-	TM1040_1514	-	ABC transporter related
1515	 60.71	0	1621985..1622740	+	251	99081356	-	TM1040_1515	-	ABC transporter related
1516	 58.83	0	1622952..1623500	+	182	99081357	-	TM1040_1516	-	LuxR family transcriptional regulator
1517	 64.02	+1	1623674..1624165	+	163	99081358	-	TM1040_1517	-	biotin carboxyl carrier protein
1518	 60.52	0	1624175..1625524	+	449	99081359	-	TM1040_1518	-	acetyl-CoA carboxylase biotin carboxylase subunit
1519	 59.24	0	1625590..1626222	+	210	99081360	aat	TM1040_1519	-	leucyl/phenylalanyl-tRNA--protein transferase
1520	 59.13	0	1626186..1626623	-	145	99081361	-	TM1040_1520	-	hypothetical protein
1521	 59.82	0	1626623..1627075	-	150	99081362	-	TM1040_1521	-	hypothetical protein
1522	 59.43	0	1627146..1627532	-	128	99081363	-	TM1040_1522	-	NADH dehydrogenase
1523	 54.71	-1	1627653..1628045	-	130	99081364	-	TM1040_1523	-	glyoxalase/bleomycin resistance protein/dioxygenase
1524	 59.56	0	1628057..1628422	-	121	99081365	-	TM1040_1524	-	endoribonuclease L-PSP
1525	 64.74	+1	1628514..1629239	-	241	99081366	-	TM1040_1525	-	dienelactone hydrolase
1526	 58.14	0	1629344..1630609	-	421	99081367	clpX	TM1040_1526	-	ATP-dependent protease ATP-binding subunit
1527	 56.77	-1	1630761..1631417	-	218	99081368	-	TM1040_1527	-	ATP-dependent Clp protease proteolytic subunit ClpP
1528	 58.93	0	1631689..1632696	+	335	99081369	-	TM1040_1528	-	transcriptional regulator
1529	 64.09	+1	1632820..1633362	+	180	99081370	-	TM1040_1529	-	hypothetical protein
1530	 64.75	+1	1633394..1635007	+	537	99081371	-	TM1040_1530	-	thiamine pyrophosphate enzyme-like TPP-binding
1531	 61.18	0	1634991..1636193	+	400	99081372	-	TM1040_1531	-	L-carnitine dehydratase/bile acid-inducible protein F
1532	 62.56	0	1636457..1637821	+	454	99081373	-	TM1040_1532	-	hypothetical protein
1533	 60.93	0	1637844..1639151	+	435	99081374	-	TM1040_1533	-	hypothetical protein
1534	 60.84	0	1639148..1640674	+	508	99081375	mdoG	TM1040_1534	-	glucan biosynthesis protein G
1535	 62.92	0	1640675..1642567	+	630	99081376	-	TM1040_1535	-	glucosyltransferase MdoH
1536	 61.73	0	1642659..1643489	-	276	99081377	-	TM1040_1536	-	putative polyhydroxybutyrate depolymerase
1537	 64.77	+1	1643486..1644013	-	175	99081378	-	TM1040_1537	-	rhodanese-like protein
1538	 60.13	0	1644301..1647162	+	953	99081379	-	TM1040_1538	-	putative monovalent cation/H+ antiporter subunit A
1539	 62.15	0	1647167..1647520	+	117	99081380	-	TM1040_1539	-	putative monovalent cation/H+ antiporter subunit C
1540	 61.31	0	1647517..1649139	+	540	99081381	-	TM1040_1540	-	putative monovalent cation/H+ antiporter subunit D
1541	 59.84	0	1649139..1649636	+	165	99081382	-	TM1040_1541	-	putative monovalent cation/H+ antiporter subunit E
1542	 54.44	-1	1649633..1649902	+	89	99081383	-	TM1040_1542	-	putative monovalent cation/H+ antiporter subunit F
1543	 58.99	0	1649913..1650290	+	125	99081384	-	TM1040_1543	-	putative monovalent cation/H+ antiporter subunit G
1544	 63.25	0	1650329..1652491	+	720	99081385	-	TM1040_1544	-	AIR synthase related protein-like
1545	 61.30	0	1652518..1653561	-	347	99081386	-	TM1040_1545	-	tRNA 2-selenouridine synthase
1546	 61.32	0	1653637..1654122	+	161	99081387	-	TM1040_1546	-	MarR family transcriptional regulator
1547	 62.71	0	1654155..1654457	-	100	99081388	-	TM1040_1547	-	hypothetical protein
1548	 60.47	0	1654635..1656215	-	526	99081389	-	TM1040_1548	-	5'-nucleotidase-like
1549	 61.06	0	1656405..1656743	+	112	99081390	-	TM1040_1549	-	hypothetical protein
1550	 64.12	+1	1656807..1657865	+	352	99081391	-	TM1040_1550	-	dihydroorotate dehydrogenase 2
1551	 62.74	0	1658100..1659422	-	440	99081392	-	TM1040_1551	-	MATE efflux family protein
1552	 59.73	0	1659441..1659959	-	172	99081393	-	TM1040_1552	-	hypothetical protein
1553	 61.94	0	1659956..1660378	-	140	99081394	-	TM1040_1553	-	phenylacetic acid degradation-related protein
1554	 57.45	0	1660504..1660872	+	122	99081395	-	TM1040_1554	-	MerR family transcriptional regulator
60.41	MEAN

3.16	STD DEV
