IslandPath Analysis: Silicibacter sp. TM1040

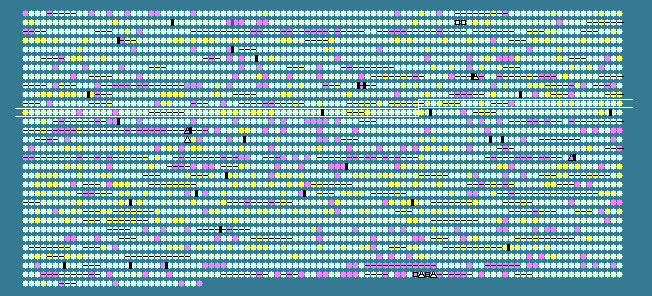

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.41 STD DEV: 3.16
Silicibacter sp. TM1040, complete genome - 1..3200938
3030 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1067	 63.89	+1	1143222..1143437	+	71	99080908	-	TM1040_1067	-	hypothetical protein
1068	 67.42	+2	1143441..1144100	+	219	99080909	-	TM1040_1068	-	phage-related minor tail protein-like
1069	 62.72	0	1144114..1144746	+	210	99080910	-	TM1040_1069	-	hypothetical protein
1070	 64.96	+1	1144746..1145624	+	292	99080911	-	TM1040_1070	-	phage protein
1071	 68.95	+2	1145621..1146058	+	145	99080912	-	TM1040_1071	-	putative phage cell wall peptidase, NlpC/P60
1072	 66.03	+1	1146071..1149991	+	1306	99080913	-	TM1040_1072	-	hypothetical protein
1073	 72.44	+2	1149988..1150299	+	103	99080914	-	TM1040_1073	-	hypothetical protein
1074	 59.90	0	1150412..1150618	-	68	99080915	-	TM1040_1074	-	cold-shock DNA-binding protein family protein
1075	 62.08	0	1150977..1151783	+	268	99080916	-	TM1040_1075	-	serine O-acetyltransferase
1076	 63.00	0	1151953..1152252	+	99	99080917	-	TM1040_1076	-	hypothetical protein
1077	 65.32	+1	1152399..1153739	-	446	99080918	-	TM1040_1077	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1078	 61.73	0	1153751..1155127	-	458	99080919	-	TM1040_1078	-	pyruvate dehydrogenase subunit beta
1079	 60.16	0	1155145..1156158	-	337	99080920	-	TM1040_1079	-	pyruvate dehydrogenase (lipoamide)
1080	 58.54	0	1156201..1156446	-	81	99080921	-	TM1040_1080	-	hypothetical protein
1081	 60.67	0	1156589..1156888	-	99	99080922	-	TM1040_1081	-	septum formation initiator
1082	 52.89	-2	1157120..1157569	-	149	99080923	-	TM1040_1082	-	hypothetical protein
1083	 62.04	0	1157674..1159446	-	590	99080924	-	TM1040_1083	-	methyl-accepting chemotaxis sensory transducer
1084	 63.64	+1	1159751..1160941	-	396	99080925	pgk	TM1040_1084	-	phosphoglycerate kinase
1085	 59.96	0	1161321..1161827	+	168	99080926	-	TM1040_1085	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
1086	 61.75	0	1161820..1162368	+	182	99080927	-	TM1040_1086	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
1087	 58.50	0	1162460..1163047	-	195	99080928	-	TM1040_1087	-	hemolysin-type calcium-binding region
1088	 63.41	0	1163480..1164001	-	173	99080929	-	TM1040_1088	-	hypothetical protein
1089	 61.34	0	1163991..1165322	-	443	99080930	-	TM1040_1089	-	peptidase M23B
1090	 63.94	+1	1165550..1166392	-	280	99080931	-	TM1040_1090	-	hypothetical protein
1091	 58.01	0	1166917..1167378	-	153	99080932	-	TM1040_1091	-	redoxin
1092	 65.97	+1	1167440..1170907	+	1155	99080933	-	TM1040_1092	-	hypothetical protein
1093	 63.33	0	1171133..1172182	+	349	99080934	-	TM1040_1093	-	queuosine biosynthesis protein
1094	 61.41	0	1172453..1173727	+	424	99080935	-	TM1040_1094	-	major facilitator transporter
1095	 59.93	0	1173877..1174455	+	192	99080936	-	TM1040_1095	-	hypothetical protein
1096	 60.22	0	1174730..1176124	+	464	99080937	-	TM1040_1096	-	dihydrolipoamide dehydrogenase
1097	 65.99	+1	1176282..1177466	+	394	99080938	-	TM1040_1097	-	major facilitator transporter
1098	 62.00	0	1177570..1180461	+	963	99080939	uvrA	TM1040_1098	-	excinuclease ABC subunit A
1099	 62.44	0	1180567..1181016	-	149	99080940	-	TM1040_1099	-	hypothetical protein
1100	 65.23	+1	1181139..1181903	+	254	99080941	-	TM1040_1100	-	XRE family transcriptional regulator
1101	 64.26	+1	1181900..1182772	-	290	99080942	-	TM1040_1101	-	3-hydroxyisobutyrate dehydrogenase
1102	 62.93	0	1182774..1183817	-	347	99080943	-	TM1040_1102	-	enoyl-CoA hydratase/isomerase
1103	 61.17	0	1183842..1184987	-	381	99080944	-	TM1040_1103	-	acyl-CoA dehydrogenase-like
1104	 57.32	0	1185278..1187128	+	616	99080945	-	TM1040_1104	-	TPR repeat-containing protein
1105	 61.81	0	1187238..1187855	-	205	99080946	-	TM1040_1105	-	ErfK/YbiS/YcfS/YnhG
1106	 60.87	0	1188053..1189552	-	499	99080947	-	TM1040_1106	-	methylmalonate-semialdehyde dehydrogenase [acylating]
1107	 60.98	0	1189708..1190604	+	298	99080948	-	TM1040_1107	-	LysR family transcriptional regulator
1108	 58.16	0	1190660..1191094	+	144	99080949	-	TM1040_1108	-	signal-transduction protein
1109	 60.44	0	1191220..1191717	+	165	99080950	-	TM1040_1109	-	coenzyme A biosynthesis protein
1110	 54.86	-1	1191785..1191928	-	47	99080951	-	TM1040_1110	-	hypothetical protein
1111	 62.67	0	1192007..1193008	-	333	99080952	-	TM1040_1111	-	glyceraldehyde-3-phosphate dehydrogenase
1112	 60.46	0	1193263..1194213	+	316	99080953	-	TM1040_1112	-	hypothetical protein
1113	 62.56	0	1194349..1196370	-	673	99080954	-	TM1040_1113	-	transketolase
1114	 63.19	0	1196728..1197648	+	306	99080955	-	TM1040_1114	-	hypothetical protein
1115	 62.64	0	1197648..1198193	+	181	99080956	-	TM1040_1115	-	hypothetical protein
1116	 56.75	-1	1198356..1198718	-	120	99080957	-	TM1040_1116	-	glutaredoxin-like protein
1117	 63.29	0	1199086..1199322	-	78	99080958	-	TM1040_1117	-	BolA-like protein
1118	 61.31	0	1199601..1201766	-	721	99080959	-	TM1040_1118	-	phosphoribosylformylglycinamidine synthase II
1119	 57.84	0	1202216..1203121	-	301	99080960	-	TM1040_1119	-	LysR family transcriptional regulator
1120	 59.88	0	1203290..1206709	+	1139	99080961	-	TM1040_1120	-	indolepyruvate ferredoxin oxidoreductase
1121	 58.59	0	1206847..1207725	+	292	99080962	-	TM1040_1121	-	phospholipid/glycerol acyltransferase
1122	 63.09	0	1207757..1208566	+	269	99080963	-	TM1040_1122	-	glutamate racemase
1123	 58.89	0	1208651..1209679	+	342	99080964	argC	TM1040_1123	-	N-acetyl-gamma-glutamyl-phosphate reductase
1124	 58.56	0	1209696..1210139	+	147	99080965	-	TM1040_1124	-	cytochrome c-type biogenesis protein CcmE
1125	 60.92	0	1210282..1210890	+	202	99080966	-	TM1040_1125	-	hypothetical protein
1126	 61.27	0	1210900..1211436	+	178	99080967	-	TM1040_1126	-	hypothetical protein
1127	 63.21	0	1211514..1213478	+	654	99080968	-	TM1040_1127	-	cytochrome c-type biogenesis protein CcmF
1128	 63.37	0	1213475..1213960	+	161	99080969	-	TM1040_1128	-	cytochrome C biogenesis protein
1129	 60.12	0	1214188..1214706	+	172	99080970	-	TM1040_1129	-	hypothetical protein
1130	 63.21	0	1214788..1215567	+	259	99080971	-	TM1040_1130	-	short chain enoyl-CoA hydratase / enoyl-CoA hydratase
1131	 61.23	0	1215643..1216653	-	336	99080972	-	TM1040_1131	-	hemolysin-type calcium-binding region
1132	 59.41	0	1216941..1218236	-	431	99080973	-	TM1040_1132	-	citrate synthase
1133	 59.96	0	1218376..1219776	-	466	99080974	-	TM1040_1133	-	glutamyl-tRNA synthetase
1134	 65.03	+1	1219862..1221880	+	672	99080975	-	TM1040_1134	-	ComEC/Rec2-related protein
1135	 63.36	0	1221954..1222679	-	241	99080976	-	TM1040_1135	-	LexA repressor
1136	 64.79	+1	1222806..1223978	-	390	99080977	-	TM1040_1136	-	MoeA-likedomain-containing protein
1137	 61.78	0	1223982..1224452	-	156	99080978	moaC	TM1040_1137	-	molybdenum cofactor biosynthesis protein C
1138	 61.36	0	1224499..1225308	-	269	99080979	-	TM1040_1138	-	indole-3-glycerol-phosphate synthase
1139	 67.09	+2	1225301..1226005	-	234	99080980	-	TM1040_1139	-	uracil-DNA glycosylase
1140	 64.03	+1	1226005..1227027	-	340	99080981	-	TM1040_1140	-	anthranilate phosphoribosyltransferase
1141	 59.62	0	1227024..1227605	-	193	99080982	-	TM1040_1141	-	anthranilate synthase component II
1142	 66.22	+1	1227757..1229316	+	519	99080983	-	TM1040_1142	-	hypothetical protein
1143	 62.96	0	1229411..1230922	-	503	99080984	-	TM1040_1143	-	anthranilate synthase component I
1144	 62.53	0	1230946..1232781	-	611	99080985	-	TM1040_1144	-	putative peptidyl-prolyl cis-trans isomerse D
1145	 62.59	0	1232945..1234120	-	391	99080986	-	TM1040_1145	-	hypothetical protein
1146	 63.09	0	1234272..1234802	-	176	99080987	-	TM1040_1146	-	xanthine-guanine phosphoribosyltransferase
1147	 58.12	0	1234809..1235615	-	268	99080988	-	TM1040_1147	-	enoyl-(acyl carrier protein) reductase
1148	 57.76	0	1235783..1236388	+	201	99080989	-	TM1040_1148	-	pyridoxamine 5'-phosphate oxidase
1149	 59.63	0	1236516..1237055	+	179	99080990	-	TM1040_1149	-	cold-shock DNA-binding protein family protein
1150	 60.21	0	1237055..1237534	+	159	99080991	-	TM1040_1150	-	hypothetical protein
1151	 59.33	0	1238449..1242102	+	1217	99080992	-	TM1040_1151	-	ribonucleotide-diphosphate reductase subunit alpha
1152	 63.60	+1	1242589..1243077	+	162	99080993	-	TM1040_1152	-	hypothetical protein
1153	 60.26	0	1243613..1244986	+	457	99080994	-	TM1040_1153	-	cysteinyl-tRNA synthetase
1154	 62.55	0	1244983..1246611	+	542	99080995	-	TM1040_1154	-	alpha-isopropylmalate/homocitrate synthase family transferase
1155	 67.82	+2	1246601..1247377	+	258	99080996	-	TM1040_1155	-	hypothetical protein
1156	 62.11	0	1247435..1248664	-	409	99080997	-	TM1040_1156	-	major facilitator transporter
1157	 64.93	+1	1248737..1249369	+	210	99080998	-	TM1040_1157	-	HhH-GPD
1158	 64.11	+1	1249366..1250031	+	221	99080999	-	TM1040_1158	-	phospholipase/carboxylesterase
1159	 61.69	0	1250051..1250512	-	153	99081000	-	TM1040_1159	-	AsnC family transcriptional regulator
1160	 60.00	0	1250605..1250919	+	104	99081001	-	TM1040_1160	-	cupin 2, barrel
1161	 63.51	0	1250925..1251590	-	221	99081002	-	TM1040_1161	-	ribosomal large subunit pseudouridine synthase E
1162	 57.61	0	1251838..1252422	+	194	99081003	-	TM1040_1162	-	HNH endonuclease
1163	 59.50	0	1252474..1253520	-	348	99081004	-	TM1040_1163	-	ornithine cyclodeaminase
1164	 61.61	0	1253517..1254446	-	309	99081005	-	TM1040_1164	-	amidinotransferase family protein
1165	 63.12	0	1254443..1255372	-	309	99081006	-	TM1040_1165	-	arginase
1166	 61.34	0	1255482..1255913	+	143	99081007	-	TM1040_1166	-	AsnC family transcriptional regulator
60.41	MEAN

3.16	STD DEV
