IslandPath Analysis: Sinorhizobium medicae WSM419

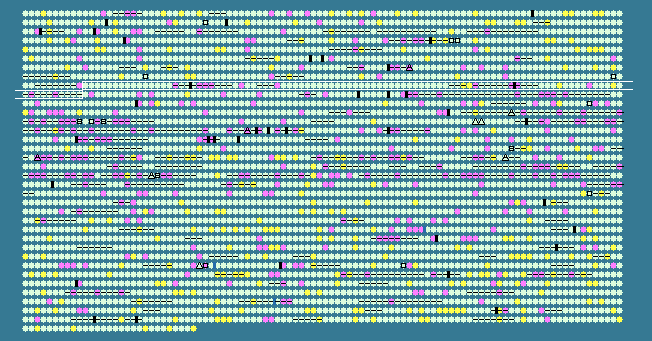

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.69   STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
811	 60.66	0	878050..879381	+	443	150396039	-	Smed_0815	-	peptidoglycan binding domain-containing protein
812	 61.27	0	879563..880858	+	431	150396040	glyA	Smed_0816	-	serine hydroxymethyltransferase
813	 61.60	0	880871..881344	+	157	150396041	-	Smed_0817	-	transcriptional regulator NrdR
814	 63.32	0	881361..882557	+	398	150396042	-	Smed_0818	-	riboflavin biosynthesis protein RibD
815	 63.45	0	882557..883177	+	206	150396043	-	Smed_0819	-	riboflavin synthase subunit alpha
816	 62.25	0	883300..883842	-	180	150396044	-	Smed_0820	-	GCN5-related N-acetyltransferase
817	 62.12	0	884070..884531	+	153	150396045	ribH	Smed_0821	-	riboflavin synthase subunit beta
818	 61.08	0	884528..885010	+	160	150396046	nusB	Smed_0822	-	transcription antitermination protein NusB
819	 63.90	0	885017..886243	+	408	150396047	-	Smed_0823	-	major facilitator transporter
820	 62.36	0	886442..888577	+	711	150396048	hppA	Smed_0824	-	membrane-bound proton-translocating pyrophosphatase
821	 59.76	0	888702..889208	-	168	150396049	-	Smed_0825	-	SmpA/OmlA domain-containing protein
822	 59.40	0	889366..889902	+	178	150396050	-	Smed_0826	-	ubiquinol-cytochrome C chaperone
823	 61.78	0	889986..890537	+	183	150396051	-	Smed_0827	-	hypothetical protein
824	 62.16	0	890733..891776	+	347	150396052	-	Smed_0828	-	putative glycerol-3-phosphate acyltransferase PlsX
825	 63.17	0	891795..892766	+	323	150396053	-	Smed_0829	-	3-oxoacyl-(acyl carrier protein) synthase III
826	 57.23	-1	892860..893198	+	112	150396054	ihfA	Smed_0830	-	integration host factor subunit alpha
827	 58.99	0	893328..893861	+	177	150396055	-	Smed_0831	-	MerR family transcriptional regulator
828	 61.21	0	893929..894276	-	115	150396056	-	Smed_0832	-	hypothetical protein
829	 60.58	0	894514..894891	+	125	150396057	-	Smed_0833	-	hypothetical protein
830	 51.45	-2	895430..895567	+	45	150396058	-	Smed_0834	-	hypothetical protein
831	 52.24	-2	895658..896281	+	207	150396059	-	Smed_0835	-	hypothetical protein
832	 50.20	-2	896291..897025	+	244	150396060	-	Smed_0836	-	hypothetical protein
833	 59.01	0	897326..897547	-	73	150396061	-	Smed_0837	-	hypothetical protein
834	 61.84	0	897544..898164	-	206	150396062	-	Smed_0838	-	hypothetical protein
835	 61.30	0	898469..899362	-	297	150396063	-	Smed_0839	-	LysR family transcriptional regulator
836	 60.26	0	899489..899878	+	129	150396064	-	Smed_0840	-	antibiotic biosynthesis monooxygenase
837	 54.11	-2	899914..900327	+	137	150396065	-	Smed_0841	-	antibiotic biosynthesis monooxygenase
838	 62.06	0	900347..901519	+	390	150396066	-	Smed_0842	-	aldo/keto reductase
839	 62.69	0	901594..902373	+	259	150396067	-	Smed_0843	-	carboxymuconolactone decarboxylase
840	 60.53	0	902527..902901	+	124	150396068	-	Smed_0844	-	hypothetical protein
841	 60.40	0	903957..905057	+	366	150396069	-	Smed_0846	-	glucose sorbosone dehydrogenase
842	 60.39	0	905146..905607	+	153	150396070	-	Smed_0847	-	cupin 2 domain-containing protein
843	 54.60	-2	905941..906114	-	57	150396071	-	Smed_0848	-	hypothetical protein
844	 61.16	0	906704..907738	+	344	150396072	-	Smed_0849	-	alcohol dehydrogenase
845	 60.97	0	907846..909126	-	426	150396073	-	Smed_0850	-	hypothetical protein
846	 59.37	0	909123..910766	-	547	150396074	-	Smed_0851	-	undecaprenyl-phosphate galactose phosphotransferase
847	 62.65	0	910744..911913	-	389	150396075	-	Smed_0852	-	glycosyl transferase group 1
848	 64.24	0	911919..912494	-	191	150396076	-	Smed_0853	-	polysaccharide export protein
849	 61.78	0	912695..914824	+	709	150396077	-	Smed_0854	-	exopolysaccharide transport protein family
850	 61.07	0	914880..916130	-	416	150396078	-	Smed_0855	-	hypothetical protein
851	 61.00	0	916281..917021	-	246	150396079	-	Smed_0856	-	metallophosphoesterase
852	 58.67	-1	917041..917265	-	74	150396080	-	Smed_0857	-	putative signal peptide protein
853	 62.23	0	917444..918547	+	367	150396081	-	Smed_0858	-	cytochrome oxidase assembly
854	 62.17	0	918620..919552	-	310	150396082	-	Smed_0859	-	N-acetyl-gamma-glutamyl-phosphate reductase
855	 62.49	0	919646..920602	-	318	150396083	-	Smed_0860	-	agmatinase
856	 64.96	+1	920755..921222	-	155	150396084	rpsI	Smed_0861	-	30S ribosomal protein S9
857	 61.08	0	921225..921689	-	154	150396085	rplM	Smed_0862	-	50S ribosomal protein L13
858	 62.16	0	921895..922338	-	147	150396086	-	Smed_0863	-	thioesterase superfamily protein
859	 61.19	0	922502..923323	+	273	150396087	-	Smed_0864	-	enoyl-CoA hydratase
860	 64.64	+1	923387..924274	-	295	150396088	-	Smed_0865	-	hypothetical protein
861	 64.60	+1	924507..924941	+	144	150396089	-	Smed_0866	-	CoA-binding domain-containing protein
862	 61.83	0	924979..926259	+	426	150396090	-	Smed_0867	-	O-acetylhomoserine aminocarboxypropyltransferase
863	 58.77	-1	926286..926627	+	113	150396091	-	Smed_0868	-	protein of unknown function DUF861 cupin_3
864	 61.54	0	926689..927936	-	415	150396092	-	Smed_0869	-	cytochrome P450
865	 64.47	0	928108..928971	+	287	150396093	-	Smed_0870	-	endonuclease/exonuclease/phosphatase
866	 61.93	0	929076..930638	+	520	150396094	-	Smed_0871	-	phospholipase D/transphosphatidylase
867	 58.69	-1	930911..931537	+	208	150396095	clpP	Smed_0872	-	ATP-dependent Clp protease proteolytic subunit
868	 59.62	0	931831..933108	+	425	150396096	clpX	Smed_0873	-	ATP-dependent protease ATP-binding subunit
869	 60.26	0	933551..935971	+	806	150396097	-	Smed_0874	-	ATP-dependent protease La
870	 60.07	0	936193..936465	+	90	150396098	-	Smed_0875	-	histone family protein DNA-binding protein
871	 62.25	0	936710..938905	+	731	150396099	-	Smed_0876	-	hypothetical protein
872	 58.96	0	939006..939485	-	159	150396100	-	Smed_0877	-	MarR family transcriptional regulator
873	 62.83	0	939774..941051	+	425	150396101	-	Smed_0878	-	metallophosphoesterase
874	 67.07	+1	941051..944512	+	1153	150396102	-	Smed_0879	-	hypothetical protein
875	 68.17	+2	944588..944986	+	132	150396103	-	Smed_0880	-	cupin 2 domain-containing protein
876	 55.78	-2	945065..945367	+	100	150396104	-	Smed_0881	-	hypothetical protein
877	 59.60	0	945395..945748	+	117	150396105	-	Smed_0882	-	hypothetical protein
878	 62.06	0	945840..947315	-	491	150396106	-	Smed_0883	-	HlyD family type I secretion membrane fusion protein
879	 62.86	0	947312..949492	-	726	150396107	-	Smed_0884	-	type I secretion system ATPase
880	 58.26	-1	949610..951976	-	788	150396108	-	Smed_0885	-	hypothetical protein
881	 64.41	0	951802..958143	-	2113	150396109	-	Smed_0886	-	hypothetical protein
882	 49.31	-2	958178..958978	-	266	150396110	-	Smed_0887	-	hypothetical protein
883	 54.64	-2	960392..960757	+	121	150396111	-	Smed_0888	-	NADH dehydrogenase subunit A
884	 62.52	0	960748..961326	+	192	150396112	-	Smed_0889	-	NADH dehydrogenase subunit B
885	 59.90	0	961345..961950	+	201	150396113	-	Smed_0890	-	NADH dehydrogenase subunit C
886	 62.13	0	962007..963197	+	396	150396114	-	Smed_0891	-	NADH dehydrogenase subunit D
887	 61.96	0	963197..963451	+	84	150396115	-	Smed_0892	-	putative signal peptide protein
888	 62.77	0	963468..964289	+	273	150396116	-	Smed_0893	-	NADH dehydrogenase subunit E
889	 62.61	0	964304..965608	+	434	150396117	-	Smed_0894	-	NADH dehydrogenase I subunit F
890	 66.82	+1	965614..966276	+	220	150396118	-	Smed_0895	-	putative NADH dehydrogenase I chain E
891	 63.64	0	966399..968480	+	693	150396119	-	Smed_0896	-	NADH dehydrogenase subunit G
892	 60.44	0	968501..969544	+	347	150396120	-	Smed_0897	-	NADH dehydrogenase subunit H
893	 60.77	0	969609..970100	+	163	150396121	-	Smed_0898	-	NADH dehydrogenase subunit I
894	 60.39	0	970197..970865	+	222	150396122	-	Smed_0899	-	NADH dehydrogenase subunit J
895	 55.99	-2	970895..971203	+	102	150396123	-	Smed_0900	-	NADH dehydrogenase subunit K
896	 60.45	0	971211..973205	+	664	150396124	-	Smed_0901	-	NADH dehydrogenase subunit L
897	 59.99	0	973205..974716	+	503	150396125	-	Smed_0902	-	NADH dehydrogenase subunit M
898	 61.19	0	974736..976178	+	480	150396126	-	Smed_0903	-	NADH dehydrogenase subunit N
899	 65.62	+1	976175..976942	+	255	150396127	-	Smed_0904	-	biotin--acetyl-CoA-carboxylase ligase
900	 62.35	0	976968..978635	+	555	150396128	-	Smed_0905	-	beta-lactamase domain-containing protein
901	 60.49	0	978692..979096	+	134	150396129	-	Smed_0906	-	methylmalonyl-CoA epimerase
902	 57.41	-1	979229..979498	+	89	150396130	-	Smed_0907	-	hypothetical protein
903	 62.34	0	980177..981469	+	430	150396131	-	Smed_0908	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
904	 58.48	-1	981466..981795	-	109	150396132	-	Smed_0909	-	Rieske (2Fe-2S) domain-containing protein
905	 64.33	0	981897..983138	-	413	150396133	-	Smed_0910	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
906	 55.16	-2	983298..984296	-	332	150396134	-	Smed_0911	-	sterol desaturase
907	 59.88	0	984289..984450	-	53	150396135	-	Smed_0912	-	hypothetical protein
908	 60.44	0	984447..985313	-	288	150396136	-	Smed_0913	-	xylose isomerase domain-containing protein
909	 60.53	0	985404..986414	-	336	150396137	-	Smed_0914	-	monosaccharide-transporting ATPase
910	 58.33	-1	986411..987166	-	251	150396138	-	Smed_0915	-	ABC transporter related
61.69	MEAN

2.82	STD DEV
