IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

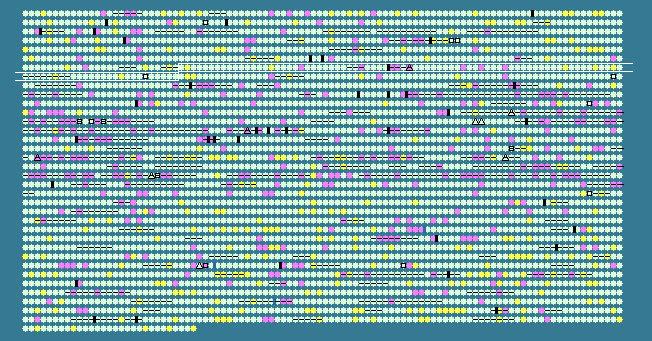

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
627	 62.91	0	676148..677533	+	461	150395855	-	Smed_0631	-	integral membrane sensor signal transduction histidine kinase
628	 68.90	+2	677790..678236	+	148	150395856	-	Smed_0632	-	putative outer-membranne lipoprotein
629	 64.96	+1	678344..679513	+	389	150395857	-	Smed_0633	-	cytochrome C-type biogenesis transmembrane protein
630	 62.47	0	679510..679962	+	150	150395858	-	Smed_0634	-	cytochrome c-type biogenesis protein CcmE
631	 64.09	0	679959..681941	+	660	150395859	-	Smed_0635	-	cytochrome c-type biogenesis protein CcmF
632	 63.38	0	681938..682393	+	151	150395860	-	Smed_0636	-	cytochrome C biogenesis protein
633	 62.74	0	682614..684167	+	517	150395861	-	Smed_0637	-	protease Do
634	 59.83	0	684311..685012	+	233	150395862	-	Smed_0638	-	two component transcriptional regulator
635	 62.37	0	685009..686406	+	465	150395863	-	Smed_0639	-	integral membrane sensor signal transduction histidine kinase
636	 62.85	0	686506..689463	+	985	150395864	-	Smed_0640	-	(glutamate--ammonia-ligase) adenylyltransferase
637	 63.09	0	689473..691791	-	772	150395865	-	Smed_0641	-	multi-sensor signal transduction histidine kinase
638	 61.88	0	692088..694742	-	884	150395866	-	Smed_0642	-	aminopeptidase N
639	 61.24	0	695208..696146	+	312	150395867	-	Smed_0643	-	hypothetical protein
640	 63.02	0	696167..697456	-	429	150395868	-	Smed_0644	-	major facilitator transporter
641	 63.46	0	697723..697878	-	51	150395869	-	Smed_0645	-	hypothetical protein
642	 67.26	+1	697916..698083	-	55	150395870	-	Smed_0646	-	hypothetical protein
643	 63.91	0	698202..699071	-	289	150395871	-	Smed_0647	-	phage SPO1 DNA polymerase-related protein
644	 60.78	0	699160..700449	-	429	150395872	-	Smed_0648	-	putative heat shock protein
645	 62.88	0	700717..702381	+	554	150395873	-	Smed_0649	-	electron-transferring-flavoprotein dehydrogenase
646	 60.66	0	702769..703767	+	332	150395874	-	Smed_0650	-	substrate-binding region of ABC-type glycine betaine transport system
647	 56.76	-1	703967..704854	+	295	150395875	-	Smed_0651	-	binding-protein-dependent transport systems inner membrane component
648	 62.03	0	704948..705961	-	337	150395876	-	Smed_0652	-	zinc-binding alcohol dehydrogenase
649	 61.44	0	706062..706463	+	133	150395877	-	Smed_0653	-	HxlR family transcriptional regulator
650	 59.12	0	706579..707505	+	308	150395878	-	Smed_0654	-	diacylglycerol kinase catalytic region
651	 61.54	0	707521..709002	-	493	150395879	-	Smed_0655	-	glycosyl transferase family protein
652	 61.31	0	708995..709984	-	329	150395880	-	Smed_0656	-	glycosyl transferase family protein
653	 63.30	0	710109..711059	+	316	150395881	-	Smed_0657	-	hypothetical protein
654	 60.94	0	711165..712667	-	500	150395882	-	Smed_0658	-	AMP nucleosidase
655	 64.17	0	712795..713115	-	106	150395883	-	Smed_0659	-	hypothetical protein
656	 60.34	0	713190..713363	-	57	150395884	-	Smed_0660	-	hypothetical protein
657	 58.05	-1	713377..713550	-	57	150395885	-	Smed_0661	-	hypothetical protein
658	 59.40	0	713791..714492	+	233	150395886	-	Smed_0662	-	glutathione S-transferase domain-containing protein
659	 62.87	0	714583..714924	-	113	150395887	-	Smed_0663	-	hypothetical protein
660	 64.04	0	715521..715787	+	88	150395888	-	Smed_0664	-	Sel1 domain-containing protein
661	 61.14	0	715869..716990	-	373	150395889	-	Smed_0665	-	histidinol-phosphate aminotransferase
662	 54.13	-2	717375..717677	+	100	150395890	-	Smed_0666	-	hypothetical protein
663	 55.31	-2	717880..718548	+	222	150395891	-	Smed_0667	-	hypothetical protein
664	 60.21	0	719074..720111	+	345	150395892	-	Smed_0668	-	porin
665	 57.27	-1	720394..721425	-	343	150395893	-	Smed_0669	-	phage integrase family protein
666	 59.87	0	721501..722559	-	352	150395894	-	Smed_0670	-	porin
667	 61.81	0	722770..723243	-	157	150395895	-	Smed_0671	-	BA14K family protein
668	 64.33	0	723414..725471	-	685	150395896	-	Smed_0672	-	lytic transglycosylase catalytic
669	 60.23	0	725763..726647	+	294	150395897	-	Smed_0673	-	dihydrodipicolinate synthase
670	 60.00	0	726647..727126	+	159	150395898	smpB	Smed_0674	-	SsrA-binding protein
671	 59.11	0	727344..727925	-	193	150395899	-	Smed_0675	-	hypothetical protein
672	 62.25	0	728394..728801	+	135	150395900	-	Smed_0676	-	DNA-directed RNA polymerase subunit omega
673	 60.65	0	728903..731128	+	741	150395901	-	Smed_0677	-	(p)ppGpp synthetase I, SpoT/RelA
674	 52.94	-2	731343..731495	+	50	150395902	-	Smed_0678	-	hypothetical protein
675	 61.77	0	731621..732253	+	210	150395903	-	Smed_0679	-	hypothetical protein
676	 62.38	0	732250..732669	+	139	150395904	acpS	Smed_0680	-	4'-phosphopantetheinyl transferase
677	 58.20	-1	732830..733573	+	247	150395905	-	Smed_0681	-	signal peptidase I
678	 60.95	0	733573..734289	+	238	150395906	-	Smed_0682	-	ribonuclease III
679	 61.63	0	734298..735230	+	310	150395907	era	Smed_0683	-	GTP-binding protein Era
680	 62.66	0	735437..736435	-	332	150395908	-	Smed_0684	-	glycerophosphoryl diester phosphodiesterase
681	 56.72	-1	736931..738187	+	418	150395909	-	Smed_0685	-	cyclopropane-fatty-acyl-phospholipid synthase
682	 64.46	0	738473..740779	+	768	150395910	-	Smed_0686	-	RNA-binding S1 domain-containing protein
683	 60.47	0	740947..741333	+	128	150395911	-	Smed_0687	-	putative signal peptide protein
684	 61.34	0	741511..742824	-	437	150395912	-	Smed_0688	-	UDP-glucose 6-dehydrogenase
685	 60.33	0	742955..743980	-	341	150395913	-	Smed_0689	-	NAD-dependent epimerase/dehydratase
686	 62.46	0	744051..744383	-	110	150395914	-	Smed_0690	-	regulatory protein ArsR
687	 60.46	0	744435..744917	+	160	150395915	-	Smed_0691	-	activator of Hsp90 ATPase 1 family protein
688	 59.50	0	744929..745291	+	120	150395916	-	Smed_0692	-	hypothetical protein
689	 64.13	0	745518..746267	+	249	150395917	recO	Smed_0693	-	DNA repair protein RecO
690	 61.98	0	746298..748301	-	667	150395918	-	Smed_0694	-	hypothetical protein
691	 65.66	+1	748540..751320	+	926	150395919	-	Smed_0695	-	hypothetical protein
692	 64.38	0	751317..751973	+	218	150395920	-	Smed_0696	-	metal dependent phosphohydrolase
693	 64.55	+1	752052..752903	+	283	150395921	-	Smed_0697	-	MOSC domain-containing protein
694	 62.79	0	753031..754269	+	412	150395922	-	Smed_0698	-	major facilitator transporter
695	 59.63	0	754451..755530	+	359	150395923	-	Smed_0699	-	quinolinate synthetase
696	 66.04	+1	755648..757246	+	532	150395924	-	Smed_0700	-	L-aspartate oxidase
697	 64.33	0	757296..758195	+	299	150395925	-	Smed_0701	-	nicotinate-nucleotide pyrophosphorylase
698	 62.24	0	758299..758817	+	172	150395926	-	Smed_0702	-	superoxide dismutase copper/zinc binding
699	 67.70	+2	758891..759859	-	322	150395927	-	Smed_0703	-	hypothetical protein
700	 64.80	+1	759849..760385	-	178	150395928	-	Smed_0704	-	hypothetical protein
701	 64.36	0	760388..760993	-	201	150395929	-	Smed_0705	-	hypothetical protein
702	 63.84	0	760993..761841	-	282	150395930	-	Smed_0706	-	glycine cleavage T protein (aminomethyl transferase)
703	 63.86	0	761951..762697	-	248	150395931	-	Smed_0707	-	hypothetical protein
704	 60.00	0	762713..762982	-	89	150395932	-	Smed_0708	-	hypothetical protein
705	 62.39	0	763140..763583	-	147	150395933	-	Smed_0709	-	putative signal peptide protein
706	 65.38	+1	763580..764044	-	154	150395934	-	Smed_0710	-	NUDIX hydrolase
707	 63.81	0	764103..764873	+	256	150395935	-	Smed_0711	-	hypothetical protein
708	 58.67	-1	764912..765061	-	49	150395936	-	Smed_0712	-	hypothetical protein
709	 62.03	0	765466..766866	+	466	150395937	cysS	Smed_0713	-	cysteinyl-tRNA synthetase
710	 63.77	0	766903..767385	+	160	150395938	-	Smed_0714	-	glutathione-dependent formaldehyde-activating GFA
711	 61.67	0	767382..767861	+	159	150395939	-	Smed_0715	-	glutathione-dependent formaldehyde-activating GFA
712	 61.88	0	767858..768358	+	166	150395940	-	Smed_0716	-	glutathione-dependent formaldehyde-activating GFA
713	 63.55	0	768355..769317	+	320	150395941	-	Smed_0717	-	proline iminopeptidase
714	 60.48	0	769374..770990	+	538	150395942	-	Smed_0718	-	alpha-isopropylmalate/homocitrate synthase family transferase
715	 59.87	0	771249..772190	+	313	150395943	-	Smed_0719	-	transporter DMT superfamily protein
716	 61.33	0	772222..772839	-	205	150395944	-	Smed_0720	-	hypothetical protein
717	 65.62	+1	773082..774800	+	572	150395945	-	Smed_0721	-	peptidoglycan-binding LysM
718	 60.67	0	775094..776977	+	627	150395946	-	Smed_0722	-	ABC transporter related
719	 62.80	0	777084..777782	+	232	150395947	-	Smed_0723	-	phosphatidylserine decarboxylase
720	 63.51	0	777792..778679	+	295	150395948	-	Smed_0724	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
721	 64.44	0	778954..780300	+	448	150395949	-	Smed_0725	-	transposase IS4 family protein
722	 62.42	0	780355..781107	-	250	150395950	-	Smed_0726	-	short-chain dehydrogenase/reductase SDR
723	 62.24	0	781107..782597	-	496	150395951	-	Smed_0727	-	amidophosphoribosyltransferase
724	 64.65	+1	782743..783387	-	214	150395952	-	Smed_0728	-	colicin V production protein
725	 64.46	0	783420..784823	-	467	150395953	-	Smed_0729	-	DNA repair protein RadA
726	 64.47	0	784944..786170	-	408	150395954	-	Smed_0730	-	alanine racemase
61.69	MEAN

2.82	STD DEV
