IslandPath Analysis: Sinorhizobium medicae WSM419

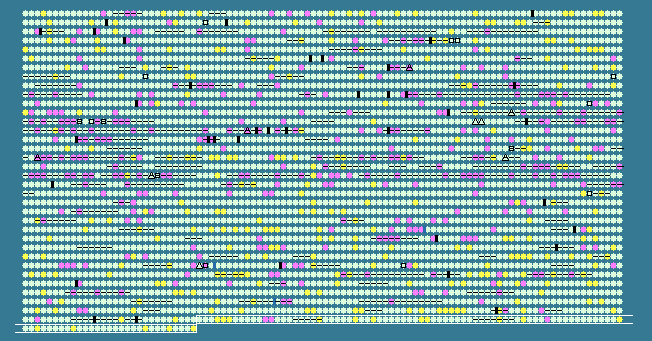

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3430	 64.75	+1	3680704..3681225	+	173	150398658	-	Smed_3472	-	GCN5-related N-acetyltransferase
3431	 60.72	0	3681302..3681940	-	212	150398659	-	Smed_3473	-	exopolysaccharide synthesis ExoD
3432	 58.67	-1	3681953..3682102	-	49	150398660	-	Smed_3474	-	hypothetical protein
3433	 66.22	+1	3682204..3682869	+	221	150398661	-	Smed_3475	-	OmpA/MotB domain-containing protein
3434	 65.91	+1	3683187..3684239	-	350	150398662	-	Smed_3476	-	lysine 2,3-aminomutase YodO family protein
3435	 65.53	+1	3684236..3685288	-	350	150398663	-	Smed_3477	-	lysine--tRNA ligase
3436	 62.98	0	3685448..3686017	+	189	150398664	-	Smed_3478	-	elongation factor P
3437	 60.47	0	3686169..3687410	+	413	150398665	-	Smed_3479	-	cyclopropane-fatty-acyl-phospholipid synthase
3438	 62.50	0	3687495..3688478	+	327	150398666	-	Smed_3480	-	rubrerythrin
3439	 62.16	0	3688834..3689454	-	206	150398667	-	Smed_3481	-	transglutaminase family protein cysteine peptidase BTLCP
3440	 62.64	0	3689739..3690557	-	272	150398668	-	Smed_3482	-	hypothetical protein
3441	 56.64	-1	3690912..3691310	+	132	150398669	infC	Smed_3483	-	translation initiation factor IF-3
3442	 54.90	-2	3691607..3691810	+	67	150398670	rpmI	Smed_3484	-	50S ribosomal protein L35
3443	 60.00	0	3691847..3692251	+	134	150398671	rplT	Smed_3485	-	50S ribosomal protein L20
3444	 62.23	0	3692417..3693499	+	360	150398672	pheS	Smed_3486	-	phenylalanyl-tRNA synthetase subunit alpha
3445	 64.48	0	3693533..3695959	+	808	150398673	pheT	Smed_3487	-	phenylalanyl-tRNA synthetase subunit beta
3446	 61.39	0	3696215..3696574	-	119	150398674	-	Smed_3488	-	hypothetical protein
3447	 62.95	0	3696726..3697721	-	331	150398675	-	Smed_3489	-	aldo/keto reductase
3448	 64.76	+1	3697899..3698789	+	296	150398676	-	Smed_3490	-	LysR family transcriptional regulator
3449	 59.35	0	3698834..3699325	-	163	150398677	-	Smed_3491	-	hypothetical protein
3450	 65.89	+1	3699548..3700318	+	256	150398678	-	Smed_3492	-	short chain dehydrogenase
3451	 61.59	0	3700352..3700981	+	209	150398679	-	Smed_3493	-	hypothetical protein
3452	 61.41	0	3700997..3701947	-	316	150398680	-	Smed_3494	-	aldo/keto reductase
3453	 60.69	0	3702162..3703148	+	328	150398681	-	Smed_3495	-	oxidoreductase domain-containing protein
3454	 62.99	0	3703194..3703655	-	153	150398682	-	Smed_3496	-	hypothetical protein
3455	 63.38	0	3703732..3704523	+	263	150398683	-	Smed_3497	-	XRE family transcriptional regulator
3456	 67.24	+1	3704633..3706213	+	526	150398684	xseA	Smed_3498	-	exodeoxyribonuclease VII large subunit
3457	 61.59	0	3706213..3706803	+	196	150398685	-	Smed_3499	-	NAD(P)H dehydrogenase (quinone)
3458	 64.85	+1	3706813..3707307	-	164	150398686	-	Smed_3500	-	MarR family transcriptional regulator
3459	 66.10	+1	3707421..3708296	+	291	150398687	-	Smed_3501	-	hypothetical protein
3460	 64.10	0	3708455..3709117	+	220	150398688	-	Smed_3502	-	ECF subfamily RNA polymerase sigma-24 factor
3461	 58.90	0	3709107..3709505	+	132	150398689	-	Smed_3503	-	glyoxalase/bleomycin resistance protein/dioxygenase
3462	 63.80	0	3709638..3710894	-	418	150398690	-	Smed_3504	-	peptidase M29 aminopeptidase II
3463	 62.46	0	3710966..3711655	-	229	150398691	-	Smed_3505	-	glutathione S-transferase domain-containing protein
3464	 61.76	0	3711677..3712186	+	169	150398692	-	Smed_3506	-	MarR family transcriptional regulator
3465	 64.35	0	3712206..3712679	-	157	150398693	-	Smed_3507	-	ybaK/ebsC protein
3466	 61.54	0	3712683..3713033	-	116	150398694	-	Smed_3508	-	arsenate reductase and related
3467	 66.75	+1	3713117..3714286	-	389	150398695	-	Smed_3509	-	aromatic amino acid aminotransferase
3468	 65.25	+1	3714384..3715445	-	353	150398696	-	Smed_3510	-	succinylglutamate desuccinylase/aspartoacylase
3469	 60.19	0	3716016..3716432	-	138	150398697	-	Smed_3511	-	glutathione-dependent formaldehyde-activating GFA
3470	 60.22	0	3716480..3716944	-	154	150398698	-	Smed_3512	-	activator of Hsp90 ATPase 1 family protein
3471	 60.00	0	3716941..3717270	-	109	150398699	-	Smed_3513	-	regulatory protein ArsR
3472	 61.69	0	3717420..3718565	+	381	150398700	-	Smed_3514	-	FMN-dependent alpha-hydroxy acid dehydrogenase
3473	 63.85	0	3719416..3720978	-	520	150398701	guaA	Smed_3517	-	bifunctional GMP synthase/glutamine amidotransferase protein
3474	 64.79	+1	3721085..3721723	-	212	150398702	-	Smed_3518	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
3475	 62.94	0	3721720..3722229	-	169	150398703	-	Smed_3519	-	thioesterase superfamily protein
3476	 61.05	0	3722251..3722784	-	177	150398704	-	Smed_3520	-	TspO and MBR like protein
3477	 62.48	0	3722866..3723414	+	182	150398705	-	Smed_3521	-	GCN5-related N-acetyltransferase
3478	 62.96	0	3723366..3724499	-	377	150398706	-	Smed_3522	-	hypothetical protein
3479	 63.87	0	3725274..3726920	+	548	150398707	-	Smed_3523	-	polypeptide-transport-associated domain-containing protein
3480	 67.22	+1	3727030..3728475	+	481	150398708	-	Smed_3524	-	filamentous haemagglutinin outer membrane protein
3481	 62.68	0	3728785..3733803	+	1672	150398709	-	Smed_3525	-	alpha beta-propellor repeat-containing integrin
3482	 60.59	0	3733954..3734562	+	202	150398710	-	Smed_3526	-	invasion associated locus B family protein
3483	 63.23	0	3734626..3735759	-	377	150398711	-	Smed_3527	-	putative signal peptide protein
3484	 65.89	+1	3735759..3737312	-	517	150398712	-	Smed_3528	-	hypothetical protein
3485	 62.45	0	3737358..3738638	-	426	150398713	-	Smed_3529	-	putative iron-regulated protein
3486	 63.72	0	3738783..3740072	-	429	150398714	-	Smed_3530	-	Fmu (Sun) domain-containing protein
3487	 61.07	0	3740205..3740579	-	124	150398715	-	Smed_3531	-	rare lipoprotein A
3488	 47.70	-2	3740764..3740937	-	57	150398716	-	Smed_3532	-	hypothetical protein
3489	 64.16	0	3741041..3741916	-	291	150398717	-	Smed_3533	-	NAD-dependent epimerase/dehydratase
3490	 63.23	0	3741913..3743076	-	387	150398718	-	Smed_3534	-	hypothetical protein
3491	 62.48	0	3743087..3743779	-	230	150398719	-	Smed_3535	-	glutathione S-transferase domain-containing protein
3492	 61.96	0	3743936..3744742	+	268	150398720	-	Smed_3536	-	undecaprenyl pyrophosphate phosphatase
3493	 61.11	0	3744854..3745015	-	53	150398721	-	Smed_3537	-	putative signal peptide protein
3494	 62.39	0	3745261..3746241	-	326	150398722	-	Smed_3538	-	NADH dehydrogenase (ubiquinone)
3495	 62.85	0	3746362..3746649	-	95	150398723	-	Smed_3539	-	hypothetical protein
3496	 64.23	0	3746754..3747452	-	232	150398724	-	Smed_3540	-	orotidine 5'-phosphate decarboxylase
3497	 64.67	+1	3747460..3748059	-	199	150398725	-	Smed_3541	-	phosphoglycerate mutase
3498	 58.87	0	3748056..3748658	-	200	150398726	-	Smed_3542	-	hypothetical protein
3499	 61.57	0	3748860..3749978	-	372	150398727	-	Smed_3543	-	DNA polymerase III subunit beta
3500	 66.56	+1	3750240..3751202	+	320	150398728	-	Smed_3544	-	uroporphyrin-III C/tetrapyrrole methyltransferase
3501	 62.60	0	3751192..3751560	+	122	150398729	-	Smed_3545	-	hypothetical protein
3502	 62.87	0	3751749..3752696	+	315	150398730	-	Smed_3546	-	glutathione synthetase
3503	 67.79	+2	3752813..3754411	+	532	150398731	-	Smed_3547	-	Mg chelatase, subunit ChlI
3504	 59.73	0	3754428..3754802	+	124	150398732	-	Smed_3548	-	SH3 domain-containing protein
3505	 62.54	0	3755212..3756180	-	322	150398733	-	Smed_3549	-	cysteine synthase A
3506	 62.40	0	3757096..3757728	+	210	150398734	-	Smed_3551	-	lysine exporter protein LysE/YggA
3507	 61.83	0	3757797..3758705	-	302	150398735	-	Smed_3552	-	hypothetical protein
3508	 60.96	0	3758839..3759276	+	145	150398736	-	Smed_3553	-	AsnC family transcriptional regulator
3509	 66.25	+1	3759269..3759751	-	160	150398737	dut	Smed_3554	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3510	 63.19	0	3759850..3761433	+	527	150398738	-	Smed_3555	-	peptide chain release factor 3
3511	 63.54	0	3761452..3762315	-	287	150398739	-	Smed_3556	-	hypothetical protein
3512	 63.70	0	3762428..3763237	-	269	150398740	-	Smed_3557	-	AraC family transcriptional regulator
3513	 61.98	0	3763359..3763763	-	134	150398741	-	Smed_3558	-	glutathione-dependent formaldehyde-activating GFA
3514	 63.24	0	3764046..3764921	-	291	150398742	-	Smed_3559	-	myo-inositol catabolism IolB domain-containing protein
3515	 60.13	0	3765010..3765912	-	300	150398743	-	Smed_3560	-	xylose isomerase domain-containing protein
3516	 64.85	+1	3765994..3767862	-	622	150398744	-	Smed_3561	-	thiamine pyrophosphate protein central region
3517	 62.35	0	3767908..3769875	-	655	150398745	-	Smed_3562	-	ribokinase-like domain-containing protein
3518	 61.52	0	3769994..3770848	-	284	150398746	-	Smed_3563	-	RpiR family transcriptional regulator
3519	 63.66	0	3770980..3772110	-	376	150398747	-	Smed_3564	-	oxidoreductase domain-containing protein
3520	 64.00	0	3772354..3773178	+	274	150398748	-	Smed_3565	-	hypothetical protein
3521	 66.09	+1	3773197..3774420	-	407	150398749	-	Smed_3566	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3522	 62.09	0	3774565..3775023	+	152	150398750	-	Smed_3567	-	BadM/Rrf2 family transcriptional regulator
3523	 64.13	0	3775013..3775918	+	301	150398751	-	Smed_3568	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
3524	 64.18	0	3775971..3776654	-	227	150398752	-	Smed_3569	-	ankyrin
3525	 66.67	+1	3776678..3777457	-	259	150398753	-	Smed_3570	-	short-chain dehydrogenase/reductase SDR
3526	 64.70	+1	3777541..3779115	-	524	150398754	-	Smed_3571	-	2-polyprenylphenol 6-hydroxylase
3527	 61.90	0	3779120..3779896	-	258	150398755	ubiE	Smed_3572	-	ubiquinone/menaquinone biosynthesis methyltransferase
3528	 64.17	0	3780080..3781000	+	306	150398756	-	Smed_3573	-	formamidopyrimidine-DNA glycosylase
3529	 65.76	+1	3781073..3781846	+	257	150398757	-	Smed_3574	-	enoyl-CoA hydratase
61.69	MEAN

2.82	STD DEV
