IslandPath Analysis: Sinorhizobium medicae WSM419

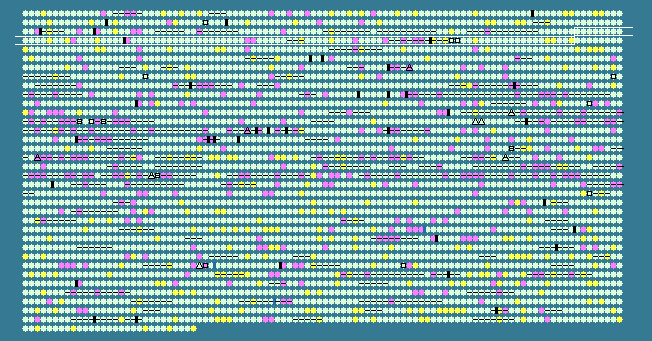

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
293	 61.77	0	312923..314065	+	380	150395521	-	Smed_0294	-	binding-protein-dependent transport systems inner membrane component
294	 60.39	0	314094..315749	+	551	150395522	-	Smed_0295	-	alpha amylase catalytic region
295	 62.53	0	315769..316857	+	362	150395523	-	Smed_0296	-	ABC transporter related
296	 58.74	-1	316945..317373	+	142	150395524	-	Smed_0297	-	hypothetical protein
297	 64.31	0	317540..319360	-	606	150395525	-	Smed_0298	-	phosphogluconate dehydratase
298	 64.22	0	319461..320156	-	231	150395526	-	Smed_0299	-	6-phosphogluconolactonase
299	 61.04	0	320165..321640	-	491	150395527	-	Smed_0300	-	glucose-6-phosphate 1-dehydrogenase
300	 63.16	0	321846..323156	-	436	150395528	-	Smed_0301	-	FAD dependent oxidoreductase
301	 60.19	0	323149..324585	-	478	150395529	-	Smed_0302	-	glutamate--putrescine ligase
302	 63.71	0	324710..325894	+	394	150395530	-	Smed_0303	-	hypothetical protein
303	 59.57	0	326166..326306	+	46	150395531	-	Smed_0304	-	hypothetical protein
304	 62.07	0	326610..329135	+	841	150395532	-	Smed_0305	-	methyl-accepting chemotaxis sensory transducer
305	 65.98	+1	329484..330359	+	291	150395533	-	Smed_0306	-	LysR family transcriptional regulator
306	 62.50	0	330550..330789	-	79	150395534	-	Smed_0307	-	hypothetical protein
307	 61.16	0	330900..332189	-	429	150395535	-	Smed_0308	-	isocitrate lyase
308	 65.32	+1	332417..333829	+	470	150395536	-	Smed_0309	-	hypothetical protein
309	 56.89	-1	334002..335096	+	364	150395537	-	Smed_0310	-	extracellular solute-binding protein
310	 59.58	0	335252..336394	+	380	150395538	-	Smed_0311	-	spermidine/putrescine ABC transporter ATPase subunit
311	 58.33	-1	336399..337310	+	303	150395539	-	Smed_0312	-	binding-protein-dependent transport systems inner membrane component
312	 62.29	0	337314..338135	+	273	150395540	-	Smed_0313	-	ornithine carbamoyltransferase
313	 65.30	+1	338140..339966	-	608	150395541	-	Smed_0314	-	AsmA family protein
314	 62.52	0	340138..342090	+	650	150395542	-	Smed_0315	-	acetoacetyl-CoA synthetase
315	 63.98	0	342410..344122	-	570	150395543	-	Smed_0317	-	binding-protein-dependent transport systems inner membrane component
316	 64.68	+1	344380..347796	-	1138	150395544	-	Smed_0318	-	PAS/PAC sensor signal transduction histidine kinase
317	 60.85	0	348029..348475	+	148	150395545	-	Smed_0319	-	phasin
318	 57.73	-1	348806..349633	-	275	150395546	-	Smed_0320	-	response regulator receiver protein
319	 63.54	0	349836..350603	+	255	150395547	-	Smed_0321	-	short-chain dehydrogenase/reductase SDR
320	 59.81	0	350614..351852	+	412	150395548	-	Smed_0322	-	FAD-linked oxidoreductase
321	 63.38	0	351889..352770	-	293	150395549	-	Smed_0323	-	LysR family transcriptional regulator
322	 62.86	0	352885..354381	+	498	150395550	-	Smed_0324	-	methylmalonate-semialdehyde dehydrogenase
323	 62.02	0	354591..355709	+	372	150395551	-	Smed_0325	-	hypothetical protein
324	 65.16	+1	355699..356760	+	353	150395552	-	Smed_0326	-	peptidase M48 Ste24p
325	 60.04	0	356839..357879	-	346	150395553	-	Smed_0327	-	extracellular solute-binding protein
326	 62.37	0	358069..358533	+	154	150395554	rirA	Smed_0328	-	iron-responsive transcriptional regulator
327	 60.09	0	358968..360563	+	531	150395555	-	Smed_0329	-	extracellular solute-binding protein
328	 62.39	0	360668..361672	+	334	150395556	-	Smed_0330	-	nickel-transporting ATPase
329	 63.48	0	361683..362591	+	302	150395557	-	Smed_0331	-	binding-protein-dependent transport systems inner membrane component
330	 61.05	0	362593..363447	+	284	150395558	-	Smed_0332	-	ABC transporter related
331	 61.47	0	363444..364271	+	275	150395559	-	Smed_0333	-	ABC transporter related
332	 62.32	0	364338..364682	+	114	150395560	-	Smed_0334	-	endoribonuclease L-PSP
333	 59.65	0	364834..365004	+	56	150395561	-	Smed_0335	-	hypothetical protein
334	 61.98	0	365106..366236	+	376	150395562	-	Smed_0336	-	hypothetical protein
335	 59.52	0	366319..367116	-	265	150395563	-	Smed_0337	-	two-component response regulator
336	 62.05	0	367354..367548	+	64	150395564	-	Smed_0338	-	hypothetical protein
337	 63.45	0	367744..367992	-	82	150395565	-	Smed_0339	-	17 kDa surface antigen
338	 49.23	-2	368390..368584	+	64	150395566	-	Smed_0340	-	hypothetical protein
339	 57.58	-1	368700..368864	+	54	150395567	-	Smed_0341	-	hypothetical protein
340	 64.11	0	369055..370308	+	417	150395568	-	Smed_0342	-	FAD dependent oxidoreductase
341	 62.71	0	370334..371293	-	319	150395569	-	Smed_0343	-	periplasmic binding protein/LacI transcriptional regulator
342	 61.78	0	371323..372366	-	347	150395570	-	Smed_0344	-	monosaccharide-transporting ATPase
343	 62.50	0	372363..373178	-	271	150395571	-	Smed_0345	-	ABC transporter related
344	 64.51	0	373223..374566	-	447	150395572	-	Smed_0346	-	acetylornithine deacetylase or succinyl-diaminopimelate desuccinylase
345	 63.45	0	375017..375265	+	82	150395573	-	Smed_0347	-	hypothetical protein
346	 61.65	0	375292..375849	-	185	150395574	-	Smed_0348	-	MgtC/SapB transporter
347	 68.69	+2	375961..376404	-	147	150395575	-	Smed_0349	-	hypothetical protein
348	 61.52	0	376714..377373	+	219	150395576	-	Smed_0350	-	hypothetical protein
349	 62.36	0	377410..377850	+	146	150395577	-	Smed_0351	-	hypothetical protein
350	 64.58	+1	377865..378104	-	79	150395578	-	Smed_0352	-	putative transmembrane protein
351	 62.50	0	378111..378878	-	255	150395579	-	Smed_0353	-	protein of unknown function DUF899 thioredoxin family protein
352	 69.24	+2	379000..380241	+	413	150395580	-	Smed_0354	-	hypothetical protein
353	 62.64	0	380277..380921	+	214	150395581	-	Smed_0355	-	hypothetical protein
354	 60.98	0	381192..381560	+	122	150395582	-	Smed_0356	-	hypothetical protein
355	 58.23	-1	381902..382363	-	153	150395583	-	Smed_0357	-	hypothetical protein
356	 58.11	-1	382662..383105	+	147	150395584	-	Smed_0358	-	S-isoprenylcysteine methyltransferase-like protein
357	 59.28	0	383109..383690	+	193	150395585	-	Smed_0359	-	TetR family transcriptional regulator
358	 60.49	0	384863..385834	+	323	150395586	-	Smed_0361	-	hypothetical protein
359	 58.23	-1	385890..386363	+	157	150395587	-	Smed_0362	-	putative tricarboxylic transport membrane protein
360	 60.20	0	386374..387873	+	499	150395588	-	Smed_0363	-	hypothetical protein
361	 56.78	-1	388023..388841	+	272	150395589	-	Smed_0364	-	GntR domain-containing protein
362	 60.25	0	388975..391593	+	872	150395590	acnA	Smed_0365	-	aconitate hydratase
363	 59.09	0	391945..392841	-	298	150395591	-	Smed_0366	-	LysR family transcriptional regulator
364	 56.39	-1	392937..393257	+	106	150395592	-	Smed_0367	-	hypothetical protein
365	 60.38	0	393257..394036	+	259	150395593	-	Smed_0368	-	short chain dehydrogenase
366	 58.12	-1	394056..394523	-	155	150395594	-	Smed_0369	-	MarR family transcriptional regulator
367	 57.98	-1	394667..395449	+	260	150395595	-	Smed_0370	-	hypothetical protein
368	 58.81	-1	395655..397283	+	542	150395596	-	Smed_0371	-	glucose-methanol-choline oxidoreductase
369	 67.78	+2	398129..399658	+	509	150395597	-	Smed_0372	-	Ppx/GppA phosphatase
370	 63.55	0	399655..400392	+	245	150395598	-	Smed_0373	-	ribosomal RNA methyltransferase RrmJ/FtsJ
371	 66.15	+1	400396..400779	+	127	150395599	-	Smed_0374	-	glyoxalase/bleomycin resistance protein/dioxygenase
372	 60.02	0	401023..401955	-	310	150395600	-	Smed_0375	-	transposase IS116/IS110/IS902 family protein
373	 63.64	0	402469..403326	+	285	150395601	-	Smed_0376	-	transposase IS116/IS110/IS902 family protein
374	 64.26	0	403375..404787	-	470	150395602	-	Smed_0377	-	EmrB/QacA family drug resistance transporter
375	 60.65	0	405136..406116	+	326	150395603	-	Smed_0378	-	beta-lactamase domain-containing protein
376	 65.54	+1	406307..407809	+	500	150395604	-	Smed_0379	-	inositol-5-monophosphate dehydrogenase
377	 61.15	0	407887..408303	+	138	150395605	-	Smed_0380	-	hypothetical protein
378	 61.53	0	408389..409264	+	291	150395606	-	Smed_0381	-	carboxymethylenebutenolidase
379	 62.26	0	409265..410218	-	317	150395607	-	Smed_0382	-	LysR family transcriptional regulator
380	 61.01	0	410335..411819	+	494	150395608	-	Smed_0383	-	catalase
381	 63.09	0	411903..412853	-	316	150395609	-	Smed_0384	-	LysR family transcriptional regulator
382	 61.62	0	413060..413356	+	98	150395610	-	Smed_0385	-	hypothetical protein
383	 60.76	0	413660..414505	-	281	150395611	-	Smed_0386	-	hypothetical protein
384	 61.57	0	414615..415988	-	457	150395612	-	Smed_0387	-	glutamate--cysteine ligase
385	 63.14	0	416148..416885	-	245	150395613	-	Smed_0388	-	hypothetical protein
386	 63.55	0	416904..418409	-	501	150395614	-	Smed_0389	-	phosphate transporter
387	 61.34	0	418612..419118	-	168	150395615	-	Smed_0390	-	NUDIX hydrolase
388	 65.73	+1	419392..420249	-	285	150395616	-	Smed_0391	-	GntR domain-containing protein
389	 65.25	+1	420394..421662	+	422	150395617	-	Smed_0392	-	hypothetical protein
390	 62.76	0	421682..422578	-	298	150395618	-	Smed_0393	-	LysR family transcriptional regulator
391	 60.83	0	422685..424124	+	479	150395619	-	Smed_0394	-	D-lactate dehydrogenase (cytochrome)
392	 66.75	+1	424121..425338	+	405	150395620	-	Smed_0395	-	FAD linked oxidase domain-containing protein
61.69	MEAN

2.82	STD DEV
