IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

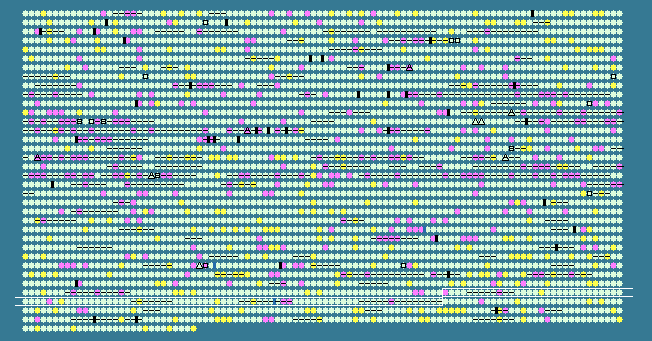

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3171	 57.83	-1	3383037..3383579	-	180	150398399	-	Smed_3207	-	hypothetical protein
3172	 63.57	0	3383576..3384607	-	343	150398400	hemE	Smed_3208	-	uroporphyrinogen decarboxylase
3173	 62.04	0	3385013..3385834	+	273	150398401	-	Smed_3209	-	hypothetical protein
3174	 62.17	0	3385891..3386490	+	199	150398402	-	Smed_3210	-	Maf-like protein
3175	 62.60	0	3386483..3387343	+	286	150398403	aroE	Smed_3211	-	shikimate 5-dehydrogenase
3176	 61.20	0	3387340..3387924	+	194	150398404	coaE	Smed_3212	-	dephospho-CoA kinase
3177	 60.49	0	3388060..3388788	+	242	150398405	-	Smed_3213	-	DNA polymerase III subunit epsilon
3178	 62.13	0	3388950..3389456	-	168	150398406	-	Smed_3214	-	preprotein translocase subunit SecB
3179	 62.30	0	3389549..3390097	-	182	150398407	-	Smed_3215	-	FxsA cytoplasmic membrane protein
3180	 56.74	-1	3390232..3390936	+	234	150398408	-	Smed_3216	-	import inner membrane translocase subunit Tim44
3181	 62.73	0	3390954..3392072	+	372	150398409	-	Smed_3217	-	MltA domain-containing protein
3182	 65.10	+1	3392065..3392640	+	191	150398410	-	Smed_3218	-	Smr protein/MutS2
3183	 61.64	0	3392624..3393001	+	125	150398411	-	Smed_3219	-	XRE family transcriptional regulator
3184	 63.01	0	3393136..3395571	+	811	150398412	gyrB	Smed_3220	-	DNA gyrase subunit B
3185	 62.31	0	3395649..3396245	-	198	150398413	-	Smed_3221	-	nitroreductase
3186	 63.02	0	3396441..3397895	+	484	150398414	-	Smed_3222	-	succinic semialdehyde dehydrogenase
3187	 65.79	+1	3398032..3398832	+	266	150398415	-	Smed_3223	-	2-dehydro-3-deoxyglucarate aldolase
3188	 61.89	0	3398833..3399711	-	292	150398416	-	Smed_3224	-	GntR family transcriptional regulator
3189	 64.67	+1	3399877..3401382	+	501	150398417	-	Smed_3225	-	Altronate dehydratase
3190	 63.43	0	3401447..3402466	+	339	150398418	-	Smed_3226	-	pyridoxal 4-dehydrogenase
3191	 61.01	0	3402576..3403565	+	329	150398419	-	Smed_3227	-	periplasmic binding protein/LacI transcriptional regulator
3192	 62.42	0	3403680..3405233	+	517	150398420	-	Smed_3228	-	ABC transporter related
3193	 62.15	0	3405270..3406244	+	324	150398421	-	Smed_3229	-	monosaccharide-transporting ATPase
3194	 65.09	+1	3406291..3407307	+	338	150398422	-	Smed_3230	-	alcohol dehydrogenase
3195	 61.75	0	3407395..3407679	-	94	150398423	-	Smed_3231	-	plasmid stabilization system protein
3196	 64.72	+1	3407676..3407984	-	102	150398424	-	Smed_3232	-	addiction module antitoxin
3197	 61.80	0	3408216..3409490	+	424	150398425	-	Smed_3233	-	polyhydroxyalkanoate depolymerase, intracellular
3198	 59.86	0	3409681..3410106	+	141	150398426	-	Smed_3234	-	hypothetical protein
3199	 63.36	0	3410229..3410984	+	251	150398427	-	Smed_3235	-	hypothetical protein
3200	 60.03	0	3411141..3411788	+	215	150398428	-	Smed_3236	-	N-(5'-phosphoribosyl)anthranilate isomerase
3201	 62.33	0	3411810..3413030	+	406	150398429	-	Smed_3237	-	tryptophan synthase subunit beta
3202	 64.29	0	3413036..3413875	+	279	150398430	trpA	Smed_3238	-	tryptophan synthase subunit alpha
3203	 60.66	0	3413929..3414843	+	304	150398431	-	Smed_3239	-	acetyl-CoA carboxylase subunit beta
3204	 64.88	+1	3414978..3416321	+	447	150398432	-	Smed_3240	-	FolC bifunctional protein
3205	 56.79	-1	3416463..3416786	-	107	150398433	-	Smed_3241	-	thioredoxin
3206	 65.07	+1	3416868..3420437	-	1189	150398434	-	Smed_3242	-	double-strand break repair helicase AddA
3207	 66.01	+1	3420427..3423606	-	1059	150398435	-	Smed_3243	-	double-strand break repair protein AddB
3208	 62.02	0	3423608..3424339	-	243	150398436	-	Smed_3244	-	nucleotidyl transferase
3209	 62.71	0	3424346..3425860	-	504	150398437	-	Smed_3245	-	hypothetical protein
3210	 63.40	0	3425870..3428350	-	826	150398438	-	Smed_3246	-	histidine kinase
3211	 61.24	0	3428654..3430054	-	466	150398439	-	Smed_3247	-	S-adenosyl-L-homocysteine hydrolase
3212	 61.56	0	3430211..3430504	-	97	150398440	-	Smed_3248	-	phosphotransferase system, phosphocarrier protein HPr
3213	 59.45	0	3430501..3430902	-	133	150398441	-	Smed_3249	-	PTS system fructose subfamily IIA component
3214	 63.99	0	3431067..3431552	-	161	150398442	-	Smed_3250	-	HPr kinase
3215	 63.27	0	3431549..3433285	-	578	150398443	-	Smed_3251	-	integral membrane sensor signal transduction histidine kinase
3216	 61.55	0	3433476..3434198	-	240	150398444	-	Smed_3252	-	two component transcriptional regulator
3217	 62.20	0	3434539..3436149	+	536	150398445	-	Smed_3253	-	phosphoenolpyruvate carboxykinase
3218	 64.37	0	3436255..3436689	+	144	150398446	-	Smed_3254	-	hypothetical protein
3219	 60.34	0	3436779..3437252	+	157	150398447	-	Smed_3255	-	hypothetical protein
3220	 66.01	+1	3437367..3437978	+	203	150398448	-	Smed_3256	-	2OG-Fe(II) oxygenase
3221	 61.35	0	3438155..3439150	-	331	150398449	-	Smed_3257	-	pantothenate kinase
3222	 59.57	0	3439147..3439470	-	107	150398450	hisE	Smed_3258	-	phosphoribosyl-ATP pyrophosphatase
3223	 63.58	0	3439495..3440271	-	258	150398451	-	Smed_3259	-	imidazole glycerol phosphate synthase subunit HisF
3224	 63.86	0	3440268..3441014	-	248	150398452	-	Smed_3260	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
3225	 63.44	0	3441048..3441698	-	216	150398453	hisH	Smed_3261	-	imidazole glycerol phosphate synthase subunit HisH
3226	 63.31	0	3441698..3442174	-	158	150398454	-	Smed_3262	-	hypothetical protein
3227	 62.40	0	3442201..3442809	-	202	150398455	hisB	Smed_3263	-	imidazoleglycerol-phosphate dehydratase
3228	 62.19	0	3443126..3443683	+	185	150398456	-	Smed_3264	-	ATP-dependent protease peptidase subunit
3229	 61.85	0	3443673..3444191	+	172	150398457	-	Smed_3265	-	GCN5-related N-acetyltransferase
3230	 62.69	0	3444191..3445498	+	435	150398458	hslU	Smed_3266	-	ATP-dependent protease ATP-binding subunit
3231	 62.04	0	3445687..3446637	+	316	150398459	-	Smed_3267	-	hypothetical protein
3232	 63.88	0	3446902..3448302	+	466	150398460	-	Smed_3268	-	cytochrome P450
3233	 66.32	+1	3448396..3450399	+	667	150398461	-	Smed_3269	-	hydantoinase/oxoprolinase
3234	 62.44	0	3450562..3452736	+	724	150398462	-	Smed_3270	-	malate synthase G
3235	 62.07	0	3452834..3453508	-	224	150398463	-	Smed_3271	-	ErfK/YbiS/YcfS/YnhG family protein
3236	 62.29	0	3453704..3454228	+	174	150398464	-	Smed_3272	-	hypothetical protein
3237	 62.56	0	3454265..3454849	-	194	150398465	-	Smed_3273	-	two component Fis family transcriptional regulator
3238	 63.75	0	3455027..3456328	-	433	150398466	-	Smed_3274	-	integral membrane sensor signal transduction histidine kinase
3239	 66.10	+1	3456417..3458882	-	821	150398467	-	Smed_3275	-	ATP-dependent helicase HrpB
3240	 62.72	0	3458879..3459562	-	227	150398468	-	Smed_3276	-	ABC transporter related
3241	 64.66	+1	3459563..3461260	-	565	150398469	-	Smed_3277	-	putative permease ABC transporter protein
3242	 60.96	0	3461244..3462470	-	408	150398470	-	Smed_3278	-	hypothetical protein
3243	 58.96	0	3469459..3471963	-	834	150398471	-	Smed_3279	-	multi-sensor hybrid histidine kinase
3244	 56.06	-1	3471960..3472685	-	241	150398472	-	Smed_3280	-	two component transcriptional regulator
3245	 55.43	-2	3472941..3473972	+	343	150398473	-	Smed_3281	-	extracellular solute-binding protein
3246	 59.54	0	3476195..3477247	+	350	150398474	-	Smed_3284	-	ABC transporter related
3247	 60.26	0	3477266..3477499	-	77	150398475	-	Smed_3285	-	hypothetical protein
3248	 64.42	0	3477527..3478060	-	177	150398476	-	Smed_3286	-	sarcosine oxidase gamma subunit
3249	 63.60	0	3478053..3481016	-	987	150398477	-	Smed_3287	-	sarcosine oxidase alpha subunit family protein
3250	 61.29	0	3481013..3481291	-	92	150398478	-	Smed_3288	-	sarcosine oxidase delta subunit family protein
3251	 62.19	0	3481318..3482568	-	416	150398479	-	Smed_3289	-	sarcosine oxidase beta subunit family protein
3252	 65.13	+1	3482663..3483637	+	324	150398480	-	Smed_3290	-	AraC family transcriptional regulator
3253	 61.70	0	3483737..3484642	+	301	150398481	-	Smed_3291	-	glutamine amidotransferase class-II
3254	 61.43	0	3484678..3485364	+	228	150398482	-	Smed_3292	-	glutamate synthase alpha subunit
3255	 64.03	0	3485380..3486708	+	442	150398483	-	Smed_3293	-	ferredoxin-dependent glutamate synthase
3256	 59.81	0	3486709..3488094	+	461	150398484	-	Smed_3294	-	glutamine synthetase catalytic region
3257	 61.36	0	3488252..3488515	-	87	150398485	-	Smed_3295	-	hypothetical protein
3258	 64.63	+1	3488550..3489287	-	245	150398486	-	Smed_3296	-	putative signal peptide protein
3259	 62.23	0	3489413..3490810	-	465	150398487	-	Smed_3297	-	amino acid permease-associated region
3260	 59.26	0	3490825..3490986	-	53	150398488	-	Smed_3298	-	hypothetical protein
3261	 58.85	-1	3491066..3491449	-	127	150398489	-	Smed_3299	-	hypothetical protein
3262	 57.55	-1	3491458..3491775	-	105	150398490	-	Smed_3300	-	hypothetical protein
3263	 61.84	0	3492107..3492811	+	234	150398491	-	Smed_3301	-	XRE family transcriptional regulator
3264	 63.71	0	3492854..3493834	-	326	150398492	-	Smed_3302	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
3265	 61.71	0	3493831..3494859	-	342	150398493	-	Smed_3303	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
3266	 60.98	0	3494864..3495865	-	333	150398494	-	Smed_3304	-	binding-protein-dependent transport systems inner membrane component
3267	 62.88	0	3495875..3496720	-	281	150398495	-	Smed_3305	-	binding-protein-dependent transport systems inner membrane component
3268	 62.51	0	3496870..3498555	-	561	150398496	-	Smed_3306	-	5-oxoprolinase (ATP-hydrolyzing)
3269	 63.11	0	3498596..3500617	-	673	150398497	-	Smed_3307	-	5-oxoprolinase (ATP-hydrolyzing)
3270	 58.92	0	3500639..3502225	-	528	150398498	-	Smed_3308	-	extracellular solute-binding protein
61.69	MEAN

2.82	STD DEV
