IslandPath Analysis: Sinorhizobium medicae WSM419

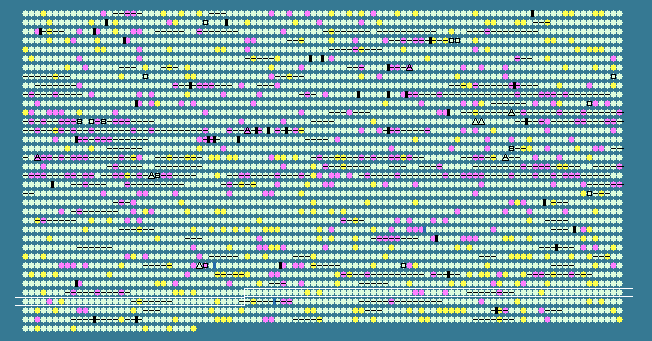

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3138	 64.57	+1	3337191..3338192	-	333	150398366	-	Smed_3174	-	oxidoreductase domain-containing protein
3139	 65.04	+1	3338189..3339232	-	347	150398367	-	Smed_3175	-	periplasmic binding protein/LacI transcriptional regulator
3140	 63.42	0	3339534..3340703	+	389	150398368	-	Smed_3176	-	hypothetical protein
3141	 62.06	0	3340859..3342922	-	687	150398369	-	Smed_3177	-	peptidyl-dipeptidase Dcp
3142	 63.88	0	3343230..3344342	+	370	150398370	-	Smed_3178	-	3-isopropylmalate dehydrogenase
3143	 63.20	0	3344467..3345159	+	230	150398371	-	Smed_3179	-	phosphoesterase PA-phosphatase related
3144	 61.53	0	3345216..3347105	-	629	150398372	-	Smed_3180	-	major facilitator transporter
3145	 59.65	0	3347400..3347570	+	56	150398373	-	Smed_3181	-	hypothetical protein
3146	 58.84	-1	3347683..3348717	+	344	150398374	-	Smed_3182	-	aspartate-semialdehyde dehydrogenase
3147	 64.60	+1	3348875..3349696	+	273	150398375	-	Smed_3183	-	lytic murein transglycosylase
3148	 66.96	+1	3349796..3350140	+	114	150398376	-	Smed_3184	-	hypothetical protein
3149	 60.49	0	3350301..3350948	-	215	150398377	-	Smed_3185	-	carbonate dehydratase
3150	 66.10	+1	3351145..3352026	-	293	150398378	-	Smed_3186	-	pyridoxamine kinase
3151	 63.85	0	3352309..3357096	+	1595	150398379	-	Smed_3187	-	NAD-glutamate dehydrogenase
3152	 64.66	+1	3357221..3358612	+	463	150398380	-	Smed_3188	-	major facilitator transporter
3153	 64.06	0	3358668..3360278	-	536	150398381	purH	Smed_3189	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
3154	 63.80	0	3360430..3362136	-	568	150398382	-	Smed_3190	-	heparinase II/III family protein
3155	 64.69	+1	3362382..3363794	-	470	150398383	-	Smed_3191	-	Fmu (Sun) domain-containing protein
3156	 62.81	0	3363794..3364753	-	319	150398384	-	Smed_3192	-	heat shock protein HtpX
3157	 64.18	0	3364935..3365135	+	66	150398385	-	Smed_3193	-	hypothetical protein
3158	 61.08	0	3365302..3367251	-	649	150398386	-	Smed_3194	-	acetyl-CoA synthetase
3159	 61.95	0	3367525..3368223	+	232	150398387	-	Smed_3195	-	hypothetical protein
3160	 62.00	0	3368314..3370221	-	635	150398388	-	Smed_3196	-	AMP-dependent synthetase and ligase
3161	 62.12	0	3370334..3370993	-	219	150398389	-	Smed_3197	-	alanine racemase domain-containing protein
3162	 62.79	0	3371250..3373880	+	876	150398390	leuS	Smed_3198	-	leucyl-tRNA synthetase
3163	 63.00	0	3373867..3374412	+	181	150398391	-	Smed_3199	-	hypothetical protein
3164	 62.50	0	3374425..3375456	+	343	150398392	holA	Smed_3200	-	DNA polymerase III subunit delta
3165	 60.83	0	3375491..3376381	-	296	150398393	-	Smed_3201	-	parB-like partition protein
3166	 56.48	-1	3376414..3377208	-	264	150398394	-	Smed_3202	-	cobyrinic acid ac-diamide synthase
3167	 54.67	-2	3377223..3377864	-	213	150398395	gidB	Smed_3203	-	glucose-inhibited division protein B
3168	 58.60	-1	3377873..3379744	-	623	150398396	-	Smed_3204	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3169	 60.24	0	3379862..3381184	-	440	150398397	trmE	Smed_3205	-	tRNA modification GTPase TrmE
3170	 58.29	-1	3381576..3382841	-	421	150398398	rho	Smed_3206	-	transcription termination factor Rho
3171	 57.83	-1	3383037..3383579	-	180	150398399	-	Smed_3207	-	hypothetical protein
3172	 63.57	0	3383576..3384607	-	343	150398400	hemE	Smed_3208	-	uroporphyrinogen decarboxylase
3173	 62.04	0	3385013..3385834	+	273	150398401	-	Smed_3209	-	hypothetical protein
3174	 62.17	0	3385891..3386490	+	199	150398402	-	Smed_3210	-	Maf-like protein
3175	 62.60	0	3386483..3387343	+	286	150398403	aroE	Smed_3211	-	shikimate 5-dehydrogenase
3176	 61.20	0	3387340..3387924	+	194	150398404	coaE	Smed_3212	-	dephospho-CoA kinase
3177	 60.49	0	3388060..3388788	+	242	150398405	-	Smed_3213	-	DNA polymerase III subunit epsilon
3178	 62.13	0	3388950..3389456	-	168	150398406	-	Smed_3214	-	preprotein translocase subunit SecB
3179	 62.30	0	3389549..3390097	-	182	150398407	-	Smed_3215	-	FxsA cytoplasmic membrane protein
3180	 56.74	-1	3390232..3390936	+	234	150398408	-	Smed_3216	-	import inner membrane translocase subunit Tim44
3181	 62.73	0	3390954..3392072	+	372	150398409	-	Smed_3217	-	MltA domain-containing protein
3182	 65.10	+1	3392065..3392640	+	191	150398410	-	Smed_3218	-	Smr protein/MutS2
3183	 61.64	0	3392624..3393001	+	125	150398411	-	Smed_3219	-	XRE family transcriptional regulator
3184	 63.01	0	3393136..3395571	+	811	150398412	gyrB	Smed_3220	-	DNA gyrase subunit B
3185	 62.31	0	3395649..3396245	-	198	150398413	-	Smed_3221	-	nitroreductase
3186	 63.02	0	3396441..3397895	+	484	150398414	-	Smed_3222	-	succinic semialdehyde dehydrogenase
3187	 65.79	+1	3398032..3398832	+	266	150398415	-	Smed_3223	-	2-dehydro-3-deoxyglucarate aldolase
3188	 61.89	0	3398833..3399711	-	292	150398416	-	Smed_3224	-	GntR family transcriptional regulator
3189	 64.67	+1	3399877..3401382	+	501	150398417	-	Smed_3225	-	Altronate dehydratase
3190	 63.43	0	3401447..3402466	+	339	150398418	-	Smed_3226	-	pyridoxal 4-dehydrogenase
3191	 61.01	0	3402576..3403565	+	329	150398419	-	Smed_3227	-	periplasmic binding protein/LacI transcriptional regulator
3192	 62.42	0	3403680..3405233	+	517	150398420	-	Smed_3228	-	ABC transporter related
3193	 62.15	0	3405270..3406244	+	324	150398421	-	Smed_3229	-	monosaccharide-transporting ATPase
3194	 65.09	+1	3406291..3407307	+	338	150398422	-	Smed_3230	-	alcohol dehydrogenase
3195	 61.75	0	3407395..3407679	-	94	150398423	-	Smed_3231	-	plasmid stabilization system protein
3196	 64.72	+1	3407676..3407984	-	102	150398424	-	Smed_3232	-	addiction module antitoxin
3197	 61.80	0	3408216..3409490	+	424	150398425	-	Smed_3233	-	polyhydroxyalkanoate depolymerase, intracellular
3198	 59.86	0	3409681..3410106	+	141	150398426	-	Smed_3234	-	hypothetical protein
3199	 63.36	0	3410229..3410984	+	251	150398427	-	Smed_3235	-	hypothetical protein
3200	 60.03	0	3411141..3411788	+	215	150398428	-	Smed_3236	-	N-(5'-phosphoribosyl)anthranilate isomerase
3201	 62.33	0	3411810..3413030	+	406	150398429	-	Smed_3237	-	tryptophan synthase subunit beta
3202	 64.29	0	3413036..3413875	+	279	150398430	trpA	Smed_3238	-	tryptophan synthase subunit alpha
3203	 60.66	0	3413929..3414843	+	304	150398431	-	Smed_3239	-	acetyl-CoA carboxylase subunit beta
3204	 64.88	+1	3414978..3416321	+	447	150398432	-	Smed_3240	-	FolC bifunctional protein
3205	 56.79	-1	3416463..3416786	-	107	150398433	-	Smed_3241	-	thioredoxin
3206	 65.07	+1	3416868..3420437	-	1189	150398434	-	Smed_3242	-	double-strand break repair helicase AddA
3207	 66.01	+1	3420427..3423606	-	1059	150398435	-	Smed_3243	-	double-strand break repair protein AddB
3208	 62.02	0	3423608..3424339	-	243	150398436	-	Smed_3244	-	nucleotidyl transferase
3209	 62.71	0	3424346..3425860	-	504	150398437	-	Smed_3245	-	hypothetical protein
3210	 63.40	0	3425870..3428350	-	826	150398438	-	Smed_3246	-	histidine kinase
3211	 61.24	0	3428654..3430054	-	466	150398439	-	Smed_3247	-	S-adenosyl-L-homocysteine hydrolase
3212	 61.56	0	3430211..3430504	-	97	150398440	-	Smed_3248	-	phosphotransferase system, phosphocarrier protein HPr
3213	 59.45	0	3430501..3430902	-	133	150398441	-	Smed_3249	-	PTS system fructose subfamily IIA component
3214	 63.99	0	3431067..3431552	-	161	150398442	-	Smed_3250	-	HPr kinase
3215	 63.27	0	3431549..3433285	-	578	150398443	-	Smed_3251	-	integral membrane sensor signal transduction histidine kinase
3216	 61.55	0	3433476..3434198	-	240	150398444	-	Smed_3252	-	two component transcriptional regulator
3217	 62.20	0	3434539..3436149	+	536	150398445	-	Smed_3253	-	phosphoenolpyruvate carboxykinase
3218	 64.37	0	3436255..3436689	+	144	150398446	-	Smed_3254	-	hypothetical protein
3219	 60.34	0	3436779..3437252	+	157	150398447	-	Smed_3255	-	hypothetical protein
3220	 66.01	+1	3437367..3437978	+	203	150398448	-	Smed_3256	-	2OG-Fe(II) oxygenase
3221	 61.35	0	3438155..3439150	-	331	150398449	-	Smed_3257	-	pantothenate kinase
3222	 59.57	0	3439147..3439470	-	107	150398450	hisE	Smed_3258	-	phosphoribosyl-ATP pyrophosphatase
3223	 63.58	0	3439495..3440271	-	258	150398451	-	Smed_3259	-	imidazole glycerol phosphate synthase subunit HisF
3224	 63.86	0	3440268..3441014	-	248	150398452	-	Smed_3260	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
3225	 63.44	0	3441048..3441698	-	216	150398453	hisH	Smed_3261	-	imidazole glycerol phosphate synthase subunit HisH
3226	 63.31	0	3441698..3442174	-	158	150398454	-	Smed_3262	-	hypothetical protein
3227	 62.40	0	3442201..3442809	-	202	150398455	hisB	Smed_3263	-	imidazoleglycerol-phosphate dehydratase
3228	 62.19	0	3443126..3443683	+	185	150398456	-	Smed_3264	-	ATP-dependent protease peptidase subunit
3229	 61.85	0	3443673..3444191	+	172	150398457	-	Smed_3265	-	GCN5-related N-acetyltransferase
3230	 62.69	0	3444191..3445498	+	435	150398458	hslU	Smed_3266	-	ATP-dependent protease ATP-binding subunit
3231	 62.04	0	3445687..3446637	+	316	150398459	-	Smed_3267	-	hypothetical protein
3232	 63.88	0	3446902..3448302	+	466	150398460	-	Smed_3268	-	cytochrome P450
3233	 66.32	+1	3448396..3450399	+	667	150398461	-	Smed_3269	-	hydantoinase/oxoprolinase
3234	 62.44	0	3450562..3452736	+	724	150398462	-	Smed_3270	-	malate synthase G
3235	 62.07	0	3452834..3453508	-	224	150398463	-	Smed_3271	-	ErfK/YbiS/YcfS/YnhG family protein
3236	 62.29	0	3453704..3454228	+	174	150398464	-	Smed_3272	-	hypothetical protein
3237	 62.56	0	3454265..3454849	-	194	150398465	-	Smed_3273	-	two component Fis family transcriptional regulator
61.69	MEAN

2.82	STD DEV
