IslandPath Analysis: Sinorhizobium medicae WSM419

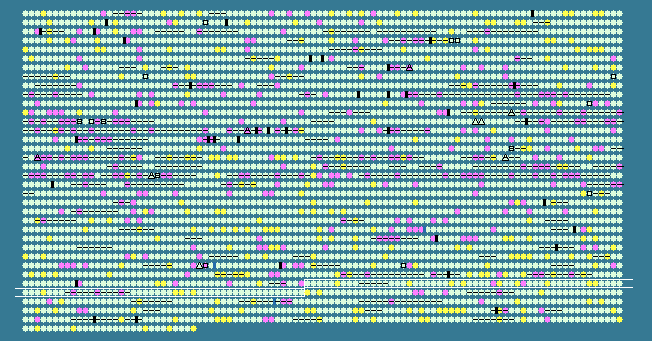

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3048	 61.72	0	3228754..3229542	-	262	150398276	-	Smed_3082	-	hypothetical protein
3049	 62.10	0	3229730..3232420	-	896	150398277	-	Smed_3083	-	aconitate hydratase
3050	 64.90	+1	3232691..3233314	+	207	150398278	-	Smed_3084	-	cytochrome c biogenesis protein CcmA
3051	 64.55	+1	3233311..3233970	+	219	150398279	-	Smed_3085	-	heme exporter protein CcmB
3052	 64.07	0	3234027..3234797	+	256	150398280	-	Smed_3086	-	heme exporter protein CcmC
3053	 67.23	+1	3234794..3234970	+	58	150398281	-	Smed_3087	-	Heme exporter protein D (CcmD)
3054	 63.17	0	3234967..3235566	+	199	150398282	-	Smed_3088	-	periplasmic protein thiol--disulphide oxidoreductase DsbE
3055	 59.90	0	3235570..3236160	-	196	150398283	-	Smed_3089	-	hypothetical protein
3056	 60.82	0	3236157..3236789	-	210	150398284	-	Smed_3090	-	intracellular septation protein A
3057	 64.56	+1	3236887..3238449	-	520	150398285	-	Smed_3091	-	signal recognition particle-docking protein FtsY
3058	 64.08	0	3238468..3239742	-	424	150398286	-	Smed_3092	-	MiaB-like tRNA modifying enzyme
3059	 64.62	+1	3239739..3240617	-	292	150398287	dapF	Smed_3093	-	diaminopimelate epimerase
3060	 63.41	0	3240738..3241751	-	337	150398288	-	Smed_3094	-	hypothetical protein
3061	 64.92	+1	3242073..3243617	+	514	150398289	-	Smed_3095	-	signal recognition particle protein
3062	 58.63	-1	3243630..3243965	+	111	150398290	-	Smed_3096	-	chorismate mutase
3063	 65.07	+1	3244004..3244378	+	124	150398291	rpsP	Smed_3097	-	30S ribosomal protein S16
3064	 59.90	0	3244455..3245075	+	206	150398292	rimM	Smed_3098	-	16S rRNA-processing protein
3065	 65.56	+1	3245086..3245808	+	240	150398293	trmD	Smed_3099	-	tRNA (guanine-N(1)-)-methyltransferase
3066	 64.79	+1	3245790..3246536	-	248	150398294	-	Smed_3100	-	hypothetical protein
3067	 62.73	0	3246849..3247382	+	177	150398295	rplS	Smed_3101	-	50S ribosomal protein L19
3068	 60.74	0	3247507..3248316	+	269	150398296	-	Smed_3102	-	extracellular solute-binding protein
3069	 61.70	0	3248385..3249209	+	274	150398297	-	Smed_3103	-	polar amino acid ABC transporter, inner membrane subunit
3070	 63.44	0	3249478..3251304	-	608	150398298	-	Smed_3104	-	ABC transporter related
3071	 64.86	+1	3251309..3251971	-	220	150398299	-	Smed_3105	-	thiamine pyrophosphokinase
3072	 67.70	+2	3252036..3252521	-	161	150398300	-	Smed_3106	-	hypothetical protein
3073	 61.22	0	3252828..3253856	+	342	150398301	tbpA	Smed_3107	-	thiamine transporter substrate binding subunit
3074	 65.35	+1	3253909..3255504	+	531	150398302	thiP	Smed_3108	-	thiamine transporter membrane protein
3075	 64.41	0	3255501..3256208	+	235	150398303	-	Smed_3109	-	ABC transporter ATP-binding protein
3076	 63.89	0	3256627..3258138	+	503	150398304	-	Smed_3110	-	peptidase M48 Ste24p
3077	 63.78	0	3258437..3259303	-	288	150398305	rpoH2	Smed_3111	-	RNA polymerase factor sigma-32
3078	 58.60	-1	3259740..3260309	-	189	150398306	-	Smed_3112	-	CarD family transcriptional regulator
3079	 56.34	-1	3260717..3261055	-	112	150398307	-	Smed_3113	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
3080	 66.91	+1	3261454..3261867	-	137	150398308	-	Smed_3114	-	RNA-binding S4 domain-containing protein
3081	 64.82	+1	3261877..3264957	-	1026	150398309	-	Smed_3115	-	helicase domain-containing protein
3082	 60.33	0	3265713..3266438	-	241	150398310	-	Smed_3116	-	acetoacetyl-CoA reductase
3083	 65.82	+1	3266553..3267734	-	393	150398311	-	Smed_3117	-	acetyl-CoA acetyltransferase
3084	 54.75	-2	3267957..3268535	+	192	150398312	-	Smed_3118	-	polyhydroxyalkonate synthesis repressor, PhaR
3085	 59.68	0	3268617..3268802	-	61	150398313	rpmF	Smed_3119	-	50S ribosomal protein L32
3086	 63.27	0	3268940..3269587	-	215	150398314	-	Smed_3120	-	glutathione S-transferase domain-containing protein
3087	 64.64	+1	3269666..3270454	-	262	150398315	mtgA	Smed_3121	-	monofunctional biosynthetic peptidoglycan transglycosylase
3088	 65.57	+1	3270606..3271520	+	304	150398316	-	Smed_3122	-	polyprenyl synthetase
3089	 62.12	0	3271524..3272579	+	351	150398317	-	Smed_3123	-	histidinol-phosphate aminotransferase
3090	 60.84	0	3272642..3273430	-	262	150398318	-	Smed_3124	-	short chain dehydrogenase
3091	 63.78	0	3273447..3274934	-	495	150398319	-	Smed_3125	-	ABC transporter related
3092	 62.17	0	3274961..3275893	-	310	150398320	-	Smed_3126	-	monosaccharide-transporting ATPase
3093	 63.08	0	3276019..3276993	-	324	150398321	-	Smed_3127	-	monosaccharide-transporting ATPase
3094	 59.46	0	3277164..3278009	+	281	150398322	-	Smed_3128	-	transketolase domain-containing protein
3095	 65.63	+1	3278009..3278977	+	322	150398323	-	Smed_3129	-	transketolase domain-containing protein
3096	 65.58	+1	3279052..3280521	+	489	150398324	-	Smed_3130	-	carbohydrate kinase FGGY
3097	 62.67	0	3280545..3281495	+	316	150398325	-	Smed_3131	-	DeoR family transcriptional regulator
3098	 62.34	0	3281541..3282326	+	261	150398326	-	Smed_3132	-	short-chain dehydrogenase/reductase SDR
3099	 63.64	0	3282410..3283663	-	417	150398327	ispG	Smed_3133	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
3100	 62.22	0	3283841..3285031	-	396	150398328	-	Smed_3134	-	major facilitator transporter
3101	 64.54	+1	3285139..3285936	-	265	150398329	-	Smed_3135	-	DeoR family transcriptional regulator
3102	 60.72	0	3286188..3286961	+	257	150398330	-	Smed_3136	-	extracellular solute-binding protein
3103	 63.58	0	3287104..3287784	+	226	150398331	-	Smed_3137	-	polar amino acid ABC transporter, inner membrane subunit
3104	 66.54	+1	3287781..3288542	+	253	150398332	-	Smed_3138	-	ABC transporter related
3105	 63.23	0	3288619..3292173	-	1184	150398333	-	Smed_3139	-	pyruvate carboxylase
3106	 59.11	0	3292227..3292967	-	246	150398334	-	Smed_3140	-	regulatory protein LuxR
3107	 58.64	-1	3293135..3293296	-	53	150398335	-	Smed_3141	-	hypothetical protein
3108	 62.80	0	3293350..3295107	+	585	150398336	-	Smed_3142	-	cyclic beta-1,2-glucan ABC transporter
3109	 57.16	-1	3295999..3296661	+	220	150398337	-	Smed_3145	-	GntR family transcriptional regulator
3110	 60.48	0	3296658..3298127	+	489	150398338	-	Smed_3146	-	sulfatase
3111	 58.55	-1	3298164..3299198	+	344	150398339	-	Smed_3147	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
3112	 58.30	-1	3299209..3300009	+	266	150398340	-	Smed_3148	-	ABC transporter related
3113	 57.49	-1	3300006..3300332	+	108	150398341	-	Smed_3149	-	hypothetical protein
3114	 59.25	0	3300329..3301150	+	273	150398342	-	Smed_3150	-	binding-protein-dependent transport systems inner membrane component
3115	 58.71	-1	3301147..3301938	+	263	150398343	-	Smed_3151	-	binding-protein-dependent transport systems inner membrane component
3116	 62.78	0	3301935..3302834	+	299	150398344	-	Smed_3152	-	pyridoxal 4-dehydrogenase
3117	 56.74	-1	3302831..3303676	+	281	150398345	-	Smed_3153	-	amidohydrolase 2
3118	 59.59	0	3304167..3305324	-	385	150398346	-	Smed_3154	-	hypothetical protein
3119	 63.67	0	3305503..3314115	-	2870	150398347	-	Smed_3155	-	glycosyltransferase 36
3120	 63.31	0	3314459..3315352	-	297	150398348	-	Smed_3156	-	LysR family transcriptional regulator
3121	 63.50	0	3315466..3316884	+	472	150398349	-	Smed_3157	-	hypothetical protein
3122	 64.14	0	3316895..3318316	+	473	150398350	-	Smed_3158	-	FAD linked oxidase domain-containing protein
3123	 64.51	+1	3318346..3319878	+	510	150398351	-	Smed_3159	-	aldehyde dehydrogenase
3124	 63.18	0	3319895..3321127	+	410	150398352	-	Smed_3160	-	aminotransferase class I and II
3125	 63.39	0	3321247..3321795	-	182	150398353	-	Smed_3161	-	XRE family transcriptional regulator
3126	 65.47	+1	3321941..3323278	+	445	150398354	-	Smed_3162	-	beta alanine--pyruvate transaminase
3127	 68.16	+2	3323368..3324639	-	423	150398355	-	Smed_3163	-	hydroxypyruvate reductase
3128	 63.89	0	3324751..3326406	-	551	150398356	-	Smed_3164	-	choline dehydrogenase
3129	 65.50	+1	3326566..3327339	-	257	150398357	-	Smed_3165	-	3-ketoacyl-(acyl-carrier-protein) reductase
3130	 62.98	0	3327336..3328856	-	506	150398358	-	Smed_3166	-	putative dehydrogenase transmembrane protein
3131	 62.26	0	3328853..3329965	-	370	150398359	-	Smed_3167	-	ABC transporter related
3132	 59.75	0	3329970..3330851	-	293	150398360	-	Smed_3168	-	binding-protein-dependent transport systems inner membrane component
3133	 58.36	-1	3330851..3331729	-	292	150398361	-	Smed_3169	-	binding-protein-dependent transport systems inner membrane component
3134	 61.61	0	3331901..3333145	-	414	150398362	-	Smed_3170	-	extracellular solute-binding protein
3135	 64.15	0	3333287..3334795	-	502	150398363	-	Smed_3171	-	aldehyde dehydrogenase
3136	 65.13	+1	3334795..3335574	-	259	150398364	-	Smed_3172	-	enoyl-CoA hydratase/isomerase
3137	 62.35	0	3335567..3337186	-	539	150398365	-	Smed_3173	-	coenzyme A transferase
3138	 64.57	+1	3337191..3338192	-	333	150398366	-	Smed_3174	-	oxidoreductase domain-containing protein
3139	 65.04	+1	3338189..3339232	-	347	150398367	-	Smed_3175	-	periplasmic binding protein/LacI transcriptional regulator
3140	 63.42	0	3339534..3340703	+	389	150398368	-	Smed_3176	-	hypothetical protein
3141	 62.06	0	3340859..3342922	-	687	150398369	-	Smed_3177	-	peptidyl-dipeptidase Dcp
3142	 63.88	0	3343230..3344342	+	370	150398370	-	Smed_3178	-	3-isopropylmalate dehydrogenase
3143	 63.20	0	3344467..3345159	+	230	150398371	-	Smed_3179	-	phosphoesterase PA-phosphatase related
3144	 61.53	0	3345216..3347105	-	629	150398372	-	Smed_3180	-	major facilitator transporter
3145	 59.65	0	3347400..3347570	+	56	150398373	-	Smed_3181	-	hypothetical protein
3146	 58.84	-1	3347683..3348717	+	344	150398374	-	Smed_3182	-	aspartate-semialdehyde dehydrogenase
3147	 64.60	+1	3348875..3349696	+	273	150398375	-	Smed_3183	-	lytic murein transglycosylase
61.69	MEAN

2.82	STD DEV
