IslandPath Analysis: Sinorhizobium medicae WSM419

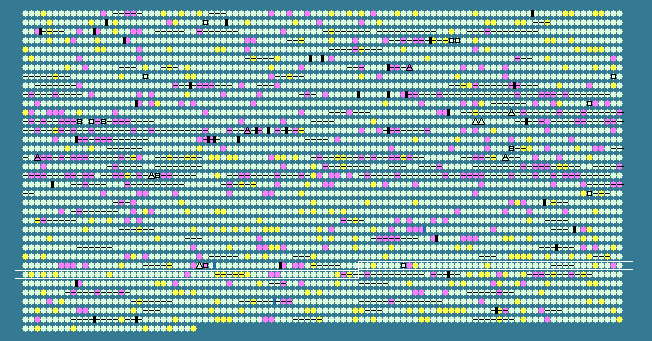

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2857	 63.74	0	3023390..3025303	+	637	150398085	-	Smed_2887	-	surface antigen (D15)
2858	 64.92	+1	3025440..3031049	+	1869	150398086	-	Smed_2888	-	hypothetical protein
2859	 65.42	+1	3031174..3031653	-	159	150398087	-	Smed_2889	-	glyoxalase/bleomycin resistance protein/dioxygenase
2860	 62.07	0	3031856..3032290	-	144	150398088	-	Smed_2890	-	AsnC family transcriptional regulator
2861	 64.07	0	3032444..3033367	+	307	150398089	-	Smed_2891	-	arginase
2862	 60.00	0	3033587..3034066	+	159	150398090	-	Smed_2892	-	putative CheW protein
2863	 62.54	0	3034164..3035933	+	589	150398091	-	Smed_2893	-	methyl-accepting chemotaxis sensory transducer
2864	 60.02	0	3036010..3036942	-	310	150398092	-	Smed_2894	-	transposase IS116/IS110/IS902 family protein
2865	 57.58	-1	3037230..3037460	-	76	150398093	-	Smed_2895	-	putative NAD-dependent formate dehydrogenase delta subunit protein
2866	 66.34	+1	3037478..3038386	-	302	150398094	-	Smed_2896	-	formate dehydrogenase accessory protein
2867	 63.54	0	3038395..3041274	-	959	150398095	-	Smed_2897	-	formate dehydrogenase, alpha subunit
2868	 63.84	0	3041357..3042913	-	518	150398096	-	Smed_2898	-	NADH dehydrogenase (quinone)
2869	 64.79	+1	3042910..3043389	-	159	150398097	-	Smed_2899	-	formate dehydrogenase subunit gamma
2870	 59.31	0	3043566..3044462	-	298	150398098	-	Smed_2900	-	LysR family transcriptional regulator
2871	 63.81	0	3044552..3045322	-	256	150398099	-	Smed_2901	-	short-chain dehydrogenase/reductase SDR
2872	 58.30	-1	3045500..3046264	+	254	150398100	-	Smed_2902	-	DeoR family transcriptional regulator
2873	 62.30	0	3046392..3047903	+	503	150398101	glpD	Smed_2903	-	glycerol-3-phosphate dehydrogenase
2874	 62.75	0	3047945..3049015	+	356	150398102	-	Smed_2904	-	ABC transporter related
2875	 61.62	0	3049038..3050108	+	356	150398103	-	Smed_2905	-	ABC transporter related
2876	 58.82	-1	3050110..3050976	+	288	150398104	-	Smed_2906	-	binding-protein-dependent transport systems inner membrane component
2877	 60.00	0	3050997..3051821	+	274	150398105	-	Smed_2907	-	binding-protein-dependent transport systems inner membrane component
2878	 65.48	+1	3051835..3052254	+	139	150398106	-	Smed_2908	-	hypothetical protein
2879	 60.70	0	3052335..3054059	+	574	150398107	-	Smed_2909	-	extracellular solute-binding protein
2880	 62.76	0	3055977..3057461	+	494	150398108	-	Smed_2911	-	uracil-xanthine permease
2881	 62.91	0	3057589..3058494	+	301	150398109	-	Smed_2912	-	hypothetical protein
2882	 61.77	0	3058500..3058928	-	142	150398110	-	Smed_2913	-	ferric uptake regulator family protein
2883	 59.93	0	3059050..3059955	+	301	150398111	-	Smed_2914	-	periplasmic solute binding protein
2884	 63.25	0	3059952..3060887	+	311	150398112	-	Smed_2915	-	ABC transporter related
2885	 60.84	0	3060884..3061741	+	285	150398113	-	Smed_2916	-	ABC-3 protein
2886	 62.00	0	3061738..3062595	+	285	150398114	-	Smed_2917	-	ABC-3 protein
2887	 63.24	0	3062723..3063568	+	281	150398115	-	Smed_2918	-	hypothetical protein
2888	 63.01	0	3063580..3064044	-	154	150398116	-	Smed_2919	-	AsnC family transcriptional regulator
2889	 61.41	0	3064138..3065241	+	367	150398117	-	Smed_2920	-	saccharopine dehydrogenase
2890	 63.46	0	3065506..3065910	-	134	150398118	atpC	Smed_2921	-	F0F1 ATP synthase subunit epsilon
2891	 62.75	0	3066033..3067562	-	509	150398119	-	Smed_2922	-	F0F1 ATP synthase subunit beta
2892	 60.84	0	3067587..3068462	-	291	150398120	-	Smed_2923	-	F0F1 ATP synthase subunit gamma
2893	 62.09	0	3068490..3070019	-	509	150398121	-	Smed_2924	-	F0F1 ATP synthase subunit alpha
2894	 60.14	0	3070019..3070585	-	188	150398122	-	Smed_2925	-	F0F1 ATP synthase subunit delta
2895	 64.60	+1	3070823..3071209	-	128	150398123	-	Smed_2926	-	hypothetical protein
2896	 67.44	+2	3071332..3073536	-	734	150398124	-	Smed_2927	-	primosome assembly protein PriA
2897	 62.39	0	3073712..3074365	+	217	150398125	-	Smed_2928	-	putative translaldolase
2898	 59.17	0	3074440..3075906	-	488	150398126	-	Smed_2929	-	hypothetical protein
2899	 56.18	-1	3076102..3077169	+	355	150398127	-	Smed_2930	-	hypothetical protein
2900	 64.32	0	3077230..3078378	-	382	150398128	-	Smed_2931	-	hypothetical protein
2901	 61.53	0	3078445..3079359	-	304	150398129	-	Smed_2932	-	phospholipid/glycerol acyltransferase
2902	 65.29	+1	3079559..3080500	+	313	150398130	xerC	Smed_2933	-	site-specific tyrosine recombinase XerC
2903	 62.45	0	3080586..3081677	+	363	150398131	-	Smed_2934	-	GumN family protein
2904	 65.86	+1	3081661..3082155	-	164	150398132	-	Smed_2935	-	hypothetical protein
2905	 63.04	0	3082285..3083691	-	468	150398133	-	Smed_2936	-	dihydrolipoamide dehydrogenase
2906	 66.93	+1	3083742..3084494	-	250	150398134	-	Smed_2937	-	short-chain dehydrogenase/reductase SDR
2907	 64.67	+1	3084491..3084991	-	166	150398135	-	Smed_2938	-	putative signal peptide protein
2908	 59.53	0	3084991..3085635	-	214	150398136	-	Smed_2939	-	lysine exporter protein LysE/YggA
2909	 64.26	0	3085800..3087047	-	415	150398137	-	Smed_2940	-	dihydrolipoamide acetyltransferase
2910	 62.10	0	3087097..3090093	-	998	150398138	kgd	Smed_2941	-	alpha-ketoglutarate decarboxylase
2911	 63.90	0	3090374..3091276	-	300	150398139	-	Smed_2942	-	succinyl-CoA synthetase subunit alpha
2912	 61.15	0	3091283..3092479	-	398	150398140	sucC	Smed_2943	-	succinyl-CoA synthetase subunit beta
2913	 62.62	0	3092513..3093475	-	320	150398141	-	Smed_2944	-	malate dehydrogenase
2914	 63.90	0	3093659..3094888	-	409	150398142	-	Smed_2945	-	AFG1 family ATPase
2915	 68.89	+2	3094931..3095470	-	179	150398143	-	Smed_2946	-	outer membrane lipoprotein omp19
2916	 63.77	0	3095639..3096709	-	356	150398144	-	Smed_2947	-	ABC transporter related
2917	 58.89	0	3096750..3097598	-	282	150398145	-	Smed_2948	-	binding-protein-dependent transport systems inner membrane component
2918	 61.72	0	3097591..3098499	-	302	150398146	-	Smed_2949	-	binding-protein-dependent transport systems inner membrane component
2919	 61.85	0	3098606..3099913	-	435	150398147	-	Smed_2950	-	extracellular solute-binding protein
2920	 64.76	+1	3100121..3101326	+	401	150398148	-	Smed_2951	-	ROK family protein
2921	 63.94	0	3101367..3102467	+	366	150398149	-	Smed_2952	-	oxidoreductase domain-containing protein
2922	 60.28	0	3102488..3103129	+	213	150398150	-	Smed_2953	-	hypothetical protein
2923	 59.93	0	3103290..3103556	-	88	150398151	-	Smed_2954	-	hypothetical protein
2924	 64.66	+1	3103659..3104255	-	198	150398152	-	Smed_2955	-	peptide methionine sulfoxide reductase
2925	 60.13	0	3104405..3105184	-	259	150398153	sdhB	Smed_2956	-	succinate dehydrogenase iron-sulfur subunit
2926	 64.17	0	3105203..3107044	-	613	150398154	sdhA	Smed_2957	-	succinate dehydrogenase flavoprotein subunit
2927	 58.53	-1	3107052..3107432	-	126	150398155	-	Smed_2958	-	succinate dehydrogenase hydrophobic membrane anchor
2928	 57.76	-1	3107444..3107836	-	130	150398156	-	Smed_2959	-	succinate dehydrogenase cytochrome b556 subunit
2929	 62.96	0	3108137..3108757	+	206	150398157	-	Smed_2960	-	hypothetical protein
2930	 64.99	+1	3108787..3109443	-	218	150398158	-	Smed_2961	-	hypothetical protein
2931	 60.42	0	3109457..3109888	-	143	150398159	-	Smed_2962	-	hypothetical protein
2932	 61.56	0	3109895..3110188	-	97	150398160	-	Smed_2963	-	YciI-like protein
2933	 66.47	+1	3110205..3111200	-	331	150398161	-	Smed_2964	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
2934	 66.94	+1	3111205..3112287	-	360	150398162	-	Smed_2965	-	O-sialoglycoprotein endopeptidase
2935	 64.95	+1	3112412..3113404	+	330	150398163	hemC	Smed_2966	-	porphobilinogen deaminase
2936	 66.95	+1	3113520..3114236	+	238	150398164	-	Smed_2967	-	uroporphyrinogen-III synthase
2937	 66.45	+1	3114373..3115761	+	462	150398165	-	Smed_2968	-	hypothetical protein
2938	 65.34	+1	3115874..3117529	+	551	150398166	-	Smed_2969	-	HemY domain-containing protein
2939	 59.17	0	3117555..3118034	+	159	150398167	-	Smed_2970	-	hypothetical protein
2940	 61.85	0	3118037..3118783	+	248	150398168	-	Smed_2971	-	glutamine amidotransferase
2941	 63.62	0	3118942..3120189	-	415	150398169	-	Smed_2972	-	major facilitator transporter
2942	 55.25	-2	3120393..3120716	+	107	150398170	-	Smed_2973	-	protein of unknown function YGGT
2943	 56.33	-1	3120881..3121480	-	199	150398171	-	Smed_2974	-	inorganic pyrophosphatase
2944	 61.93	0	3121893..3122399	-	168	150398172	-	Smed_2975	-	GCN5-related N-acetyltransferase
2945	 61.69	0	3122613..3124439	-	608	150398173	-	Smed_2976	-	GTP-binding protein TypA
2946	 63.98	0	3124575..3126137	-	520	150398174	-	Smed_2977	-	alkaline phosphatase
2947	 60.58	0	3126291..3126980	-	229	150398175	-	Smed_2978	-	GntR domain-containing protein
2948	 60.28	0	3127146..3127943	+	265	150398176	-	Smed_2979	-	extracellular solute-binding protein
2949	 59.52	0	3128048..3128719	+	223	150398177	-	Smed_2980	-	polar amino acid ABC transporter, inner membrane subunit
2950	 59.89	0	3128719..3129456	+	245	150398178	-	Smed_2981	-	ABC transporter related
2951	 60.49	0	3129485..3130762	+	425	150398179	-	Smed_2982	-	cysteine desulfurase family protein
2952	 61.58	0	3130780..3132213	+	477	150398180	-	Smed_2983	-	dihydropyrimidinase
2953	 67.97	+2	3132426..3133733	+	435	150398181	-	Smed_2984	-	amidase
2954	 58.02	-1	3133738..3133899	-	53	150398182	-	Smed_2985	-	hypothetical protein
2955	 67.06	+1	3134179..3134685	+	168	150398183	-	Smed_2986	-	hypothetical protein
2956	 59.97	0	3134784..3135440	-	218	150398184	-	Smed_2987	-	hypothetical protein
61.69	MEAN

2.82	STD DEV
