IslandPath Analysis: Sinorhizobium medicae WSM419

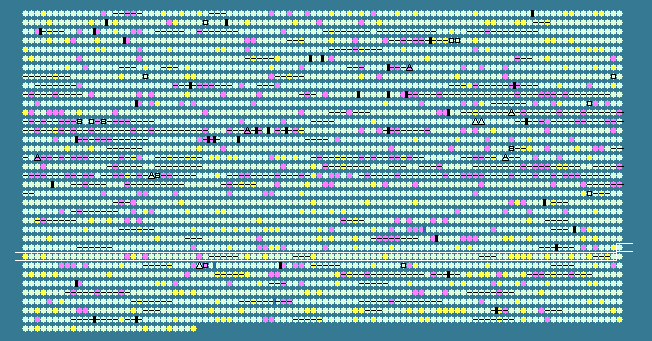

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2700	 63.24	0	2842057..2842581	-	174	150397928	-	Smed_2730	-	ECF subfamily RNA polymerase sigma-24 factor
2701	 65.32	+1	2842761..2843207	-	148	150397929	-	Smed_2731	-	MarR family transcriptional regulator
2702	 58.65	-1	2843353..2843826	+	157	150397930	-	Smed_2732	-	hypothetical protein
2703	 61.55	0	2844055..2844816	+	253	150397931	-	Smed_2733	-	glyoxalase/bleomycin resistance protein/dioxygenase
2704	 66.34	+1	2844864..2845775	-	303	150397932	-	Smed_2734	-	LysR family transcriptional regulator
2705	 63.29	0	2845880..2846914	+	344	150397933	-	Smed_2735	-	aldo/keto reductase
2706	 63.55	0	2847135..2849543	+	802	150397934	-	Smed_2736	-	hypothetical protein
2707	 63.37	0	2849558..2850436	+	292	150397935	-	Smed_2737	-	transglutaminase domain-containing protein
2708	 62.14	0	2850614..2851873	+	419	150397936	-	Smed_2738	-	von Willebrand factor type A
2709	 61.23	0	2852081..2854546	+	821	150397937	-	Smed_2739	-	glycogen/starch/alpha-glucan phosphorylase
2710	 62.10	0	2854543..2856753	+	736	150397938	-	Smed_2740	-	glycogen branching enzyme
2711	 61.27	0	2856865..2858124	+	419	150397939	glgC	Smed_2741	-	glucose-1-phosphate adenylyltransferase
2712	 62.65	0	2858131..2859573	+	480	150397940	glgA	Smed_2742	-	glycogen synthase
2713	 62.12	0	2859579..2861207	+	542	150397941	-	Smed_2743	-	phosphoglucomutase
2714	 63.82	0	2861322..2863286	+	654	150397942	-	Smed_2744	-	glycogen debranching enzyme GlgX
2715	 58.49	-1	2863361..2863849	+	162	150397943	-	Smed_2745	-	dehydratase
2716	 64.89	+1	2863842..2864909	+	355	150397944	-	Smed_2746	-	hypothetical protein
2717	 64.69	+1	2864933..2866144	-	403	150397945	-	Smed_2747	-	alcohol dehydrogenase
2718	 53.27	-2	2866281..2866952	+	223	150397946	-	Smed_2748	-	hypothetical protein
2719	 68.29	+2	2867095..2867649	-	184	150397947	-	Smed_2749	-	sarcosine oxidase gamma subunit family protein
2720	 63.89	0	2867642..2870635	-	997	150397948	-	Smed_2750	-	sarcosine oxidase alpha subunit family protein
2721	 57.02	-1	2870632..2870973	-	113	150397949	-	Smed_2751	-	sarcosine oxidase delta subunit family protein
2722	 62.28	0	2871093..2872346	-	417	150397950	-	Smed_2752	-	sarcosine oxidase beta subunit family protein
2723	 60.65	0	2872653..2872868	+	71	150397951	rpsU	Smed_2753	-	30S ribosomal protein S21
2724	 62.73	0	2873062..2873949	+	295	150397952	-	Smed_2754	-	TPR repeat-containing protein
2725	 62.66	0	2874085..2874558	+	157	150397953	-	Smed_2755	-	hypothetical protein
2726	 60.03	0	2874835..2876055	+	406	150397954	-	Smed_2756	-	putative adenylate/guanylate cyclase
2727	 61.75	0	2876187..2877590	-	467	150397955	-	Smed_2757	-	NAD(P)(+) transhydrogenase (AB-specific)
2728	 62.53	0	2877600..2878010	-	136	150397956	-	Smed_2758	-	putative NAD(P) transhydrogenase subunit alpha PART 2 transmembrane protein
2729	 64.23	0	2878011..2879159	-	382	150397957	-	Smed_2759	-	NAD(P) transhydrogenase subunit alpha
2730	 52.00	-2	2879471..2879695	-	74	150397958	-	Smed_2760	-	aa3 type cytochrome c oxidase subunit IV
2731	 60.12	0	2879906..2882272	-	788	150397959	-	Smed_2761	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
2732	 64.95	+1	2882653..2883408	+	251	150397960	-	Smed_2762	-	peptidase C26
2733	 63.15	0	2883405..2884370	-	321	150397961	-	Smed_2763	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2734	 62.66	0	2884444..2885466	-	340	150397962	-	Smed_2764	-	alanine racemase
2735	 64.29	0	2885558..2886061	-	167	150397963	-	Smed_2765	-	MarR family transcriptional regulator
2736	 63.76	0	2886175..2886966	+	263	150397964	-	Smed_2766	-	creatininase
2737	 60.36	0	2887097..2888206	+	369	150397965	-	Smed_2767	-	cobalamin synthesis protein P47K
2738	 65.96	+1	2888271..2889260	+	329	150397966	-	Smed_2768	-	WD-40 repeat-containing protein
2739	 59.96	0	2889341..2889787	-	148	150397967	-	Smed_2769	-	hypothetical protein
2740	 62.68	0	2889978..2890679	+	233	150397968	-	Smed_2770	-	lysine exporter protein LysE/YggA
2741	 67.85	+2	2890698..2891288	-	196	150397969	-	Smed_2771	-	GCN5-related N-acetyltransferase
2742	 62.79	0	2891376..2892509	-	377	150397970	-	Smed_2772	-	Orn/DAP/Arg decarboxylase 2
2743	 60.00	0	2893045..2893959	+	304	150397971	-	Smed_2773	-	LysR family transcriptional regulator
2744	 58.60	-1	2894081..2894725	+	214	150397972	-	Smed_2774	-	hypothetical protein
2745	 64.10	0	2894719..2895732	+	337	150397973	-	Smed_2775	-	high-affinity nickel-transporter
2746	 58.69	-1	2895844..2896056	-	70	150397974	-	Smed_2776	-	hypothetical protein
2747	 60.09	0	2896053..2896751	-	232	150397975	-	Smed_2777	-	GCN5-related N-acetyltransferase
2748	 65.11	+1	2896867..2897571	-	234	150397976	-	Smed_2778	-	hypothetical protein
2749	 66.51	+1	2897734..2898372	-	212	150397977	-	Smed_2779	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2750	 62.87	0	2898599..2899072	+	157	150397978	-	Smed_2780	-	adenylate cyclase
2751	 62.90	0	2899069..2899971	+	300	150397979	-	Smed_2781	-	CHAD domain-containing protein
2752	 61.08	0	2900053..2901000	+	315	150397980	-	Smed_2782	-	rhodanese domain-containing protein
2753	 60.10	0	2901116..2901892	-	258	150397981	-	Smed_2783	-	YaeC family lipoprotein
2754	 64.26	0	2901931..2902596	-	221	150397982	-	Smed_2784	-	binding-protein-dependent transport systems inner membrane component
2755	 64.35	0	2902586..2903665	-	359	150397983	-	Smed_2785	-	ABC transporter related
2756	 60.98	0	2903962..2905368	-	468	150397984	-	Smed_2786	-	Beta-glucosidase
2757	 62.70	0	2905673..2906857	-	394	150397985	-	Smed_2787	-	oxidoreductase domain-containing protein
2758	 61.73	0	2907028..2908080	-	350	150397986	-	Smed_2788	-	xylose isomerase domain-containing protein
2759	 60.34	0	2908274..2909584	-	436	150397987	-	Smed_2789	-	xylose isomerase
2760	 64.43	0	2909717..2910073	+	118	150397988	-	Smed_2790	-	hypothetical protein
2761	 66.53	+1	2910112..2911566	-	484	150397989	-	Smed_2791	-	xylulokinase
2762	 65.03	+1	2911576..2912613	-	345	150397990	-	Smed_2792	-	regulatory protein LacI
2763	 61.00	0	2913150..2914526	+	458	150397991	-	Smed_2793	-	peptidase S41
2764	 61.89	0	2914672..2916261	-	529	150397992	-	Smed_2794	-	EmrB/QacA family drug resistance transporter
2765	 63.85	0	2916292..2917500	-	402	150397993	-	Smed_2795	-	secretion protein HlyD family protein
2766	 60.20	0	2917751..2918446	+	231	150397994	-	Smed_2796	-	TetR family transcriptional regulator
2767	 60.60	0	2918560..2919399	+	279	150397995	-	Smed_2797	-	transcription activator effector binding
2768	 58.60	-1	2919565..2920320	+	251	150397996	-	Smed_2798	-	integral membrane protein TerC
2769	 60.77	0	2920720..2922177	+	485	150397997	gltX	Smed_2799	-	glutamyl-tRNA synthetase
2770	 60.25	0	2922188..2923684	+	498	150397998	-	Smed_2800	-	lysyl-tRNA synthetase
2771	 64.56	+1	2923767..2924384	-	205	150397999	-	Smed_2801	-	hypothetical protein
2772	 63.42	0	2924595..2925548	+	317	150398000	-	Smed_2802	-	inosine/uridine-preferring nucleoside hydrolase
2773	 63.91	0	2925710..2926726	+	338	150398001	-	Smed_2803	-	putative mRNA 3-end processing factor
2774	 63.32	0	2926730..2928343	+	537	150398002	-	Smed_2804	-	ATP-dependent DNA ligase
2775	 62.15	0	2928501..2931137	+	878	150398003	-	Smed_2805	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and Chase sensor(s)
2776	 62.09	0	2931286..2934279	+	997	150398004	-	Smed_2806	-	putative monovalent cation/H+ antiporter subunit A
2777	 61.49	0	2934281..2934628	+	115	150398005	-	Smed_2807	-	putative monovalent cation/H+ antiporter subunit C
2778	 62.65	0	2934621..2936240	+	539	150398006	-	Smed_2808	-	putative monovalent cation/H+ antiporter subunit D
2779	 61.11	0	2936243..2936728	+	161	150398007	-	Smed_2809	-	cation antiporter
2780	 59.22	0	2936725..2937006	+	93	150398008	-	Smed_2810	-	putative monovalent cation/H+ antiporter subunit F
2781	 63.98	0	2937003..2937374	+	123	150398009	-	Smed_2811	-	monovalent cation/proton antiporter, MnhG/PhaG subunit
2782	 67.17	+1	2937405..2938205	-	266	150398010	-	Smed_2812	-	precorrin-4 C11-methyltransferase
2783	 66.99	+1	2938202..2939443	-	413	150398011	-	Smed_2813	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
2784	 67.67	+2	2939412..2940212	+	266	150398012	-	Smed_2814	-	cobalt-precorrin-6x reductase
2785	 66.67	+1	2940176..2940940	-	254	150398013	-	Smed_2815	-	precorrin-3B C17-methyltransferase
2786	 65.12	+1	2940937..2941710	-	257	150398014	-	Smed_2816	-	precorrin-2 C(20)-methyltransferase
2787	 65.09	+1	2941707..2942339	-	210	150398015	cobH	Smed_2817	-	precorrin-8X methylmutase
2788	 66.74	+1	2942342..2943673	-	443	150398016	-	Smed_2818	-	precorrin-3B synthase
2789	 61.35	0	2943849..2944619	-	256	150398017	-	Smed_2819	-	precorrin 6A synthase
2790	 63.22	0	2944719..2945444	-	241	150398018	-	Smed_2820	-	uracil-DNA glycosylase
2791	 62.85	0	2945643..2946428	+	261	150398019	-	Smed_2821	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
2792	 65.95	+1	2946480..2947181	+	233	150398020	modB	Smed_2822	-	molybdate ABC transporter permease protein
2793	 64.80	+1	2947178..2948251	+	357	150398021	-	Smed_2823	-	molybdate ABC transporter, ATPase subunit
2794	 64.92	+1	2948284..2948742	-	152	150398022	-	Smed_2824	-	ModE family transcriptional regulator
2795	 66.82	+1	2948831..2950162	+	443	150398023	-	Smed_2825	-	FAD dependent oxidoreductase
2796	 63.75	0	2950501..2951733	+	410	150398024	-	Smed_2826	-	3-methyl-2-oxobutanoate dehydrogenase (2-methylpropanoyl-transferring)
2797	 64.79	+1	2951735..2952748	+	337	150398025	-	Smed_2827	-	transketolase central region
2798	 66.67	+1	2952752..2954032	+	426	150398026	-	Smed_2828	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2799	 65.09	+1	2954038..2955432	+	464	150398027	-	Smed_2829	-	dihydrolipoamide dehydrogenase
61.69	MEAN

2.82	STD DEV
