IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

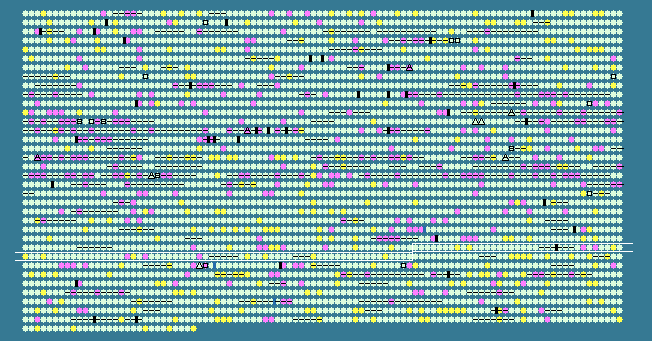

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2666	 61.99	0	2802494..2803990	-	498	150397894	-	Smed_2696	-	extracellular solute-binding protein
2667	 61.56	0	2804060..2804941	-	293	150397895	-	Smed_2697	-	binding-protein-dependent transport systems inner membrane component
2668	 61.15	0	2804943..2805830	-	295	150397896	-	Smed_2698	-	binding-protein-dependent transport systems inner membrane component
2669	 64.26	0	2805966..2807501	-	511	150397897	glpD	Smed_2699	-	glycerol-3-phosphate dehydrogenase
2670	 64.33	0	2807498..2808310	-	270	150397898	-	Smed_2700	-	HAD family hydrolase
2671	 64.09	0	2808315..2809670	-	451	150397899	-	Smed_2701	-	3-dehydroquinate synthase
2672	 62.28	0	2809744..2810769	+	341	150397900	-	Smed_2702	-	DeoR family transcriptional regulator
2673	 65.39	+1	2810824..2812389	+	521	150397901	-	Smed_2703	-	carbohydrate kinase FGGY
2674	 61.26	0	2812499..2813497	+	332	150397902	-	Smed_2704	-	band 7 protein
2675	 67.54	+2	2813494..2813949	+	151	150397903	-	Smed_2705	-	hypothetical protein
2676	 65.03	+1	2814057..2815460	+	467	150397904	-	Smed_2706	-	hypothetical protein
2677	 61.49	0	2815524..2816411	-	295	150397905	-	Smed_2707	-	UTP-glucose-1-phosphate uridylyltransferase
2678	 60.43	0	2816713..2817930	+	405	150397906	-	Smed_2708	-	lytic murein transglycosylase
2679	 62.83	0	2818041..2819291	+	416	150397907	-	Smed_2709	-	hypothetical protein
2680	 63.37	0	2819477..2820934	-	485	150397908	gltD	Smed_2710	-	glutamate synthase subunit beta
2681	 62.90	0	2821036..2825760	-	1574	150397909	-	Smed_2711	-	glutamate synthase (ferredoxin)
2682	 64.37	0	2826338..2827384	+	348	150397910	-	Smed_2712	-	threonine aldolase
2683	 63.95	0	2827417..2828262	-	281	150397911	-	Smed_2713	-	LysR family transcriptional regulator
2684	 62.95	0	2828354..2829349	+	331	150397912	-	Smed_2714	-	bile acid:sodium symporter
2685	 58.23	-1	2829411..2829872	-	153	150397913	-	Smed_2715	-	heat shock protein Hsp20
2686	 64.10	0	2830247..2831260	+	337	150397914	-	Smed_2716	-	alpha/beta hydrolase fold
2687	 62.86	0	2831287..2832153	-	288	150397915	-	Smed_2717	-	histidinol-phosphate phosphatase, putative
2688	 62.24	0	2832368..2833249	-	293	150397916	-	Smed_2718	-	N-formylglutamate amidohydrolase
2689	 58.40	-1	2833438..2833800	+	120	150397917	-	Smed_2719	-	response regulator receiver protein
2690	 60.42	0	2834218..2834457	-	79	150397918	-	Smed_2720	-	HicB family protein
2691	 60.72	0	2835011..2835397	+	128	150397919	-	Smed_2721	-	Sel1 domain-containing protein
2692	 61.82	0	2835699..2835863	+	54	150397920	-	Smed_2722	-	hypothetical protein
2693	 64.17	0	2835974..2837812	+	612	150397921	-	Smed_2723	-	dihydroxy-acid dehydratase
2694	 57.78	-1	2837880..2838284	-	134	150397922	-	Smed_2724	-	glutathione-dependent formaldehyde-activating GFA
2695	 63.25	0	2838386..2838853	+	155	150397923	-	Smed_2725	-	MarR family transcriptional regulator
2696	 58.11	-1	2839003..2839446	-	147	150397924	-	Smed_2726	-	pseudoazurin
2697	 61.99	0	2839490..2839831	-	113	150397925	-	Smed_2727	-	putative cytochrome c protein
2698	 61.38	0	2839910..2841139	-	409	150397926	-	Smed_2728	-	oxidoreductase molybdopterin binding
2699	 65.49	+1	2841299..2842060	-	253	150397927	-	Smed_2729	-	putative transmembrane anti-sigma factor
2700	 63.24	0	2842057..2842581	-	174	150397928	-	Smed_2730	-	ECF subfamily RNA polymerase sigma-24 factor
2701	 65.32	+1	2842761..2843207	-	148	150397929	-	Smed_2731	-	MarR family transcriptional regulator
2702	 58.65	-1	2843353..2843826	+	157	150397930	-	Smed_2732	-	hypothetical protein
2703	 61.55	0	2844055..2844816	+	253	150397931	-	Smed_2733	-	glyoxalase/bleomycin resistance protein/dioxygenase
2704	 66.34	+1	2844864..2845775	-	303	150397932	-	Smed_2734	-	LysR family transcriptional regulator
2705	 63.29	0	2845880..2846914	+	344	150397933	-	Smed_2735	-	aldo/keto reductase
2706	 63.55	0	2847135..2849543	+	802	150397934	-	Smed_2736	-	hypothetical protein
2707	 63.37	0	2849558..2850436	+	292	150397935	-	Smed_2737	-	transglutaminase domain-containing protein
2708	 62.14	0	2850614..2851873	+	419	150397936	-	Smed_2738	-	von Willebrand factor type A
2709	 61.23	0	2852081..2854546	+	821	150397937	-	Smed_2739	-	glycogen/starch/alpha-glucan phosphorylase
2710	 62.10	0	2854543..2856753	+	736	150397938	-	Smed_2740	-	glycogen branching enzyme
2711	 61.27	0	2856865..2858124	+	419	150397939	glgC	Smed_2741	-	glucose-1-phosphate adenylyltransferase
2712	 62.65	0	2858131..2859573	+	480	150397940	glgA	Smed_2742	-	glycogen synthase
2713	 62.12	0	2859579..2861207	+	542	150397941	-	Smed_2743	-	phosphoglucomutase
2714	 63.82	0	2861322..2863286	+	654	150397942	-	Smed_2744	-	glycogen debranching enzyme GlgX
2715	 58.49	-1	2863361..2863849	+	162	150397943	-	Smed_2745	-	dehydratase
2716	 64.89	+1	2863842..2864909	+	355	150397944	-	Smed_2746	-	hypothetical protein
2717	 64.69	+1	2864933..2866144	-	403	150397945	-	Smed_2747	-	alcohol dehydrogenase
2718	 53.27	-2	2866281..2866952	+	223	150397946	-	Smed_2748	-	hypothetical protein
2719	 68.29	+2	2867095..2867649	-	184	150397947	-	Smed_2749	-	sarcosine oxidase gamma subunit family protein
2720	 63.89	0	2867642..2870635	-	997	150397948	-	Smed_2750	-	sarcosine oxidase alpha subunit family protein
2721	 57.02	-1	2870632..2870973	-	113	150397949	-	Smed_2751	-	sarcosine oxidase delta subunit family protein
2722	 62.28	0	2871093..2872346	-	417	150397950	-	Smed_2752	-	sarcosine oxidase beta subunit family protein
2723	 60.65	0	2872653..2872868	+	71	150397951	rpsU	Smed_2753	-	30S ribosomal protein S21
2724	 62.73	0	2873062..2873949	+	295	150397952	-	Smed_2754	-	TPR repeat-containing protein
2725	 62.66	0	2874085..2874558	+	157	150397953	-	Smed_2755	-	hypothetical protein
2726	 60.03	0	2874835..2876055	+	406	150397954	-	Smed_2756	-	putative adenylate/guanylate cyclase
2727	 61.75	0	2876187..2877590	-	467	150397955	-	Smed_2757	-	NAD(P)(+) transhydrogenase (AB-specific)
2728	 62.53	0	2877600..2878010	-	136	150397956	-	Smed_2758	-	putative NAD(P) transhydrogenase subunit alpha PART 2 transmembrane protein
2729	 64.23	0	2878011..2879159	-	382	150397957	-	Smed_2759	-	NAD(P) transhydrogenase subunit alpha
2730	 52.00	-2	2879471..2879695	-	74	150397958	-	Smed_2760	-	aa3 type cytochrome c oxidase subunit IV
2731	 60.12	0	2879906..2882272	-	788	150397959	-	Smed_2761	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
2732	 64.95	+1	2882653..2883408	+	251	150397960	-	Smed_2762	-	peptidase C26
2733	 63.15	0	2883405..2884370	-	321	150397961	-	Smed_2763	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2734	 62.66	0	2884444..2885466	-	340	150397962	-	Smed_2764	-	alanine racemase
2735	 64.29	0	2885558..2886061	-	167	150397963	-	Smed_2765	-	MarR family transcriptional regulator
2736	 63.76	0	2886175..2886966	+	263	150397964	-	Smed_2766	-	creatininase
2737	 60.36	0	2887097..2888206	+	369	150397965	-	Smed_2767	-	cobalamin synthesis protein P47K
2738	 65.96	+1	2888271..2889260	+	329	150397966	-	Smed_2768	-	WD-40 repeat-containing protein
2739	 59.96	0	2889341..2889787	-	148	150397967	-	Smed_2769	-	hypothetical protein
2740	 62.68	0	2889978..2890679	+	233	150397968	-	Smed_2770	-	lysine exporter protein LysE/YggA
2741	 67.85	+2	2890698..2891288	-	196	150397969	-	Smed_2771	-	GCN5-related N-acetyltransferase
2742	 62.79	0	2891376..2892509	-	377	150397970	-	Smed_2772	-	Orn/DAP/Arg decarboxylase 2
2743	 60.00	0	2893045..2893959	+	304	150397971	-	Smed_2773	-	LysR family transcriptional regulator
2744	 58.60	-1	2894081..2894725	+	214	150397972	-	Smed_2774	-	hypothetical protein
2745	 64.10	0	2894719..2895732	+	337	150397973	-	Smed_2775	-	high-affinity nickel-transporter
2746	 58.69	-1	2895844..2896056	-	70	150397974	-	Smed_2776	-	hypothetical protein
2747	 60.09	0	2896053..2896751	-	232	150397975	-	Smed_2777	-	GCN5-related N-acetyltransferase
2748	 65.11	+1	2896867..2897571	-	234	150397976	-	Smed_2778	-	hypothetical protein
2749	 66.51	+1	2897734..2898372	-	212	150397977	-	Smed_2779	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
2750	 62.87	0	2898599..2899072	+	157	150397978	-	Smed_2780	-	adenylate cyclase
2751	 62.90	0	2899069..2899971	+	300	150397979	-	Smed_2781	-	CHAD domain-containing protein
2752	 61.08	0	2900053..2901000	+	315	150397980	-	Smed_2782	-	rhodanese domain-containing protein
2753	 60.10	0	2901116..2901892	-	258	150397981	-	Smed_2783	-	YaeC family lipoprotein
2754	 64.26	0	2901931..2902596	-	221	150397982	-	Smed_2784	-	binding-protein-dependent transport systems inner membrane component
2755	 64.35	0	2902586..2903665	-	359	150397983	-	Smed_2785	-	ABC transporter related
2756	 60.98	0	2903962..2905368	-	468	150397984	-	Smed_2786	-	Beta-glucosidase
2757	 62.70	0	2905673..2906857	-	394	150397985	-	Smed_2787	-	oxidoreductase domain-containing protein
2758	 61.73	0	2907028..2908080	-	350	150397986	-	Smed_2788	-	xylose isomerase domain-containing protein
2759	 60.34	0	2908274..2909584	-	436	150397987	-	Smed_2789	-	xylose isomerase
2760	 64.43	0	2909717..2910073	+	118	150397988	-	Smed_2790	-	hypothetical protein
2761	 66.53	+1	2910112..2911566	-	484	150397989	-	Smed_2791	-	xylulokinase
2762	 65.03	+1	2911576..2912613	-	345	150397990	-	Smed_2792	-	regulatory protein LacI
2763	 61.00	0	2913150..2914526	+	458	150397991	-	Smed_2793	-	peptidase S41
2764	 61.89	0	2914672..2916261	-	529	150397992	-	Smed_2794	-	EmrB/QacA family drug resistance transporter
2765	 63.85	0	2916292..2917500	-	402	150397993	-	Smed_2795	-	secretion protein HlyD family protein
61.69	MEAN

2.82	STD DEV
