IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

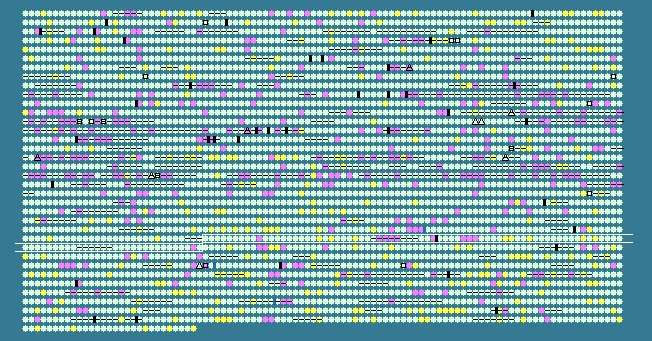

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2531	 61.32	0	2659127..2659762	-	211	150397759	-	Smed_2561	-	heat shock protein DnaJ domain-containing protein
2532	 64.18	0	2659903..2660184	+	93	150397760	-	Smed_2562	-	BolA family protein
2533	 59.92	0	2660206..2661510	-	434	150397761	-	Smed_2563	-	hypothetical protein
2534	 63.78	0	2661507..2662649	-	380	150397762	aroB	Smed_2564	-	3-dehydroquinate synthase
2535	 62.18	0	2662646..2663224	-	192	150397763	-	Smed_2565	-	shikimate kinase
2536	 62.00	0	2663552..2663701	+	49	150397764	-	Smed_2566	-	putative signal peptide protein
2537	 62.95	0	2663698..2664639	+	313	150397765	xerD	Smed_2567	-	site-specific tyrosine recombinase XerD
2538	 60.17	0	2664703..2665656	+	317	150397766	-	Smed_2568	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
2539	 61.20	0	2665898..2667343	+	481	150397767	-	Smed_2569	-	hypothetical protein
2540	 56.96	-1	2667343..2667579	+	78	150397768	-	Smed_2570	-	SirA family protein
2541	 64.75	+1	2667649..2668797	-	382	150397769	-	Smed_2571	-	cobalamin synthesis protein P47K
2542	 61.98	0	2668810..2669940	-	376	150397770	-	Smed_2572	-	Serine-type D-Ala-D-Ala carboxypeptidase
2543	 64.00	0	2670146..2671309	+	387	150397771	-	Smed_2573	-	amidohydrolase
2544	 61.29	0	2671333..2671797	+	154	150397772	-	Smed_2574	-	AsnC family transcriptional regulator
2545	 61.88	0	2671821..2672864	-	347	150397773	-	Smed_2575	-	alcohol dehydrogenase
2546	 62.31	0	2673083..2674024	+	313	150397774	-	Smed_2576	-	AraC-like transcriptional regulator
2547	 61.45	0	2674077..2674574	-	165	150397775	-	Smed_2577	-	AsnC family transcriptional regulator
2548	 64.25	0	2674641..2677697	+	1018	150397776	-	Smed_2578	-	hypothetical protein
2549	 63.30	0	2677799..2678809	+	336	150397777	-	Smed_2579	-	extracellular solute-binding protein
2550	 65.27	+1	2678871..2681798	-	975	150397778	-	Smed_2580	-	hypothetical protein
2551	 61.83	0	2681831..2682574	-	247	150397779	-	Smed_2581	-	GntR family transcriptional regulator
2552	 66.08	+1	2682701..2684074	+	457	150397780	-	Smed_2582	-	N-formimino-L-glutamate deiminase
2553	 59.03	0	2684111..2685145	+	344	150397781	-	Smed_2583	-	substrate-binding region of ABC-type glycine betaine transport system
2554	 63.64	0	2685277..2686134	+	285	150397782	-	Smed_2584	-	binding-protein-dependent transport systems inner membrane component
2555	 60.02	0	2686127..2686954	+	275	150397783	-	Smed_2585	-	ABC transporter related
2556	 65.28	+1	2686947..2688461	+	504	150397784	-	Smed_2586	-	histidine ammonia-lyase
2557	 62.14	0	2688482..2689807	+	441	150397785	-	Smed_2587	-	nucleoside recognition domain-containing protein
2558	 63.64	0	2689795..2690388	+	197	150397786	-	Smed_2588	-	hypothetical protein
2559	 63.68	0	2690391..2690624	-	77	150397787	-	Smed_2589	-	hypothetical protein
2560	 57.67	-1	2690747..2690935	-	62	150397788	-	Smed_2590	-	hypothetical protein
2561	 56.22	-1	2691164..2691364	+	66	150397789	-	Smed_2591	-	putative signal peptide protein
2562	 57.21	-1	2691445..2691645	-	66	150397790	-	Smed_2592	-	hypothetical protein
2563	 56.41	-1	2691627..2691860	-	77	150397791	-	Smed_2593	-	hypothetical protein
2564	 61.77	0	2692054..2692380	-	108	150397792	-	Smed_2594	-	putative signal peptide protein
2565	 59.68	0	2692638..2693081	-	147	150397793	-	Smed_2595	-	endoribonuclease L-PSP
2566	 63.05	0	2693314..2694087	+	257	150397794	-	Smed_2596	-	TetR family transcriptional regulator
2567	 60.56	0	2694095..2694994	-	299	150397795	-	Smed_2597	-	beta-lactamase-like protein
2568	 58.42	-1	2695030..2695575	-	181	150397796	-	Smed_2598	-	isochorismatase hydrolase
2569	 56.69	-1	2695628..2696659	+	343	150397797	-	Smed_2599	-	AraC family transcriptional regulator
2570	 65.16	+1	2697759..2698955	-	398	150397798	trmU	Smed_2600	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2571	 62.10	0	2699229..2699972	-	247	150397799	-	Smed_2601	-	regulatory protein LuxR
2572	 61.23	0	2700351..2700626	+	91	150397800	-	Smed_2602	-	hypothetical protein
2573	 64.18	0	2700827..2701108	+	93	150397801	-	Smed_2603	-	hypothetical protein
2574	 57.55	-1	2701219..2701569	-	116	150397802	-	Smed_2604	-	hypothetical protein
2575	 57.98	-1	2702115..2702816	+	233	150397803	-	Smed_2605	-	two component transcriptional regulator
2576	 56.00	-2	2703008..2703307	+	99	150397804	-	Smed_2606	-	hypothetical protein
2577	 60.06	0	2703353..2703715	-	120	150397805	-	Smed_2607	-	response regulator receiver protein
2578	 62.44	0	2703926..2704588	-	220	150397806	-	Smed_2608	-	hypothetical protein
2579	 62.33	0	2704955..2705554	+	199	150397807	-	Smed_2609	-	hypothetical protein
2580	 63.90	0	2705707..2706789	+	360	150397808	-	Smed_2610	-	hypothetical protein
2581	 66.91	+1	2706857..2707684	-	275	150397809	-	Smed_2611	-	tRNA/rRNA methyltransferase (SpoU)
2582	 65.62	+1	2707689..2708072	-	127	150397810	-	Smed_2612	-	hypothetical protein
2583	 64.15	0	2708116..2709147	+	343	150397811	-	Smed_2613	-	RluA family pseudouridine synthase
2584	 59.27	0	2709345..2710250	+	301	150397812	-	Smed_2614	-	RNA polymerase factor sigma-32
2585	 65.36	+1	2710335..2712635	-	766	150397813	-	Smed_2615	-	hypothetical protein
2586	 63.13	0	2712699..2713997	-	432	150397814	-	Smed_2616	-	adenylosuccinate synthetase
2587	 60.12	0	2714117..2715094	+	325	150397815	-	Smed_2617	-	hypothetical protein
2588	 61.90	0	2715154..2716749	-	531	150397816	-	Smed_2618	-	D-3-phosphoglycerate dehydrogenase
2589	 63.70	0	2716829..2718007	-	392	150397817	-	Smed_2619	-	phosphoserine aminotransferase
2590	 62.66	0	2718145..2718942	-	265	150397818	-	Smed_2620	-	putative heat resistant agglutinin 1 signal peptide protein
2591	 59.42	0	2719134..2719961	-	275	150397819	-	Smed_2621	-	porin opacity type
2592	 62.39	0	2720203..2721558	-	451	150397820	-	Smed_2622	-	phosphoglucosamine mutase
2593	 63.26	0	2721994..2723931	-	645	150397821	-	Smed_2623	-	ATP-dependent metalloprotease FtsH
2594	 65.35	+1	2724031..2725392	-	453	150397822	-	Smed_2624	-	tRNA(Ile)-lysidine synthetase
2595	 62.33	0	2725404..2726441	-	345	150397823	-	Smed_2625	-	Tol-Pal system YbgF
2596	 65.91	+1	2726633..2727163	-	176	150397824	-	Smed_2626	-	peptidoglycan-associated lipoprotein
2597	 61.78	0	2727533..2728843	-	436	150397825	tolB	Smed_2627	-	translocation protein TolB
2598	 63.31	0	2728907..2729977	-	356	150397826	-	Smed_2628	-	putative signal peptide protein
2599	 61.33	0	2729986..2730435	-	149	150397827	-	Smed_2629	-	biopolymer transport TolR
2600	 62.78	0	2730463..2731182	-	239	150397828	-	Smed_2630	-	Tol-Pal system TolQ
2601	 62.16	0	2731583..2734180	+	865	150397829	-	Smed_2631	-	DNA ligase D
2602	 61.94	0	2734298..2734741	-	147	150397830	-	Smed_2632	-	Pol-Pal system-associated acyl-CoA thioesterase
2603	 59.30	0	2734869..2736089	+	406	150397831	-	Smed_2633	-	NAD-dependent epimerase/dehydratase
2604	 61.43	0	2736086..2736964	+	292	150397832	-	Smed_2634	-	glycosyl transferase family protein
2605	 65.01	+1	2736961..2737866	+	301	150397833	-	Smed_2635	-	NAD-dependent epimerase/dehydratase
2606	 63.01	0	2737895..2738797	-	300	150397834	-	Smed_2636	-	metallophosphoesterase
2607	 64.94	+1	2738799..2739839	-	346	150397835	ruvB	Smed_2637	-	Holliday junction DNA helicase B
2608	 63.75	0	2740014..2740631	-	205	150397836	ruvA	Smed_2638	-	Holliday junction DNA helicase motor protein
2609	 61.51	0	2740691..2741194	-	167	150397837	ruvC	Smed_2639	-	Holliday junction resolvase
2610	 62.21	0	2741373..2742404	+	343	150397838	-	Smed_2640	-	luciferase family protein
2611	 61.58	0	2742353..2743099	-	248	150397839	-	Smed_2641	-	hypothetical protein
2612	 63.43	0	2743248..2744081	-	277	150397840	-	Smed_2642	-	hypothetical protein
2613	 62.54	0	2744253..2747429	-	1058	150397841	-	Smed_2643	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
2614	 64.94	+1	2747426..2748583	-	385	150397842	-	Smed_2644	-	RND family efflux transporter MFP subunit
2615	 61.94	0	2748939..2749763	-	274	150397843	-	Smed_2645	-	metallophosphoesterase
2616	 61.86	0	2749871..2750452	-	193	150397844	-	Smed_2646	-	5-formyltetrahydrofolate cyclo-ligase
2617	 63.10	0	2750954..2751934	+	326	150397845	-	Smed_2647	-	LysR family transcriptional regulator
2618	 60.05	0	2752126..2752503	-	125	150397846	-	Smed_2648	-	hypothetical protein
2619	 60.74	0	2752516..2752785	-	89	150397847	-	Smed_2649	-	hypothetical protein
2620	 63.24	0	2753171..2755126	+	651	150397848	-	Smed_2650	-	transketolase
2621	 61.82	0	2755196..2756206	+	336	150397849	-	Smed_2651	-	glyceraldehyde-3-phosphate dehydrogenase, type I
2622	 64.47	0	2756212..2756802	+	196	150397850	-	Smed_2652	-	hypothetical protein
2623	 64.50	0	2756802..2758001	+	399	150397851	pgk	Smed_2653	-	phosphoglycerate kinase
2624	 64.13	0	2758320..2759345	+	341	150397852	-	Smed_2654	-	fructose-bisphosphate aldolase
2625	 63.94	0	2759579..2760496	+	305	150397853	-	Smed_2655	-	PhzF family phenazine biosynthesis protein
2626	 61.52	0	2760546..2762450	-	634	150397854	-	Smed_2656	-	adenylyl cyclase class-3/4/guanylyl cyclase
2627	 62.82	0	2762625..2762780	-	51	150397855	-	Smed_2657	-	hypothetical protein
2628	 63.13	0	2762955..2764256	+	433	150397856	-	Smed_2658	-	major facilitator transporter
2629	 58.20	-1	2764243..2764431	+	62	150397857	-	Smed_2659	-	hypothetical protein
2630	 59.73	0	2764959..2765477	+	172	150397858	-	Smed_2660	-	hypothetical protein
61.69	MEAN

2.82	STD DEV
