IslandPath Analysis: Sinorhizobium medicae WSM419

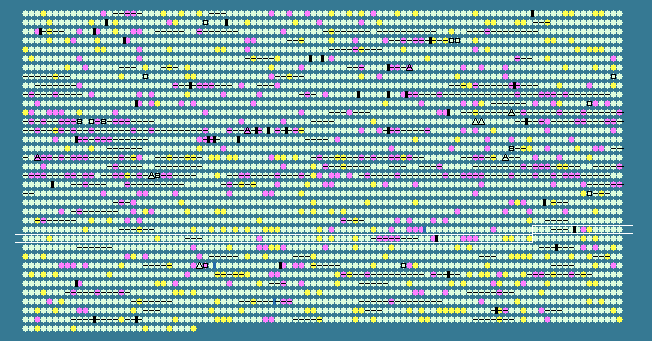

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2486	 65.06	+1	2611277..2612518	-	413	150397714	argJ	Smed_2516	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2487	 59.42	0	2612691..2613545	-	284	150397715	-	Smed_2517	-	PpiC-type peptidyl-prolyl cis-trans isomerase
2488	 61.28	0	2613792..2616503	+	903	150397716	-	Smed_2518	-	preprotein translocase subunit SecA
2489	 63.92	0	2616683..2617882	+	399	150397717	-	Smed_2519	-	Bcr/CflA subfamily drug resistance transporter
2490	 62.81	0	2618009..2619433	+	474	150397718	-	Smed_2520	-	polysaccharide biosynthesis protein
2491	 63.06	0	2619430..2620704	+	424	150397719	-	Smed_2521	-	hypothetical protein
2492	 64.72	+1	2620720..2622363	-	547	150397720	-	Smed_2522	-	AMP-dependent synthetase and ligase
2493	 63.62	0	2623349..2623873	+	174	150397721	-	Smed_2523	-	hypothetical protein
2494	 56.99	-1	2623891..2624541	-	216	150397722	-	Smed_2524	-	HNH endonuclease
2495	 66.20	+1	2624555..2625202	-	215	150397723	-	Smed_2525	-	HhH-GPD family protein
2496	 63.98	0	2625257..2626150	+	297	150397724	-	Smed_2526	-	glutamyl-Q tRNA(Asp) synthetase
2497	 60.25	0	2626168..2627040	-	290	150397725	-	Smed_2527	-	putative ribonuclease BN
2498	 64.27	0	2627206..2628039	+	277	150397726	-	Smed_2528	-	short chain dehydrogenase
2499	 63.24	0	2628062..2628265	+	67	150397727	-	Smed_2529	-	hypothetical protein
2500	 63.21	0	2628334..2628912	+	192	150397728	-	Smed_2530	-	ATP--cobalamin adenosyltransferase
2501	 60.73	0	2629037..2629828	+	263	150397729	-	Smed_2531	-	rhomboid family protein
2502	 63.20	0	2630141..2630890	+	249	150397730	-	Smed_2532	-	electron transfer flavoprotein alpha/beta-subunit
2503	 64.84	+1	2630914..2631843	+	309	150397731	-	Smed_2533	-	electron transfer flavoprotein alpha subunit
2504	 60.25	0	2631987..2632859	+	290	150397732	-	Smed_2534	-	3-hydroxybutyryl-CoA dehydrogenase
2505	 65.19	+1	2632897..2633571	-	224	150397733	-	Smed_2535	-	redoxin domain-containing protein
2506	 63.96	0	2633597..2635000	+	467	150397734	-	Smed_2536	-	argininosuccinate lyase
2507	 64.62	+1	2635220..2635414	+	64	150397735	-	Smed_2537	-	hypothetical protein
2508	 61.70	0	2635429..2636697	+	422	150397736	-	Smed_2538	-	diaminopimelate decarboxylase
2509	 64.26	0	2636838..2639492	+	884	150397737	-	Smed_2539	-	hypothetical protein
2510	 62.50	0	2639706..2640065	-	119	150397738	-	Smed_2540	-	response regulator receiver protein
2511	 58.61	-1	2640280..2640825	-	181	150397739	-	Smed_2541	-	hypoxanthine phosphoribosyltransferase
2512	 65.00	+1	2641074..2641493	-	139	150397740	-	Smed_2542	-	hypothetical protein
2513	 61.11	0	2641960..2642643	+	227	150397741	-	Smed_2543	-	cell division ATP-binding protein FtsE
2514	 62.65	0	2642636..2643655	+	339	150397742	-	Smed_2544	-	hypothetical protein
2515	 61.66	0	2643761..2644459	+	232	150397743	-	Smed_2545	-	hypothetical protein
2516	 61.92	0	2644593..2645372	+	259	150397744	-	Smed_2546	-	phospholipid/glycerol acyltransferase
2517	 63.16	0	2645393..2645962	-	189	150397745	-	Smed_2547	-	ChaC family protein
2518	 62.82	0	2646218..2647231	+	337	150397746	-	Smed_2548	-	hypothetical protein
2519	 62.46	0	2647319..2648245	-	308	150397747	-	Smed_2549	-	cyclohexadienyl dehydrogenase
2520	 61.61	0	2648242..2649348	-	368	150397748	-	Smed_2550	-	histidinol-phosphate aminotransferase
2521	 64.14	0	2649454..2650206	-	250	150397749	-	Smed_2551	-	methyltransferase type 11
2522	 60.83	0	2650305..2651075	+	256	150397750	-	Smed_2552	-	hydroxyacylglutathione hydrolase
2523	 66.02	+1	2651075..2651539	+	154	150397751	-	Smed_2553	-	hypothetical protein
2524	 61.95	0	2651603..2652493	-	296	150397752	-	Smed_2554	-	hypothetical protein
2525	 59.72	0	2652630..2653406	-	258	150397753	-	Smed_2555	-	putative signal peptide protein
2526	 63.23	0	2653835..2654125	+	96	150397754	rpmB	Smed_2556	-	50S ribosomal protein L28
2527	 61.97	0	2654261..2654899	+	212	150397755	-	Smed_2557	-	hypothetical protein
2528	 62.44	0	2654946..2655938	-	330	150397756	-	Smed_2558	-	putative signal peptide protein
2529	 63.77	0	2656021..2657916	-	631	150397757	-	Smed_2559	-	cobalt chelatase, pCobT subunit
2530	 60.54	0	2658056..2659051	-	331	150397758	-	Smed_2560	-	cobalt chelatase, pCobS small subunit
2531	 61.32	0	2659127..2659762	-	211	150397759	-	Smed_2561	-	heat shock protein DnaJ domain-containing protein
2532	 64.18	0	2659903..2660184	+	93	150397760	-	Smed_2562	-	BolA family protein
2533	 59.92	0	2660206..2661510	-	434	150397761	-	Smed_2563	-	hypothetical protein
2534	 63.78	0	2661507..2662649	-	380	150397762	aroB	Smed_2564	-	3-dehydroquinate synthase
2535	 62.18	0	2662646..2663224	-	192	150397763	-	Smed_2565	-	shikimate kinase
2536	 62.00	0	2663552..2663701	+	49	150397764	-	Smed_2566	-	putative signal peptide protein
2537	 62.95	0	2663698..2664639	+	313	150397765	xerD	Smed_2567	-	site-specific tyrosine recombinase XerD
2538	 60.17	0	2664703..2665656	+	317	150397766	-	Smed_2568	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
2539	 61.20	0	2665898..2667343	+	481	150397767	-	Smed_2569	-	hypothetical protein
2540	 56.96	-1	2667343..2667579	+	78	150397768	-	Smed_2570	-	SirA family protein
2541	 64.75	+1	2667649..2668797	-	382	150397769	-	Smed_2571	-	cobalamin synthesis protein P47K
2542	 61.98	0	2668810..2669940	-	376	150397770	-	Smed_2572	-	Serine-type D-Ala-D-Ala carboxypeptidase
2543	 64.00	0	2670146..2671309	+	387	150397771	-	Smed_2573	-	amidohydrolase
2544	 61.29	0	2671333..2671797	+	154	150397772	-	Smed_2574	-	AsnC family transcriptional regulator
2545	 61.88	0	2671821..2672864	-	347	150397773	-	Smed_2575	-	alcohol dehydrogenase
2546	 62.31	0	2673083..2674024	+	313	150397774	-	Smed_2576	-	AraC-like transcriptional regulator
2547	 61.45	0	2674077..2674574	-	165	150397775	-	Smed_2577	-	AsnC family transcriptional regulator
2548	 64.25	0	2674641..2677697	+	1018	150397776	-	Smed_2578	-	hypothetical protein
2549	 63.30	0	2677799..2678809	+	336	150397777	-	Smed_2579	-	extracellular solute-binding protein
2550	 65.27	+1	2678871..2681798	-	975	150397778	-	Smed_2580	-	hypothetical protein
2551	 61.83	0	2681831..2682574	-	247	150397779	-	Smed_2581	-	GntR family transcriptional regulator
2552	 66.08	+1	2682701..2684074	+	457	150397780	-	Smed_2582	-	N-formimino-L-glutamate deiminase
2553	 59.03	0	2684111..2685145	+	344	150397781	-	Smed_2583	-	substrate-binding region of ABC-type glycine betaine transport system
2554	 63.64	0	2685277..2686134	+	285	150397782	-	Smed_2584	-	binding-protein-dependent transport systems inner membrane component
2555	 60.02	0	2686127..2686954	+	275	150397783	-	Smed_2585	-	ABC transporter related
2556	 65.28	+1	2686947..2688461	+	504	150397784	-	Smed_2586	-	histidine ammonia-lyase
2557	 62.14	0	2688482..2689807	+	441	150397785	-	Smed_2587	-	nucleoside recognition domain-containing protein
2558	 63.64	0	2689795..2690388	+	197	150397786	-	Smed_2588	-	hypothetical protein
2559	 63.68	0	2690391..2690624	-	77	150397787	-	Smed_2589	-	hypothetical protein
2560	 57.67	-1	2690747..2690935	-	62	150397788	-	Smed_2590	-	hypothetical protein
2561	 56.22	-1	2691164..2691364	+	66	150397789	-	Smed_2591	-	putative signal peptide protein
2562	 57.21	-1	2691445..2691645	-	66	150397790	-	Smed_2592	-	hypothetical protein
2563	 56.41	-1	2691627..2691860	-	77	150397791	-	Smed_2593	-	hypothetical protein
2564	 61.77	0	2692054..2692380	-	108	150397792	-	Smed_2594	-	putative signal peptide protein
2565	 59.68	0	2692638..2693081	-	147	150397793	-	Smed_2595	-	endoribonuclease L-PSP
2566	 63.05	0	2693314..2694087	+	257	150397794	-	Smed_2596	-	TetR family transcriptional regulator
2567	 60.56	0	2694095..2694994	-	299	150397795	-	Smed_2597	-	beta-lactamase-like protein
2568	 58.42	-1	2695030..2695575	-	181	150397796	-	Smed_2598	-	isochorismatase hydrolase
2569	 56.69	-1	2695628..2696659	+	343	150397797	-	Smed_2599	-	AraC family transcriptional regulator
2570	 65.16	+1	2697759..2698955	-	398	150397798	trmU	Smed_2600	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2571	 62.10	0	2699229..2699972	-	247	150397799	-	Smed_2601	-	regulatory protein LuxR
2572	 61.23	0	2700351..2700626	+	91	150397800	-	Smed_2602	-	hypothetical protein
2573	 64.18	0	2700827..2701108	+	93	150397801	-	Smed_2603	-	hypothetical protein
2574	 57.55	-1	2701219..2701569	-	116	150397802	-	Smed_2604	-	hypothetical protein
2575	 57.98	-1	2702115..2702816	+	233	150397803	-	Smed_2605	-	two component transcriptional regulator
2576	 56.00	-2	2703008..2703307	+	99	150397804	-	Smed_2606	-	hypothetical protein
2577	 60.06	0	2703353..2703715	-	120	150397805	-	Smed_2607	-	response regulator receiver protein
2578	 62.44	0	2703926..2704588	-	220	150397806	-	Smed_2608	-	hypothetical protein
2579	 62.33	0	2704955..2705554	+	199	150397807	-	Smed_2609	-	hypothetical protein
2580	 63.90	0	2705707..2706789	+	360	150397808	-	Smed_2610	-	hypothetical protein
2581	 66.91	+1	2706857..2707684	-	275	150397809	-	Smed_2611	-	tRNA/rRNA methyltransferase (SpoU)
2582	 65.62	+1	2707689..2708072	-	127	150397810	-	Smed_2612	-	hypothetical protein
2583	 64.15	0	2708116..2709147	+	343	150397811	-	Smed_2613	-	RluA family pseudouridine synthase
2584	 59.27	0	2709345..2710250	+	301	150397812	-	Smed_2614	-	RNA polymerase factor sigma-32
2585	 65.36	+1	2710335..2712635	-	766	150397813	-	Smed_2615	-	hypothetical protein
61.69	MEAN

2.82	STD DEV
