IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

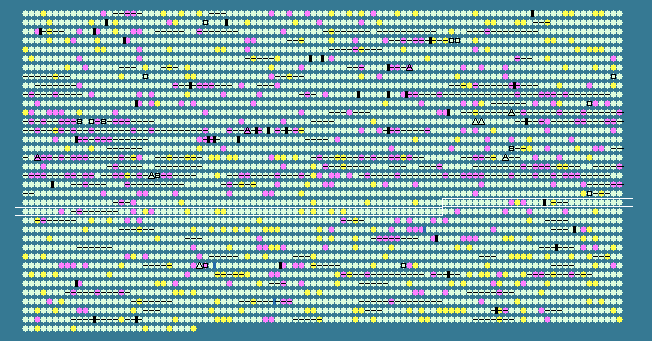

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2171	 62.05	0	2277553..2280000	-	815	150397399	-	Smed_2198	-	FAD dependent oxidoreductase
2172	 62.17	0	2280123..2280968	+	281	150397400	-	Smed_2199	-	LysR family transcriptional regulator
2173	 63.51	0	2281006..2282685	-	559	150397401	-	Smed_2200	-	hypothetical protein
2174	 62.23	0	2282883..2284166	+	427	150397402	-	Smed_2201	-	methionine gamma-lyase
2175	 62.29	0	2284287..2284583	-	98	150397403	-	Smed_2202	-	helix-turn-helix domain-containing protein
2176	 59.72	0	2285035..2285394	-	119	150397404	-	Smed_2204	-	glyoxalase/bleomycin resistance protein/dioxygenase
2177	 61.08	0	2285391..2285999	-	202	150397405	-	Smed_2205	-	TetR family transcriptional regulator
2178	 64.27	0	2286083..2286874	+	263	150397406	-	Smed_2206	-	enoyl-CoA hydratase
2179	 62.92	0	2286888..2287367	-	159	150397407	-	Smed_2207	-	hypothetical protein
2180	 64.84	+1	2287417..2288730	-	437	150397408	-	Smed_2208	-	hypothetical protein
2181	 62.39	0	2288962..2289756	+	264	150397409	-	Smed_2209	-	hypothetical protein
2182	 56.76	-1	2289863..2290084	-	73	150397410	-	Smed_2210	-	hypothetical protein
2183	 65.35	+1	2290220..2291434	-	404	150397411	-	Smed_2211	-	hypothetical protein
2184	 57.69	-1	2291431..2291664	-	77	150397412	-	Smed_2212	-	hypothetical protein
2185	 63.02	0	2291664..2293502	-	612	150397413	-	Smed_2213	-	SARP family transcriptional regulator
2186	 61.87	0	2293869..2294660	+	263	150397414	-	Smed_2214	-	aminoglycoside N(3')-acetyltransferase
2187	 58.33	-1	2294701..2294976	-	91	150397415	-	Smed_2215	-	XRE family transcriptional regulator
2188	 62.89	0	2295456..2296250	+	264	150397416	-	Smed_2216	-	hypothetical protein
2189	 68.36	+2	2296443..2296796	-	117	150397417	-	Smed_2217	-	putative signal peptide protein
2190	 62.96	0	2296935..2297339	-	134	150397418	-	Smed_2218	-	hypothetical protein
2191	 62.88	0	2297433..2297855	-	140	150397419	-	Smed_2219	-	hypothetical protein
2192	 60.45	0	2297891..2298244	-	117	150397420	-	Smed_2220	-	hypothetical protein
2193	 61.58	0	2298358..2298927	-	189	150397421	-	Smed_2221	-	putative transmembrane protein
2194	 60.88	0	2299152..2299445	-	97	150397422	-	Smed_2222	-	GYD family protein
2195	 60.49	0	2299716..2301770	-	684	150397423	-	Smed_2223	-	RNA polymerase sigma factor RpoD
2196	 60.10	0	2302218..2303252	-	344	150397424	tdh	Smed_2224	-	L-threonine 3-dehydrogenase
2197	 62.12	0	2303293..2304480	-	395	150397425	-	Smed_2225	-	2-amino-3-ketobutyrate coenzyme A ligase
2198	 64.09	0	2304702..2306645	-	647	150397426	-	Smed_2226	-	ATP-dependent DNA helicase RecQ
2199	 64.43	0	2306655..2308670	-	671	150397427	dnaG	Smed_2227	-	DNA primase
2200	 60.00	0	2308865..2309314	-	149	150397428	-	Smed_2228	-	GatB/Yqey domain-containing protein
2201	 63.76	0	2309639..2310844	+	401	150397429	-	Smed_2229	-	carbamoyl phosphate synthase small subunit
2202	 62.74	0	2310883..2311773	-	296	150397430	-	Smed_2230	-	LysR family transcriptional regulator
2203	 64.96	+1	2311887..2312648	+	253	150397431	-	Smed_2231	-	short-chain dehydrogenase/reductase SDR
2204	 63.21	0	2312675..2313541	+	288	150397432	-	Smed_2232	-	6-phosphogluconate dehydrogenase NAD-binding
2205	 62.76	0	2313662..2314864	-	400	150397433	-	Smed_2233	-	aspartate aminotransferase
2206	 59.09	0	2315185..2315382	+	65	150397434	-	Smed_2234	-	hypothetical protein
2207	 57.24	-1	2315351..2315647	+	98	150397435	-	Smed_2235	-	hypothetical protein
2208	 62.89	0	2315788..2316978	+	396	150397436	-	Smed_2236	-	glucose sorbosone dehydrogenase
2209	 62.35	0	2317161..2318063	+	300	150397437	-	Smed_2237	-	hypothetical protein
2210	 56.02	-2	2318728..2318943	+	71	150397438	-	Smed_2238	-	cold-shock DNA-binding domain-containing protein
2211	 64.99	+1	2319088..2319504	+	138	150397439	-	Smed_2239	-	hypothetical protein
2212	 60.90	0	2319581..2320222	-	213	150397440	-	Smed_2240	-	beta-lactamase domain-containing protein
2213	 59.62	0	2320331..2320486	-	51	150397441	-	Smed_2241	-	hypothetical protein
2214	 64.30	0	2320673..2321305	+	210	150397442	-	Smed_2242	-	hypothetical protein
2215	 64.79	+1	2321626..2321892	+	88	150397443	-	Smed_2243	-	hypothetical protein
2216	 60.04	0	2322086..2322568	+	160	150397444	-	Smed_2244	-	MarR family transcriptional regulator
2217	 60.68	0	2322842..2323543	+	233	150397445	-	Smed_2245	-	two component transcriptional regulator
2218	 61.52	0	2323543..2324961	+	472	150397446	-	Smed_2246	-	integral membrane sensor signal transduction histidine kinase
2219	 56.73	-1	2325063..2325404	-	113	150397447	-	Smed_2247	-	export-related chaperone CsaA
2220	 62.72	0	2325437..2326399	-	320	150397448	-	Smed_2248	-	LysR family transcriptional regulator
2221	 66.18	+1	2326652..2327476	-	274	150397449	-	Smed_2249	-	pyrroline-5-carboxylate reductase
2222	 58.08	-1	2327478..2327978	-	166	150397450	-	Smed_2250	-	hypothetical protein
2223	 64.60	+1	2328434..2328724	-	96	150397451	-	Smed_2251	-	hypothetical protein
2224	 62.87	0	2328999..2329841	+	280	150397452	-	Smed_2252	-	prolipoprotein diacylglyceryl transferase
2225	 63.32	0	2329853..2330956	+	367	150397453	-	Smed_2253	-	hypothetical protein
2226	 63.77	0	2331084..2331878	+	264	150397454	-	Smed_2254	-	hypothetical protein
2227	 61.89	0	2331880..2333031	+	383	150397455	-	Smed_2255	-	peptidase M24
2228	 65.87	+1	2333289..2334167	+	292	150397456	-	Smed_2256	-	hypothetical protein
2229	 61.31	0	2334452..2335384	+	310	150397457	-	Smed_2257	-	ribose-phosphate pyrophosphokinase
2230	 64.50	0	2335436..2336266	-	276	150397458	-	Smed_2258	-	hypothetical protein
2231	 63.25	0	2336339..2336719	-	126	150397459	-	Smed_2259	-	hypothetical protein
2232	 62.09	0	2336801..2338309	-	502	150397460	-	Smed_2260	-	aldehyde dehydrogenase
2233	 66.88	+1	2338448..2339404	-	318	150397461	-	Smed_2261	-	Fis family transcriptional regulator
2234	 65.45	+1	2339662..2340894	+	410	150397462	-	Smed_2262	-	benzoate transporter
2235	 60.10	0	2341107..2341730	+	207	150397463	-	Smed_2263	-	50S ribosomal protein L25/general stress protein Ctc
2236	 59.84	0	2342028..2342774	+	248	150397464	-	Smed_2264	-	peptidyl-tRNA hydrolase
2237	 58.82	-1	2342797..2343102	-	101	150397465	clpS	Smed_2265	-	ATP-dependent Clp protease adaptor
2238	 61.87	0	2343331..2344434	+	367	150397466	-	Smed_2266	-	translation-associated GTPase
2239	 61.28	0	2344465..2345523	-	352	150397467	-	Smed_2267	-	hypothetical protein
2240	 60.09	0	2345792..2346247	+	151	150397468	-	Smed_2268	-	dehydratase
2241	 63.06	0	2346244..2346714	+	156	150397469	-	Smed_2269	-	dehydratase
2242	 60.22	0	2346736..2347278	-	180	150397470	-	Smed_2270	-	adenine phosphoribosyltransferase
2243	 60.22	0	2347452..2347637	+	61	150397471	-	Smed_2271	-	hypothetical protein
2244	 64.05	0	2347670..2348929	-	419	150397472	-	Smed_2272	-	polynucleotide adenylyltransferase region
2245	 60.66	0	2348926..2349558	-	210	150397473	-	Smed_2273	-	NUDIX hydrolase
2246	 62.98	0	2349555..2350178	-	207	150397474	-	Smed_2274	-	hypothetical protein
2247	 65.38	+1	2350541..2351554	+	337	150397475	-	Smed_2275	-	ATPase
2248	 64.93	+1	2351558..2352478	+	306	150397476	-	Smed_2276	-	hypothetical protein
2249	 65.46	+1	2352475..2355288	+	937	150397477	-	Smed_2277	-	hypothetical protein
2250	 64.54	+1	2355299..2357368	+	689	150397478	-	Smed_2278	-	hypothetical protein
2251	 64.43	0	2357347..2357838	+	163	150397479	-	Smed_2279	-	GCN5-related N-acetyltransferase
2252	 65.95	+1	2357839..2358399	-	186	150397480	-	Smed_2280	-	GCN5-related N-acetyltransferase
2253	 59.42	0	2358655..2359647	+	330	150397481	-	Smed_2281	-	putative glutathione S-transferase
2254	 65.65	+1	2359658..2360149	-	163	150397482	-	Smed_2282	-	NUDIX hydrolase
2255	 63.01	0	2360230..2361132	+	300	150397483	-	Smed_2283	-	metallophosphoesterase
2256	 59.65	0	2361258..2361827	+	189	150397484	-	Smed_2284	-	ECF subfamily RNA polymerase sigma-24 factor
2257	 62.32	0	2361831..2362658	+	275	150397485	-	Smed_2285	-	putative transmembrane anti-sigma factor
2258	 61.11	0	2363011..2363262	-	83	150397486	-	Smed_2286	-	transcription factor
2259	 59.56	0	2363312..2365042	-	576	150397487	-	Smed_2287	-	2-isopropylmalate synthase
2260	 63.51	0	2365059..2365280	-	73	150397488	-	Smed_2288	-	hypothetical protein
2261	 59.18	0	2365456..2366043	-	195	150397489	-	Smed_2289	-	ATP-dependent Clp protease proteolytic subunit
2262	 63.04	0	2366234..2366812	+	192	150397490	-	Smed_2290	-	HupE/UreJ protein
2263	 60.95	0	2366812..2367318	+	168	150397491	-	Smed_2291	-	GCN5-related N-acetyltransferase
2264	 64.11	0	2367285..2368106	-	273	150397492	-	Smed_2292	-	aminoglycoside phosphotransferase
2265	 61.94	0	2368135..2368599	-	154	150397493	-	Smed_2293	-	7-cyano-7-deazaguanine reductase
2266	 63.30	0	2368596..2369516	-	306	150397494	-	Smed_2294	-	cation diffusion facilitator family transporter
2267	 61.96	0	2369676..2371865	-	729	150397495	-	Smed_2295	-	anthranilate synthase
2268	 61.22	0	2372143..2374347	-	734	150397496	-	Smed_2296	-	TonB-dependent hemoglobin/transferrin/lactoferrin family receptor
2269	 63.70	0	2374629..2375471	+	280	150397497	-	Smed_2297	-	extensin family protein
2270	 61.33	0	2375519..2377222	-	567	150397498	-	Smed_2298	-	formate--tetrahydrofolate ligase
61.69	MEAN

2.82	STD DEV
