IslandPath Analysis: Sinorhizobium medicae WSM419

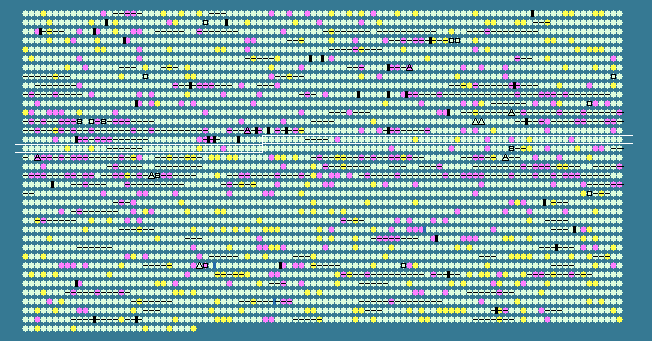

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1441	 60.68	0	1537766..1539601	+	611	150396669	-	Smed_1456	-	poly(R)-hydroxyalkanoic acid synthase, class I
1442	 59.44	0	1539645..1540364	+	239	150396670	-	Smed_1457	-	sugar fermentation stimulation protein A
1443	 60.71	0	1540394..1541233	+	279	150396671	-	Smed_1458	-	methionine aminopeptidase
1444	 61.69	0	1541230..1542012	+	260	150396672	radC	Smed_1459	-	DNA repair protein RadC
1445	 60.50	0	1542215..1543219	-	334	150396673	-	Smed_1460	-	Beta-lactamase
1446	 59.04	0	1543281..1544303	+	340	150396674	-	Smed_1461	-	LysR family transcriptional regulator
1447	 60.04	0	1544468..1545976	+	502	150396675	-	Smed_1462	-	soluble pyridine nucleotide transhydrogenase
1448	 61.07	0	1546098..1546490	-	130	150396676	-	Smed_1463	-	FeS assembly scaffold SufA
1449	 58.53	-1	1546594..1546974	-	126	150396677	-	Smed_1464	-	FeS assembly SUF system protein
1450	 59.66	0	1546985..1548226	-	413	150396678	-	Smed_1465	-	SufS subfamily cysteine desulfurase
1451	 61.11	0	1548239..1549516	-	425	150396679	-	Smed_1466	-	FeS assembly protein SufD
1452	 59.13	0	1549539..1550294	-	251	150396680	-	Smed_1467	-	FeS assembly ATPase SufC
1453	 58.03	-1	1550403..1551872	-	489	150396681	-	Smed_1468	-	cysteine desulfurase activator complex subunit SufB
1454	 65.01	+1	1552027..1553235	-	402	150396682	-	Smed_1469	-	aminotransferase class V
1455	 60.03	0	1553414..1554091	+	225	150396683	-	Smed_1470	-	hypothetical protein
1456	 62.49	0	1554179..1555375	-	398	150396684	-	Smed_1471	-	diguanylate cyclase
1457	 60.75	0	1555466..1556614	-	382	150396685	anmK	Smed_1472	-	anhydro-N-acetylmuramic acid kinase
1458	 60.37	0	1556778..1558031	+	417	150396686	-	Smed_1473	-	tyrosyl-tRNA synthetase
1459	 62.86	0	1558074..1561460	-	1128	150396687	-	Smed_1474	-	hypothetical protein
1460	 58.97	0	1561879..1562346	+	155	150396688	-	Smed_1475	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1461	 63.65	0	1562364..1563191	+	275	150396689	-	Smed_1476	-	hypothetical protein
1462	 61.85	0	1563333..1564661	+	442	150396690	-	Smed_1477	-	peptidase M23B
1463	 59.67	0	1564858..1566357	+	499	150396691	-	Smed_1478	-	DEAD/DEAH box helicase domain-containing protein
1464	 62.75	0	1566368..1566775	+	135	150396692	-	Smed_1479	-	NUDIX hydrolase
1465	 60.38	0	1566823..1567140	-	105	150396693	-	Smed_1480	-	TfoX domain-containing protein
1466	 65.31	+1	1567144..1568760	-	538	150396694	-	Smed_1481	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1467	 65.11	+1	1568757..1569464	-	235	150396695	-	Smed_1482	-	xanthine dehydrogenase accessory factor
1468	 64.56	+1	1569468..1569800	-	110	150396696	-	Smed_1483	-	hypothetical protein
1469	 63.95	0	1569857..1571146	-	429	150396697	-	Smed_1484	-	VWA containing CoxE family protein
1470	 59.68	0	1571152..1572081	-	309	150396698	-	Smed_1485	-	ATPase
1471	 60.88	0	1572105..1572605	-	166	150396699	-	Smed_1486	-	flavin reductase domain-containing protein
1472	 61.71	0	1572796..1573884	+	362	150396700	-	Smed_1487	-	extracellular ligand-binding receptor
1473	 65.97	+1	1573881..1574888	+	335	150396701	-	Smed_1488	-	peptidase S58 DmpA
1474	 60.94	0	1575045..1575725	+	226	150396702	-	Smed_1489	-	ribulose-phosphate 3-epimerase
1475	 61.38	0	1575722..1576477	+	251	150396703	-	Smed_1490	-	hypothetical protein
1476	 62.90	0	1576477..1577034	+	185	150396704	-	Smed_1491	-	hypothetical protein
1477	 59.48	0	1577099..1578406	+	435	150396705	-	Smed_1492	-	adenylosuccinate lyase
1478	 56.86	-1	1578537..1578842	+	101	150396706	-	Smed_1493	-	type IV pilus assembly PilZ
1479	 60.74	0	1578912..1579721	-	269	150396707	-	Smed_1494	-	hypothetical protein
1480	 63.46	0	1579878..1580438	+	186	150396708	-	Smed_1495	-	hypothetical protein
1481	 61.90	0	1580692..1581006	-	104	150396709	-	Smed_1497	-	hypothetical protein
1482	 58.17	-1	1581234..1581998	+	254	150396710	-	Smed_1498	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1483	 58.44	-1	1582017..1582259	+	80	150396711	-	Smed_1499	-	phosphoribosylformylglycinamidine synthase subunit PurS
1484	 62.65	0	1582340..1583011	+	223	150396712	-	Smed_1500	-	phosphoribosylformylglycinamidine synthase subunit I
1485	 67.65	+2	1583137..1583544	+	135	150396713	-	Smed_1501	-	hypothetical protein
1486	 59.26	0	1583644..1583886	-	80	150396714	-	Smed_1502	-	hypothetical protein
1487	 63.78	0	1583967..1585385	+	472	150396715	-	Smed_1503	-	GntR family transcriptional regulator
1488	 60.20	0	1585481..1586068	+	195	150396716	-	Smed_1504	-	hypothetical protein
1489	 62.77	0	1586239..1588470	+	743	150396717	-	Smed_1505	-	phosphoribosylformylglycinamidine synthase II
1490	 60.68	0	1588595..1588828	+	77	150396718	-	Smed_1506	-	BolA family protein
1491	 59.26	0	1588834..1589076	+	80	150396719	-	Smed_1507	-	hypothetical protein
1492	 57.44	-1	1589239..1589574	+	111	150396720	-	Smed_1508	-	glutaredoxin-like protein
1493	 59.97	0	1589918..1591156	+	412	150396721	-	Smed_1509	-	Bcr/CflA subfamily drug resistance transporter
1494	 60.43	0	1591199..1592512	+	437	150396722	-	Smed_1510	-	major facilitator transporter
1495	 62.91	0	1592570..1593394	-	274	150396723	-	Smed_1511	-	inositol monophosphatase
1496	 59.18	0	1593397..1594278	-	293	150396724	-	Smed_1512	-	PP-loop domain-containing protein
1497	 60.86	0	1594420..1595367	-	315	150396725	-	Smed_1513	-	glutaminase
1498	 59.22	0	1595463..1596080	-	205	150396726	rpsD	Smed_1514	-	30S ribosomal protein S4
1499	 64.62	+1	1596333..1597847	-	504	150396727	-	Smed_1515	-	AAA ATPase
1500	 62.13	0	1597976..1598791	-	271	150396728	-	Smed_1516	-	glutamate racemase
1501	 61.49	0	1598778..1599608	-	276	150396729	-	Smed_1517	-	RNA methyltransferase
1502	 62.52	0	1599659..1601659	-	666	150396730	-	Smed_1518	-	hypothetical protein
1503	 60.00	0	1601963..1603177	+	404	150396731	-	Smed_1519	-	isocitrate dehydrogenase
1504	 63.44	0	1604020..1606683	-	887	150396732	alaS	Smed_1521	-	alanyl-tRNA synthetase
1505	 59.02	0	1606902..1607987	-	361	150396733	recA	Smed_1522	-	recombinase A
1506	 62.69	0	1609421..1610350	+	309	150396734	-	Smed_1524	-	indigoidine synthase A family protein
1507	 62.05	0	1610442..1613060	-	872	150396735	-	Smed_1525	-	multi-sensor hybrid histidine kinase
1508	 66.47	+1	1613425..1614417	+	330	150396736	-	Smed_1526	-	putative CheA signal transduction histidine kinase
1509	 58.57	-1	1614545..1614964	-	139	150396737	-	Smed_1527	-	TraR/DksA family transcriptional regulator
1510	 63.52	0	1615370..1615909	+	179	150396738	-	Smed_1528	-	putative phosphohistidine phosphatase, SixA
1511	 63.47	0	1616076..1617575	+	499	150396739	-	Smed_1529	-	protein of unknown function DUF463 YcjX family protein
1512	 65.38	+1	1617572..1618657	+	361	150396740	-	Smed_1530	-	hypothetical protein
1513	 60.69	0	1618777..1619328	+	183	150396741	-	Smed_1531	-	putative signal peptide protein
1514	 60.57	0	1619378..1619902	-	174	150396742	-	Smed_1532	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1515	 60.22	0	1619889..1620260	-	123	150396743	-	Smed_1533	-	dihydroneopterin aldolase
1516	 62.53	0	1620257..1621126	-	289	150396744	-	Smed_1534	-	dihydropteroate synthase
1517	 60.06	0	1621269..1621949	+	226	150396745	-	Smed_1535	-	hypothetical protein
1518	 59.81	0	1622486..1622806	-	106	150396746	-	Smed_1536	-	ferredoxin
1519	 60.70	0	1623096..1623464	-	122	150396747	-	Smed_1537	-	Hpt domain-containing protein
1520	 64.43	0	1623967..1630125	+	2052	150396748	-	Smed_1538	-	chemotaxis sensory transducer
1521	 60.34	0	1630779..1631648	-	289	150396749	-	Smed_1539	-	cytochrome c1
1522	 58.39	-1	1631680..1632960	-	426	150396750	-	Smed_1540	-	cytochrome b/b6 domain-containing protein
1523	 62.00	0	1632975..1633553	-	192	150396751	-	Smed_1541	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1524	 61.58	0	1633870..1635735	-	621	150396752	-	Smed_1542	-	ABC transporter related
1525	 59.60	0	1635852..1637705	-	617	150396753	-	Smed_1543	-	ABC transporter related
1526	 61.04	0	1638184..1638645	+	153	150396754	-	Smed_1544	-	tRNA/rRNA methyltransferase (SpoU)
1527	 60.46	0	1638701..1639312	-	203	150396755	-	Smed_1545	-	NADPH-dependent FMN reductase
1528	 62.76	0	1639352..1639837	+	161	150396756	-	Smed_1546	-	MerR family transcriptional regulator
1529	 63.38	0	1639842..1641026	-	394	150396757	-	Smed_1547	-	major facilitator transporter
1530	 65.90	+1	1641173..1641433	-	86	150396758	-	Smed_1548	-	hypothetical protein
1531	 61.18	0	1641637..1642548	+	303	150396759	-	Smed_1549	-	coproporphyrinogen III oxidase
1532	 62.72	0	1642633..1642911	+	92	150396760	-	Smed_1550	-	transport-associated
1533	 60.98	0	1643085..1643699	-	204	150396761	-	Smed_1551	-	hypothetical protein
1534	 57.08	-1	1643779..1645155	-	458	150396762	-	Smed_1552	-	hypothetical protein
1535	 60.35	0	1645242..1646048	-	268	150396763	-	Smed_1553	-	ABC transporter related
1536	 62.37	0	1646059..1647198	-	379	150396764	-	Smed_1554	-	hypothetical protein
1537	 63.52	0	1647384..1648367	+	327	150396765	-	Smed_1555	-	mandelate racemase/muconate lactonizing protein
1538	 60.95	0	1648319..1649542	-	407	150396766	-	Smed_1556	-	major facilitator transporter
1539	 59.95	0	1649680..1650513	-	277	150396767	-	Smed_1557	-	metallophosphoesterase
1540	 62.26	0	1650759..1653071	+	770	150396768	-	Smed_1558	-	malic enzyme
61.69	MEAN

2.82	STD DEV
