IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

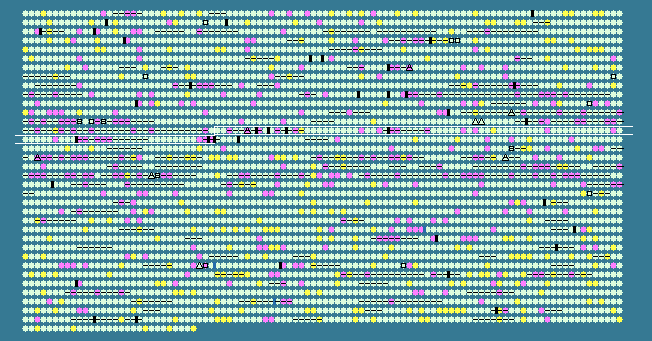

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1333	 58.96	0	1428051..1428452	-	133	150396561	-	Smed_1343	-	hypothetical protein
1334	 58.41	-1	1428449..1428763	-	104	150396562	-	Smed_1344	-	hypothetical protein
1335	 52.78	-2	1428775..1428954	-	59	150396563	-	Smed_1345	-	hypothetical protein
1336	 59.91	0	1429222..1431603	-	793	150396564	-	Smed_1346	-	hypothetical protein
1337	 60.22	0	1431835..1432020	-	61	150396565	-	Smed_1347	-	hypothetical protein
1338	 57.40	-1	1432667..1433842	-	391	150396566	-	Smed_1348	-	phage integrase family protein
1339	 59.30	0	1434625..1434909	+	94	150396567	-	Smed_1351	-	hypothetical protein
1340	 54.55	-2	1435313..1435477	+	54	150396568	-	Smed_1352	-	hypothetical protein
1341	 59.14	0	1435710..1436426	+	238	150396569	-	Smed_1353	-	LexA repressor
1342	 62.96	0	1436794..1437873	-	359	150396570	-	Smed_1354	-	hypothetical protein
1343	 57.06	-1	1438134..1438487	+	117	150396571	-	Smed_1355	-	putative transmembrane protein
1344	 59.19	0	1438523..1438843	-	106	150396572	-	Smed_1356	-	hypothetical protein
1345	 60.11	0	1439107..1439457	-	116	150396573	-	Smed_1357	-	hypothetical protein
1346	 56.73	-1	1439512..1441575	+	687	150396574	-	Smed_1358	-	beta-lactamase domain-containing protein
1347	 67.20	+1	1441636..1442199	-	187	150396575	-	Smed_1359	-	hypothetical protein
1348	 58.55	-1	1442494..1442838	+	114	150396576	-	Smed_1360	-	small multidrug resistance protein
1349	 62.08	0	1442835..1443161	+	108	150396577	-	Smed_1361	-	small multidrug resistance protein
1350	 61.37	0	1443149..1443997	-	282	150396578	-	Smed_1362	-	short-chain dehydrogenase/reductase SDR
1351	 61.38	0	1444310..1445350	+	346	150396579	-	Smed_1363	-	cysteine synthase A
1352	 58.53	-1	1445358..1446107	+	249	150396580	-	Smed_1364	-	threonyl/alanyl tRNA synthetase SAD
1353	 61.23	0	1446142..1447005	+	287	150396581	-	Smed_1365	-	rhodanese domain-containing protein
1354	 58.87	0	1447011..1447574	+	187	150396582	-	Smed_1366	-	GCN5-related N-acetyltransferase
1355	 59.62	0	1447689..1448156	+	155	150396583	-	Smed_1367	-	hypothetical protein
1356	 64.08	0	1448206..1449324	-	372	150396584	-	Smed_1368	-	alanine dehydrogenase
1357	 56.49	-1	1449480..1449941	+	153	150396585	-	Smed_1369	-	AsnC family transcriptional regulator
1358	 58.88	0	1452142..1452462	-	106	150396586	-	Smed_1372	-	hypothetical protein
1359	 60.42	0	1452527..1453774	-	415	150396587	-	Smed_1373	-	threonine dehydratase
1360	 58.21	-1	1453934..1455388	+	484	150396588	-	Smed_1374	-	cation transporter
1361	 60.74	0	1455468..1456058	+	196	150396589	-	Smed_1375	-	hypothetical protein
1362	 53.85	-2	1456374..1456568	-	64	150396590	-	Smed_1376	-	hypothetical protein
1363	 57.99	-1	1456913..1457131	+	72	150396591	-	Smed_1377	-	putative signal peptide protein
1364	 62.92	0	1457247..1457486	+	79	150396592	-	Smed_1378	-	hypothetical protein
1365	 58.97	0	1457567..1457956	-	129	150396593	-	Smed_1379	-	DGPFAETKE family protein
1366	 61.46	0	1458118..1458405	-	95	150396594	-	Smed_1380	-	hypothetical protein
1367	 61.24	0	1458533..1458790	+	85	150396595	-	Smed_1381	-	hypothetical protein
1368	 55.71	-2	1458843..1459061	-	72	150396596	-	Smed_1382	-	hypothetical protein
1369	 60.91	0	1459146..1459388	-	80	150396597	-	Smed_1383	-	hypothetical protein
1370	 61.53	0	1459704..1460306	-	200	150396598	-	Smed_1384	-	TrpR binding protein WrbA
1371	 61.42	0	1460469..1461230	+	253	150396599	-	Smed_1385	-	molybdopterin binding domain-containing protein
1372	 59.44	0	1461420..1461917	+	165	150396600	-	Smed_1386	-	xanthine-guanine phosphoribosyltransferase
1373	 64.70	+1	1461949..1463421	-	490	150396601	-	Smed_1387	-	carbohydrate kinase, YjeF related protein
1374	 56.93	-1	1463770..1464108	+	112	150396602	-	Smed_1388	-	nitrogen regulatory protein P-II
1375	 58.51	-1	1464190..1465599	+	469	150396603	-	Smed_1389	-	glutamine synthetase, type I
1376	 55.45	-2	1465780..1466109	+	109	150396604	-	Smed_1390	-	hemimethylated DNA binding protein
1377	 61.15	0	1466267..1467046	-	259	150396605	-	Smed_1391	-	ABC transporter related
1378	 64.05	0	1467056..1468087	-	343	150396606	-	Smed_1392	-	transport system permease protein
1379	 65.28	+1	1468087..1469094	-	335	150396607	-	Smed_1393	-	transport system permease protein
1380	 60.36	0	1469115..1470113	-	332	150396608	-	Smed_1394	-	periplasmic binding protein
1381	 60.04	0	1470631..1471521	+	296	150396609	-	Smed_1395	-	LysR family transcriptional regulator
1382	 60.00	0	1471600..1472229	-	209	150396610	-	Smed_1396	-	invasion associated locus B family protein
1383	 59.25	0	1472542..1474362	+	606	150396611	-	Smed_1397	-	extracellular solute-binding protein
1384	 60.66	0	1474445..1475110	+	221	150396612	-	Smed_1398	-	DSBA oxidoreductase
1385	 62.77	0	1475152..1478667	-	1171	150396613	-	Smed_1399	-	transcription-repair coupling factor
1386	 61.54	0	1478664..1478975	-	103	150396614	-	Smed_1400	-	hypothetical protein
1387	 64.48	0	1479092..1481197	+	701	150396615	-	Smed_1401	-	ATP-dependent DNA helicase RecG
1388	 58.01	-1	1481214..1481906	-	230	150396616	-	Smed_1402	-	hypothetical protein
1389	 62.25	0	1481925..1482422	-	165	150396617	-	Smed_1403	-	GCN5-related N-acetyltransferase
1390	 61.30	0	1482419..1484245	-	608	150396618	-	Smed_1404	-	D-fructose-6-phosphate amidotransferase
1391	 64.04	0	1484423..1485793	-	456	150396619	-	Smed_1405	-	nucleotidyl transferase
1392	 62.78	0	1485961..1487607	-	548	150396620	-	Smed_1406	-	sodium-dependent inorganic phosphate (Pi) transporter
1393	 63.07	0	1487958..1489850	+	630	150396621	-	Smed_1407	-	putative peptidyl-prolyl cis-trans isomerase protein
1394	 64.60	+1	1489869..1490882	+	337	150396622	trpD	Smed_1408	-	anthranilate phosphoribosyltransferase
1395	 61.15	0	1490892..1491707	+	271	150396623	trpC	Smed_1409	-	indole-3-glycerol-phosphate synthase
1396	 63.23	0	1491707..1492201	+	164	150396624	moaC	Smed_1410	-	molybdenum cofactor biosynthesis protein C
1397	 62.41	0	1492201..1493421	+	406	150396625	-	Smed_1411	-	molybdenum cofactor synthesis domain-containing protein
1398	 64.43	0	1493423..1494004	-	193	150396626	-	Smed_1412	-	hypothetical protein
1399	 57.85	-1	1494057..1495349	-	430	150396627	-	Smed_1413	-	hypothetical protein
1400	 61.62	0	1495463..1496215	-	250	150396628	-	Smed_1414	-	GntR domain-containing protein
1401	 59.76	0	1496470..1497540	-	356	150396629	-	Smed_1415	-	basic membrane lipoprotein
1402	 62.32	0	1497581..1498501	-	306	150396630	-	Smed_1416	-	inner-membrane translocator
1403	 60.64	0	1498501..1499595	-	364	150396631	-	Smed_1417	-	inner-membrane translocator
1404	 63.30	0	1499585..1501219	-	544	150396632	-	Smed_1418	-	ABC transporter related
1405	 60.63	0	1501266..1502243	-	325	150396633	-	Smed_1419	-	alcohol dehydrogenase
1406	 56.47	-1	1502278..1503003	-	241	150396634	-	Smed_1420	-	phosphatidylcholine synthase
1407	 62.71	0	1503409..1504620	+	403	150396635	-	Smed_1421	-	2-octaprenyl-6-methoxyphenyl hydroxylase
1408	 61.27	0	1504588..1505550	-	320	150396636	-	Smed_1422	-	auxin efflux carrier
1409	 60.62	0	1505580..1506323	-	247	150396637	-	Smed_1423	-	cytochrome c biogenesis protein transmembrane region
1410	 55.97	-2	1506918..1507964	+	348	150396638	-	Smed_1424	-	FkbM family methyltransferase
1411	 54.92	-2	1507976..1508239	+	87	150396639	-	Smed_1425	-	hypothetical protein
1412	 59.10	0	1508358..1509242	+	294	150396640	-	Smed_1426	-	Ku family containing protein
1413	 57.35	-1	1509255..1510070	+	271	150396641	-	Smed_1427	-	Ku family containing protein
1414	 55.59	-2	1510331..1511188	+	285	150396642	-	Smed_1428	-	methyltransferase type 12
1415	 56.00	-2	1511280..1511579	-	99	150396643	-	Smed_1429	-	putative signal peptide protein
1416	 64.68	+1	1511807..1512208	+	133	150396644	-	Smed_1430	-	hypothetical protein
1417	 62.50	0	1513078..1513485	+	135	150396645	-	Smed_1431	-	hypothetical protein
1418	 60.00	0	1513720..1514034	+	104	150396646	-	Smed_1432	-	hypothetical protein
1419	 62.38	0	1514091..1515116	-	341	150396647	-	Smed_1433	-	AraC family transcriptional regulator
1420	 62.35	0	1515373..1516020	+	215	150396648	-	Smed_1434	-	porin
1421	 59.09	0	1516243..1516506	+	87	150396649	-	Smed_1435	-	putative signal peptide protein
1422	 61.29	0	1516552..1517406	-	284	150396650	-	Smed_1436	-	hypothetical protein
1423	 61.62	0	1517409..1518161	-	250	150396651	-	Smed_1437	-	short-chain dehydrogenase/reductase SDR
1424	 61.64	0	1518158..1519807	-	549	150396652	-	Smed_1438	-	acyl-CoA synthetase
1425	 61.71	0	1519804..1520973	-	389	150396653	-	Smed_1439	-	acetyl-CoA acetyltransferase
1426	 64.43	0	1520970..1521818	-	282	150396654	-	Smed_1440	-	regulatory protein IclR
1427	 62.81	0	1521822..1522625	-	267	150396655	-	Smed_1441	-	short-chain dehydrogenase/reductase SDR
1428	 59.45	0	1522726..1523736	-	336	150396656	-	Smed_1442	-	TRAP dicarboxylate transporter, DctP subunit
1429	 61.69	0	1523785..1525653	-	622	150396657	-	Smed_1443	-	TRAP C4-dicarboxylate transport system permease DctM subunit
1430	 56.75	-1	1526132..1526383	+	83	150396658	-	Smed_1444	-	hypothetical protein
1431	 54.90	-2	1527008..1527313	+	101	150396659	-	Smed_1445	-	hypothetical protein
1432	 57.84	-1	1527731..1528036	-	101	150396660	-	Smed_1447	-	ETC complex I subunit region
61.69	MEAN

2.82	STD DEV
