IslandPath Analysis: Sinorhizobium medicae WSM419

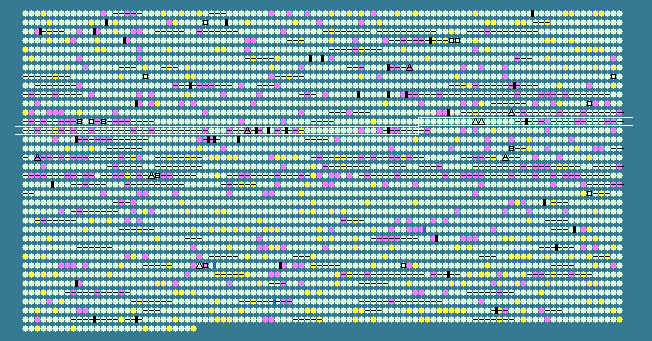

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1267	 60.31	0	1370954..1371346	-	130	150396495	-	Smed_1277	-	glutathione-dependent formaldehyde-activating GFA
1268	 63.42	0	1371613..1373427	+	604	150396496	-	Smed_1278	-	hypothetical protein
1269	 63.13	0	1373424..1374722	+	432	150396497	-	Smed_1279	-	type III effector Hrp-dependent outers
1270	 61.29	0	1374953..1375714	+	253	150396498	-	Smed_1280	-	protein of unknown function DUF899 thioredoxin family protein
1271	 60.22	0	1375786..1377414	-	542	150396499	groEL	Smed_1281	-	chaperonin GroEL
1272	 59.37	0	1377460..1377774	-	104	150396500	-	Smed_1282	-	chaperonin Cpn10
1273	 58.61	-1	1378047..1378319	+	90	150396501	-	Smed_1283	-	Usg family protein
1274	 59.45	0	1378416..1378706	+	96	150396502	-	Smed_1284	-	hypothetical protein
1275	 62.94	0	1378802..1380895	-	697	150396503	-	Smed_1285	-	NADH:flavin oxidoreductase/NADH oxidase
1276	 61.43	0	1381534..1382907	-	457	150396504	-	Smed_1286	-	integrase catalytic region
1277	 59.88	0	1383033..1384034	-	333	150396505	-	Smed_1287	-	integrase catalytic region
1278	 60.47	0	1384194..1385048	-	284	150396506	-	Smed_1288	-	beta-lactamase domain-containing protein
1279	 58.85	-1	1385052..1385831	-	259	150396507	-	Smed_1289	-	TatD family hydrolase
1280	 61.19	0	1385846..1387396	-	516	150396508	-	Smed_1290	-	methionyl-tRNA synthetase
1281	 63.18	0	1387600..1388631	-	343	150396509	-	Smed_1291	-	DNA polymerase III subunit delta'
1282	 62.13	0	1388628..1389332	-	234	150396510	-	Smed_1292	-	dTMP kinase
1283	 61.13	0	1389390..1390544	-	384	150396511	-	Smed_1293	-	Serine-type D-Ala-D-Ala carboxypeptidase
1284	 61.19	0	1390601..1391641	-	346	150396512	-	Smed_1294	-	rare lipoprotein A
1285	 58.22	-1	1392328..1392552	+	74	150396513	-	Smed_1295	-	hypothetical protein
1286	 62.60	0	1392610..1392855	+	81	150396514	-	Smed_1296	-	hypothetical protein
1287	 55.96	-2	1393030..1393356	-	108	150396515	-	Smed_1297	-	hypothetical protein
1288	 56.78	-1	1393439..1393711	+	90	150396516	-	Smed_1298	-	hypothetical protein
1289	 58.50	-1	1393900..1395969	+	689	150396517	-	Smed_1299	-	hypothetical protein
1290	 58.41	-1	1395969..1396283	+	104	150396518	-	Smed_1300	-	hypothetical protein
1291	 62.07	0	1396280..1396540	+	86	150396519	-	Smed_1301	-	hypothetical protein
1292	 58.26	-1	1396640..1396972	+	110	150396520	-	Smed_1302	-	hypothetical protein
1293	 43.59	-2	1397015..1397209	+	64	150396521	-	Smed_1303	-	hypothetical protein
1294	 47.52	-2	1397300..1397743	+	147	150396522	-	Smed_1304	-	hypothetical protein
1295	 62.69	0	1397752..1398783	-	343	150396523	-	Smed_1305	-	DNA polymerase LigD ligase region
1296	 61.37	0	1398855..1399307	+	150	150396524	-	Smed_1306	-	hypothetical protein
1297	 62.96	0	1399300..1399515	+	71	150396525	-	Smed_1307	-	hypothetical protein
1298	 54.98	-2	1400014..1400646	-	210	150396526	-	Smed_1308	-	hypothetical protein
1299	 52.74	-2	1400801..1401037	+	78	150396527	-	Smed_1309	-	hypothetical protein
1300	 58.42	-1	1401717..1402007	-	96	150396528	-	Smed_1310	-	hypothetical protein
1301	 58.27	-1	1402004..1402408	-	134	150396529	-	Smed_1311	-	hypothetical protein
1302	 63.42	0	1402405..1403328	-	307	150396530	-	Smed_1312	-	peptidoglycan binding domain-containing protein
1303	 52.00	-2	1403501..1404400	-	299	150396531	-	Smed_1313	-	hypothetical protein
1304	 59.36	0	1404562..1407012	-	816	150396532	-	Smed_1314	-	hypothetical protein
1305	 61.02	0	1407085..1409193	-	702	150396533	-	Smed_1315	-	hypothetical protein
1306	 65.73	+1	1409194..1409514	-	106	150396534	-	Smed_1316	-	hypothetical protein
1307	 57.10	-1	1409663..1410268	+	201	150396535	-	Smed_1317	-	hypothetical protein
1308	 58.90	0	1410293..1410730	-	145	150396536	-	Smed_1318	-	hypothetical protein
1309	 57.22	-1	1410720..1410899	-	59	150396537	-	Smed_1319	-	hypothetical protein
1310	 60.71	0	1410909..1411613	-	234	150396538	-	Smed_1320	-	hypothetical protein
1311	 59.96	0	1411610..1413892	-	760	150396539	-	Smed_1321	-	phage tape measure protein
1312	 53.82	-2	1413969..1414256	+	95	150396540	-	Smed_1322	-	hypothetical protein
1313	 62.46	0	1414468..1414824	-	118	150396541	-	Smed_1323	-	hypothetical protein
1314	 61.42	0	1414824..1415261	-	145	150396542	-	Smed_1324	-	hypothetical protein
1315	 58.99	0	1415302..1415718	-	138	150396543	-	Smed_1325	-	gene transfer agent
1316	 58.39	-1	1415718..1416200	-	160	150396544	-	Smed_1326	-	HK97 family phage protein
1317	 59.54	0	1416197..1416547	-	116	150396545	-	Smed_1327	-	phage head-tail adaptor, putative
1318	 59.12	0	1416698..1417108	-	136	150396546	-	Smed_1328	-	hypothetical protein
1319	 55.44	-2	1417110..1417403	-	97	150396547	-	Smed_1329	-	hypothetical protein
1320	 63.00	0	1417413..1418750	-	445	150396548	-	Smed_1330	-	hypothetical protein
1321	 60.88	0	1418754..1419116	-	120	150396549	-	Smed_1331	-	hypothetical protein
1322	 55.32	-2	1419135..1419707	-	190	150396550	-	Smed_1332	-	phiE125 gp8 hypothetical protein
1323	 60.00	0	1419923..1420312	-	129	150396551	-	Smed_1333	-	hypothetical protein
1324	 59.14	0	1420375..1421649	-	424	150396552	-	Smed_1334	-	HK97 family phage major capsid protein
1325	 58.74	-1	1421695..1422426	-	243	150396553	-	Smed_1335	-	HK97 family phage prohead protease
1326	 58.45	-1	1422413..1423666	-	417	150396554	-	Smed_1336	-	HK97 family phage portal protein
1327	 59.62	0	1423684..1425159	-	491	150396555	-	Smed_1337	-	phage terminase
1328	 60.72	0	1425279..1425749	-	156	150396556	-	Smed_1338	-	P27 family phage terminase small subunit
1329	 61.99	0	1425862..1426203	-	113	150396557	-	Smed_1339	-	hypothetical protein
1330	 59.56	0	1426220..1426402	+	60	150396558	-	Smed_1340	-	hypothetical protein
1331	 52.56	-2	1426425..1426658	+	77	150396559	-	Smed_1341	-	hypothetical protein
1332	 60.21	0	1426890..1428050	-	386	150396560	-	Smed_1342	-	hypothetical protein
1333	 58.96	0	1428051..1428452	-	133	150396561	-	Smed_1343	-	hypothetical protein
1334	 58.41	-1	1428449..1428763	-	104	150396562	-	Smed_1344	-	hypothetical protein
1335	 52.78	-2	1428775..1428954	-	59	150396563	-	Smed_1345	-	hypothetical protein
1336	 59.91	0	1429222..1431603	-	793	150396564	-	Smed_1346	-	hypothetical protein
1337	 60.22	0	1431835..1432020	-	61	150396565	-	Smed_1347	-	hypothetical protein
1338	 57.40	-1	1432667..1433842	-	391	150396566	-	Smed_1348	-	phage integrase family protein
1339	 59.30	0	1434625..1434909	+	94	150396567	-	Smed_1351	-	hypothetical protein
1340	 54.55	-2	1435313..1435477	+	54	150396568	-	Smed_1352	-	hypothetical protein
1341	 59.14	0	1435710..1436426	+	238	150396569	-	Smed_1353	-	LexA repressor
1342	 62.96	0	1436794..1437873	-	359	150396570	-	Smed_1354	-	hypothetical protein
1343	 57.06	-1	1438134..1438487	+	117	150396571	-	Smed_1355	-	putative transmembrane protein
1344	 59.19	0	1438523..1438843	-	106	150396572	-	Smed_1356	-	hypothetical protein
1345	 60.11	0	1439107..1439457	-	116	150396573	-	Smed_1357	-	hypothetical protein
1346	 56.73	-1	1439512..1441575	+	687	150396574	-	Smed_1358	-	beta-lactamase domain-containing protein
1347	 67.20	+1	1441636..1442199	-	187	150396575	-	Smed_1359	-	hypothetical protein
1348	 58.55	-1	1442494..1442838	+	114	150396576	-	Smed_1360	-	small multidrug resistance protein
1349	 62.08	0	1442835..1443161	+	108	150396577	-	Smed_1361	-	small multidrug resistance protein
1350	 61.37	0	1443149..1443997	-	282	150396578	-	Smed_1362	-	short-chain dehydrogenase/reductase SDR
1351	 61.38	0	1444310..1445350	+	346	150396579	-	Smed_1363	-	cysteine synthase A
1352	 58.53	-1	1445358..1446107	+	249	150396580	-	Smed_1364	-	threonyl/alanyl tRNA synthetase SAD
1353	 61.23	0	1446142..1447005	+	287	150396581	-	Smed_1365	-	rhodanese domain-containing protein
1354	 58.87	0	1447011..1447574	+	187	150396582	-	Smed_1366	-	GCN5-related N-acetyltransferase
1355	 59.62	0	1447689..1448156	+	155	150396583	-	Smed_1367	-	hypothetical protein
1356	 64.08	0	1448206..1449324	-	372	150396584	-	Smed_1368	-	alanine dehydrogenase
1357	 56.49	-1	1449480..1449941	+	153	150396585	-	Smed_1369	-	AsnC family transcriptional regulator
1358	 58.88	0	1452142..1452462	-	106	150396586	-	Smed_1372	-	hypothetical protein
1359	 60.42	0	1452527..1453774	-	415	150396587	-	Smed_1373	-	threonine dehydratase
1360	 58.21	-1	1453934..1455388	+	484	150396588	-	Smed_1374	-	cation transporter
1361	 60.74	0	1455468..1456058	+	196	150396589	-	Smed_1375	-	hypothetical protein
1362	 53.85	-2	1456374..1456568	-	64	150396590	-	Smed_1376	-	hypothetical protein
1363	 57.99	-1	1456913..1457131	+	72	150396591	-	Smed_1377	-	putative signal peptide protein
1364	 62.92	0	1457247..1457486	+	79	150396592	-	Smed_1378	-	hypothetical protein
1365	 58.97	0	1457567..1457956	-	129	150396593	-	Smed_1379	-	DGPFAETKE family protein
1366	 61.46	0	1458118..1458405	-	95	150396594	-	Smed_1380	-	hypothetical protein
61.69	MEAN

2.82	STD DEV
