IslandPathversion 1.0

IslandPath Analysis: Sinorhizobium medicae WSM419

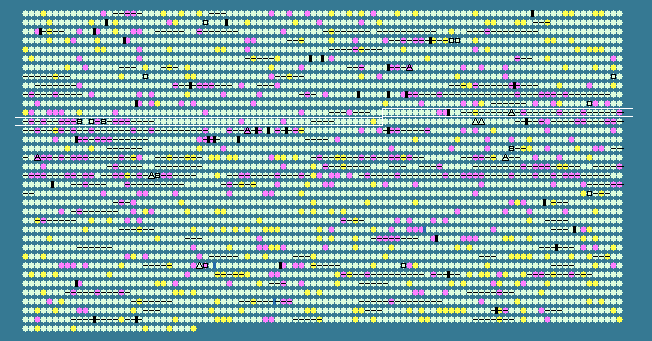

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.69 STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1161	 60.68	0	1246741..1247391	+	216	150396389	-	Smed_1170	-	biotin-regulated protein
1162	 63.99	0	1247627..1249156	+	509	150396390	-	Smed_1171	-	peptidase M23B
1163	 60.16	0	1249560..1250435	-	291	150396391	-	Smed_1172	-	hypothetical protein
1164	 60.36	0	1250772..1251104	+	110	150396392	-	Smed_1173	-	preprotein translocase, YajC subunit
1165	 61.04	0	1251265..1253841	+	858	150396393	-	Smed_1174	-	bifunctional preprotein translocase subunit SecD/SecF
1166	 65.12	+1	1253844..1254230	+	128	150396394	-	Smed_1175	-	hypothetical protein
1167	 62.63	0	1254252..1255094	+	280	150396395	-	Smed_1176	-	putative phytoene synthase protein
1168	 59.43	0	1255176..1255631	+	151	150396396	-	Smed_1177	-	hypothetical protein
1169	 62.44	0	1255641..1257083	-	480	150396397	-	Smed_1178	-	tRNA (uracil-5-)-methyltransferase Gid
1170	 56.94	-1	1257175..1257318	-	47	150396398	-	Smed_1179	-	hypothetical protein
1171	 54.73	-2	1257614..1257814	-	66	150396399	-	Smed_1180	-	hypothetical protein
1172	 59.62	0	1259019..1260494	+	491	150396400	tig	Smed_1181	-	trigger factor
1173	 62.58	0	1260884..1263748	-	954	150396401	-	Smed_1182	-	glycine dehydrogenase
1174	 61.71	0	1263748..1264110	-	120	150396402	-	Smed_1183	-	glycine cleavage system protein H
1175	 62.46	0	1264127..1265266	-	379	150396403	-	Smed_1184	-	glycine cleavage system aminomethyltransferase T
1176	 66.16	+1	1265651..1266043	+	130	150396404	-	Smed_1185	-	hypothetical protein
1177	 62.20	0	1266132..1267115	+	327	150396405	-	Smed_1186	-	hypothetical protein
1178	 61.75	0	1267210..1267575	-	121	150396406	-	Smed_1187	-	hypothetical protein
1179	 60.49	0	1268674..1268835	-	53	150396407	-	Smed_1188	-	hypothetical protein
1180	 58.24	-1	1270069..1271907	-	612	150396408	-	Smed_1190	-	hypothetical protein
1181	 62.88	0	1271904..1272986	-	360	150396409	-	Smed_1191	-	hypothetical protein
1182	 60.28	0	1273004..1275226	-	740	150396410	-	Smed_1192	-	integrase, catalytic region
1183	 61.98	0	1275242..1275967	-	241	150396411	-	Smed_1193	-	hypothetical protein
1184	 56.32	-1	1275930..1276103	-	57	150396412	-	Smed_1194	-	hypothetical protein
1185	 59.70	0	1276181..1276582	-	133	150396413	-	Smed_1195	-	hypothetical protein
1186	 62.26	0	1277378..1278058	+	226	150396414	-	Smed_1196	-	hypothetical protein
1187	 58.51	-1	1278066..1278629	-	187	150396415	-	Smed_1197	-	PilT domain-containing protein
1188	 60.36	0	1279081..1280253	-	390	150396416	-	Smed_1198	-	hypothetical protein
1189	 58.99	0	1280261..1280677	-	138	150396417	-	Smed_1199	-	MerR family transcriptional regulator
1190	 53.70	-2	1280952..1281113	+	53	150396418	-	Smed_1200	-	hypothetical protein
1191	 60.13	0	1281258..1281884	+	208	150396419	-	Smed_1201	-	hypothetical protein
1192	 60.46	0	1281895..1283778	+	627	150396420	-	Smed_1202	-	ATPase central domain-containing protein
1193	 61.36	0	1283788..1283919	+	43	150396421	-	Smed_1203	-	hypothetical protein
1194	 55.76	-2	1284179..1284985	+	268	150396422	-	Smed_1204	-	hypothetical protein
1195	 62.19	0	1285540..1287438	-	632	150396423	-	Smed_1205	-	DNA-cytosine methyltransferase
1196	 61.23	0	1287909..1289048	+	379	150396424	-	Smed_1206	-	hypothetical protein
1197	 60.24	0	1289077..1291845	-	922	150396425	-	Smed_1207	-	transcriptional regulator
1198	 63.53	0	1292044..1292457	+	137	150396426	-	Smed_1208	-	hypothetical protein
1199	 58.67	-1	1292493..1293305	+	270	150396427	-	Smed_1209	-	short chain dehydrogenase
1200	 57.74	-1	1293387..1293890	+	167	150396428	-	Smed_1210	-	ketosteroid isomerase-like protein
1201	 61.09	0	1293918..1294742	+	274	150396429	-	Smed_1211	-	short-chain dehydrogenase/reductase SDR
1202	 56.90	-1	1294901..1296712	+	603	150396430	-	Smed_1212	-	potassium efflux system protein
1203	 58.80	-1	1296732..1297913	+	393	150396431	-	Smed_1213	-	aminotransferase class V
1204	 55.41	-2	1298010..1298720	+	236	150396432	-	Smed_1214	-	ChaC family protein
1205	 60.35	0	1298896..1299180	-	94	150396433	-	Smed_1215	-	hypothetical protein
1206	 58.56	-1	1300036..1300911	-	291	150396434	-	Smed_1216	-	metallophosphoesterase
1207	 53.99	-2	1301015..1301653	-	212	150396435	-	Smed_1217	-	hypothetical protein
1208	 53.95	-2	1301676..1301966	-	96	150396436	-	Smed_1218	-	hypothetical protein
1209	 56.48	-1	1301983..1303857	-	624	150396437	-	Smed_1219	-	hypothetical protein
1210	 64.12	0	1303876..1304346	+	156	150396438	-	Smed_1220	-	transposase IS3/IS911 family protein
1211	 59.66	0	1304343..1304699	+	118	150396439	-	Smed_1221	-	IS66 Orf2 family protein
1212	 63.65	0	1304748..1305509	+	253	150396440	-	Smed_1222	-	transposase IS66
1213	 56.11	-1	1306022..1307281	+	419	150396441	-	Smed_1223	-	RNA-directed DNA polymerase (Reverse transcriptase)
1214	 61.40	0	1307335..1308207	+	290	150396442	-	Smed_1224	-	transposase IS66
1215	 58.87	0	1308204..1308767	+	187	150396443	-	Smed_1225	-	yecA family protein
1216	 56.06	-1	1308825..1308956	-	43	150396444	-	Smed_1226	-	hypothetical protein
1217	 56.70	-1	1308943..1309464	-	173	150396445	-	Smed_1227	-	hypothetical protein
1218	 53.61	-2	1309461..1310042	-	193	150396446	-	Smed_1228	-	hypothetical protein
1219	 59.93	0	1310585..1311133	-	182	150396447	-	Smed_1229	-	hypothetical protein
1220	 59.70	0	1311269..1312345	-	358	150396448	-	Smed_1230	-	patatin
1221	 59.55	0	1312302..1312793	-	163	150396449	-	Smed_1231	-	hypothetical protein
1222	 59.33	0	1312774..1314096	-	440	150396450	-	Smed_1232	-	hypothetical protein
1223	 62.50	0	1314286..1318077	-	1263	150396451	-	Smed_1233	-	ribonucleotide-diphosphate reductase subunit alpha
1224	 60.32	0	1318778..1319581	-	267	150396452	-	Smed_1234	-	hypothetical protein
1225	 62.42	0	1319713..1322634	-	973	150396453	uvrA	Smed_1235	-	excinuclease ABC subunit A
1226	 61.21	0	1322921..1323433	+	170	150396454	-	Smed_1236	-	single-strand DNA-binding protein
1227	 63.39	0	1323506..1325914	-	802	150396455	-	Smed_1237	-	TPR repeat-containing protein
1228	 59.76	0	1325958..1326971	-	337	150396456	-	Smed_1238	-	NapD-like protein
1229	 60.30	0	1327067..1328731	-	554	150396457	-	Smed_1239	-	sulfatase
1230	 61.59	0	1329065..1329694	-	209	150396458	-	Smed_1240	-	multiple antibiotic resistance (MarC)-related protein
1231	 62.63	0	1329990..1332785	+	931	150396459	-	Smed_1241	-	DNA gyrase subunit A
1232	 59.98	0	1332956..1333942	-	328	150396460	-	Smed_1242	-	lytic transglycosylase catalytic
1233	 60.98	0	1334015..1334524	-	169	150396461	-	Smed_1243	-	GCN5-related N-acetyltransferase
1234	 62.88	0	1334560..1335378	-	272	150396462	-	Smed_1244	-	aminoglycoside/hydroxyurea antibiotic resistance kinase
1235	 62.75	0	1335436..1336557	-	373	150396463	-	Smed_1245	-	NADH:flavin oxidoreductase/NADH oxidase
1236	 59.79	0	1336608..1336898	-	96	150396464	-	Smed_1246	-	regulatory protein ArsR
1237	 57.64	-1	1337537..1338433	-	298	150396465	-	Smed_1247	-	LysR family transcriptional regulator
1238	 60.62	0	1338665..1339639	-	324	150396466	-	Smed_1248	-	thioredoxin reductase
1239	 59.24	0	1340078..1340548	+	156	150396467	-	Smed_1249	-	AsnC family transcriptional regulator
1240	 59.41	0	1340646..1341458	+	270	150396468	-	Smed_1250	-	glycosyl transferase family protein
1241	 59.01	0	1341477..1342508	+	343	150396469	-	Smed_1251	-	phosphatidylserine decarboxylase
1242	 60.70	0	1342505..1343527	+	340	150396470	-	Smed_1252	-	phosphatidylserine decarboxylase
1243	 63.64	0	1343557..1344612	-	351	150396471	-	Smed_1253	-	glycosyl transferase group 1
1244	 58.07	-1	1344698..1345174	-	158	150396472	greA	Smed_1254	-	transcription elongation factor GreA
1245	 62.61	0	1345464..1346942	+	492	150396473	-	Smed_1255	-	major facilitator transporter
1246	 60.90	0	1346887..1347198	-	103	150396474	-	Smed_1256	-	hypothetical protein
1247	 62.40	0	1347330..1350821	-	1163	150396475	carB	Smed_1257	-	carbamoyl phosphate synthase large subunit
1248	 64.54	+1	1351031..1352065	-	344	150396476	-	Smed_1258	-	alcohol dehydrogenase
1249	 62.07	0	1352284..1353219	+	311	150396477	-	Smed_1259	-	protein of unknown function zinc metallopeptidase putative
1250	 62.36	0	1353263..1354261	-	332	150396478	-	Smed_1260	-	aldo/keto reductase
1251	 63.81	0	1354379..1355287	+	302	150396479	-	Smed_1261	-	LysR family transcriptional regulator
1252	 60.43	0	1355444..1356709	+	421	150396480	-	Smed_1262	-	major facilitator transporter
1253	 61.32	0	1356867..1358270	+	467	150396481	-	Smed_1263	-	MATE efflux family protein
1254	 60.44	0	1358823..1359368	+	181	150396482	coaD	Smed_1264	-	phosphopantetheine adenylyltransferase
1255	 60.91	0	1359393..1359983	+	196	150396483	-	Smed_1265	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1256	 60.59	0	1360008..1360517	+	169	150396484	-	Smed_1266	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
1257	 62.70	0	1360595..1361677	+	360	150396485	queA	Smed_1267	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1258	 62.51	0	1361678..1362808	+	376	150396486	tgt	Smed_1268	-	queuine tRNA-ribosyltransferase
1259	 65.65	+1	1362916..1363800	-	294	150396487	-	Smed_1269	-	short-chain dehydrogenase/reductase SDR
1260	 61.96	0	1363797..1364582	-	261	150396488	-	Smed_1270	-	hypothetical protein
61.69	MEAN

2.82	STD DEV
