IslandPath Analysis: Shigella sonnei Ss046

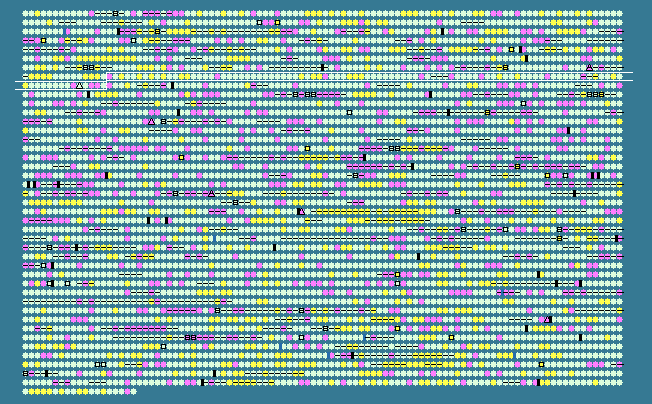

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
715	 42.58	-2	809879..810592	+	237	74311331	ybhM	SSON_0766	-	hypothetical protein
716	 54.91	0	811368..812609	-	413	74311332	ybhO	SSON_0768	-	cardiolipin synthase 2
717	 55.51	0	812606..813367	-	253	74311333	ybhP	SSON_0769	-	hypothetical protein
718	 54.50	0	813500..813910	+	136	74311334	ybhQ	SSON_0770	-	hypothetical protein
719	 52.39	0	813872..814978	-	368	74311335	ybhR	SSON_0771	-	hypothetical protein
720	 55.29	0	814989..816122	-	377	74311336	ybhS	SSON_0772	-	hypothetical protein
721	 54.92	0	816115..817851	-	578	74311337	ybhF	SSON_0773	-	putative ATP-binding component of a transport system
722	 57.56	+1	817844..818842	-	332	74311338	-	SSON_0774	-	hypothetical protein
723	 54.39	0	818842..819525	-	227	74311339	ybiH	SSON_0775	-	putative DNA-binding transcriptional regulator
724	 56.63	+1	819742..821106	+	454	74311340	rhlE	SSON_0776	-	ATP-dependent RNA helicase RhlE
725	 49.48	0	821338..821820	-	160	74311341	ybiA	SSON_0777	-	hypothetical protein
726	 54.25	0	821940..824090	+	716	74311342	dinG	SSON_0778	-	ATP-dependent DNA helicase DinG
727	 55.45	0	824118..825080	+	320	74311343	ybiB	SSON_0779	-	hypothetical protein
728	 55.52	0	825221..826306	+	361	74311344	ybiC	SSON_0780	-	hypothetical protein
729	 50.19	0	826535..826795	-	86	74311345	ybiJ	SSON_0781	-	hypothetical protein
730	 52.06	0	827060..827326	-	88
