IslandPath Analysis: Shigella sonnei Ss046

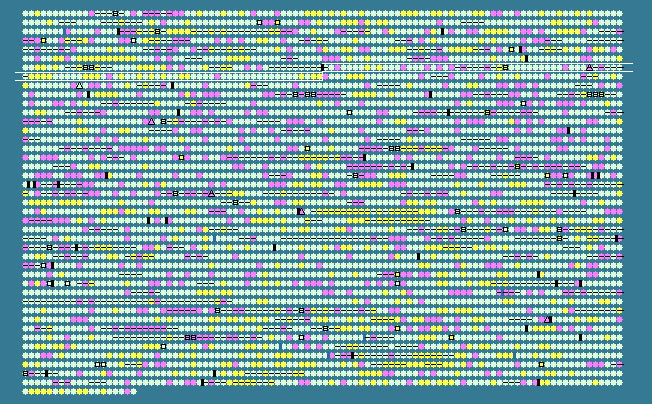

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
651	 53.03	0	742950..744122	+	390	74311267	-	SSON_0701	-	IS21 ORF1
652	 52.63	0	744122..744919	+	265	74311268	-	SSON_0702	-	IS21 ORF2
653	 48.06	0	745182..745901	+	239	74311269	pnuC	SSON_0703	-	required for NMN transport
654	 53.08	0	745898..746839	-	313	74311270	ybgR	SSON_0704	-	zinc transporter ZitB
655	 49.61	0	746953..747333	-	126	74311271	-	SSON_0705	-	putative homeobox protein
656	 51.47	0	747649..748701	+	350	74311272	aroG	SSON_0706	-	phospho-2-dehydro-3-deoxyheptonate aldolase
657	 51.26	0	748860..749612	-	250	74311273	gpmA	SSON_0707	-	phosphoglyceromutase 1
658	 55.52	0	749815..750855	-	346	74311274	galM	SSON_0708	-	aldose 1-epimerase
659	 52.83	0	750849..751997	-	382	74311275	galK	SSON_0709	-	galactokinase
660	 55.40	0	752001..753047	-	348	74311276	galT	SSON_0710	-	galactose-1-phosphate uridylyltransferase
661	 54.28	0	753057..754073	-	338	74311277	galE	SSON_0711	-	UDP-galactose-4-epimerase
662	 52.48	0	754334..755806	-	490	74311278	modF	SSON_0712	-	putative molybdenum transport ATP-binding protein ModF
663	 52.60	0	755874..756662	-	262	74311279	modE	SSON_0713	-	DNA-binding transcriptional regulator ModE
664	 41.33	-2	756791..756940	+	49	74311280	-	SSON_0714	-	hypothetical protein
665	 50.90	0	757106..757879	+	257	74311281	modA	SSON_0715	-	molybdate transporter periplasmic protein
666	 54.20	0	757879..758568	+	229	74311282	modB	SSON_0716	-	molybdate ABC transporter permease protein
667	 53.64	0	758571..759629	+	352	74311283	modC	SSON_0717	-	molybdate transporter ATP-binding protein
668	 46.53	-1	760456..760758	+	100	74311284	-	SSON_0718	-	IS600 ORF1
669	 52.10	0	760899..761612	+	237	74311285	-	SSON_0719	-	IS600 ORF2
670	 39.58	-2	762001..762288	-	95	74311286	rem	SSON_0720	-	hypothetical protein
671	 48.62	0	762921..763607	-	228	74311287	-	SSON_0721	-	hypothetical protein
672	 45.66	-1	763755..764111	-	118	74311288	-	SSON_0722	-	putative bacteriophage protein
673	 54.62	0	764606..765352	-	248	74311289	-	SSON_0723	-	putative replication protein
674	 46.20	-1	766100..766402	+	100	74311290	-	SSON_0725	-	IS600 ORF1
675	 51.96	0	766543..767256	+	237	74311291	-	SSON_0726	-	IS600 ORF2
676	 52.29	0	767484..767789	-	101	74311292	-	SSON_0727	-	putative bacteriophage protein
677	 48.72	0	768804..768959	+	51	74311293	-	SSON_0728	-	hypothetical protein
678	 46.20	-1	769036..769338	+	100	74311294	-	SSON_0729	-	IS600 ORF1
679	 54.64	0	769686..770525	-	279	74311295	-	SSON_0730	-	IS911 ORF2
680	 57.81	+1	771491..772687	-	398	74311296	-	SSON_0731	-	ISSfl2 ORF
681	 55.19	0	773134..774039	-	301	161986566	-	SSON_0732	-	insertion element IS2 transposase InsD
682	 48.80	0	774476..774973	+	165	74311298	-	SSON_0733	-	lysozyme-like protein
683	 52.65	0	774970..775440	+	156	74311299	-	SSON_0734	-	endopeptidase
684	 51.24	0	776236..777000	+	254	74311300	-	SSON_0735	-	putative bacteriophage protein
685	 48.59	0	776933..778354	+	473	74311301	-	SSON_0736	-	putative bacteriophage protein
686	 54.57	0	778738..779820	+	360	74311302	-	SSON_0737	-	putative bacteriophage protein
687	 53.81	0	780458..781678	+	406	74311303	-	SSON_0738	-	putative bacteriophage protein
688	 53.25	0	781682..782188	+	168	74311304	-	SSON_0739	-	putative bacteriophage protein
689	 54.37	0	782453..782956	+	167	74311305	-	SSON_0740	-	IS1 ORF
690	 54.52	0	783379..784374	+	331	74311306	ybhE	SSON_0741	-	6-phosphogluconolactonase
691	 44.84	-1	784415..785431	-	338	74311307	ybhD	SSON_0742	-	putative transcriptional regulator LYSR-type
692	 54.56	0	785584..786087	-	167	74311308	-	SSON_0743	-	IS1 ORF
693	 52.18	0	786323..788503	+	726	74311309	ybhJ	SSON_0744	-	putative enzyme
694	 53.43	0	788737..790020	-	427	74311310	ybhC	SSON_0745	-	putative pectinesterase
695	 45.02	-1	790155..790967	-	270	74311311	intE	SSON_0746	-	putative integrase fragment
696	 52.10	0	790995..791708	-	237	74311312	-	SSON_0747	-	IS600 ORF2
697	 46.20	-1	791849..792151	-	100	74311313	-	SSON_0748	-	IS600 ORF1
698	 53.43	0	792167..793420	+	417	74311314	-	SSON_0749	-	putative tail fiber protein
699	 53.37	0	793371..793994	+	207	74311315	-	SSON_0750	-	putative tail component of prophage
700	 50.17	0	794174..795937	-	587	74311316	ipaH_1	SSON_0751	-	invasion plasmid antigen
701	 52.41	0	796519..796995	-	158	74311317	ybhB	SSON_0752	-	putative kinase inhibitor protein
702	 56.20	+1	797054..798343	-	429	74311318	bioA	SSON_0753	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
703	 55.14	0	798430..799470	+	346	74311319	bioB	SSON_0754	-	biotin synthesis
704	 58.53	+1	799467..800621	+	384	74311320	bioF	SSON_0755	-	8-amino-7-oxononanoate synthase
705	 56.48	+1	800608..801363	+	251	74311321	bioC	SSON_0756	-	biotin biosynthesis protein BioC
706	 53.69	0	801356..802033	+	225	74311322	bioD	SSON_0757	-	dithiobiotin synthetase
707	 53.31	0	802612..804633	+	673	74311323	uvrB	SSON_0758	-	excinuclease ABC subunit B
708	 51.60	0	804825..805733	-	302	74311324	ybhK	SSON_0759	-	putative structural protein
709	 53.94	0	806130..807119	+	329	74311325	moaA	SSON_0760	-	molybdenum cofactor biosynthesis protein A
710	 52.44	0	807141..807653	+	170	74311326	moaB	SSON_0761	-	molybdopterin biosynthesis, protein B
711	 56.17	+1	807656..808141	+	161	74311327	moaC	SSON_0762	-	molybdenum cofactor biosynthesis protein C
712	 56.91	+1	808134..808379	+	81	74311328	moaD	SSON_0763	-	molybdopterin synthase small subunit
713	 57.40	+1	808381..808833	+	150	74311329	MoaE	SSON_0764	-	molybdopterin synthase large subunit
714	 48.51	0	808970..809674	+	234	74311330	ybhL	SSON_0765	-	hypothetical protein
715	 42.58	-2	809879..810592	+	237	74311331	ybhM	SSON_0766	-	hypothetical protein
716	 54.91	0	811368..812609	-	413	74311332	ybhO	SSON_0768	-	cardiolipin synthase 2
717	 55.51	0	812606..813367	-	253	74311333	ybhP	SSON_0769	-	hypothetical protein
718	 54.50	0	813500..813910	+	136	74311334	ybhQ	SSON_0770	-	hypothetical protein
719	 52.39	0	813872..814978	-	368	74311335	ybhR	SSON_0771	-	hypothetical protein
720	 55.29	0	814989..816122	-	377	74311336	ybhS	SSON_0772	-	hypothetical protein
721	 54.92	0	816115..817851	-	578	74311337	ybhF	SSON_0773	-	putative ATP-binding component of a transport system
722	 57.56	+1	817844..818842	-	332	74311338	-	SSON_0774	-	hypothetical protein
723	 54.39	0	818842..819525	-	227	74311339	ybiH	SSON_0775	-	putative DNA-binding transcriptional regulator
724	 56.63	+1	819742..821106	+	454	74311340	rhlE	SSON_0776	-	ATP-dependent RNA helicase RhlE
725	 49.48	0	821338..821820	-	160	74311341	ybiA	SSON_0777	-	hypothetical protein
726	 54.25	0	821940..824090	+	716	74311342	dinG	SSON_0778	-	ATP-dependent DNA helicase DinG
727	 55.45	0	824118..825080	+	320	74311343	ybiB	SSON_0779	-	hypothetical protein
728	 55.52	0	825221..826306	+	361	74311344	ybiC	SSON_0780	-	hypothetical protein
729	 50.19	0	826535..826795	-	86	74311345	ybiJ	SSON_0781	-	hypothetical protein
730	 52.06	0	827060..827326	-	88	74311346	ybiI	SSON_0782	-	hypothetical protein
731	 53.54	0	827400..828077	-	225	161986565	ybiX	SSON_0783	-	putative hydroxylase
732	 53.90	0	830122..831468	-	448	74311348	-	SSON_0784	-	IS4 orf
733	 46.42	-1	832104..832508	-	134	74311349	ybiM	SSON_0786	-	hypothetical protein
734	 53.57	0	832559..833566	+	335	74311350	ybiN	SSON_0787	-	putative SAM-dependent methyltransferase
735	 53.41	0	833563..835788	-	741	74311351	ybiO	SSON_0788	-	hypothetical protein
736	 53.94	0	835905..836627	-	240	74311352	glnQ	SSON_0789	-	glutamine ABC transporter ATP-binding protein
737	 53.33	0	836624..837283	-	219	74311353	glnP	SSON_0790	-	glutamine ABC transporter permease protein
738	 48.59	0	837422..838168	-	248	74311354	glnH	SSON_0791	-	glutamine ABC transporter periplasmic protein
739	 49.01	0	838572..839075	-	167	74311355	dps	SSON_0792	-	DNA starvation/stationary phase protection protein Dps
740	 53.60	0	839374..840261	-	295	74311356	ybiF	SSON_0793	-	threonine and homoserine efflux system
741	 51.55	0	840614..841129	+	171	74311357	ompX	SSON_0794	-	outer membrane protein X
742	 48.48	0	841178..842761	-	527	74311358	ybiP	SSON_0795	-	putative enzyme
743	 54.06	0	843347..843814	+	155	74311359	-	SSON_0796	-	manganese transport regulator MntR
744	 52.46	0	843811..844929	+	372	74311360	ybiR	SSON_0797	-	hypothetical protein
745	 53.31	0	844988..845908	-	306	74311361	ybiS	SSON_0798	-	hypothetical protein
746	 52.88	0	846127..847722	+	531	74311362	ybiT	SSON_0799	-	putative ATP-binding component of a transport system
747	 55.16	0	847902..850265	-	787	74311363	-	SSON_0800	-	putative glucosidase
748	 54.15	0	850280..851581	-	433	74311364	-	SSON_0801	-	putative hexuronate transporter
749	 57.43	+1	851876..852979	+	367	74311365	-	SSON_0802	-	putative transcriptional regulator
750	 55.69	0	852946..854211	-	421	74311366	ybiU	SSON_0803	-	hypothetical protein
51.65	MEAN

4.20	STD DEV
