IslandPath Analysis: Shigella sonnei Ss046

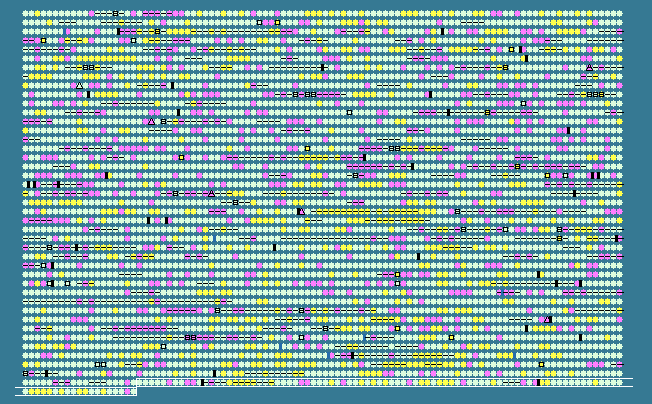

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4120	 54.05	0	4714389..4714832	-	147	74314738	holC	SSON_4444	-	DNA polymerase III subunit chi
4121	 54.56	0	4714966..4716477	-	503	74314739	pepA	SSON_4445	-	leucyl aminopeptidase
4122	 54.86	0	4716744..4717844	+	366	74314740	yjgP	SSON_4446	-	hypothetical protein
4123	 54.14	0	4717841..4718926	+	361	74314741	yjgQ	SSON_4447	-	hypothetical protein
4124	 53.16	0	4719045..4720547	-	500	74314742	yjgR	SSON_4448	-	hypothetical protein
4125	 47.28	-1	4720625..4721599	-	324	74314743	idnR	SSON_4449	-	L-idonate transcriptional regulator
4126	 50.53	0	4721666..4722985	-	439	74314744	idnT	SSON_4450	-	L-idonate transporter
4127	 49.41	0	4723050..4723814	-	254	74314745	idnO	SSON_4451	-	gluconate 5-dehydrogenase
4128	 47.29	-1	4723838..4724869	-	343	74314746	idnD	SSON_4452	-	L-idonate 5-dehydrogenase
4129	 43.97	-1	4725086..4725649	+	187	74314747	idnK	SSON_4453	-	D-gluconate kinase
4130	 55.08	0	4725653..4726714	-	353	74314748	yjgB	SSON_4454	-	putative oxidoreductase
4131	 51.96	0	4727686..4728399	-	237	74314749	-	SSON_4456	-	IS600 ORF2
4132	 46.53	-1	4728540..4728842	-	100	74314750	-	SSON_4457	-	IS600 ORF1
4133	 54.52	0	4729449..4730288	+	279	74314751	-	SSON_4458	-	IS911 ORF2
4134	 53.78	0	4730804..4731571	-	255	74314752	fecE	SSON_4459	-	iron-dicitrate transporter ATP-binding subunit
4135	 59.77	+1	4731572..4732528	-	318	74314753	fecD	SSON_4460	-	iron-dicitrate transporter subunit FecD
4136	 60.86	+2	4732525..4733523	-	332	74314754	fecC	SSON_4461	-	iron-dicitrate transporter permease subunit
4137	 57.54	+1	4733520..4734428	-	302	74314755	fecB	SSON_4462	-	iron-dicitrate transporter substrate-binding subunit
4138	 58.58	+1	4734467..4736791	-	774	74314756	fecA	SSON_4463	-	outer membrane receptor
4139	 59.01	+1	4736878..4737831	-	317	74314757	fecR	SSON_4464	-	fec operon regulator FecR
4140	 54.41	0	4737828..4738349	-	173	74314758	fecI	SSON_4465	-	RNA polymerase sigma factor FecI
4141	 52.54	0	4738641..4738916	+	91	74314759	insA	SSON_4466	-	IS1 ORF1
4142	 56.12	+1	4738835..4739128	+	97	74314760	-	SSON_4467	-	IS1 ORF
4143	 48.57	0	4739129..4739338	+	69	74314761	-	SSON_4468	-	IS1 ORF
4144	 54.37	0	4739626..4740129	+	167	74314762	-	SSON_4469	-	IS1 ORF
4145	 54.37	0	4741449..4741952	+	167	74314763	-	SSON_4470	-	IS1 ORF
4146	 48.42	0	4742199..4743179	-	326	74314764	yjhS	SSON_4471	-	hypothetical protein
4147	 43.54	-1	4743244..4744458	-	404	74314765	yjhT	SSON_4472	-	hypothetical protein
4148	 42.84	-2	4744370..4745095	-	241	74314766	yjhA	SSON_4473	-	hypothetical protein
4149	 52.91	0	4745945..4746976	+	343	74314767	-	SSON_4474	-	IS630 orf
4150	 54.17	0	4747419..4747922	+	167	74314768	-	SSON_4475	-	IS1 ORF
4151	 54.68	0	4749389..4750573	+	394	74314769	uxuA	SSON_4477	-	mannonate dehydratase
4152	 57.22	+1	4750654..4752114	+	486	74314770	uxuB	SSON_4478	-	D-mannonate oxidoreductase
4153	 53.10	0	4752329..4753102	+	257	74314771	uxuR	SSON_4479	-	DNA-binding transcriptional repressor UxuR
4154	 40.07	-2	4753243..4754073	-	276	74314772	yjiC	SSON_4480	-	hypothetical protein
4155	 54.17	0	4754214..4754717	-	167	74314773	-	SSON_4481	-	IS1 ORF
4156	 48.19	0	4754982..4755755	+	257	74314774	-	SSON_4482	-	hypothetical protein
4157	 57.73	+1	4755734..4756930	-	398	74314775	-	SSON_4483	-	ISSfl2 ORF
4158	 49.37	0	4757338..4758054	+	238	74314776	-	SSON_4484	-	hypothetical protein
4159	 55.44	0	4758132..4758986	-	284	74314777	yjiA	SSON_4485	-	putative GTP-binding protein YjiA
4160	 50.49	0	4759099..4759302	-	67	74314778	yjiX	SSON_4486	-	hypothetical protein
4161	 55.77	0	4759352..4761517	-	721	74314779	yjiY	SSON_4487	-	putative carbon starvation protein
4162	 54.39	0	4761895..4762407	-	170	74314780	hpaC	SSON_4488	-	4-hydroxyphenylacetate 3-monooxygenase coupling protein
4163	 54.38	0	4762425..4763987	-	520	74314781	hpaB	SSON_4489	-	4-hydroxyphenylacetate 3-monooxygenase
4164	 52.10	0	4764928..4765641	-	237	74314782	-	SSON_4490	-	IS600 ORF2
4165	 46.53	-1	4765782..4766084	-	100	74314783	-	SSON_4491	-	IS600 ORF1
4166	 54.10	0	4766405..4767781	-	458	74314784	hpaX	SSON_4493	-	putative 4-hydroxyphenylacetate permease
4167	 60.58	+2	4767956..4768744	-	262	74314785	hpaI	SSON_4494	-	2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase (HHED aldolase)
4168	 58.58	+1	4768755..4769558	-	267	74314786	hpaH	SSON_4495	-	2-oxo-hept-3-ene-1,7-dioate hydratase
4169	 54.59	0	4769669..4770049	-	126	74314787	hpaF	SSON_4496	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
4170	 55.16	0	4770059..4770910	-	283	74314788	hpaD	SSON_4497	-	homoprotocatechuate dyoxygenase
4171	 58.28	+1	4770912..4772378	-	488	74314789	hpaE	SSON_4498	-	5-carboxy-2-hydroxymuconate semialdehyde dehydrogenase
4172	 55.66	0	4772375..4773664	-	429	74314790	hpaG	SSON_4499	-	5-oxo-1,2,5-tricarboxilic-3-penten acid decarboxilase/isomerase
4173	 50.56	0	4773936..4774382	+	148	74314791	hpcR	SSON_4500	-	homoprotocatechuate degradative operon repressor
4174	 47.21	-1	4777771..4778577	-	268	74314792	yjjM	SSON_4503	-	hypothetical protein
4175	 50.87	0	4778809..4779846	+	345	74314793	yjjN	SSON_4504	-	putative oxidoreductase
4176	 52.09	0	4779985..4782276	-	763	161986380	mdoB	SSON_4505	-	phosphoglycerol transferase I
4177	 51.00	0	4782530..4783027	-	165	74314795	yjjA	SSON_4506	-	hypothetical protein
4178	 50.81	0	4783073..4783810	-	245	74314796	dnaC	SSON_4507	-	DNA replication protein DnaC
4179	 56.48	+1	4783813..4784352	-	179	74314797	dnaT	SSON_4508	-	primosomal protein I
4180	 48.93	0	4784460..4784786	-	108	74314798	yjjB	SSON_4509	-	hypothetical protein
4181	 51.44	0	4784924..4785757	-	277	74314799	yjjP	SSON_4510	-	putative structural protein
4182	 54.37	0	4786637..4787140	+	167	74314800	-	SSON_4511	-	IS1 ORF
4183	 53.33	0	4787533..4788162	-	209	74314801	-	SSON_4512	-	IS1 ORF
4184	 45.83	-1	4788566..4789189	+	207	161986379	bglJ	SSON_4513	-	DNA-binding transcriptional activator BglJ
4185	 53.23	0	4789227..4790015	-	262	74314803	fhuF	SSON_4514	-	ferric iron reductase involved in ferric hydroximate transport
4186	 44.83	-1	4790045..4790392	+	115	74314804	-	SSON_4515	-	putative inner membrane protein
4187	 55.33	0	4791257..4792288	-	343	74314805	rsmC	SSON_4521	-	16S ribosomal RNA m2G1207 methyltransferase
4188	 58.21	+1	4792391..4792804	+	137	74314806	holD	SSON_4522	-	DNA polymerase III subunit psi
4189	 51.90	0	4792773..4793219	+	148	74314807	rimI	SSON_4523	-	ribosomal-protein-alanine N-acetyltransferase
4190	 53.24	0	4793234..4793911	+	225	74314808	yjjG	SSON_4524	-	nucleotidase
4191	 53.65	0	4794002..4795591	+	529	74314809	prfC	SSON_4525	-	peptide chain release factor 3
4192	 51.82	0	4795984..4796589	+	201	74314810	osmY	SSON_4526	-	periplasmic protein
4193	 51.85	0	4796716..4796877	+	53	74314811	-	SSON_4527	-	hypothetical protein
4194	 53.82	0	4796999..4798072	+	357	74314812	yjjU	SSON_4528	-	hypothetical protein
4195	 55.04	0	4798069..4798851	+	260	74314813	yjjV	SSON_4529	-	putative deoxyribonuclease YjjV
4196	 55.32	0	4799367..4800230	-	287	74314814	yjjW	SSON_4530	-	putative activating enzyme
4197	 53.19	0	4800202..4801752	-	516	74314815	yjjI	SSON_4531	-	hypothetical protein
4198	 54.74	0	4802010..4802789	+	259	74314816	deoC	SSON_4532	-	deoxyribose-phosphate aldolase
4199	 54.80	0	4802916..4804238	+	440	74314817	deoA	SSON_4533	-	thymidine phosphorylase
4200	 54.00	0	4804290..4805513	+	407	74314818	deoB	SSON_4534	-	phosphopentomutase
4201	 52.78	0	4805593..4806312	+	239	74314819	deoD	SSON_4535	-	purine nucleoside phosphorylase
4202	 57.62	+1	4806768..4807784	-	338	74314820	lplA	SSON_4536	-	lipoate-protein ligase A
4203	 55.97	+1	4807812..4808456	-	214	74314821	smp	SSON_4537	-	hypothetical protein
4204	 56.04	+1	4808562..4809530	+	322	74314822	serB	SSON_4538	-	phosphoserine phosphatase
4205	 57.48	+1	4809579..4810961	+	460	74314823	sms	SSON_4539	-	DNA repair protein RadA
4206	 50.53	0	4810982..4812214	+	410	161986378	nadR	SSON_4540	-	nicotinamide-nucleotide adenylyltransferase
4207	 55.28	0	4812521..4814188	-	555	74314825	yjjK	SSON_4541	-	putative ABC transporter ATP-binding protein
4208	 54.39	0	4814399..4816336	+	645	161986377	slt	SSON_4542	-	lytic murein transglycosylase
4209	 53.82	0	4816426..4816752	+	108	74314827	trpR	SSON_4543	-	Trp operon repressor
4210	 55.94	+1	4816837..4817358	-	173	161986376	yjjX	SSON_4544	-	NTPase
4211	 56.17	+1	4817410..4818057	+	215	74314829	gpmB	SSON_4545	-	phosphoglycerate mutase
4212	 53.10	0	4818054..4818923	-	289	74314830	rob	SSON_4546	-	right origin-binding protein
4213	 48.95	0	4819134..4819607	+	157	74314831	creA	SSON_4547	-	hypothetical protein
4214	 55.22	0	4819620..4820309	+	229	74314832	creB	SSON_4548	-	DNA-binding response regulator CreB
4215	 54.11	0	4820309..4821733	+	474	74314833	creC	SSON_4549	-	sensory histidine kinase CreC
4216	 49.52	0	4821791..4823143	+	450	74314834	creD	SSON_4550	-	hypothetical protein
4217	 51.05	0	4823203..4823919	-	238	74314835	arcA	SSON_4551	-	two-component response regulator
4218	 42.55	-2	4824015..4824155	+	46	74314836	yjjY	SSON_4552	-	hypothetical protein
4219	 50.22	0	4824555..4825241	+	228	74314837	lasT	SSON_4553	-	putative RNA methyltransferase
51.65	MEAN

4.20	STD DEV
