IslandPathversion 1.0

IslandPath Analysis: Shigella sonnei Ss046

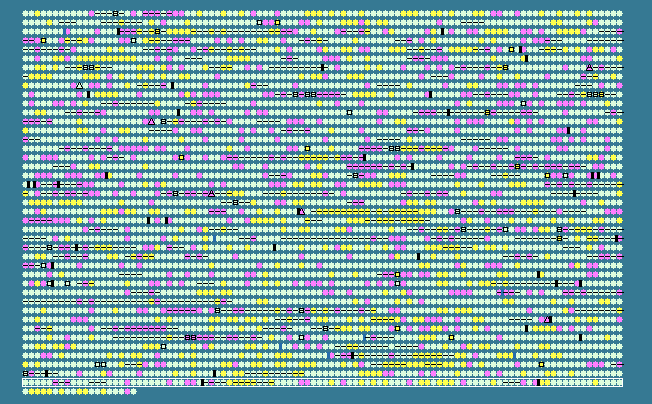

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4101	 52.65	0	4694078..4696774	+	898	74314719	mgtA	SSON_4423	-	magnesium-transporting ATPase MgtA
4102	 51.41	0	4696980..4697405	-	141	74314720	yjgF	SSON_4424	-	hypothetical protein
4103	 48.92	0	4697439..4697900	-	153	74314721	pyrI	SSON_4425	-	aspartate carbamoyltransferase regulatory subunit
4104	 53.74	0	4697913..4698848	-	311	74314722	pyrB	SSON_4426	-	aspartate carbamoyltransferase catalytic subunit
4105	 50.37	0	4698852..4698986	-	44	74314723	pyrL	SSON_4427	-	pyrBI operon leader peptide
4106	 46.97	-1	4699267..4699662	-	131	74314724	yjgH	SSON_4428	-	hypothetical protein
4107	 54.06	0	4699793..4700506	-	237	74314725	yjgI	SSON_4429	-	oxidoreductase
4108	 47.88	0	4700680..4700844	+	54	74314726	-	SSON_4430	-	hypothetical protein
4109	 49.41	0	4700916..4701170	+	84	74314727	yjgJ	SSON_4431	-	hypothetical protein
4110	 54.37	0	4701703..4702206	+	167	74314728	-	SSON_4433	-	IS1 ORF
4111	 54.37	0	4703330..4703833	-	167	74314729	-	SSON_4435	-	IS1 ORF
4112	 51.64	0	4705168..4706172	-	334	74314730	argI	SSON_4436	-	ornithine carbamoyltransferase subunit I
4113	 49.16	0	4706334..4706750	+	138	74314731	yjgD	SSON_4437	-	hypothetical protein
4114	 51.70	0	4706796..4707089	-	97	74314732	-	SSON_4438	-	hypothetical protein
4115	 53.70	0	4707325..4707702	-	125	74314733	-	SSON_4439	-	IS1 ORF
4116	 53.03	0	4707841..4709013	+	390
