IslandPath Analysis: Shigella sonnei Ss046

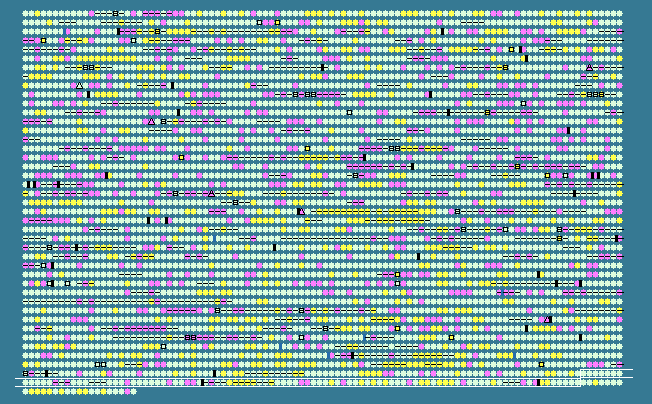

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.65   STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4094	 53.88	0	4684386..4685738	+	450	74314712	pmbA	SSON_4416	-	peptidase PmbA
4095	 51.16	0	4686006..4686308	+	100	74314713	cybC	SSON_4417	-	cytochrome b562
4096	 50.54	0	4686353..4686817	-	154	74314714	nrdG	SSON_4418	-	anaerobic ribonucleotide reductase-activating protein
4097	 53.86	0	4686975..4689113	-	712	74314715	nrdD	SSON_4419	-	anaerobic ribonucleoside triphosphate reductase
4098	 53.14	0	4689507..4691162	-	551	74314716	treC	SSON_4420	-	trehalose-6-phosphate hydrolase
4099	 54.71	0	4691212..4692633	-	473	74314717	treB	SSON_4421	-	trehalose(maltose)-specific PTS system components IIBC
4100	 53.80	0	4692752..4693699	-	315	74314718	treR	SSON_4422	-	trehalose repressor
4101	 52.65	0	4694078..4696774	+	898	74314719	mgtA	SSON_4423	-	magnesium-transporting ATPase MgtA
4102	 51.41	0	4696980..4697405	-	141	74314720	yjgF	SSON_4424	-	hypothetical protein
4103	 48.92	0	4697439..4697900	-	153	74314721	pyrI	SSON_4425	-	aspartate carbamoyltransferase regulatory subunit
4104	 53.74	0	4697913..4698848	-	311	74314722	pyrB	SSON_4426	-	aspartate carbamoyltransferase catalytic subunit
4105	 50.37	0	4698852..4698986	-	44	74314723	pyrL	SSON_4427	-	pyrBI operon leader peptide
4106	 46.97	-1	4699267..4699662	-	131	74314724	yjgH	SSON_4428	-	hypothetical protein
4107	 54.06	0	4699793..4700506	-	237	74314725	yjgI	SSON_4429	-	oxidoreductase
4108	 47.88	0	4700680..4700844	+	54	74314726	-	SSON_4430	-	hypothetical protein
4109	 49.41	0	4700916..470
