IslandPath Analysis: Shigella sonnei Ss046

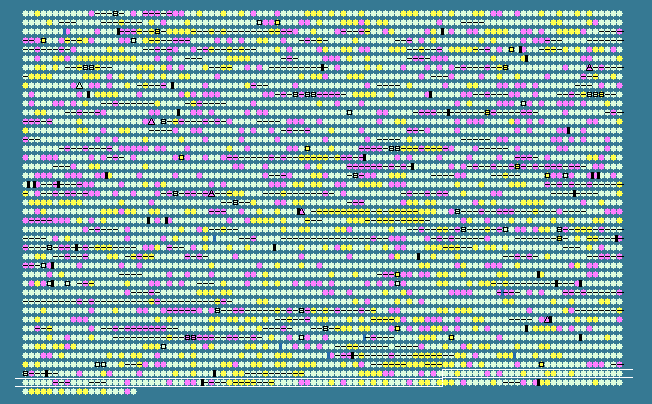

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4071	 52.51	0	4656882..4658294	+	470	74314689	cycA	SSON_4393	-	D-alanine/D-serine/glycine permease
4072	 52.64	0	4658339..4659001	-	220	74314690	ytfE	SSON_4394	-	cell morphogenesis/cell wall metabolism regulator
4073	 55.38	0	4659109..4660083	-	324	74314691	ytfF	SSON_4395	-	putative transmembrane subunit
4074	 53.89	0	4660182..4661042	-	286	74314693	ytfG	SSON_4397	-	putative oxidoreductase
4075	 52.02	0	4661041..4661511	+	156	74314692	ytfH	SSON_4396	-	hypothetical protein
4076	 49.43	0	4661629..4663572	-	647	74314694	cpdB	SSON_4398	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
4077	 55.06	0	4663762..4664502	+	246	74314695	cysQ	SSON_4399	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) 3'(2'),5'-bisphosphate nucleotidase
4078	 35.86	-2	4664714..4665625	+	303	74314696	ytfI	SSON_4400	-	hypothetical protein
4079	 52.25	0	4665715..4666269	-	184	74314697	ytfJ	SSON_4401	-	hypothetical protein
4080	 44.72	-1	4666555..4666800	+	81	74314698	ytfK	SSON_4402	-	hypothetical protein
4081	 50.82	0	4666880..4668223	-	447	74314699	ytfL	SSON_4403	-	putative transport protein
4082	 54.30	0	4668546..4669184	-	212	74314700	msrA	SSON_4404	-	methionine sulfoxide reductase A
4083	 53.06	0	4669390..4671123	+	577	74314701	ytfM	SSON_4405	-	hypothetical protein
4084	 55.19	0	4671120..4674899	+	1259	74314702	ytfN	SSON_4406	-	hypothetical protein
4085	 51.46	0	4674902..4675243	+	113	74314703	ytfP	SSON_4407	-	hypothetical protein
4086	 51.22	0	4675622..4676152	-	176	74314704	ppa	SSON_4408	-	inorganic pyrophosphatase
4087	 50.16	0	4676462..4677418	+	318	74314705	ytfQ	SSON_4409	-	putative LACI-type transcriptional regulator
4088	 55.49	0	4677558..4679060	+	500	74314706	ytfR	SSON_4410	-	putative ATP-binding component of a transport system
4089	 57.31	+1	4679071..4680096	+	341	74314707	ytfT	SSON_4411	-	putative transport system permease protein
4090	 53.09	0	4680107..4681078	+	323	74314708	yjfF	SSON_4412	-	inner membrane ABC transporter permease protein YjfF
4091	 51.35	0	4681111..4682109	-	332	74314709	fbp	SSON_4413	-	fructose-1,6-bisphosphatase
4092	 55.31	0	4682285..4683658	+	457	74314710	yjfG	SSON_4414	-	putative ligase
4093	 52.90	0	4683741..4684292	-	183	74314711	yjgA	SSON_4415	-	hypothetical protein
4094	 53.88	0	4684386..4685738	+	450	74314712	pmbA	SSON_4416	-	peptidase PmbA
4095	 51.16	0	4686006..4686308	+	100	74314713	cybC	SSON_4417	-	cytochrome b562
4096	 50.54	0	4686353..4686817	-	154	74314714	nrdG	SSON_4418	-	anaerobic ribonucleotide reductase-activating protein
4097	 53.86	0	4686975..4689113	-	712	74314715	nrdD	SSON_4419	-	anaerobic ribonucleoside triphosphate reductase
4098	 53.14	0	4689507..4691162	-	551	74314716	treC	SSON_4420	-	trehalose-6-phosphate hydrolase
4099	 54.71	0	4691212..4692633	-	473	74314717	treB	SSON_4421	-	trehalose(maltose)-specific PTS system components IIBC
4100	 53.80	0	4692752..4693699	-	315	74314718	treR	SSON_4422	-	trehalose repressor
4101	 52.65	0	4694078..4696774	+	898	74314719	mgtA	SSON_4423	-	magnesium-transporting ATPase MgtA
4102	 51.41	0	4696980..4697405	-	141	74314720	yjgF	SSON_4424	-	hypothetical protein
4103	 48.92	0	4697439..4697900	-	153	74314721	pyrI	SSON_4425	-	aspartate carbamoyltransferase regulatory subunit
4104	 53.74	0	4697913..4698848	-	311	74314722	pyrB	SSON_4426	-	aspartate carbamoyltransferase catalytic subunit
4105	 50.37	0	4698852..4698986	-	44	74314723	pyrL	SSON_4427	-	pyrBI operon leader peptide
4106	 46.97	-1	4699267..4699662	-	131	74314724	yjgH	SSON_4428	-	hypothetical protein
4107	 54.06	0	4699793..4700506	-	237	74314725	yjgI	SSON_4429	-	oxidoreductase
4108	 47.88	0	4700680..4700844	+	54	74314726	-	SSON_4430	-	hypothetical protein
4109	 49.41	0	4700916..4701170	+	84	74314727	yjgJ	SSON_4431	-	hypothetical protein
4110	 54.37	0	4701703..4702206	+	167	74314728	-	SSON_4433	-	IS1 ORF
4111	 54.37	0	4703330..4703833	-	167	74314729	-	SSON_4435	-	IS1 ORF
4112	 51.64	0	4705168..4706172	-	334	74314730	argI	SSON_4436	-	ornithine carbamoyltransferase subunit I
4113	 49.16	0	4706334..4706750	+	138	74314731	yjgD	SSON_4437	-	hypothetical protein
4114	 51.70	0	4706796..4707089	-	97	74314732	-	SSON_4438	-	hypothetical protein
4115	 53.70	0	4707325..4707702	-	125	74314733	-	SSON_4439	-	IS1 ORF
4116	 53.03	0	4707841..4709013	+	390	74314734	-	SSON_4440	-	IS21 ORF1
4117	 52.63	0	4709013..4709810	+	265	74314735	-	SSON_4441	-	IS21 ORF2
4118	 37.18	-2	4710282..4711478	+	398	74314736	yjgN	SSON_4442	-	hypothetical protein
4119	 55.11	0	4711534..4714389	-	951	74314737	valS	SSON_4443	-	valyl-tRNA synthetase
4120	 54.05	0	4714389..4714832	-	147	74314738	holC	SSON_4444	-	DNA polymerase III subunit chi
4121	 54.56	0	4714966..4716477	-	503	74314739	pepA	SSON_4445	-	leucyl aminopeptidase
4122	 54.86	0	4716744..4717844	+	366	74314740	yjgP	SSON_4446	-	hypothetical protein
4123	 54.14	0	4717841..4718926	+	361	74314741	yjgQ	SSON_4447	-	hypothetical protein
4124	 53.16	0	4719045..4720547	-	500	74314742	yjgR	SSON_4448	-	hypothetical protein
4125	 47.28	-1	4720625..4721599	-	324	74314743	idnR	SSON_4449	-	L-idonate transcriptional regulator
4126	 50.53	0	4721666..4722985	-	439	74314744	idnT	SSON_4450	-	L-idonate transporter
4127	 49.41	0	4723050..4723814	-	254	74314745	idnO	SSON_4451	-	gluconate 5-dehydrogenase
4128	 47.29	-1	4723838..4724869	-	343	74314746	idnD	SSON_4452	-	L-idonate 5-dehydrogenase
4129	 43.97	-1	4725086..4725649	+	187	74314747	idnK	SSON_4453	-	D-gluconate kinase
4130	 55.08	0	4725653..4726714	-	353	74314748	yjgB	SSON_4454	-	putative oxidoreductase
4131	 51.96	0	4727686..4728399	-	237	74314749	-	SSON_4456	-	IS600 ORF2
4132	 46.53	-1	4728540..4728842	-	100	74314750	-	SSON_4457	-	IS600 ORF1
4133	 54.52	0	4729449..4730288	+	279	74314751	-	SSON_4458	-	IS911 ORF2
4134	 53.78	0	4730804..4731571	-	255	74314752	fecE	SSON_4459	-	iron-dicitrate transporter ATP-binding subunit
4135	 59.77	+1	4731572..4732528	-	318	74314753	fecD	SSON_4460	-	iron-dicitrate transporter subunit FecD
4136	 60.86	+2	4732525..4733523	-	332	74314754	fecC	SSON_4461	-	iron-dicitrate transporter permease subunit
4137	 57.54	+1	4733520..4734428	-	302	74314755	fecB	SSON_4462	-	iron-dicitrate transporter substrate-binding subunit
4138	 58.58	+1	4734467..4736791	-	774	74314756	fecA	SSON_4463	-	outer membrane receptor
4139	 59.01	+1	4736878..4737831	-	317	74314757	fecR	SSON_4464	-	fec operon regulator FecR
4140	 54.41	0	4737828..4738349	-	173	74314758	fecI	SSON_4465	-	RNA polymerase sigma factor FecI
4141	 52.54	0	4738641..4738916	+	91	74314759	insA	SSON_4466	-	IS1 ORF1
4142	 56.12	+1	4738835..4739128	+	97	74314760	-	SSON_4467	-	IS1 ORF
4143	 48.57	0	4739129..4739338	+	69	74314761	-	SSON_4468	-	IS1 ORF
4144	 54.37	0	4739626..4740129	+	167	74314762	-	SSON_4469	-	IS1 ORF
4145	 54.37	0	4741449..4741952	+	167	74314763	-	SSON_4470	-	IS1 ORF
4146	 48.42	0	4742199..4743179	-	326	74314764	yjhS	SSON_4471	-	hypothetical protein
4147	 43.54	-1	4743244..4744458	-	404	74314765	yjhT	SSON_4472	-	hypothetical protein
4148	 42.84	-2	4744370..4745095	-	241	74314766	yjhA	SSON_4473	-	hypothetical protein
4149	 52.91	0	4745945..4746976	+	343	74314767	-	SSON_4474	-	IS630 orf
4150	 54.17	0	4747419..4747922	+	167	74314768	-	SSON_4475	-	IS1 ORF
4151	 54.68	0	4749389..4750573	+	394	74314769	uxuA	SSON_4477	-	mannonate dehydratase
4152	 57.22	+1	4750654..4752114	+	486	74314770	uxuB	SSON_4478	-	D-mannonate oxidoreductase
4153	 53.10	0	4752329..4753102	+	257	74314771	uxuR	SSON_4479	-	DNA-binding transcriptional repressor UxuR
4154	 40.07	-2	4753243..4754073	-	276	74314772	yjiC	SSON_4480	-	hypothetical protein
4155	 54.17	0	4754214..4754717	-	167	74314773	-	SSON_4481	-	IS1 ORF
4156	 48.19	0	4754982..4755755	+	257	74314774	-	SSON_4482	-	hypothetical protein
4157	 57.73	+1	4755734..4756930	-	398	74314775	-	SSON_4483	-	ISSfl2 ORF
4158	 49.37	0	4757338..4758054	+	238	74314776	-	SSON_4484	-	hypothetical protein
4159	 55.44	0	4758132..4758986	-	284	74314777	yjiA	SSON_4485	-	putative GTP-binding protein YjiA
4160	 50.49	0	4759099..4759302	-	67	74314778	yjiX	SSON_4486	-	hypothetical protein
4161	 55.77	0	4759352..4761517	-	721	74314779	yjiY	SSON_4487	-	putative carbon starvation protein
4162	 54.39	0	4761895..4762407	-	170	74314780	hpaC	SSON_4488	-	4-hydroxyphenylacetate 3-monooxygenase coupling protein
4163	 54.38	0	4762425..4763987	-	520	74314781	hpaB	SSON_4489	-	4-hydroxyphenylacetate 3-monooxygenase
4164	 52.10	0	4764928..4765641	-	237	74314782	-	SSON_4490	-	IS600 ORF2
4165	 46.53	-1	4765782..4766084	-	100	74314783	-	SSON_4491	-	IS600 ORF1
4166	 54.10	0	4766405..4767781	-	458	74314784	hpaX	SSON_4493	-	putative 4-hydroxyphenylacetate permease
4167	 60.58	+2	4767956..4768744	-	262	74314785	hpaI	SSON_4494	-	2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase (HHED aldolase)
4168	 58.58	+1	4768755..4769558	-	267	74314786	hpaH	SSON_4495	-	2-oxo-hept-3-ene-1,7-dioate hydratase
4169	 54.59	0	4769669..4770049	-	126	74314787	hpaF	SSON_4496	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
4170	 55.16	0	4770059..4770910	-	283	74314788	hpaD	SSON_4497	-	homoprotocatechuate dyoxygenase
51.65	MEAN

4.20	STD DEV
