IslandPath Analysis: Shigella sonnei Ss046

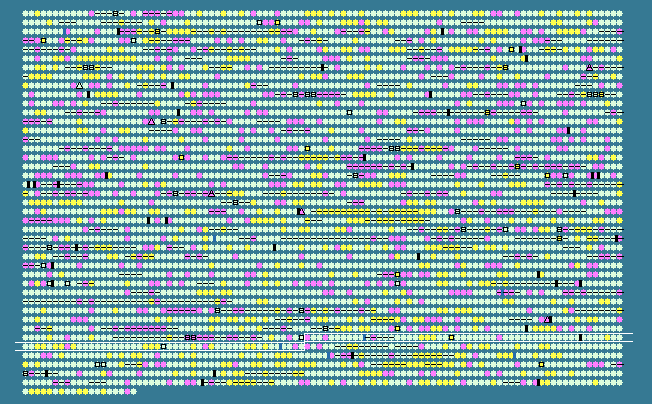

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3648	 45.02	-1	4134352..4135968	+	538	74314266	yieC	SSON_3915	-	putative receptor protein
3649	 53.90	0	4136256..4137602	+	448	74314267	-	SSON_3916	-	IS4 orf
3650	 51.52	0	4137761..4139629	+	622	74314268	trkD	SSON_3917	-	potassium transport protein Kup
3651	 47.15	-1	4139760..4140215	+	151	74314269	rbsD	SSON_3918	-	D-ribose pyranase
3652	 51.26	0	4140223..4141728	+	501	74314270	rbsA	SSON_3919	-	D-ribose transporter ATP binding protein
3653	 53.31	0	4141733..4142698	+	321	74314271	rbsC	SSON_3920	-	ribose ABC transporter permease protein
3654	 52.15	0	4143735..4144664	+	309	74314272	rbsK	SSON_3922	-	ribokinase
3655	 50.55	0	4144668..4145660	+	330	74314273	rbsR	SSON_3923	-	transcriptional repressor RbsR
3656	 49.30	0	4145626..4147053	-	475	74314274	yieO	SSON_3924	-	putative transport protein
3657	 49.73	0	4147076..4147624	-	182	74314275	yieP	SSON_3925	-	hypothetical protein
3658	 48.69	0	4153569..4154408	-	279	74314276	yifDA	SSON_3932	-	transcriptional regulator HdfR
3659	 47.79	0	4154527..4154865	+	112	74314277	yifE	SSON_3933	-	hypothetical protein
3660	 52.63	0	4155340..4156137	-	265	74314278	-	SSON_3934	-	IS21 ORF2
3661	 53.03	0	4156137..4157309	-	390	74314279	-	SSON_3935	-	IS21 ORF1
3662	 54.37	0	4157910..4158413	+	167	74314280	-	SSON_3936	-	IS1 ORF
3663	 52.53	0	4159675..4159773	+	32	74314281	ilvL	SSON_3938	-	ilvG operon leader peptide
3664	 54.40	0	4159913..4161559	+	548	74314282	ilvG	SSON_3939	-	acetolactate synthase 2 catalytic subunit
3665	 49.24	0	4161556..4161819	+	87	74314283	ilvM	SSON_3940	-	acetolactate synthase 2 regulatory subunit
3666	 54.84	0	4161839..4162768	+	309	74314284	ilvE	SSON_3941	-	branched-chain amino acid aminotransferase
3667	 56.29	+1	4162833..4164683	+	616	74314285	ilvD	SSON_3942	-	dihydroxy-acid dehydratase
3668	 58.51	+1	4164686..4166230	+	514	74314286	ilvA	SSON_3943	-	threonine dehydratase
3669	 57.61	+1	4166282..4167175	-	297	74314287	ilvY	SSON_3944	-	DNA-binding transcriptional regulator IlvY
3670	 54.47	0	4167325..4168800	+	491	74314288	ilvC	SSON_3945	-	ketol-acid reductoisomerase
3671	 50.71	0	4168887..4169168	-	93	74314289	ppiC	SSON_3946	-	peptidyl-prolyl cis-trans isomerase C
3672	 55.19	0	4169690..4170595	-	301	161986413	-	SSON_3947	-	insertion element IS2 transposase InsD
3673	 53.01	0	4170553..4170918	-	121	74314291	-	SSON_3948	-	insertion sequence 2 OrfA protein
3674	 53.86	0	4171369..4173390	+	673	74314292	rep	SSON_3949	-	ATP-dependent DNA helicase Rep
3675	 53.80	0	4173437..4174921	-	494	74314293	gppA	SSON_3950	-	guanosine pentaphosphate phosphohydrolase
3676	 52.05	0	4175055..4176320	-	421	74314294	rhlB	SSON_3951	-	ATP-dependent RNA helicase RhlB
3677	 50.00	0	4176397..4176780	+	127	74314295	trxA	SSON_3952	-	thioredoxin
3678	 49.02	0	4176921..4177022	+	33	74314296	rhoL	SSON_3953	-	putative Rho operon leader peptide
3679	 50.32	0	4177107..4178366	+	419	74314297	rho	SSON_3954	-	transcription termination factor Rho
3680	 41.10	-2	4178376..4178594	+	72	74314298	-	SSON_3955	-	hypothetical protein
3681	 49.37	0	4178606..4179709	+	367	74314299	rfe	SSON_3956	-	UDP-GlcNAc:undecaprenylphosphate GlcNAc-1-phosphate transferase
3682	 52.48	0	4179718..4180767	+	349	74314300	wzzE	SSON_3957	-	lipopolysaccharide biosynthesis protein WzzE
3683	 52.26	0	4180781..4181953	+	390	74314301	wecB	SSON_3958	-	UDP-N-acetyl glucosamine-2-epimerase
3684	 53.92	0	4181950..4183212	+	420	74314302	wecC	SSON_3959	-	UDP-N-acetyl-D-mannosamine dehydrogenase
3685	 53.65	0	4183212..4184279	+	355	74314303	rffG	SSON_3960	-	dTDP-glucose 4,6-dehydratase
3686	 55.10	0	4184298..4185179	+	293	74314304	rffH	SSON_3961	-	glucose-1-phosphate thymidylyltransferase
3687	 54.03	0	4185286..4185831	+	181	74314305	wecD	SSON_3962	-	TDP-fucosamine acetyltransferase
3688	 54.64	0	4185836..4186966	+	376	74314306	wecE	SSON_3963	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
3689	 53.40	0	4186968..4188218	+	416	74314307	wzxE	SSON_3964	-	putative cytochrome
3690	 52.41	0	4188215..4189294	+	359	74314308	yifM	SSON_3965	-	4-alpha-L-fucosyltransferase
3691	 52.70	0	4189291..4190643	+	450	74314309	wecF	SSON_3966	-	putative entero common antigen polymerase
3692	 53.44	0	4190646..4191386	+	246	74314310	wecG	SSON_3967	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
3693	 53.10	0	4191577..4192962	+	461	74314311	yifK	SSON_3968	-	putative transport protein YifK
3694	 51.38	0	4193646..4194881	+	411	74314312	aslB	SSON_3973	-	putative arylsulfatase regulator
3695	 54.47	0	4195788..4196984	-	398	74314313	hemY	SSON_3974	-	putative protoheme IX biogenesis protein
3696	 54.19	0	4196987..4198204	-	405	74314314	hemX	SSON_3975	-	putative uroporphyrinogen III C-methyltransferase
3697	 53.04	0	4198226..4198966	-	246	74314315	hemD	SSON_3976	-	uroporphyrinogen-III synthase
3698	 55.45	0	4198963..4199925	-	320	74314316	hemC	SSON_3977	-	porphobilinogen deaminase
3699	 52.10	0	4200291..4202837	+	848	74314317	cyaA	SSON_3978	-	adenylate cyclase
3700	 53.58	0	4202877..4203197	-	106	74314319	cyaY	SSON_3980	-	frataxin-like protein
3701	 50.00	0	4202988..4203473	+	161	74314318	-	SSON_3979	-	hypothetical protein
3702	 52.45	0	4203744..4203947	+	67	74314320	yifL	SSON_3981	-	hypothetical protein
3703	 55.15	0	4203984..4204808	+	274	161986412	dapF	SSON_3982	-	diaminopimelate epimerase
3704	 55.93	+1	4204805..4205512	+	235	74314322	yigA	SSON_3983	-	hypothetical protein
3705	 54.40	0	4205509..4206405	+	298	74314323	xerC	SSON_3984	-	site-specific tyrosine recombinase XerC
3706	 55.23	0	4206405..4207121	+	238	74314324	yigB	SSON_3985	-	flavin mononucleotide phosphatase
3707	 57.56	+1	4207205..4209367	+	720	74314325	uvrD	SSON_3986	-	DNA-dependent helicase II
3708	 47.07	-1	4209422..4210324	-	300	74314326	-	SSON_3987	-	hypothetical protein
3709	 55.70	0	4210914..4211624	+	236	74314327	-	SSON_3988	-	IS4 orf
3710	 51.49	0	4211621..4212259	+	212	74314328	-	SSON_3989	-	IS4 orf
3711	 52.89	0	4212978..4213928	+	316	74314329	corA	SSON_3991	-	magnesium/nickel/cobalt transporter CorA
3712	 53.97	0	4215095..4215598	-	167	74314330	-	SSON_3992	-	IS1 ORF
3713	 50.45	0	4217384..4218271	-	295	74314331	rarD	SSON_3993	-	hypothetical protein
3714	 53.42	0	4218323..4218790	-	155	161986411	yigI	SSON_3994	-	hypothetical protein
3715	 50.69	0	4218955..4219824	+	289	74314333	pldA	SSON_3995	-	phospholipase A
3716	 54.92	0	4219957..4221786	+	609	74314334	recQ	SSON_3996	-	ATP-dependent DNA helicase RecQ
3717	 52.57	0	4222099..4222467	+	122	74314335	yigJ	SSON_3997	-	hypothetical protein
3718	 50.84	0	4222529..4222945	-	138	74314336	yigK	SSON_3998	-	hypothetical protein
3719	 53.57	0	4223260..4224282	+	340	74314337	pldB	SSON_3999	-	lysophospholipase L2
3720	 51.94	0	4224290..4225090	+	266	74314338	yigL	SSON_4000	-	putative sugar phosphatase
3721	 55.33	0	4225166..4226065	+	299	74314339	yigM	SSON_4001	-	hypothetical protein
3722	 56.50	+1	4225953..4226906	-	317	74314340	metR	SSON_4002	-	regulator for metE and metH
3723	 55.39	0	4227142..4229403	+	753	74314341	metE	SSON_4003	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
3724	 55.08	0	4230427..4231332	+	301	161986410	-	SSON_4004	-	insertion element IS2 transposase InsD
3725	 54.35	0	4232801..4233490	-	229	74314343	ysgA	SSON_4005	-	putative hydrolase
3726	 53.81	0	4233875..4234636	+	253	74314344	udp	SSON_4006	-	uridine phosphorylase
3727	 52.80	0	4234777..4236204	+	475	74314345	yigN	SSON_4007	-	DNA recombination protein RmuC
3728	 51.98	0	4236299..4237054	+	251	74314346	ubiE	SSON_4008	-	ubiquinone/menaquinone biosynthesis methyltransferase
3729	 55.78	0	4237068..4237673	+	201	74314347	yigP	SSON_4009	-	hypothetical protein
3730	 49.66	0	4237670..4239310	+	546	74314348	ubiB	SSON_4010	-	putative ubiquinone biosynthesis protein UbiB
3731	 45.19	-1	4239347..4239658	+	103	74314349	tatA	SSON_4011	-	twin argininte translocase protein A
3732	 55.43	0	4239662..4240177	+	171	161986409	-	SSON_4012	-	sec-independent translocase
3733	 51.48	0	4240180..4240956	+	258	74314351	yigU	SSON_4013	-	TatABCE protein translocation system subunit
3734	 54.34	0	4240986..4241780	+	264	74314352	tatD	SSON_4014	-	DNase TatD
3735	 49.28	0	4241777..4242265	-	162	74314353	rfaH	SSON_4015	-	transcriptional activator RfaH
3736	 53.95	0	4242432..4243925	+	497	74314354	yigC	SSON_4016	-	3-octaprenyl-4-hydroxybenzoate decarboxylase
3737	 51.85	0	4243972..4244673	+	233	74314355	fre	SSON_4017	-	FMN reductase
3738	 58.42	+1	4244863..4246026	-	387	74314356	fadA	SSON_4018	-	3-ketoacyl-CoA thiolase
3739	 55.30	0	4246036..4248225	-	729	74314357	fadB	SSON_4019	-	multifunctional fatty acid oxidation complex subunit alpha
3740	 53.38	0	4248415..4249746	+	443	74314358	pepQ	SSON_4020	-	proline dipeptidase
3741	 55.18	0	4249743..4250360	+	205	74314359	yigZ	SSON_4021	-	hypothetical protein
3742	 52.75	0	4250399..4251850	+	483	74314360	trkH	SSON_4022	-	potassium transporter
3743	 50.73	0	4251862..4252407	+	181	74314361	hemG	SSON_4023	-	protoporphyrinogen oxidase
3744	 48.54	0	4257898..4258410	-	170	74314362	mobB	SSON_4028	-	molybdopterin-guanine dinucleotide biosynthesis protein B
3745	 49.91	0	4258407..4258991	-	194	74314363	mobA	SSON_4029	-	molybdopterin-guanine dinucleotide biosynthesis protein A
3746	 45.93	-1	4259061..4259330	+	89	74314364	yihD	SSON_4030	-	hypothetical protein
3747	 48.63	0	4259407..4260393	+	328	74314365	yihE	SSON_4031	-	serine/threonine protein kinase
51.65	MEAN

4.20	STD DEV
