IslandPathversion 1.0

IslandPath Analysis: Shigella sonnei Ss046

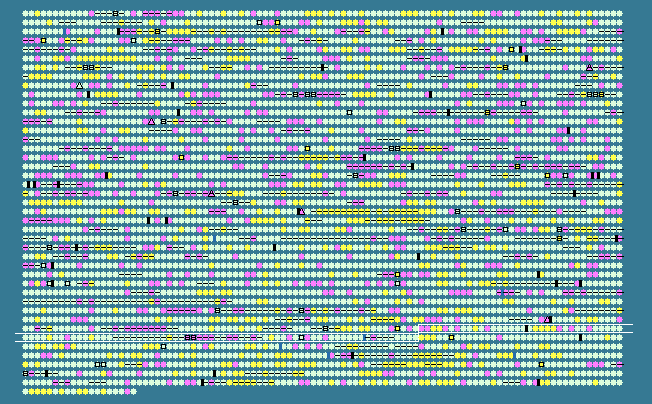

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3567	 46.79	-1	4020521..4021516	-	331	74314185	yiaH	SSON_3827	-	hypothetical protein
3568	 48.00	0	4021691..4021990	+	99	74314186	-	SSON_3828	-	putative lipoprotein
3569	 55.81	0	4022085..4022996	+	303	74314187	glyQ	SSON_3829	-	glycyl-tRNA synthetase subunit alpha
3570	 55.36	0	4023006..4025075	+	689	74314188	glyS	SSON_3830	-	glycyl-tRNA synthetase subunit beta
3571	 34.64	-2	4025401..4025553	+	50	74314189	yiaZ	SSON_3831	-	small toxic polypeptide
3572	 48.36	0	4025741..4025953	-	70	74314190	cspA	SSON_3832	-	major cold shock protein
3573	 44.33	-1	4026234..4026524	-	96	74314191	yiaG	SSON_3833	-	putative transcriptional regulator
3574	 49.70	0	4026838..4027668	+	276	74314192	yiaF	SSON_3834	-	hypothetical protein
3575	 51.59	0	4027718..4028692	-	324	161986416	yiaE	SSON_3835	-	putative dehydrogenase
3576	 58.48	+1	4028796..4029455	-	219	74314194	yiaD	SSON_3836	-	putative outer membrane lipoprotein
3577	 52.10	0	4029574..4030287	-	237	74314195	-	SSON_3837	-	IS600 ORF2
3578	 46.53	-1	4030429..4030731	-	100	74314196	-	SSON_3838	-	IS600 ORF1
3579	 54.50	0	4030990..4033191	+	733	74314197	bisC	SSON_3839	-	biotin sulfoxide reductase
3580	 52.15	0	4033160..4033600	-	146	74314198	yiaC	SSON_3840	-	hypothetical protein
3581	 49.82	0	4033597..4034160	-	187	74314199	tag	SSON_3841	-	3-methyl-adenine DNA glycosylase I
3582	 49.79	0	4034312..4035016	+	234
