IslandPath Analysis: Shigella sonnei Ss046

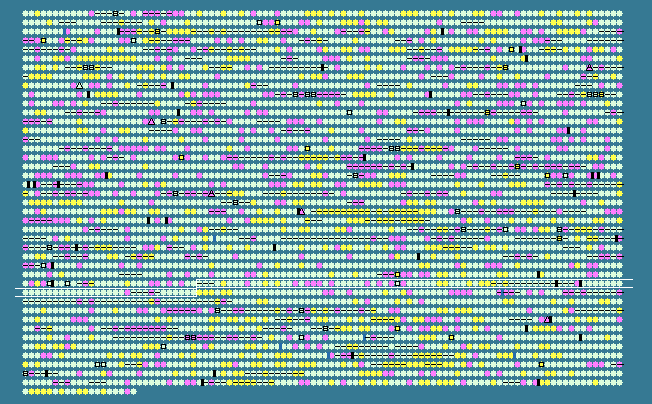

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.65   STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3030	 53.91	0	3433146..3433529	+	127	74313648	yqjB	SSON_3255	-	hypothetical protein
3031	 48.44	0	3433661..3434044	+	127	74313649	yqjC	SSON_3256	-	hypothetical protein
3032	 54.25	0	3434082..3434387	+	101	74313650	yqjD	SSON_3257	-	hypothetical protein
3033	 52.84	0	3434390..3434794	+	134	74313651	yqjE	SSON_3258	-	hypothetical protein
3034	 57.00	+1	3434784..3435083	+	99	74313652	-	SSON_3259	-	hypothetical protein
3035	 49.28	0	3435179..3435661	+	160	74313653	yqjF	SSON_3260	-	hypothetical protein
3036	 51.28	0	3435731..3436744	+	337	74313654	yqjG	SSON_3261	-	putative transferase
3037	 51.37	0	3437009..3437374	+	121	74313655	yhaH	SSON_3262	-	putative cytochrome
3038	 44.54	-1	3437616..3437972	+	118	74313656	yhaI	SSON_3263	-	putative cytochrome
3039	 53.28	0	3439024..3439725	+	233	74313657	yhaK	SSON_3265	-	hypothetical protein
3040	 52.05	0	3439742..3439912	+	56	74313658	yhaL	SSON_3266	-	hypothetical protein
3041	 56.45	+1	3440046..3441356	-	436	74313659	yhaNM	SSON_3267	-	hypothetical protein
3042	 50.53	0	3441384..3442715	-	443	74313660	yhaO	SSON_3268	-	putative transport system permease protein
3043	 55.92	+1	3442990..3443817	-	275	74313661	yhaP	SSON_3269	-	putative L-serine dehydratase
3044	 52.10	0	3444426..3444878	-	150	74313662	yhaR	SSON_3270	-	hypothetical protein
3045	 53.03	0	3444829..3447123	-	764
