IslandPathversion 1.0

IslandPath Analysis: Shigella sonnei Ss046

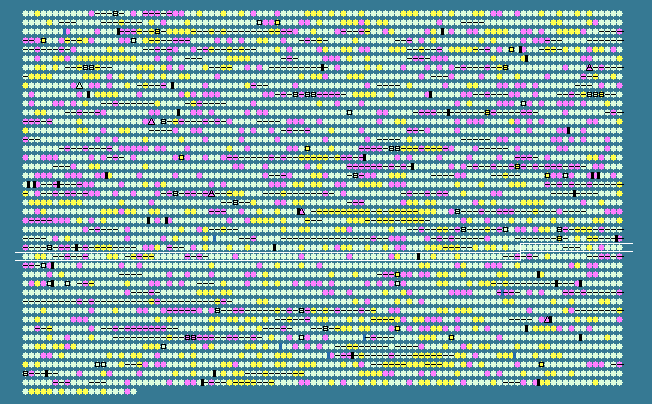

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.65 STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2684	 53.25	0	3025073..3025981	+	302	74313302	-	SSON_2884	-	putative dehydrogenase
2685	 54.87	0	3025978..3027240	+	420	74313303	-	SSON_2885	-	hypothetical protein
2686	 53.52	0	3027237..3027875	+	212	74313304	ygbL	SSON_2886	-	putative aldolase
2687	 51.35	0	3027880..3028656	+	258	74313305	ygbM	SSON_2887	-	hypothetical protein
2688	 51.87	0	3028745..3030109	+	454	74313306	-	SSON_2888	-	inner membrane permease YgbN
2689	 51.86	0	3030203..3031195	-	330	74313307	rpoS	SSON_2889	-	RNA polymerase sigma factor RpoS
2690	 52.28	0	3031258..3032397	-	379	74313308	nlpD	SSON_2890	-	lipoprotein NlpD
2691	 53.59	0	3032537..3033163	-	208	74313309	pcm	SSON_2891	-	protein-L-isoaspartate O-methyltransferase
2692	 55.12	0	3033157..3033918	-	253	74313310	surE	SSON_2892	-	stationary phase survival protein SurE
2693	 52.10	0	3033899..3034948	-	349	74313311	truD	SSON_2893	-	tRNA pseudouridine synthase D
2694	 53.75	0	3034945..3035424	-	159	74313312	ispF	SSON_2894	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2695	 55.27	0	3035424..3036134	-	236	74313313	ispD	SSON_2895	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2696	 51.92	0	3036153..3036464	-	103	74313314	ftsB	SSON_2896	-	cell division protein FtsB
2697	 48.15	0	3036658..3036981	-	107	74313315	ygbE	SSON_2897	-	hypothetical protein
2698	 51.98	0	3037031..3037636	-	201	74313316	cysC	SSON_2898	-	adenylylsulfate kinase
2699	 54.48	0	3037636..3039063	-	475
