IslandPath Analysis: Shigella sonnei Ss046

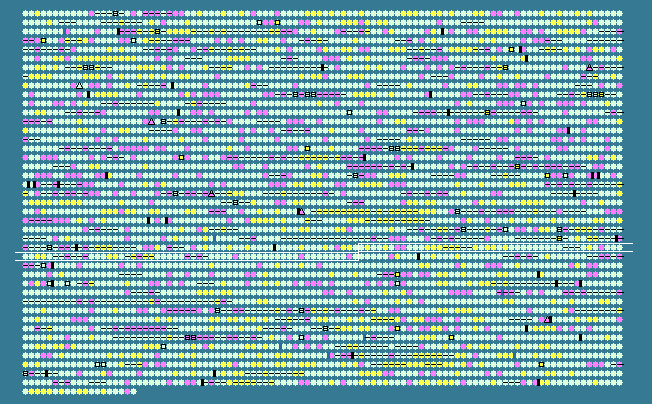

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.65   STD DEV: 4.20
Shigella sonnei Ss046, complete genome - 1..4825265
4219 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2657	 54.23	0	2995150..2996283	+	377	74313275	ygbD	SSON_2855	-	nitric oxide reductase
2658	 57.92	+1	2996411..2998663	-	750	74313276	hypF	SSON_2856	-	transcriptional regulatory protein
2659	 52.08	0	2998816..2999343	-	175	74313277	hydN	SSON_2857	-	electron transport protein HydN
2660	 52.86	0	2999491..3000504	-	337	74313278	ascG	SSON_2858	-	ascBF operon repressor
2661	 56.38	+1	3000761..3002218	+	485	74313279	ascF	SSON_2859	-	cellobiose/arbutin/salicin-specific PTS system components IIBC
2662	 52.14	0	3002227..3003651	+	474	74313280	ascB	SSON_2860	-	cryptic 6-phospho-beta-glucosidase
2663	 46.43	-1	3003765..3004184	-	139	74313281	-	SSON_2861	-	hypothetical protein
2664	 42.31	-2	3004181..3004492	-	103	74313282	-	SSON_2862	-	putative cytoplasmic protein
2665	 50.65	0	3004654..3005427	-	257	74313283	-	SSON_2863	-	putative periplasmic or exported protein
2666	 53.08	0	3005452..3005922	-	156	74313284	hycI	SSON_2864	-	hydrogenase 3 maturation protease
2667	 52.80	0	3005915..3006325	-	136	74313285	hycH	SSON_2865	-	HycH
2668	 56.64	+1	3006322..3007089	-	255	74313286	hycG	SSON_2866	-	hydrogenase activity
2669	 55.99	+1	3007089..3007631	-	180	74313287	hycF	SSON_2867	-	formate hydrogenlyase complex iron-sulfur subunit
2670	 57.07	+1	3007641..3009338	-	565	74313288	hycE	SSON_2868	-	large subunit of hydrogenase 3
2671	 58.33	+1	3009356..3010279	-	307	74313289	hycD	SSON_2869	-	membrane-spanning protein of hydrogenase 3 (part of FHL comp
